A reliable power distribution system does far more than move electricity from a utility to a factory. It must deliver the right voltage, maintain stable operation under changing loads, protect equipment, manage reactive power, and control harmonic distortion created by modern nonlinear loads.
For industrial facilities such as steel plants, petrochemical sites, automotive factories, paper mills, textile operations, and building-material production lines, distribution reliability directly affects throughput, energy cost, equipment life, and safety. As more facilities adopt variable-frequency drives, rectifiers, welding equipment, UPS systems, automated production lines, and other power-electronic equipment, power factor correction and harmonic control have become central parts of electrical-distribution design—not optional add-ons.
This guide explains how industrial power distribution systems work, where power-quality problems originate, and how capacitor banks, detuned reactors, and harmonic-control solutions can support a more stable and efficient electrical network.

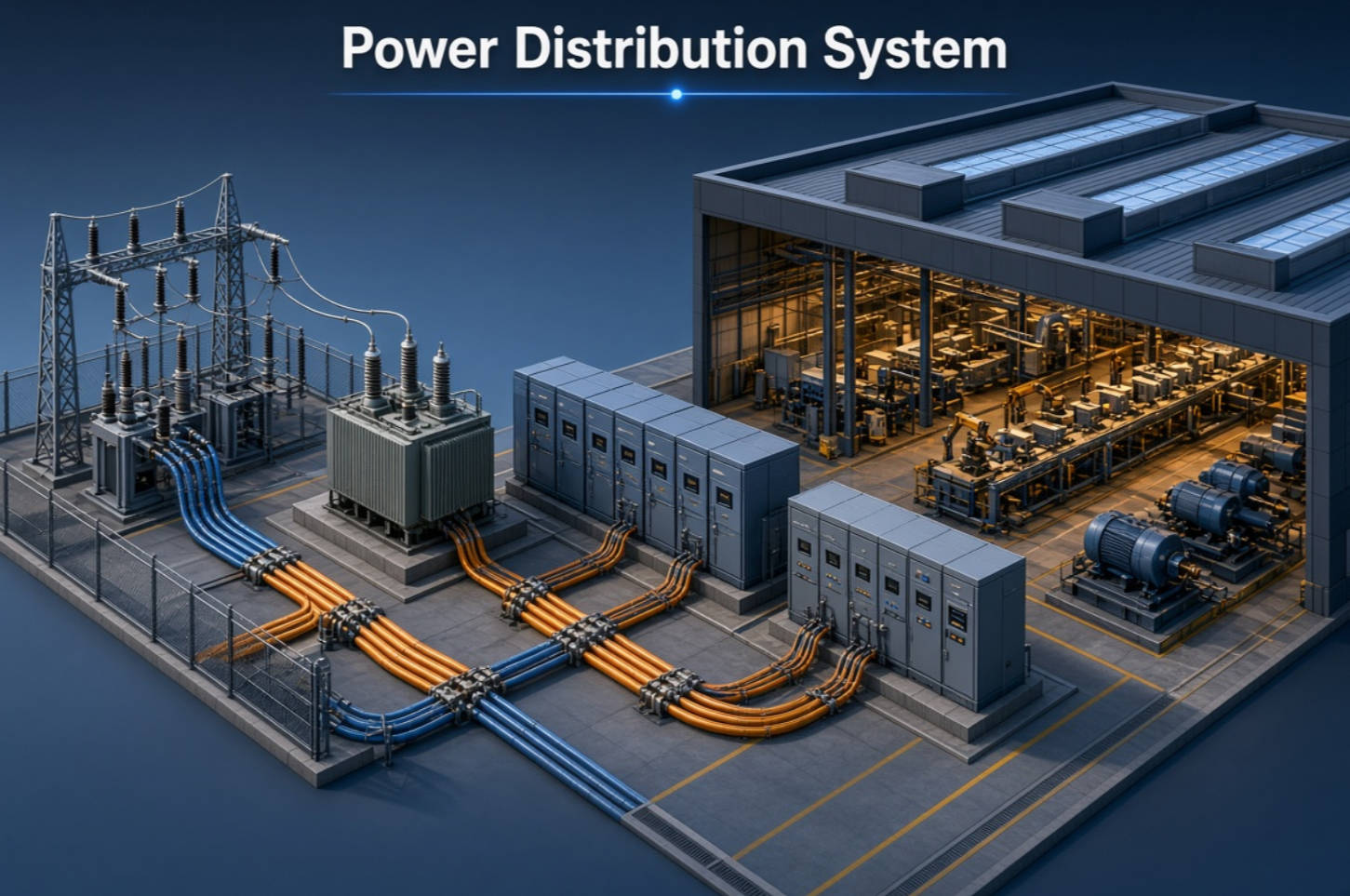

A power distribution system is the network of equipment that receives electrical energy from the utility grid and delivers it safely and reliably to end-use loads.
In an industrial environment, the system normally begins at the utility connection point and continues through transformers, medium-voltage switchgear, low-voltage switchboards, cables, protection devices, motor-control centers, and final equipment loads.
Its core responsibilities include:
- Transforming voltage to suitable levels
- Transmitting electrical energy over distance
- Switching and isolating circuits
- Protecting people and equipment during faults
- Maintaining voltage within an acceptable operating range
- Supplying reactive power efficiently
- Limiting harmonic distortion
- Supporting continuity during load changes, faults, and maintenance
At a high level, electrical energy travels from generation to transmission, then distribution, and finally to the facility's internal electrical network. The industrial user is responsible for ensuring that the internal network can handle its particular load profile without creating excessive power-quality problems.
Electricity is commonly generated at centralized power plants, then transmitted over long distances at high voltage before being stepped down for regional and local use. High-voltage transmission is economically important because transmitting the same power at a higher voltage requires lower current.
For three-phase systems:
P=sqrt(3)×V×I×PF
Where:
- P is active power in watts
- V is line-to-line voltage
- I is line current
- PF is power factor
When voltage increases for the same power demand, current decreases. Because conductor heating losses are related to the square of current:
Ploss=I2R
lower current can significantly reduce resistive losses in conductors. This is why utilities step voltage up for long-distance transmission and step it down closer to consumers.
A typical electricity-delivery path includes the following stages.
| Distribution Stage | Main Purpose | Typical Equipment |
|---|---|---|
| Generation | Produces electrical energy | Generators, turbines, power plants |
| Transmission substation | Raises voltage and manages transmission switching | Step-up transformers, breakers, protection relays |
| High-voltage transmission | Moves bulk power over long distances | Overhead lines, towers, cables |
| Distribution substation | Reduces voltage for local networks | Step-down transformers, switchgear, protection systems |
| Medium-voltage distribution | Delivers power to industrial and commercial areas | Feeders, reclosers, sectionalizers |
| Plant incoming supply | Transfers utility power into the facility | MV switchgear, metering, protection relays |
| Internal facility distribution | Supplies production lines and building loads | Transformers, LV panels, MCCs, busways, capacitor banks |
The U.S. Department of Energy notes that long-distance electricity delivery is affected by line losses and voltage drop, which are important design considerations throughout transmission and distribution networks. Distribution equipment, especially transformers, also contributes to system losses and must be selected and operated carefully.
Substations are essential control points within the electrical grid. They transform voltage levels, connect or disconnect circuits, coordinate protection, monitor operating conditions, and provide routing flexibility during maintenance or system disturbances.
Transmission substations commonly operate at high-voltage or extra-high-voltage levels. Distribution substations reduce voltage for local feeders that serve industrial zones, commercial facilities, municipalities, and residential customers.
For an industrial customer, the utility may provide power at medium voltage, such as 10 kV, 11 kV, 13.8 kV, 20 kV, or 33 kV, depending on regional infrastructure and facility demand.
Transformers use electromagnetic induction to change voltage levels. A plant may receive medium-voltage electricity and use one or more transformers to supply 400 V, 415 V, 480 V, 690 V, or other low-voltage systems used by machinery and building loads.
Transformers do not create power. Instead, they exchange voltage and current while maintaining approximately the same apparent power, apart from losses.
In industrial settings, transformer selection must account for more than rated kVA. Engineers should consider:
- Continuous and peak load demand
- Motor starting currents
- Harmonic current exposure
- Ambient temperature
- Cooling method
- Future capacity expansion
- Short-circuit withstand capability
- Energy-efficiency requirements
- Harmonic derating requirements
A transformer carrying significant harmonic current may experience higher eddy-current losses, additional heating, insulation stress, and reduced service life. Therefore, transformer sizing should be coordinated with the facility's harmonic study—not based solely on nameplate demand.
Switchgear controls, protects, and isolates electrical circuits. It includes circuit breakers, fuses, disconnect switches, contactors, protective relays, meters, surge-protection devices, and control systems.
A well-designed protection scheme should identify faults quickly and isolate only the affected section. This approach reduces the chance that a local fault shuts down an entire production facility.
Key protection functions may include:
- Overcurrent protection
- Short-circuit protection
- Earth-fault protection
- Differential protection
- Overvoltage and undervoltage protection
- Frequency protection
- Thermal protection
- Motor protection
- Arc-flash detection
In modern plants, intelligent electronic devices and power meters also provide valuable data on voltage, current, demand, power factor, total harmonic distortion, unbalance, and energy consumption.
After voltage is transformed and controlled at the plant entrance, power travels through feeders, cables, busbar systems, and distribution panels to individual loads.
Common industrial loads include:
- Induction motors
- Pumps and fans
- Compressors
- Conveyors
- Crushers and mills
- Electric furnaces
- Welding machines
- Rectifiers
- Variable-frequency drives
- PLC systems
- CNC machines
- HVAC equipment
- Lighting systems
- UPS and data equipment
Traditional motor loads are usually inductive and tend to reduce power factor. Modern electronic loads may also introduce harmonic currents. Together, these conditions can make industrial power distribution more complex than a simple voltage-and-current calculation.
Power factor describes how effectively a facility converts supplied apparent power into useful active power.
A power factor close to 1.0 means most of the electrical capacity is being used for productive work. A low power factor means the system must carry more current to deliver the same active power.
For example, a facility with a 500 kW load operating at 0.70 power factor requires more apparent power and higher current than the same facility operating at 0.95 power factor. Higher current can increase cable losses, transformer loading, voltage drop, and demand charges, depending on the local utility tariff.

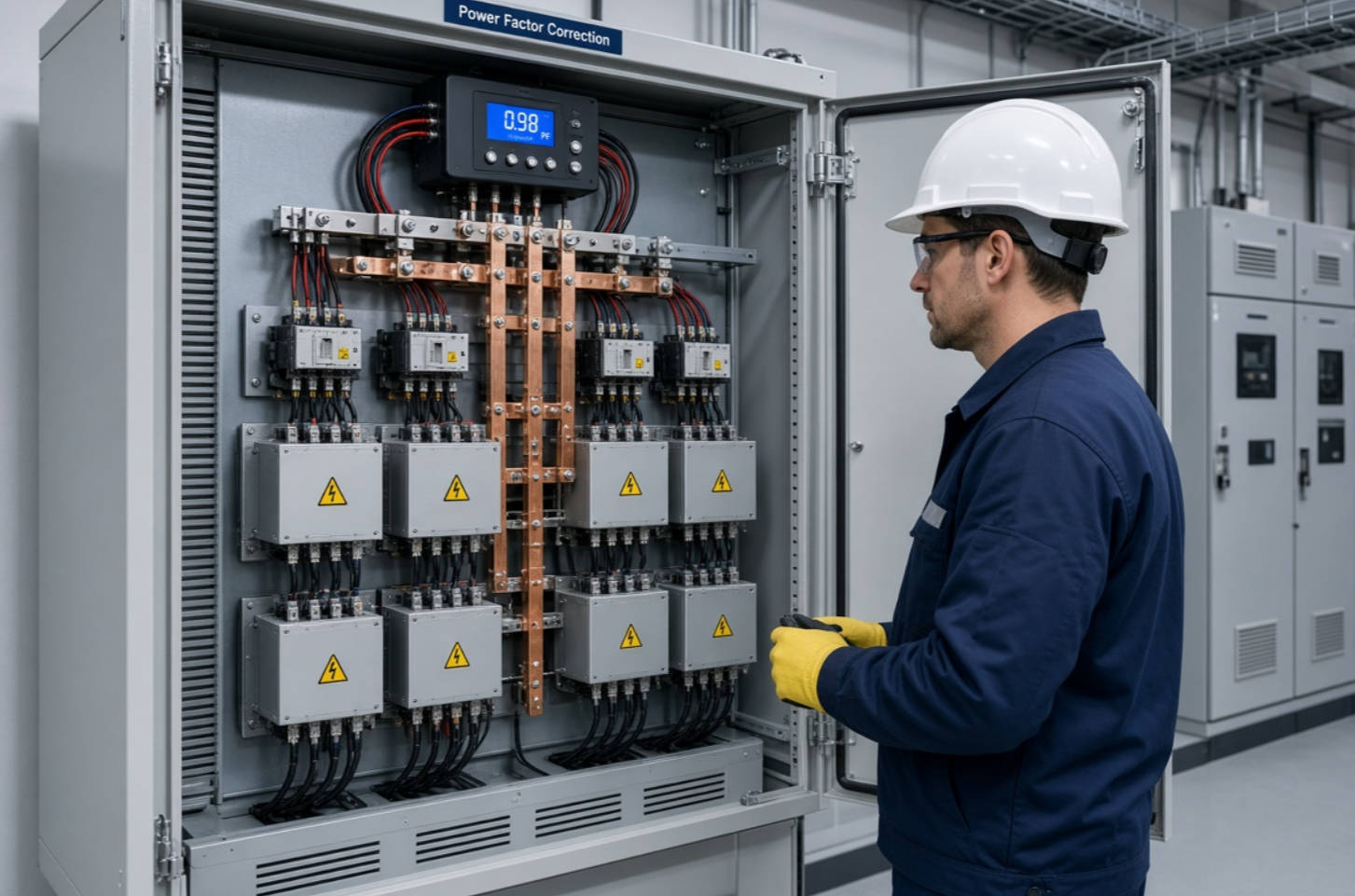

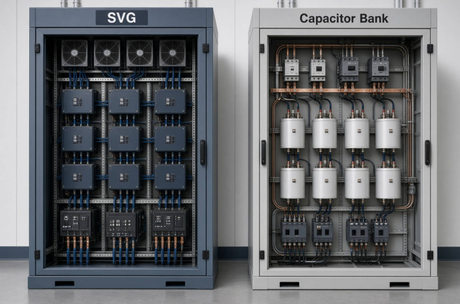

Power capacitors provide reactive power locally. This reduces the reactive current that must travel through upstream transformers, feeders, and utility connections.
A plant-engineering guide from Eaton illustrates that improving power factor to 95% can reduce apparent power demand from 142 kVA to 105 kVA in a representative example—a 35% reduction in apparent power. Actual results depend on the facility's load profile, operating hours, tariff structure, and installed equipment.
Low power factor may be present when a facility experiences:
- Utility penalties or reactive-power charges
- High kVA demand compared with kW demand
- Heavily loaded transformers despite moderate active power
- Excessive current in feeders
- Noticeable voltage drop during motor starts
- Limited capacity for additional production equipment
- Frequent use of motors, pumps, fans, compressors, or inductive furnaces
However, simply installing capacitor banks is not always the right answer. If the facility also has large nonlinear loads, an unprotected capacitor bank can interact with system inductance and harmonic currents.
This is where reactors and harmonic-control design become essential.
Harmonics are voltage or current components at frequencies that are integer multiples of the fundamental frequency. In a 50 Hz system, common harmonic orders include the 5th, 7th, 11th, and 13th. In a 60 Hz system, the principle is the same, but the fundamental frequency differs.
Nonlinear loads draw current in pulses rather than in a smooth sinusoidal waveform. These pulses distort the electrical waveform and can create harmonic currents throughout the distribution system.
Typical harmonic-producing loads include:
- Variable-frequency drives
- Soft starters
- Rectifiers and DC power supplies
- UPS systems
- LED lighting drivers
- Arc furnaces
- Welding systems
- Battery chargers
- Data-center equipment
- Automated manufacturing equipment
Harmonic problems may lead to transformer overheating, overloaded neutral conductors, capacitor failure, nuisance tripping, relay misoperation, voltage distortion, shortened equipment life, and unexpected process interruptions.
IEEE 519-2022 provides guidance for harmonic control in industrial and commercial power systems. Its steady-state voltage- and current-distortion limits apply at the user's point of common coupling, or PCC, rather than treating every individual device as having one universal limit.
Capacitor banks improve power factor by supplying reactive power. However, capacitors have lower impedance at higher frequencies. In a system with harmonics, they may attract harmonic current and form resonance conditions with the upstream transformer and network inductance.
This can cause severe overcurrent, overheating, capacitor swelling, fuse operation, contactor damage, and premature failure.

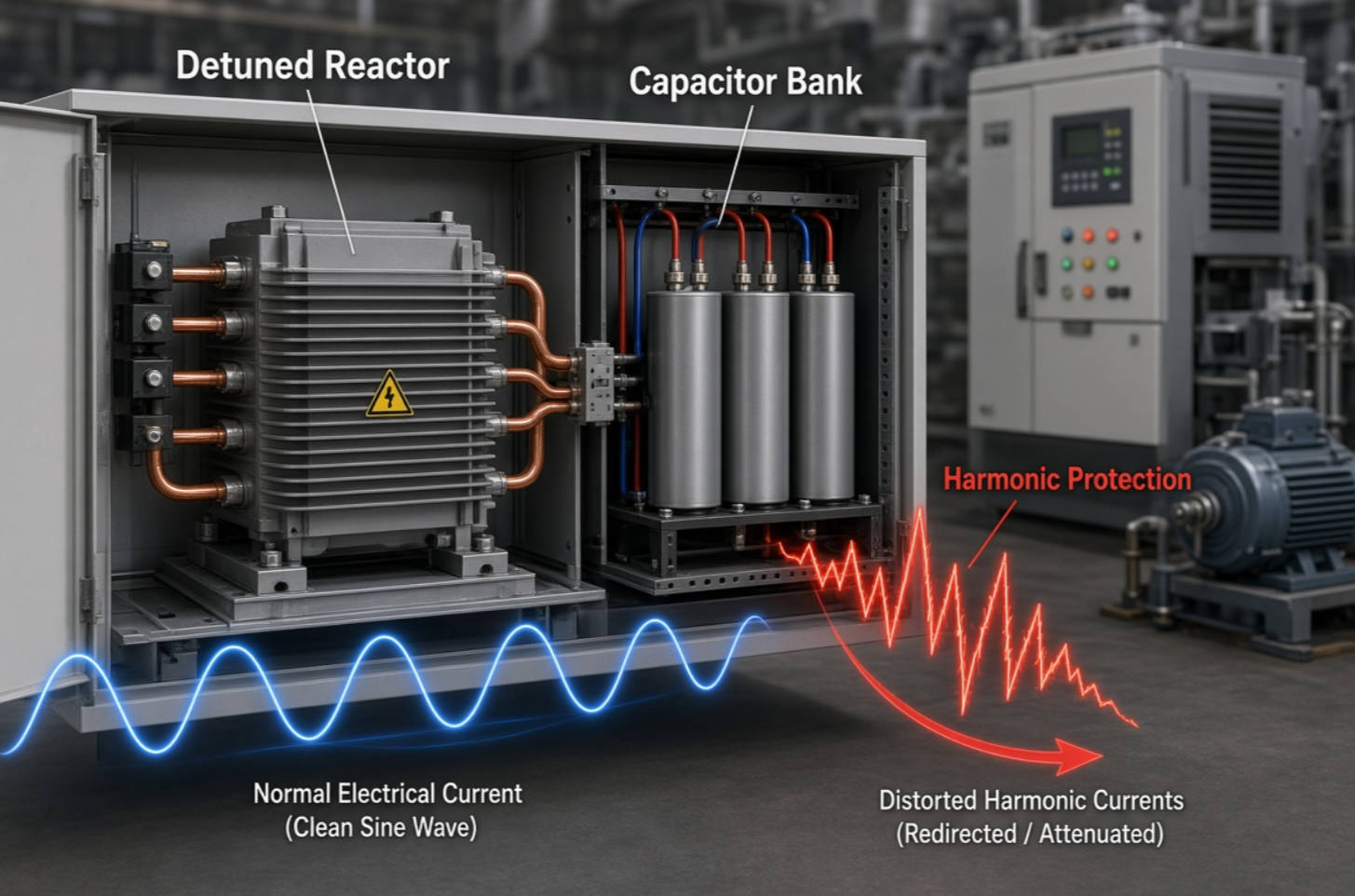

A detuned reactor is installed in series with a capacitor bank to shift the system resonance away from dominant harmonic frequencies. In practical terms, the reactor helps protect the capacitor bank and reduces the risk that the compensation system amplifies existing harmonics.
A properly designed capacitor-reactor system can deliver several benefits:
- Power factor correction
- Reduced reactive-power demand
- Lower risk of harmonic resonance
- Improved capacitor reliability
- Reduced voltage distortion in suitable applications
- Lower transformer harmonic loading above the filter turning point
- Better utilization of electrical infrastructure
Eaton describes a shunt harmonic filter as a power-factor-correction capacitor combined with a series iron-core reactor. It can provide reactive-power compensation, prevent harmonic overvoltages associated with parallel resonance, and reduce harmonic-related stress when correctly designed.

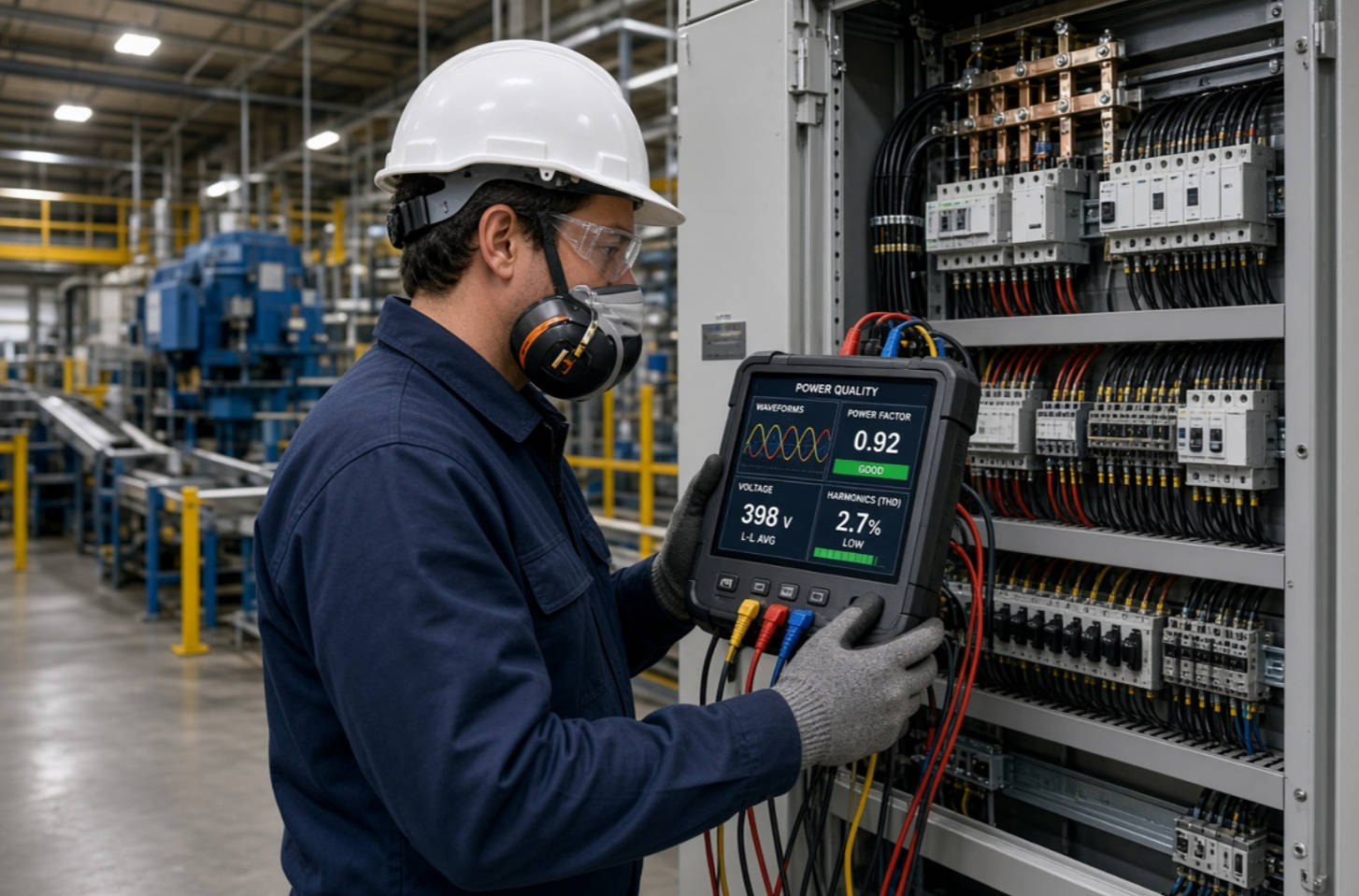

Before selecting capacitor banks, reactors, or harmonic filters, industrial users should complete a structured assessment. A product should never be selected solely from reactive-power demand or a historical power-factor penalty.
Record values at the incoming supply, main busbar, transformer secondary, and major nonlinear-load feeders.
Important measurements include:
- kW, kVAR, and kVA
- Displacement and true power factor
- Demand profile
- Voltage THD
- Current THD
- Individual harmonic orders
- Voltage unbalance
- Transformer loading
- Neutral current
- Capacitor-bank operating status
- Switching transients
Measurements should represent normal, peak, low-load, and changing production conditions.
List major nonlinear loads and determine when they operate. A variable-frequency drive operating continuously may create a different harmonic profile from a welding line or furnace that cycles throughout the day.
Review:
- Drive quantity and ratings
- Rectifier topology
- UPS capacity
- Arc or induction heating equipment
- Existing capacitor-bank location
- Generator operation
- Renewable-energy inverters
- Expansion plans
A harmonic study should assess the interaction between the utility source, transformer impedance, cables, existing capacitors, and nonlinear loads.
This step helps answer critical design questions:
- Is a standard capacitor bank acceptable?
- Is a detuned reactor required?
- Which detuning ratio is appropriate?
- Is a tuned passive filter needed?
- Would an active harmonic filter be more suitable?
- Can the proposed system meet site-specific PCC objectives?
The appropriate solution depends on the facility—not just the capacitor-bank kVAR value.
| Facility Condition | Potential Solution Direction |
|---|---|
| Mostly linear motor loads and low harmonic distortion | Automatic power factor correction capacitor bank |
| Moderate nonlinear-load penetration | Detuned capacitor bank with series reactors |
| Strong dominant harmonic orders | Tuned passive harmonic filter |
| Variable or complex harmonic conditions | Active harmonic filter, often combined with reactive-power compensation |
| Rapidly changing reactive-power demand | Fast-switching capacitor system or dynamic compensation solution |
| Large, fluctuating industrial loads | Customized power-quality study and engineered solution |
Commissioning should include measured verification—not only visual inspection.
Confirm that the installed system achieves:
- Target power factor
- Acceptable capacitor current and temperature
- Stable switching performance
- No harmful resonance condition
- Acceptable harmonic distortion at the PCC
- Proper protection coordination
- Reliable operation across different production conditions
Power distribution challenges vary by sector. A solution designed for a textile mill may not be suitable for a petrochemical process unit or an automotive welding line.
Steel mills, rolling mills, electric arc furnaces, crushers, and heavy-duty motor systems can create rapid load changes, low power factor, voltage fluctuation, and substantial harmonics.
These facilities often require robust compensation equipment, harmonic studies, thermal design, and strong protection coordination.
Petrochemical facilities depend on continuous operation. Pumps, compressors, large motors, drives, and critical process-control systems require stable voltage and reliable electrical infrastructure.
Downtime can be extremely expensive. Therefore, power-quality design should focus on redundancy, fault tolerance, monitoring, and lifecycle reliability.
Automotive plants commonly use robotic welding, conveyor systems, paint-shop equipment, compressed-air systems, machine tools, and automated assembly lines.
Their electrical systems can include significant nonlinear loads and rapidly changing demand. A coordinated capacitor-and-reactor solution can help reduce reactive-power demand while protecting the distribution system from resonance risk.
Paper machines, spinning equipment, extrusion lines, kilns, crushers, and process drives often operate for long periods. Even a modest improvement in electrical-system efficiency and capacity utilization can produce meaningful operational benefits over time.
For these sectors, engineers should evaluate not only the utility bill but also voltage stability, production uptime, equipment heating, and future expansion capacity.
From an industrial power-quality perspective, the best project outcome is rarely the lowest initial equipment price. It is the solution that continues operating reliably under the actual electrical conditions of the facility.
When specifying a power factor correction or harmonic-control system, prioritize the following principles:
- Design from measured data, not assumptions
- Size capacitors based on load profile and target power factor
- Check harmonic conditions before installing capacitors
- Consider detuned reactors where nonlinear loads are significant
- Evaluate capacitor voltage, current, temperature, and overload capability
- Match switching technology to load variation
- Coordinate protection with upstream and downstream equipment
- Leave capacity for future production expansion
- Use monitoring to validate long-term performance
- Work with a manufacturer that can provide engineering and product support
DINGNUO ELECTRIC CO., Ltd. supports customers with power capacitors, reactors, reactive-power compensation systems, and harmonic-control solutions for industrial and municipal applications. For complex installations, the most effective approach is to combine field measurements, harmonic analysis, product selection, and commissioning verification into one coordinated project process.
A power distribution system is not merely a chain of transformers and cables. It is a living electrical network that must respond to changing loads, harmonic sources, production schedules, and expansion requirements.
For industrial users, improving power factor without understanding harmonics can create new risks. Conversely, a properly engineered solution using capacitor banks, detuned reactors, and appropriate harmonic-control equipment can improve capacity utilization, reduce unnecessary current, protect assets, and support stable production.
If your facility is facing power-factor penalties, capacitor failures, transformer overheating, high harmonic distortion, voltage instability, or limited capacity for expansion, contact DINGNUO ELECTRIC CO., Ltd. for a professional power-quality evaluation and a customized reactive-power compensation and harmonic-control solution.
Power transmission moves bulk electricity over long distances at high voltage. Power distribution delivers electricity at lower voltage from substations to industrial, commercial, and residential users.
Transformers change voltage levels. Utilities step voltage up for efficient long-distance transmission and step it down near customers so electricity can be used safely by distribution networks and industrial equipment.
Inductive loads are a common cause. Motors, pumps, fans, compressors, transformers, and induction equipment require reactive power, which can lower the facility's overall power factor.
They can reduce reactive-power demand and may help avoid utility power-factor penalties or demand-related charges. Actual savings depend on the utility tariff, load profile, operating conditions, and the existing power factor.
Reactors can reduce resonance risk between capacitor banks and the electrical system. In harmonic-rich networks, detuned reactors help protect capacitors from excessive harmonic current and can support more stable operation.
The point of common coupling, or PCC, is the electrical interface between the user's installation and the supplying utility or another connected user. IEEE 519 evaluates steady-state harmonic voltage and current distortion at this point.
A power-quality measurement and harmonic study are the best starting points. Warning signs include recurring capacitor failures, transformer overheating, nuisance tripping, high THD readings, abnormal neutral current, and problems after installing VFDs, UPS systems, or rectifiers.
1. U.S. Department of Energy. "Electricity Transmission: A Primer." Available at: [https://www.energy.gov/oe/articles/electricity-transmission-primer] [energy]
2. U.S. Department of Energy. "Electricity Distribution System Baseline Report." Available at: [https://www.energy.gov/sites/default/files/2017/01/f34/Electricity%20Distribution%20System%20Baseline%20Report.pdf] [energy]
3. IEEE Standards Association. "IEEE 519-2022: IEEE Standard for Harmonic Control in Electric Power Systems." Available at: [https://standards.ieee.org/ieee/519/10677/] [standards.ieee]
4. IEEE Xplore. "IEEE Std 519-2022—IEEE Standard for Harmonic Control in Electric Power Systems." Available at: [https://ieeexplore.ieee.org/document/9848440/versions] [ieeexplore.ieee]
5. Eaton. "Power Factor Correction: A Guide for the Plant Engineer." Available at: [https://www.eaton.com/content/dam/eaton/products/industrialcontrols-drives-automation-sensors/enclosed-control-solutions/canada/eaton-power-factor-correction-guide-plant-engineer-technical-data-sa02607001e-ca.pdf] [eaton]
6. Original article reviewed for content reconstruction: "How Power Distribution Systems Work?" Available at: [https://www.ytelect.com/blog/how-power-distribution-systems-work_b250] [ytelect]
