Choosing between a filter capacitor and a compensation capacitor is not simply a question of buying more kVAR. In industrial power systems, the right choice depends on the facility's reactive-power demand, harmonic spectrum, nonlinear-load ratio, transformer capacity, switching pattern, and power-quality targets.
For industrial plants with mainly conventional inductive loads, a compensation capacitor is often the most efficient way to improve power factor and reduce reactive-power charges. However, where VFDs, rectifiers, UPS systems, welding machines, arc furnaces, inverters, or other nonlinear loads are present, a standard capacitor bank may face harmonic overload or resonance. In these cases, a filter capacitor solution—usually combined with a detuned reactor or tuned harmonic filter—can provide safer power factor correction while helping control harmonic-related risks.
At DINGNUO ELECTRIC CO., Ltd., we work with industrial users that require both reliable reactive-power compensation and practical harmonic-control solutions. The key is not to treat filter capacitors and compensation capacitors as interchangeable products. They serve related, but different, roles in an industrial power-quality strategy.
A compensation capacitor, also called a power factor correction capacitor, is designed primarily to supply reactive power locally. It offsets the inductive reactive power consumed by motors, transformers, pumps, compressors, fans, welding equipment, and other inductive loads.
In an AC electrical system, many industrial loads need magnetizing current to operate. This reactive current does not perform useful mechanical work, but it still flows through cables, transformers, switchgear, and utility networks. As a result, the facility may experience:
- A lower power factor
- Higher line current
- Increased cable and transformer losses
- Reduced available electrical capacity
- Possible utility power-factor penalties
- Higher voltage drop during heavy-load periods
A compensation capacitor generates capacitive reactive power, measured in kVAR. When properly selected and switched, it reduces the amount of reactive power that must be supplied by the upstream power source.
The basic relationship is often expressed as:
Qc=P(tanφ1−tanφ2)
Where:
- Qc = required capacitor reactive power in kVAR
- P = active power in kW
- φ1 = original power-factor angle
- φ2 = target power-factor angle
For example, a facility consuming 500 kW may require a substantial capacitor-bank capacity if its power factor needs to improve from 0.75 to 0.95. The exact kVAR requirement should be based on real operating measurements, not assumptions based only on motor nameplates.
Compensation capacitors are widely used in facilities where the electrical load is predominantly linear and inductive, such as:
- Water pumps and booster stations
- HVAC and ventilation systems
- Standard motor-driven production lines
- Textile machinery with conventional motors
- Paper manufacturing equipment
- Building-material production plants
- Transformer secondary distribution systems
- Municipal infrastructure projects
- General industrial motor-control centers
A properly configured automatic power factor correction capacitor bank can switch capacitor steps in and out according to changing load demand. This is especially valuable in factories with varying production shifts, intermittent large motors, or seasonal loads.

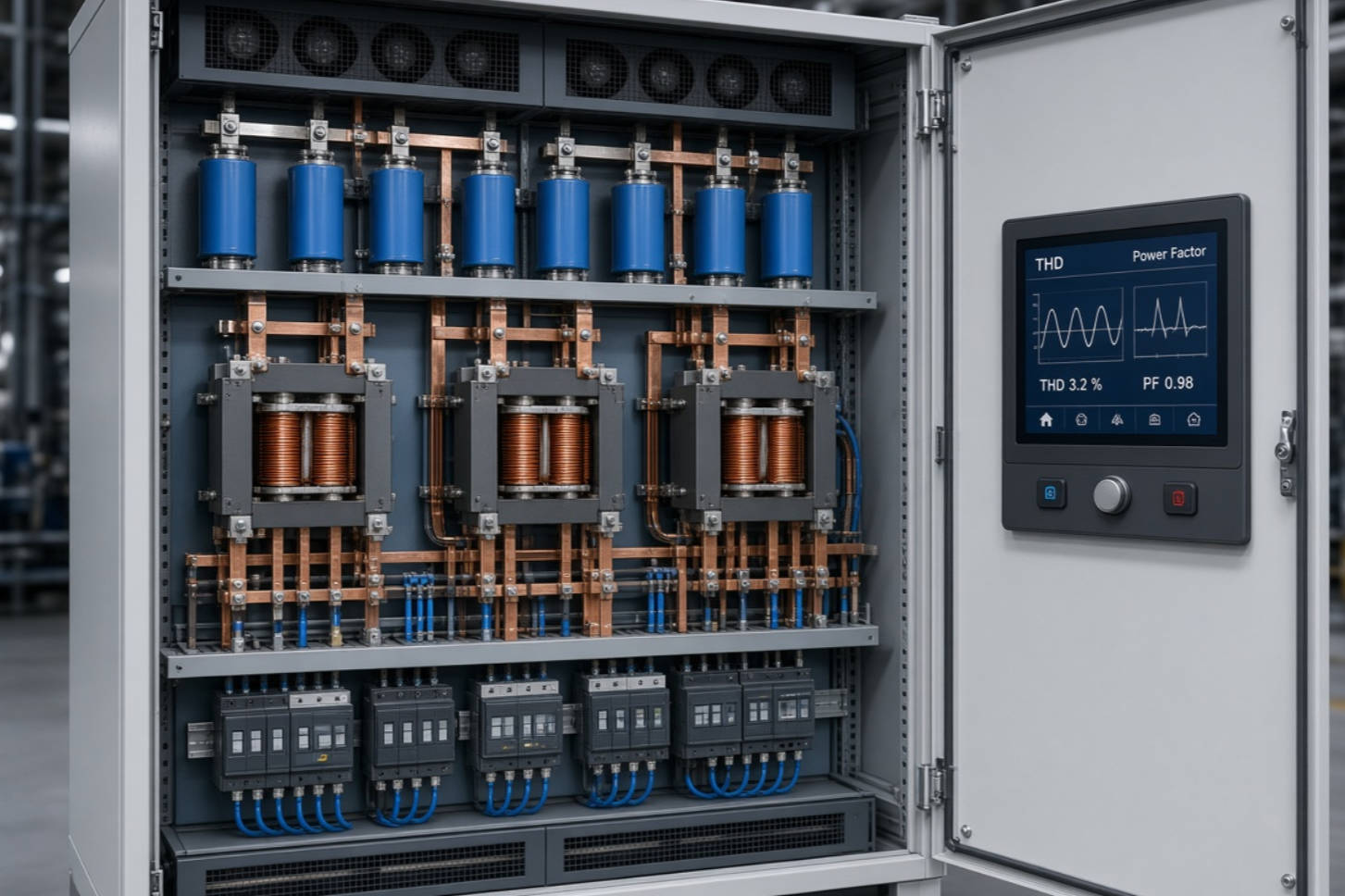

A filter capacitor is a capacitor designed or applied as part of a harmonic-filtering system. In industrial power-quality projects, the phrase may refer to a capacitor used in a detuned capacitor bank, a tuned passive harmonic filter, or another filter arrangement designed to manage harmonic currents.
The capacitor itself stores and releases electrical energy. However, the filtering function is normally achieved by combining the capacitor with an inductive reactor. Together, the reactor and capacitor form an LC circuit with a specific electrical response.
This configuration can help:
- Prevent harmonic-current amplification
- Reduce the risk of resonance between capacitors and the supply system
- Limit excessive capacitor current
- Reduce capacitor thermal stress
- Improve reliability in systems with nonlinear loads
- Support reactive-power compensation while addressing harmonic conditions
- Reduce the probability of premature capacitor-bank failure
In practical industrial systems, a filter capacitor solution may be either:
1. A detuned capacitor bank, designed mainly to prevent resonance and protect the capacitor bank from harmonics.
2. A tuned harmonic filter, designed to provide a low-impedance path for a specific harmonic order, such as the 5th or 7th harmonic.
3. A broader passive harmonic filtering system, engineered around the site's measured harmonic spectrum and electrical network characteristics.
A harmonic filter can still provide reactive-power compensation at the fundamental frequency. The difference is that it must also be designed around harmonic behavior, reactor impedance, tuning frequency, capacitor voltage rating, thermal performance, and system resonance risks. Harmonic filters provide the same fundamental-frequency reactive compensation as capacitors, while their resonance point is typically designed below expected harmonics in the system.

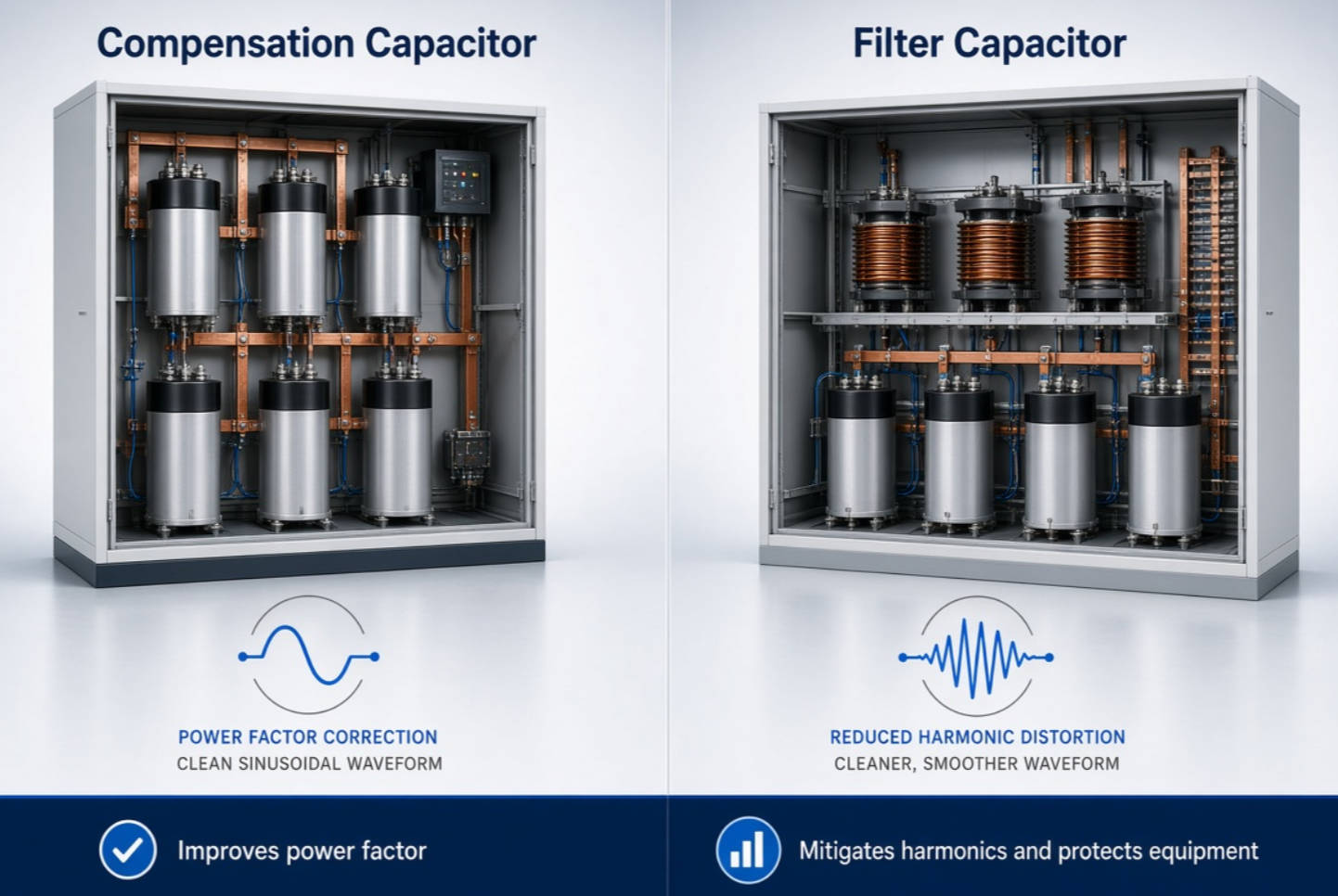

The most important distinction is simple:
- A compensation capacitor primarily improves power factor.
- A filter capacitor system improves power factor while helping manage harmonics and resonance risks.
| Comparison Factor | Compensation Capacitor | Filter Capacitor / Harmonic Filter Capacitor |
|---|---|---|
| Primary purpose | Improve power factor and supply reactive power | Improve power factor while controlling harmonic effects |
| Typical configuration | Capacitor only, fixed bank, or automatic capacitor bank | Capacitor combined with reactor or engineered filter circuit |
| Best application | Systems with low harmonic distortion | Systems with VFDs, rectifiers, UPS, inverters, welders, furnaces, and other nonlinear loads |
| Harmonic resistance | Limited unless specifically designed for harmonic duty | Higher when correctly rated and used with a compatible reactor |
| Resonance risk | Can be significant in harmonic-rich networks | Designed to reduce resonance or target specific harmonic frequencies |
| Installation cost | Generally lower | Generally higher due to reactors, engineering, and protection requirements |
| Design complexity | Relatively simple | Requires harmonic measurement and system analysis |
| Maintenance focus | Capacitor condition, contactors, fuses, controller steps | Capacitor condition, reactor temperature, tuning, harmonic current, protection coordination |
| Typical customer goal | Avoid low power factor and reactive-power penalties | Avoid capacitor failure, resonance, harmonic overload, and unstable power quality |
A standard compensation capacitor is not automatically unsuitable for every industrial site with electronics. The question is whether the harmonic environment is low enough for safe operation. Schneider Electric guidance notes that standard capacitors can be considered when nonlinear loads represent less than 10% of the total installed load, while reactors should be associated with capacitors when harmonic effects become significant.
Harmonics are voltage or current components at frequencies that are integer multiples of the fundamental system frequency. In a 50 Hz system, the 5th harmonic is 250 Hz, the 7th harmonic is 350 Hz, and so on. In a 60 Hz system, the 5th harmonic is 300 Hz.
Many modern industrial loads produce harmonics, including:
- Variable frequency drives
- Servo drives
- DC motor drives
- Rectifiers and converters
- UPS systems
- Data-center power supplies
- LED lighting drivers
- Arc furnaces
- Induction heating equipment
- Welding machines
- Battery chargers
- Solar inverters and energy-storage converters
Capacitors have lower impedance at higher frequencies. This means harmonic currents can be attracted toward capacitor banks. If a capacitor bank and the upstream system inductance create a resonance point near a dominant harmonic frequency, harmonic voltage and current can rise sharply.
This can cause:
- Capacitor overheating
- Bulging capacitor cases
- Fuse operation
- Frequent capacitor-bank tripping
- Contactor damage
- Reactor overheating
- Nuisance breaker trips
- Transformer heating
- Elevated voltage distortion
- Reduced equipment life
- Unexpected production interruptions
IEEE 519-2022 establishes objectives for controlling harmonic distortion in electrical power systems. It is commonly used as an engineering reference when assessing harmonic performance at a facility's point of common coupling.
The critical point is that adding a capacitor bank changes the electrical characteristics of the network. A facility may have acceptable harmonic levels before capacitor installation but experience resonance after a capacitor bank is energized. This is why a power-factor correction project should include harmonic evaluation whenever nonlinear loads are material.
A conventional compensation capacitor bank offers several important benefits:
- Lower initial investment than a reactor-protected filter bank
- Straightforward installation in low-harmonic systems
- Improved power factor and reduced reactive-power demand
- Reduced current in upstream cables and transformers
- Better utilization of transformer capacity
- Potential reduction in utility reactive-energy charges
- Automatic step switching for fluctuating industrial loads
- Compact panel design for many low-voltage applications
For a factory with mostly direct-on-line motors, basic pumps, fans, compressors, and minimal drive-based loads, an automatic compensation capacitor bank can be a highly economical solution.
The limitations become more significant in harmonic-rich installations:
- They can amplify existing harmonic conditions if resonance occurs.
- They may be exposed to excessive RMS current.
- They may require higher voltage and current ratings than standard designs.
- Frequent switching can shorten contactor life if switching equipment is not selected correctly.
- They are not a substitute for a harmonic study.
- A capacitor-only approach may fail in facilities with high VFD or rectifier penetration.
IEC guidance for low-voltage capacitor banks specifically notes that connecting power factor correction equipment to a system containing harmonics can shorten equipment life; it identifies suitable series detuning reactors as a way to mitigate those damaging effects.
A filter capacitor solution is normally the better choice when harmonics cannot be ignored.
Its advantages include:
- Improved capacitor protection in harmonic-rich electrical systems
- Lower risk of parallel resonance with the upstream network
- Reduced harmonic-current circulation into capacitor steps
- Better long-term reliability of reactive-power compensation equipment
- More stable operation in factories using VFDs and rectifiers
- Ability to combine power factor correction with harmonic mitigation
- Potentially improved voltage waveform quality when properly engineered
- Greater suitability for critical industrial and municipal applications
A detuned reactor is commonly selected so the LC resonance frequency remains below the dominant harmonic frequency. For example, if the 5th harmonic is dominant, detuning below 225 Hz in a 50 Hz system is one practical principle described in Schneider Electric technical guidance.
Filter capacitor systems require more engineering discipline:
- Higher initial equipment cost
- More panel space and weight due to reactors
- Additional heat generation
- Greater attention to ventilation and thermal design
- Need for accurate harmonic measurement and system modeling
- Possible changes in performance when the electrical system expands
- Need to coordinate capacitor voltage, reactor impedance, kVAR output, and switching equipment
A poorly designed filter bank can still underperform. For example, a tuned filter selected without understanding the site's actual harmonic spectrum may not target the dominant issue. Similarly, using a detuned reactor percentage based only on generic rules rather than measured operating conditions can create avoidable risk.

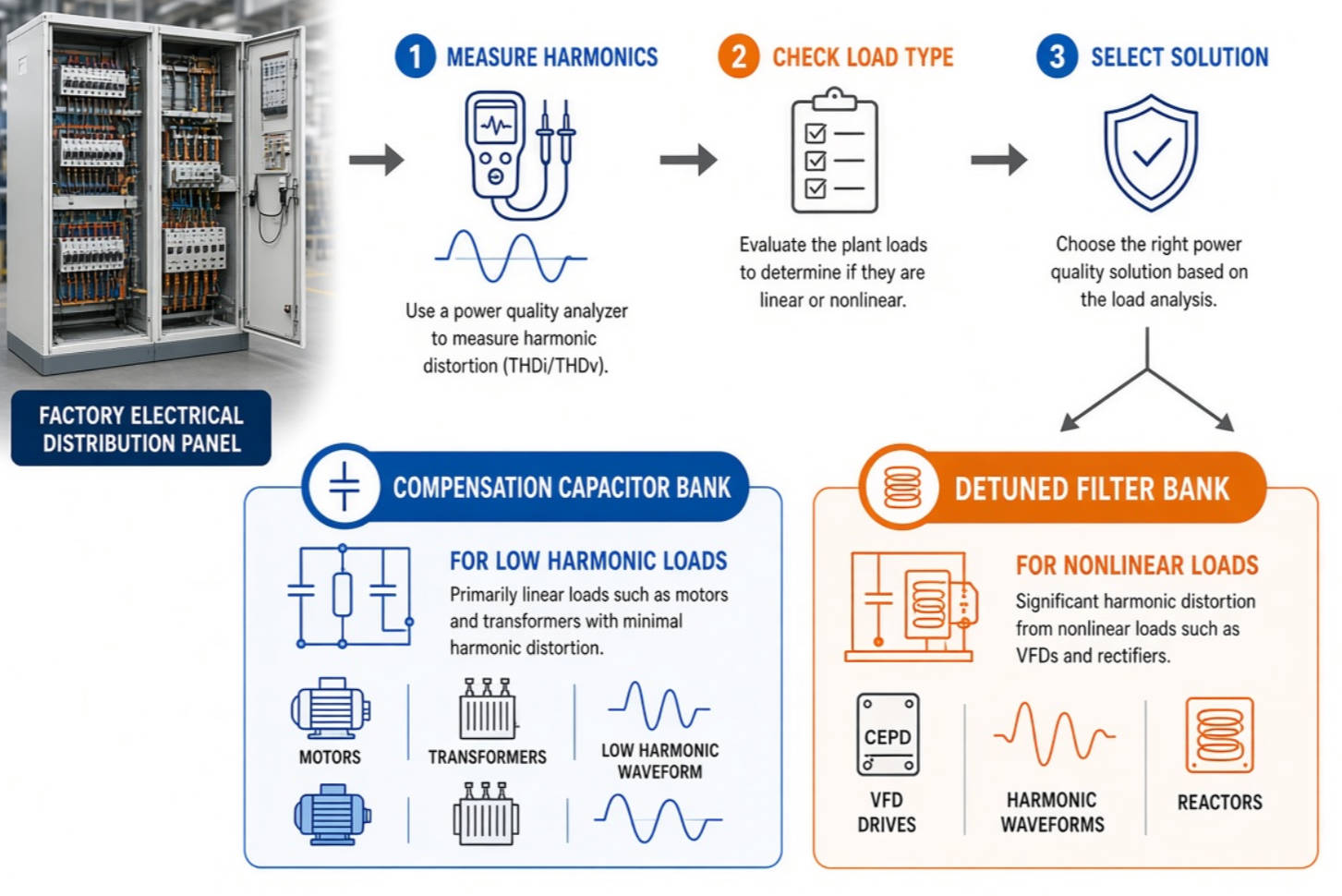

The best selection process starts with measurement. Do not begin by choosing a capacitor-bank kVAR rating based only on the plant's monthly utility bill or transformer nameplate.
Use a qualified power-quality analyzer to record key parameters over representative operating periods. A one-time spot check is often not enough because manufacturing loads can vary by shift, product type, and operating season.
Measure:
- Active power in kW
- Reactive power in kVAR
- Apparent power in kVA
- True power factor
- Displacement power factor
- Voltage THD
- Current THD
- Individual harmonic orders
- Voltage imbalance
- Load variation by time
- Transformer loading
- Existing capacitor-bank performance
- Maximum demand periods
For facilities with intermittent loads, recording should cover normal production, peak production, startup conditions, and major equipment switching events.
Estimate the ratio of nonlinear load to total load, but do not stop there. Two facilities can have the same nonlinear-load percentage and very different harmonic conditions because of source impedance, transformer size, drive type, and electrical topology.
Pay particular attention to:
- Large variable frequency drive groups
- High-power rectifier systems
- Central UPS systems
- Furnace and welding loads
- Multiple parallel transformers
- Generator-backed systems
- Existing capacitor banks installed without reactors
- Repeated capacitor fuse failures
- Unexplained overheating in capacitor panels
Your objective may be one or more of the following:
- Raise the plant power factor to a utility target
- Reduce reactive-power charges
- Release transformer capacity
- Stabilize voltage under changing load
- Prevent capacitor failure
- Reduce harmonic distortion
- Meet customer, utility, or internal power-quality requirements
- Support expansion without overloading the distribution system
A compensation capacitor bank may be enough if power factor is the primary concern and harmonics are controlled. A filter capacitor bank is more appropriate when harmonic risk and reactive-power demand must be addressed together.
| Site Condition | Recommended Direction |
|---|---|
| Mostly linear inductive loads, low harmonic distortion | Standard fixed or automatic compensation capacitor bank |
| Moderate nonlinear loads with uncertain harmonic conditions | Detuned capacitor bank with matched reactors |
| High VFD, UPS, rectifier, or welding-machine concentration | Harmonic study followed by detuned bank, tuned filter, active harmonic filter, or hybrid solution |
| Repeated capacitor-bank failures | Conduct immediate harmonic and resonance assessment before replacing capacitors |
| High reactive-power charges plus rising THD | Design an integrated power factor correction and harmonic-control solution |
| Critical municipal or continuous-process plant | Use measured data, thermal margins, protection coordination, and monitoring from the start |
From an engineering and lifecycle perspective, the lowest purchase price is not always the lowest operating cost.
A low-cost capacitor-only bank may look attractive at the quotation stage. But if the plant has substantial harmonic current, the project can lead to repeated capacitor replacement, contactor damage, production interruptions, emergency troubleshooting, and reduced confidence in the whole power-factor correction system.
A more robust filter capacitor solution may cost more initially, but it can protect the investment by reducing harmonic stress and avoiding resonance-related failures.
The practical decision should consider:
- Initial equipment cost
- Installation cost
- Panel space
- Energy-loss impact
- Expected capacitor lifetime
- Unplanned shutdown risk
- Maintenance labor
- Spare-parts consumption
- Cost of utility penalties
- Future expansion plans
- Compliance and customer quality requirements
For continuous-process industries such as petrochemical, metallurgy, papermaking, automotive manufacturing, and building-material production, a single power-quality event may have consequences far beyond the cost of a capacitor cabinet.

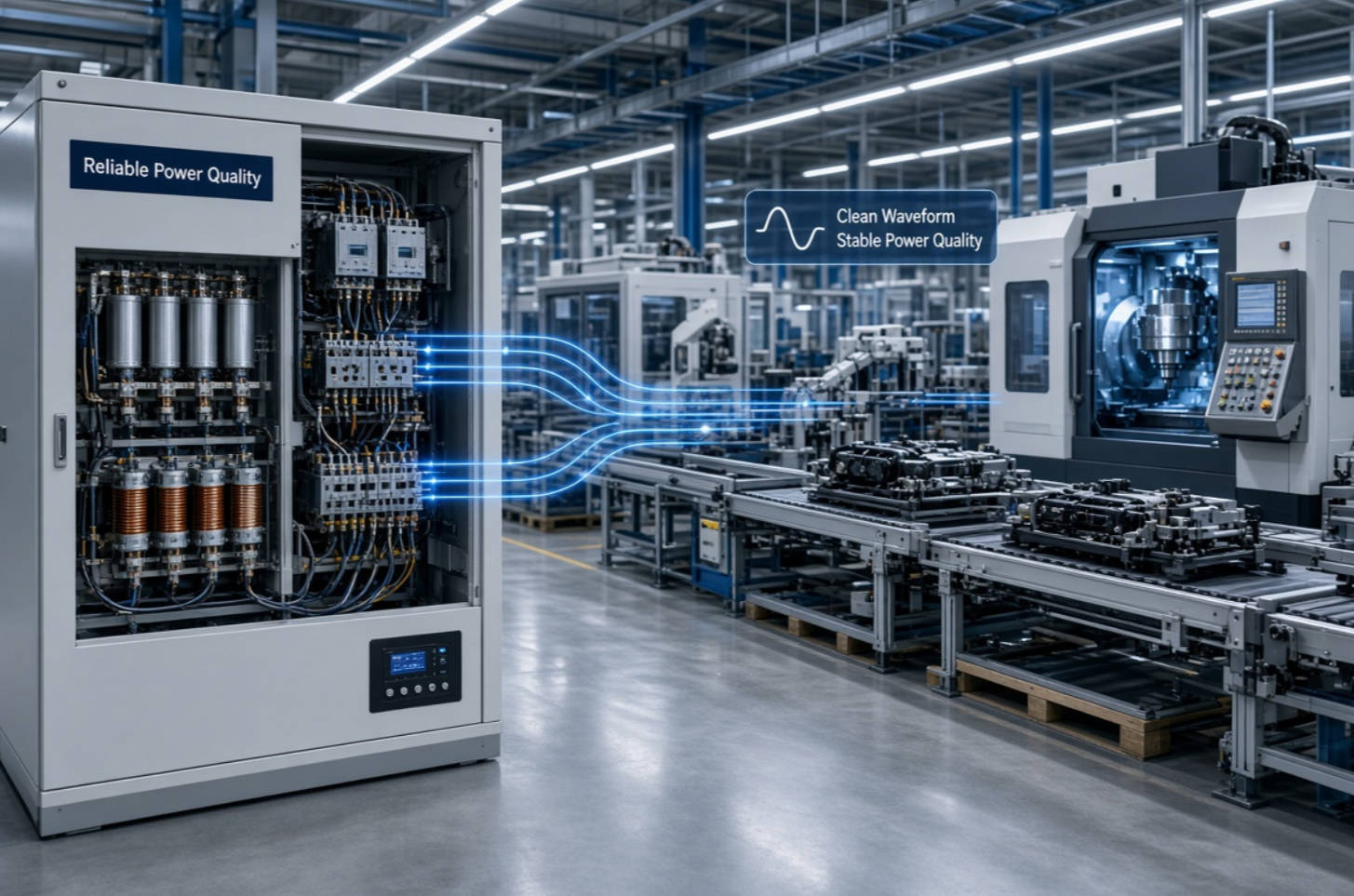

Consider an automotive component plant with multiple VFD-driven pumps, conveyors, ventilation systems, and machining centers. The facility installs a conventional automatic capacitor bank to improve its power factor.
Initially, the power factor improves. However, after several months, the plant begins to experience capacitor fuse failures and excessive heating in the capacitor panel. The maintenance team replaces capacitors, but the failures continue.
A power-quality assessment finds elevated 5th and 7th harmonic currents. The capacitor bank has shifted the system resonance close to a dominant harmonic order, causing elevated current through the capacitor steps.
A better solution would involve:
1. Recording harmonic data during normal and maximum production.
2. Evaluating the transformer and network impedance.
3. Calculating the resonance behavior of the capacitor bank.
4. Selecting a detuned reactor-capacitor configuration.
5. Confirming capacitor voltage and current capability under harmonic conditions.
6. Verifying switching, protection, and ventilation design.
7. Monitoring performance after commissioning.
This type of project illustrates a central rule: power factor correction must be designed as part of the electrical system, not as an isolated panel purchase.
Whether you choose a filter capacitor or compensation capacitor system, reliable results depend on correct installation and monitoring.
- Confirm the system voltage, frequency, and short-circuit level.
- Calculate required compensation kVAR from measured operating data.
- Evaluate voltage THD and current THD before installation.
- Identify dominant harmonic orders.
- Select capacitor voltage ratings suitable for actual operating stress.
- Match reactor impedance and capacitor capacity correctly.
- Confirm the capacitor bank's switching method suits the load pattern.
- Provide adequate cabinet ventilation and thermal clearance.
- Coordinate fuses, contactors, circuit breakers, and protection relays.
- Verify grounding, cable sizing, and busbar current capacity.
- Commission the system with post-installation power-quality measurements.
- Inspect capacitor condition regularly.
- Check for swelling, leakage, discoloration, or abnormal odor.
- Monitor capacitor current and voltage.
- Measure reactor temperature.
- Check contactor wear and switching performance.
- Review controller settings and power-factor targets.
- Retighten electrical connections according to maintenance procedures.
- Compare present harmonic data with commissioning records.
- Investigate any repeated fuse operation immediately.
- Reassess the system after major production-line expansion.
A compensation capacitor is the right starting point for industrial facilities that mainly need reactive-power compensation and have a low-harmonic electrical environment. It can improve power factor, reduce current demand, and help maximize the usable capacity of transformers and cables.
A filter capacitor system is the stronger choice when the plant includes significant nonlinear loads or has a history of capacitor failure, harmonic distortion, overheating, or resonance concerns. By combining capacitors with properly selected reactors, the system can provide reactive-power compensation while helping protect the network from harmonic-related stress.
For reliable industrial power quality, do not make the selection based on kVAR alone. Start with actual power-quality measurements, evaluate the harmonic environment, and select a solution that matches the facility's present load profile and future expansion plan.
DINGNUO ELECTRIC CO., Ltd. supports industrial customers with advanced capacitor, reactor, reactive-power compensation, and harmonic-control solutions. Contact our technical team to discuss your facility's power factor, harmonic data, operating conditions, and customized power-quality requirements.
Yes, but only after evaluating the harmonic environment. VFDs generate harmonics, and a capacitor-only bank can create or worsen resonance under certain system conditions. A detuned reactor-capacitor bank is often a safer option when VFD penetration is meaningful.
Not always. A filter capacitor is usually one component of a harmonic-filtering arrangement. The complete filter normally includes capacitors, reactors, protection devices, switching components, and an engineered tuning or detuning design.
Common causes include harmonic overload, resonance, overvoltage, excessive ambient temperature, poor ventilation, frequent switching, loose connections, undersized protection devices, incorrect capacitor selection, and inadequate reactor matching.
A detuned capacitor bank combines capacitors with series reactors. The reactor shifts the LC resonance point below the dominant harmonic frequency, helping prevent the capacitor bank from attracting and amplifying harmonic current.
The choice depends on measured harmonic conditions and project objectives. A detuned bank mainly protects the capacitor system and avoids resonance. A tuned filter is designed to absorb a specific harmonic order more actively. An engineering study should determine which approach is appropriate.
Yes. Filter capacitor banks still supply reactive power at the fundamental frequency. Their added advantage is that they are designed to work more safely in networks where harmonic currents are present.
The appropriate frequency depends on the operating environment, load criticality, switching duty, temperature, and harmonic exposure. In demanding industrial environments, regular visual inspection, thermal checks, electrical testing, and power-quality review should be included in the preventive-maintenance program.
1. Eaton. Power Factor Correction and Harmonic Resonance. Explains the relationship between power factor correction capacitors, harmonic filters, and parallel resonance design principles.
[Read the Eaton technical paper] [eaton]
2. IEEE Standards Association. IEEE 519-2022: IEEE Standard for Harmonic Control in Electric Power Systems. Provides design objectives and requirements related to harmonic control in electrical power systems.
[View IEEE 519-2022] [standards.ieee]
3. Schneider Electric. Possible Solutions for Power-System Harmonics. Discusses capacitor use in harmonic environments, detuned reactors, harmonic-current effects, and capacitor protection practices.
[Read the Schneider Electric guidance] [electrical-installation]
4. Schneider Electric. Decoding Detuned Reactors: What and Why. Explains detuned reactor selection principles and the relationship between resonance frequency and dominant harmonic frequencies.
[Read the detuned reactor article] [blog.se]
5. IEC. IEC 61921:2017 — Power Capacitors: Low-Voltage Power Factor Correction Banks. Covers low-voltage AC shunt capacitor banks and identifies series detuning reactors as a mitigation measure for harmonic-related damage.
