Mining operations need more than basic power factor correction. Large variable-speed drives, crushers, mills, conveyors, hoists, pumps, compressors, welders, and ventilation systems can create rapid reactive-power changes and significant harmonic distortion. These conditions make the choice between a Static VAR Generator (SVG) and a detuned capacitor bank a critical engineering and commercial decision.
For mine owners, EPC contractors, and electrical engineers, the correct solution depends on load behavior, harmonic spectrum, network strength, operating voltage, expansion plans, and the financial cost of poor power quality. In many cases, a detuned capacitor bank remains a cost-effective solution for stable loads. However, an SVG often delivers better results where mining loads fluctuate quickly or where reactive-power compensation must respond in real time.
DINGNUO ELECTRIC CO., Ltd. provides reactive power compensation and harmonic-control solutions for industrial power systems. This article compares Static VAR Generator vs detuned capacitor in mining operations from an engineering, operational, maintenance, and lifecycle-cost perspective.
Mining sites are among the most demanding electrical environments in industry. A mine may operate continuously, often in remote locations with limited grid strength or isolated generation systems. Its electrical demand can change sharply when a mill starts, a hoist accelerates, a crusher processes harder ore, or a dewatering pump switches on.
The main power-quality issues typically include:
- Low power factor caused by inductive motors, transformers, and heavily loaded equipment.
- Rapid reactive-power fluctuations from hoists, large drives, and changing process loads.
- Voltage dips and voltage instability during motor starts or large load transitions.
- Harmonic distortion produced by VFDs, rectifiers, soft starters, UPS systems, and other power-electronic equipment.
- Resonance risk when conventional capacitor banks interact with network inductance.
- Penalty charges or capacity constraints associated with poor power factor and unnecessary reactive demand.
- Premature equipment stress affecting capacitors, transformers, cables, motors, and protection systems.
A successful mining power-quality strategy must therefore do more than add kVAr. It must compensate reactive power safely, avoid harmonic amplification, protect equipment, and remain reliable under changing process conditions.
In practical mining projects, engineers should evaluate power quality at the point of common coupling (PCC) rather than relying only on measurements at an individual motor control center. IEEE 519 treats harmonic performance as a system-level issue at the PCC, with applicable limits depending on voltage level, network short-circuit strength, and load-current characteristics.

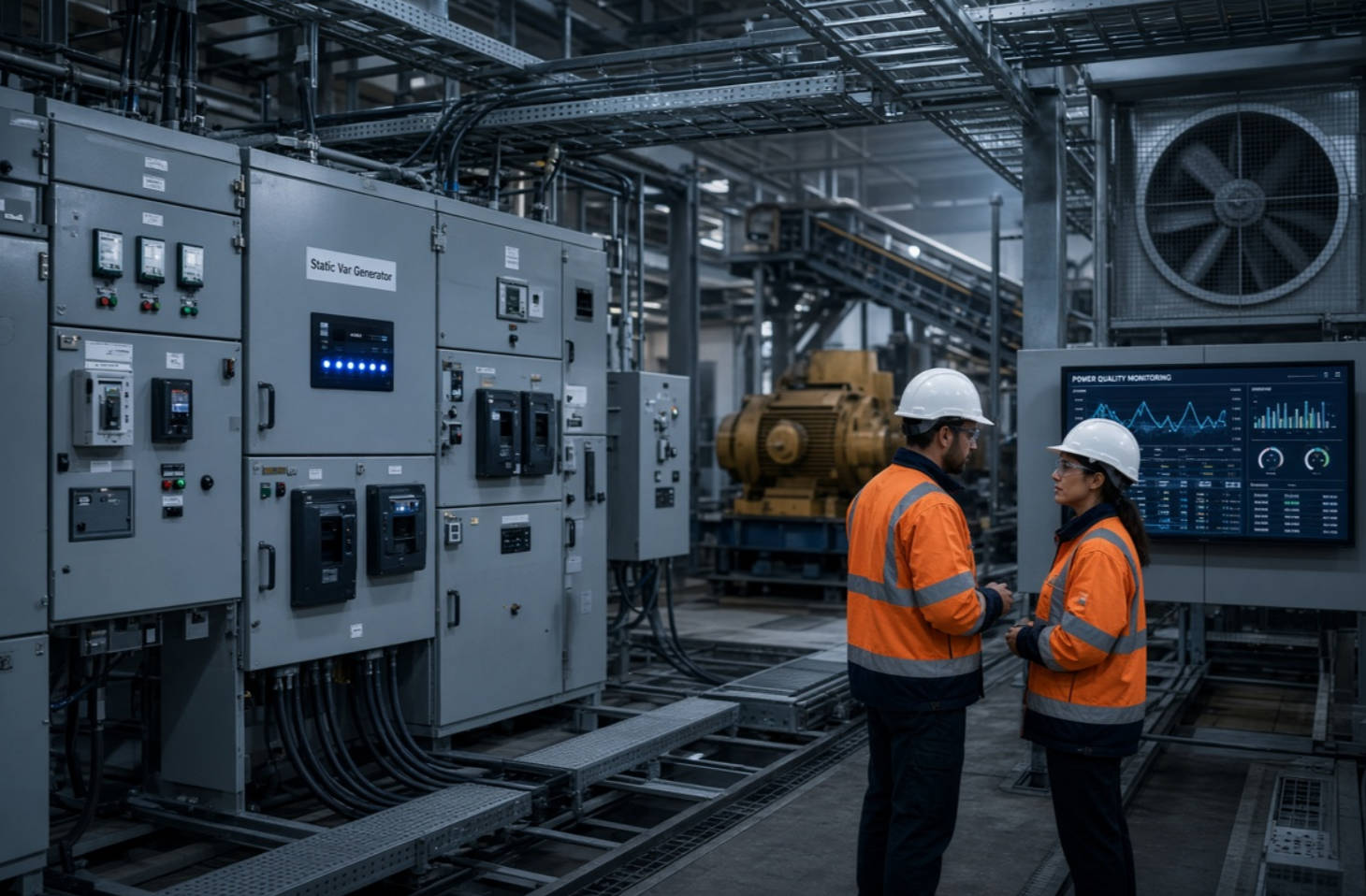

A Static VAR Generator, commonly called an SVG, is an active power-electronics device that dynamically generates or absorbs reactive power. It normally uses voltage-source converter technology and IGBT switching devices to inject precisely controlled capacitive or inductive current into the network.
Unlike a conventional capacitor bank, an SVG does not depend on mechanical contactors switching fixed capacitor steps. Instead, it continuously adjusts compensation output according to the measured load condition.
The SVG measures voltage, current, power factor, and reactive power in real time. Its controller then calculates the compensation current required to improve the system power factor or stabilize voltage.
For example, when a mine hoist accelerates, reactive-power demand can increase rapidly. An SVG can detect this change and inject capacitive reactive current almost immediately. When the hoist decelerates or the operating condition changes, the SVG reduces or reverses its output.
A typical SVG can provide:
- Capacitive compensation for inductive loads.
- Inductive compensation when the network becomes excessively capacitive.
- Fast dynamic response to changing reactive-power demand.
- High control precision for power factor targets.
- Better performance under fluctuating or unbalanced loads.
- A smaller risk of capacitor-related resonance because reactive power is produced electronically rather than by a large switched capacitor bank.
SVG technology is particularly valuable for applications with high load variability. An underground mine case study involving a thyristor hoisting machine used an advanced SVG-based solution to improve power quality at the PCC and prevent overcompensation-related charges. The documented system was rated at 6 kV and 5.5 Mvar, with filtering capability from the 2nd through 25th harmonics and a complete response time below 10 ms.
A detuned capacitor bank is a passive power factor correction system consisting of capacitor stages connected in series with detuned reactors. The reactor changes the resonance frequency of the capacitor-reactor circuit so it does not coincide with dominant harmonics in the electrical network.
In mining operations, detuned capacitor banks are widely used because they are robust, familiar to maintenance teams, and economically attractive for stable reactive-power demand.

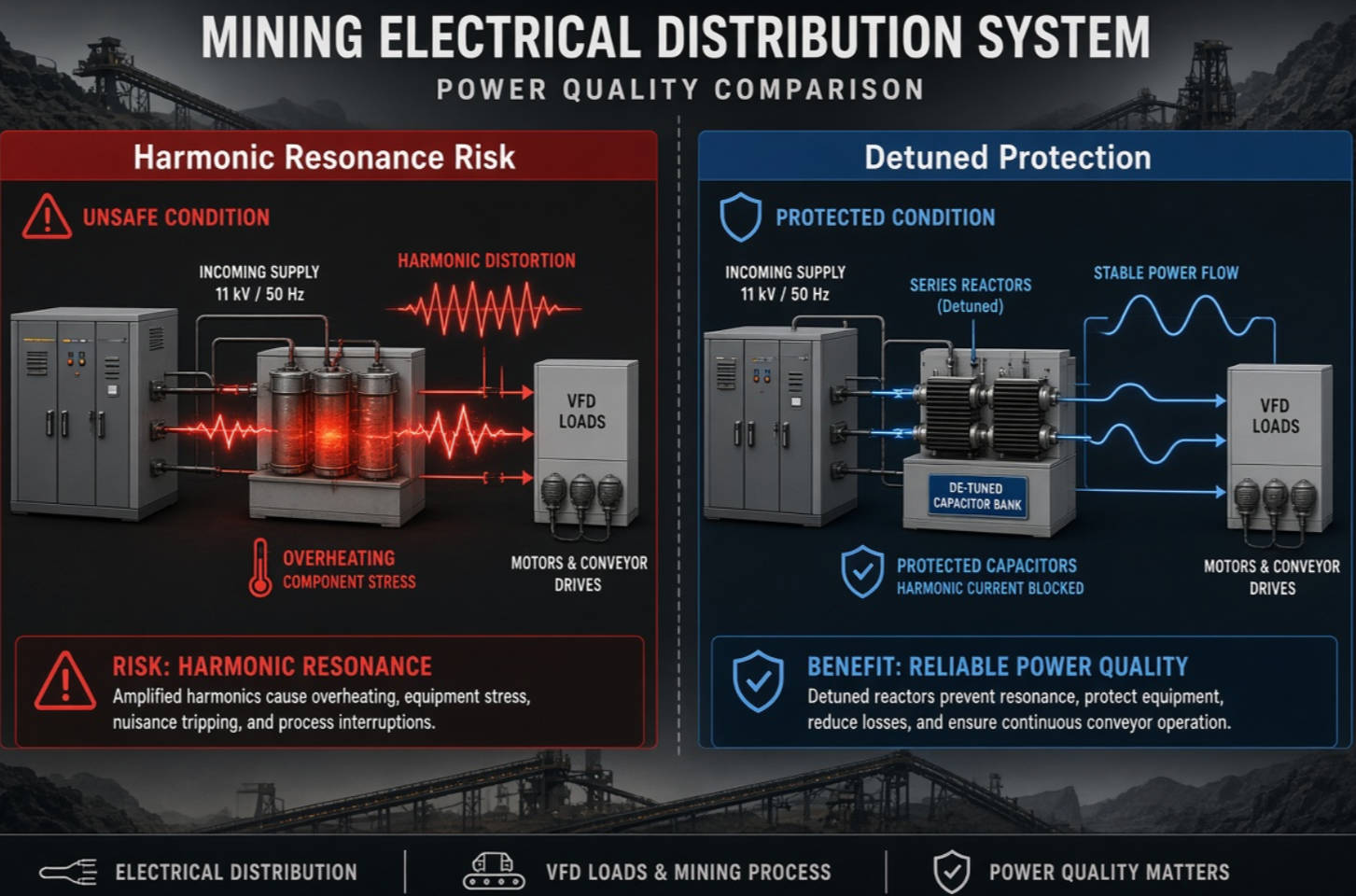

A conventional capacitor bank can combine with the inductance of transformers, cables, and upstream supply systems. This interaction may create a resonant circuit. If the resonant frequency is near a dominant harmonic frequency, harmonic voltage and current can be amplified.
That outcome can cause:
- Capacitor overheating
- Fuse operation
- Reactor overload
- Nuisance tripping
- High voltage distortion
- Reduced capacitor service life
- Unexpected shutdowns of sensitive equipment
A detuned reactor shifts the natural resonance frequency below the dominant harmonic order. For example, where the fifth harmonic is significant on a 50 Hz network, the detuned design is often selected so the resonance frequency remains below 225 Hz, or below 90% of the fifth-harmonic frequency.
It is important to understand that a detuned capacitor bank is not automatically a harmonic filter. Its primary purpose is to avoid harmonic amplification and protect the capacitor bank. If the mine needs targeted harmonic-current reduction, engineers may need tuned passive filters, active harmonic filters, line reactors, multi-pulse drive arrangements, or a hybrid power-quality solution.

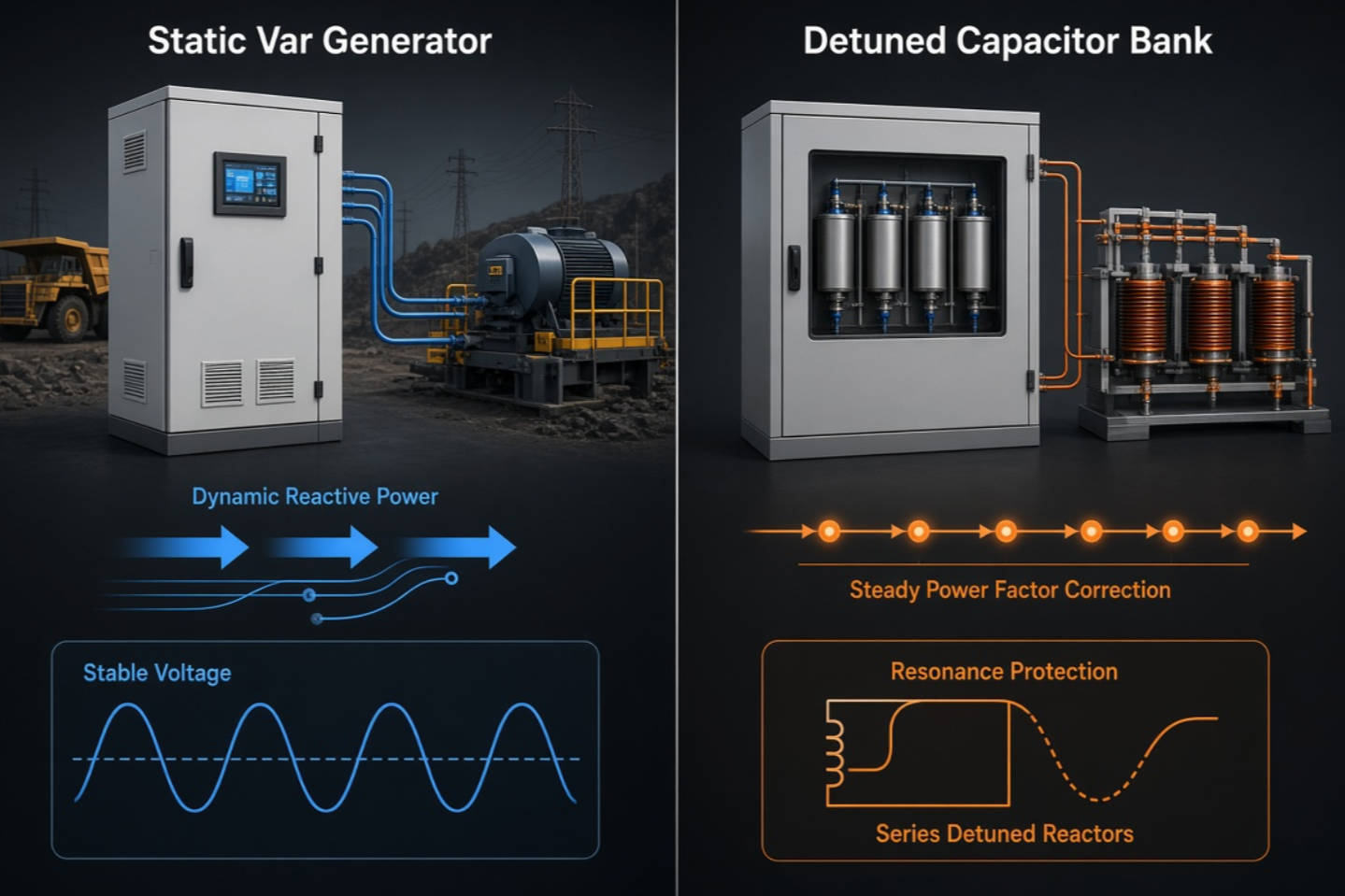

The following comparison helps mine operators identify which solution is more suitable for their electrical environment.
| Evaluation Factor | Static VAR Generator (SVG) | Detuned Capacitor Bank |
|---|---|---|
| Compensation method | Active, continuously controlled electronic compensation | Passive capacitor stages with series detuned reactors |
| Response speed | Very fast; suitable for rapidly changing loads | Step-based response; slower than SVG |
| Best load profile | Highly variable, intermittent, or rapidly changing loads | Stable or gradually changing inductive loads |
| Reactive power direction | Can generate and absorb reactive power | Primarily supplies capacitive reactive power |
| Harmonic resonance risk | Lower capacitor-network resonance exposure | Designed specifically to reduce resonance risk compared with ordinary capacitor banks |
| Harmonic mitigation | Standard SVG primarily focuses on reactive power; advanced models may provide selected harmonic compensation | Prevents amplification but does not necessarily remove existing harmonics |
| Power factor precision | High and continuously adjustable | Good for steady loads but limited by fixed step sizes |
| Initial investment | Usually higher | Usually lower |
| Maintenance profile | Requires electronics expertise and thermal-management attention | Requires inspection of capacitors, reactors, contactors, fuses, and connections |
| Suitable mining applications | Hoists, crushers, SAG mills, fluctuating VFD loads, weak grids, isolated systems | Base-load motors, pumps, fans, stable conveyor systems, conventional industrial distribution boards |
| Expansion flexibility | High; output can be controlled within rated capacity | Requires additional stages or redesign when load profile changes |
The main conclusion is simple: SVG is a dynamic power-quality tool, while a detuned capacitor bank is a practical passive power factor correction solution with resonance protection.
Mining loads are rarely static. Hoists, crushers, grinding mills, and large conveyors can cause sudden changes in reactive demand. A mechanically switched capacitor bank may not respond quickly enough to maintain stable power factor during these events.
An SVG offers continuous and fast reactive-power control. This can help reduce rapid power-factor swings and improve voltage stability around sensitive equipment.
This advantage is especially important in:
- Underground mine hoisting systems.
- Large crushing and grinding circuits.
- High-power VFD motor systems.
- Electrically weak mine grids.
- Diesel-generator-based microgrids.
- Operations with frequent starts, stops, and load transitions.
A capacitor bank provides capacitive kVAr in discrete steps. If mine loading drops sharply, the bank may remain connected for too long or switch in an unsuitable step size. The result can be leading power factor or overcompensation.
An SVG can both supply and absorb reactive power. This bidirectional control is useful when a mine's power factor changes quickly between lagging and leading conditions.
At remote mining locations, long cable routes and limited grid strength can make voltage regulation challenging. Reactive power affects voltage. When the system lacks adequate reactive-power support, voltage can drop under load.
An SVG can dynamically support voltage by adjusting its reactive-current output. However, the final design must be based on a full load-flow study, motor-starting analysis, short-circuit study, and harmonic assessment. An SVG should never be sized solely from one average monthly power-factor figure.
A detuned capacitor bank is often the most economical choice when reactive demand is predictable. For example, a mine may have ventilation fans, water pumps, fixed-speed conveyors, and auxiliary motors that run for long periods at relatively stable load.
In this situation, the site may not need millisecond-level response. A properly engineered detuned capacitor bank can provide meaningful power factor correction at a lower initial cost than an SVG.
Detuned capacitor systems are built from proven industrial components. They can be designed for low-voltage or medium-voltage mining networks and are generally straightforward for experienced electrical teams to inspect and maintain.
For mining operators that need a durable base-load correction system, the design can include:
- Heavy-duty capacitors.
- Harmonic-rated detuned reactors.
- Thyristor-switched or contactor-switched stages.
- Temperature monitoring.
- Capacitor discharge resistors.
- Protection relays and fuses.
- Power factor controllers.
- Ventilated or IP-rated enclosures suitable for site conditions.
A detuned capacitor bank is significantly safer than a standard capacitor bank in a network with VFDs or other harmonic-generating loads. The reactor helps prevent the capacitor bank from amplifying existing harmonics through resonance.
This does not eliminate the need for a harmonic study. The capacitor and reactor ratings must be selected based on the actual harmonic spectrum, system impedance, voltage distortion, and expected operating scenarios.
The decision should not be based only on equipment price. A low-cost correction system can become expensive if it causes repeated capacitor failure, production interruptions, poor voltage performance, or non-compliance at the PCC.
Choose an SVG when the mine has:
- Highly variable reactive-power demand.
- Large hoists, crushers, mills, or rapidly cycling loads.
- Significant voltage fluctuation during process changes.
- A weak utility connection or isolated power system.
- Frequent power-factor swings.
- A requirement for very precise compensation.
- A high risk of overcompensation.
- Future operational expansion or changing load profiles.
- A need to support a broader active power-quality strategy.
Choose a detuned capacitor bank when the mine has:
- Relatively stable inductive loads.
- A clear need for cost-effective base-load power factor correction.
- Harmonic-producing equipment but no major fast load fluctuations.
- Adequate switching response from staged correction.
- A properly completed harmonic resonance study.
- Maintenance personnel familiar with capacitor-reactor systems.
For many mining operations, the best answer is not SVG or detuned capacitor. It is a hybrid reactive power compensation system.
In this arrangement:
- The detuned capacitor bank supplies the predictable base reactive-power demand at a lower cost.
- The SVG manages the fast-changing portion of reactive power.
- Additional harmonic mitigation equipment is applied only where measurements and studies show it is necessary.
For example, a concentrator plant may have 2,000 kVAr of relatively stable fan and pump load, plus 1,000 kVAr of fast variation caused by mill drives and process equipment. Engineers may use a detuned capacitor bank for the stable base requirement and size the SVG for the dynamic component rather than purchasing a full-capacity SVG.
This approach can reduce capital cost while retaining the fast response needed to protect process stability.

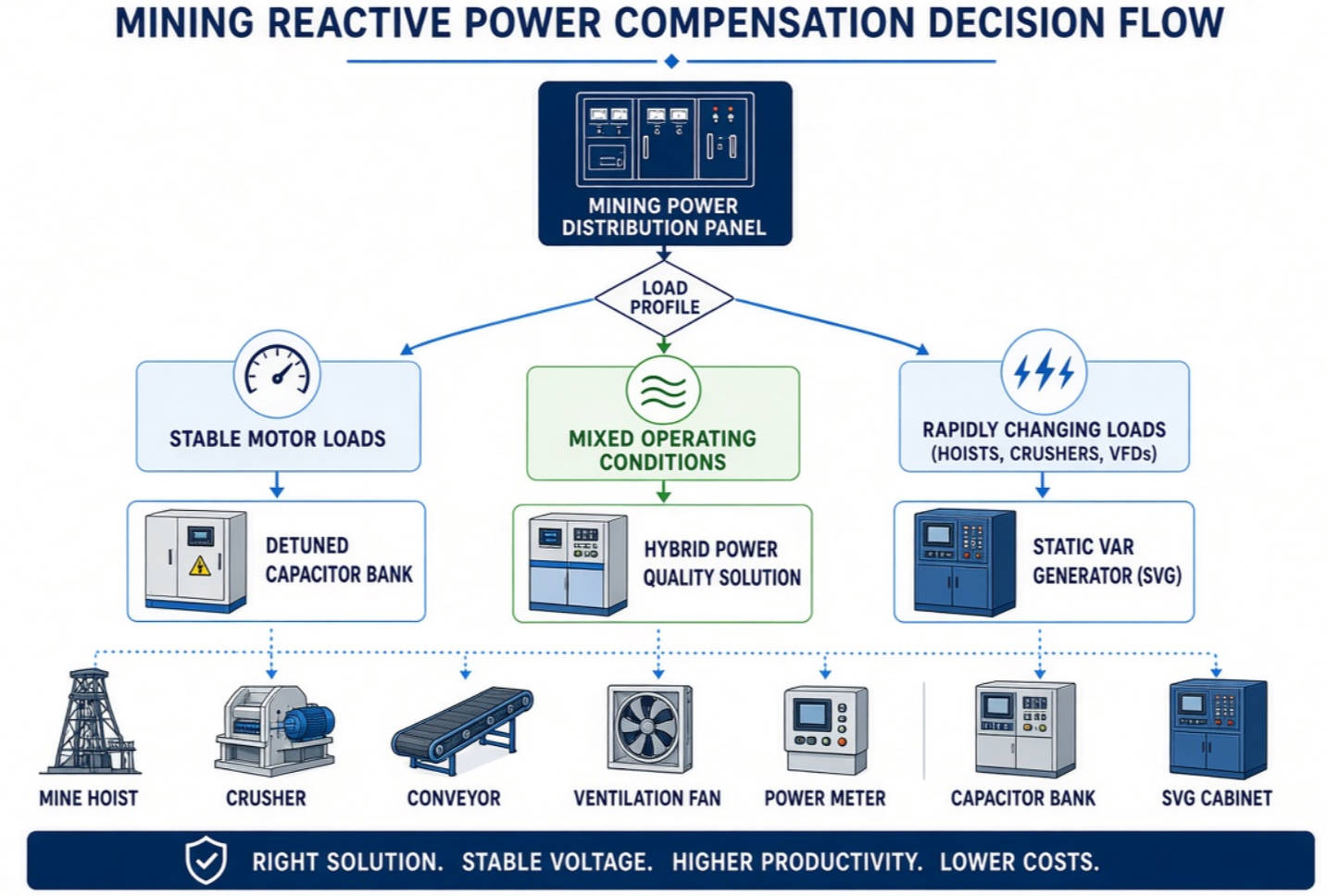

Before selecting a Static VAR Generator or detuned capacitor bank, complete the following process.
1. Measure actual operating conditions
Record voltage, current, power factor, kW, kVAr, THD, individual harmonic orders, load cycles, and demand variations. Measure across representative operating conditions, not only during one normal shift.
2. Identify the PCC and applicable requirements
Determine where utility or contractual power-quality performance is assessed. IEEE 519 evaluates harmonic control at the PCC, and the relevant limits depend on the electrical system and short-circuit conditions.
3. Perform a harmonic and resonance study
Model transformers, cables, capacitor banks, VFDs, rectifiers, generators, and network impedance. Test normal, low-load, maximum-load, and future-expansion scenarios.
4. Separate base kVAr from dynamic kVAr
Do not size every compensation device for the same load behavior. Stable kVAr and rapidly changing kVAr should be evaluated separately.
5. Define the required response time
A ventilation fan may tolerate stepped correction. A high-duty hoist or rapidly changing mill drive may need dynamic response.
6. Select the technical architecture
Choose detuned capacitors, SVG, passive filters, active harmonic filters, or a hybrid arrangement based on measured evidence.
7. Plan monitoring and maintenance
Install meters or power-quality analyzers to track power factor, voltage THD, current distortion, capacitor temperature, reactor temperature, and compensation status after commissioning.
From an industrial power-quality perspective, the most common mistake is selecting compensation equipment before understanding the load profile. A mine may install a capacitor bank to improve power factor, then later add VFDs or expand its process line. The electrical conditions change, and the original bank may become exposed to higher harmonic stress or resonance risk.
For reliable operation, site teams should:
- Verify capacitor voltage and current ratings under harmonic conditions.
- Check reactor thermal loading and detuning factor.
- Inspect capacitor bulging, leakage, terminal discoloration, and fuse condition.
- Monitor harmonic voltage and current before and after commissioning.
- Confirm the actual power factor target with the utility or internal energy-management team.
- Review compensation design when new VFDs, crushers, mills, or generation sources are installed.
- Keep power-quality measurement records for troubleshooting and future expansion studies.
A detuned capacitor bank is not a "fit and forget" device. Similarly, an SVG is not a universal cure for all harmonics. The best-performing mining power-quality system is built on accurate measurement, correct system modeling, appropriate equipment sizing, and continuous operational monitoring.
For stable mining loads, a detuned capacitor bank can provide reliable and economical power factor correction while reducing the risk of harmonic resonance. It is particularly suitable for pumps, fans, fixed-speed conveyors, and other predictable motor loads.
For highly dynamic mining operations, an SVG offers faster and more precise reactive-power compensation. It is usually the stronger choice for mine hoists, large VFD-driven systems, crushers, mills, weak grids, and process lines where voltage stability and rapidly changing load conditions are major concerns.
For complex mines, a hybrid solution often provides the best balance of cost, speed, reliability, and power-quality performance. DINGNUO ELECTRIC can support mining customers with power-quality evaluation, reactive-power compensation design, detuned capacitor banks, SVG systems, harmonic-control equipment, and integrated solutions tailored to site operating conditions.
Contact DINGNUO ELECTRIC CO., Ltd. to discuss your mine's load profile, harmonic measurements, compensation target, and custom SVG or detuned capacitor solution. A properly engineered system can improve power factor, reduce electrical stress, support production continuity, and create a more resilient mine power network.
A Static VAR Generator is an active electronic device that dynamically injects or absorbs reactive power. A detuned capacitor bank is a passive system that uses capacitors and series reactors to correct power factor while reducing resonance risk. SVGs are generally better for fluctuating loads, while detuned capacitor banks are often more cost-effective for stable loads.
Not necessarily. A detuned capacitor bank primarily prevents harmonic amplification caused by resonance between capacitors and system inductance. It does not automatically eliminate harmonic currents already created by VFDs, rectifiers, or other nonlinear loads. Additional filtering equipment may be required.
Yes. SVG technology can be suitable for underground mines where hoists, ventilation systems, pumps, conveyors, and VFD-driven loads create rapid reactive-power changes. The equipment must be properly rated for voltage, environmental conditions, enclosure protection, ventilation, and site safety requirements.
Harmonics increase capacitor current and thermal stress. If a capacitor bank and system inductance create resonance near a dominant harmonic order, the harmonic current and voltage can be amplified. This can lead to overheating, fuse failure, reduced capacitor life, nuisance trips, and equipment damage.
The answer depends on the amount of load variation and harmonic distortion. If VFD loads fluctuate rapidly, SVG is often more appropriate for reactive power control. If the VFD load is stable and the main concern is preventing capacitor resonance, a detuned capacitor bank may be suitable. A harmonic study should determine whether active harmonic filtering or a hybrid solution is also necessary.
A standard SVG primarily compensates reactive power and improves power factor. Some advanced SVG products may provide limited or combined harmonic functions, but an SVG should not be assumed to replace a dedicated active harmonic filter. The final selection should be based on measured harmonic orders, current distortion, voltage distortion, and the required compliance target.
At minimum, engineers should measure kW, kVAr, power factor, voltage, current, voltage THD, current distortion, individual harmonic orders, transformer loading, load cycles, and supply-system strength. Measurements should cover different production states, including startup, normal operation, peak load, low load, and equipment switching events.
