In high harmonic networks, the wrong compensation choice can do more harm than good. A standard capacitor bank may improve power factor, but in harmonic-rich industrial systems it can also increase resonance risk, capacitor stress, and voltage distortion, while a detuned harmonic filter is designed to shift the system away from dangerous resonance points and protect the installation.
For manufacturers, metal plants, petrochemical facilities, automotive lines, and other heavy-duty environments, this difference is not theoretical. It directly affects uptime, capacitor life, power quality, and the long-term cost of ownership.
A standard capacitor bank supplies reactive power to improve power factor and reduce the burden on the utility system. In stable, low-harmonic environments, it is often a cost-effective and simple solution for reactive power compensation.
Its limitation appears when the network contains many nonlinear loads such as VFDs, rectifiers, welders, induction furnaces, or large electronic drives. In those cases, the capacitor bank may interact with the network inductance and create resonance conditions that amplify harmonics instead of controlling them.
- Facilities with relatively steady loads.
- Networks with low harmonic distortion.
- Applications focused mainly on power factor correction rather than harmonic mitigation.
- Harmonic current amplification.
- Overheating and premature capacitor failure.
- Resonance with 5th, 7th, or other dominant harmonics.
A detuned harmonic filter, often built with capacitors and series reactors, is designed to avoid resonance by shifting the system's resonant frequency below the lowest significant harmonic. This helps protect the capacitor bank and reduce the chance of harmonic amplification in the network.
In practice, detuned reactors are commonly used in industrial capacitor banks with tuning values such as 5.67%, 7%, or 14%, depending on the system design and harmonic profile. A common 7% detuning solution in a 50 Hz system is tuned around 189 Hz, which is below the 5th harmonic.
- It reduces resonance risk.
- It protects capacitors from harmonic overload.
- It offers safer reactive power compensation in high harmonic environments.
A detuned harmonic filter is not a full active harmonic mitigation system. It helps control resonance and absorb some harmonic stress, but very severe harmonic problems may still require a broader solution such as active filtering or a hybrid design.

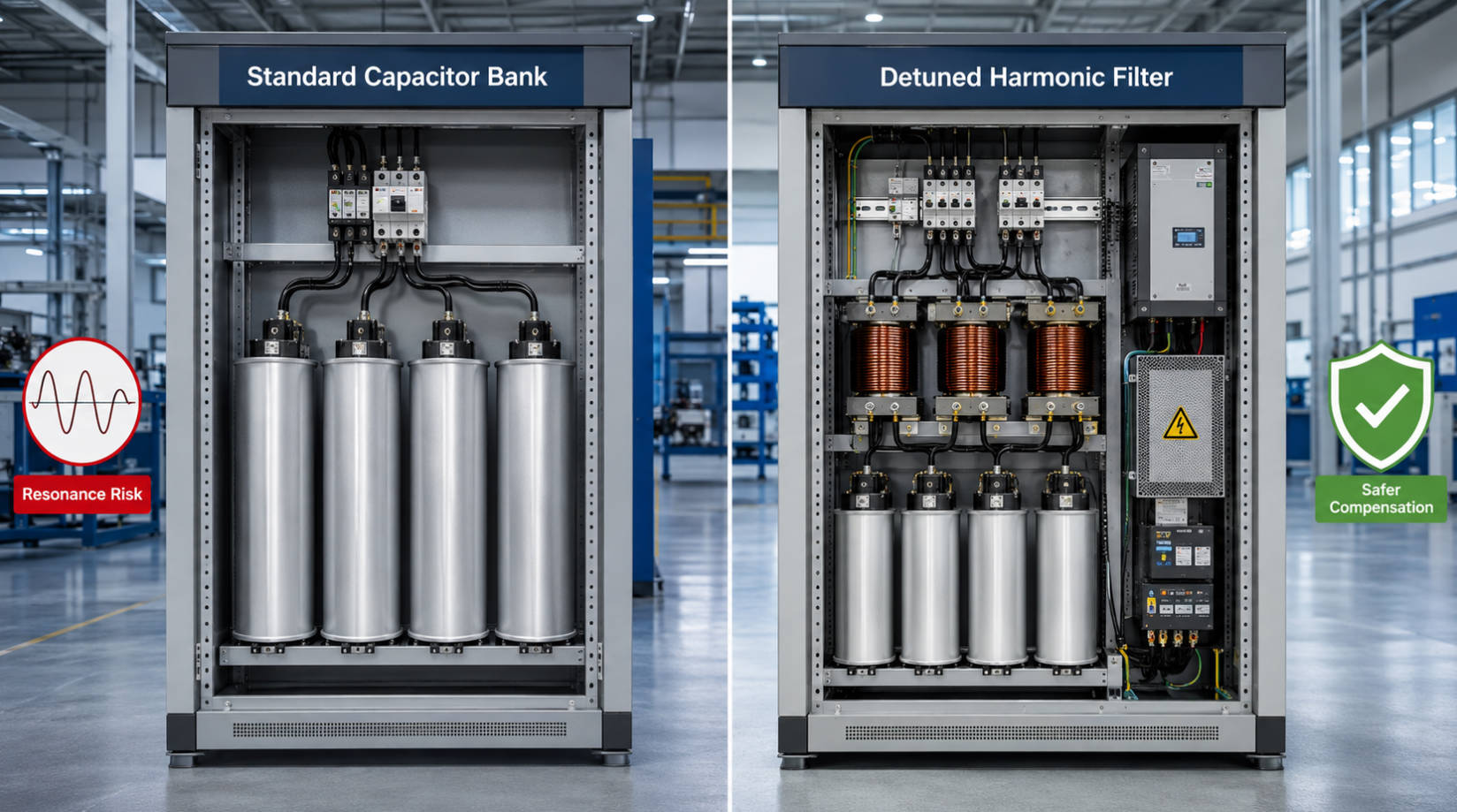

| Item | Standard Capacitor Bank | Detuned Harmonic Filter |
|---|---|---|
| Primary purpose | Power factor correction | Power factor correction with resonance protection |
| Harmonic behavior | Can amplify harmonics | Designed to avoid harmonic resonance |
| Best fit | Low-harmonic networks | High-harmonic industrial networks |
| Risk level | Higher in nonlinear systems | Lower in harmonic-rich systems |
| Cost | Lower initial cost | Higher initial cost, lower risk profile |
| Maintenance impact | Higher stress in harsh networks | Better capacitor protection and longer service life |

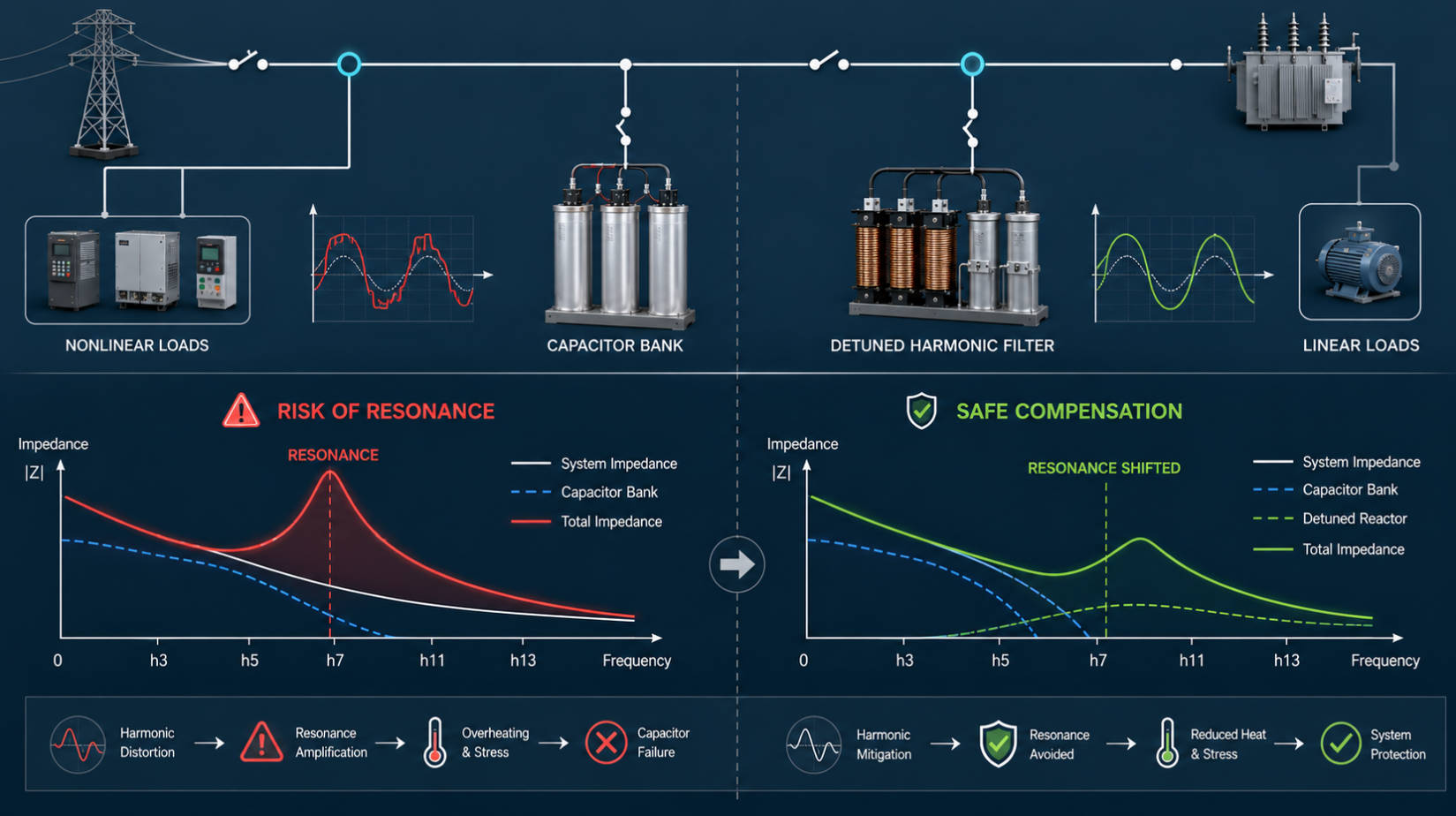

A network becomes more sensitive when nonlinear loads dominate the site. In those conditions, the capacitor bank and the system inductance can form an LC circuit whose natural frequency overlaps with existing harmonics, causing resonance and voltage distortion.
This is why capacitor selection should never be based only on kvar rating. The real question is whether the site has harmonics, how strong they are, and whether the compensation device will move the system closer to or farther from resonance.
- Capacitors fail repeatedly.
- Circuit breakers trip without an obvious overload.
- Transformers or cables run hotter than expected.
- Power quality readings show elevated THD or unstable voltage.
A practical selection process starts with harmonic measurement. Before choosing any capacitor bank, engineers should measure THD, identify major harmonic orders, and model how the compensation device will affect the resonant frequency of the system.
A useful field rule is simple: if harmonic distortion is already present and the system includes large nonlinear loads, a detuned design is usually safer than a standard capacitor bank. In many industrial cases, especially where 5th harmonic stress is common, detuning becomes a standard engineering precaution rather than an optional upgrade.
1. Measure harmonic distortion at the connection point.
2. Identify dominant load types and harmonic orders.
3. Review transformer size, cable length, and network impedance.
4. Check resonance risk before adding reactive power equipment.
5. Select standard or detuned compensation based on the measured environment.

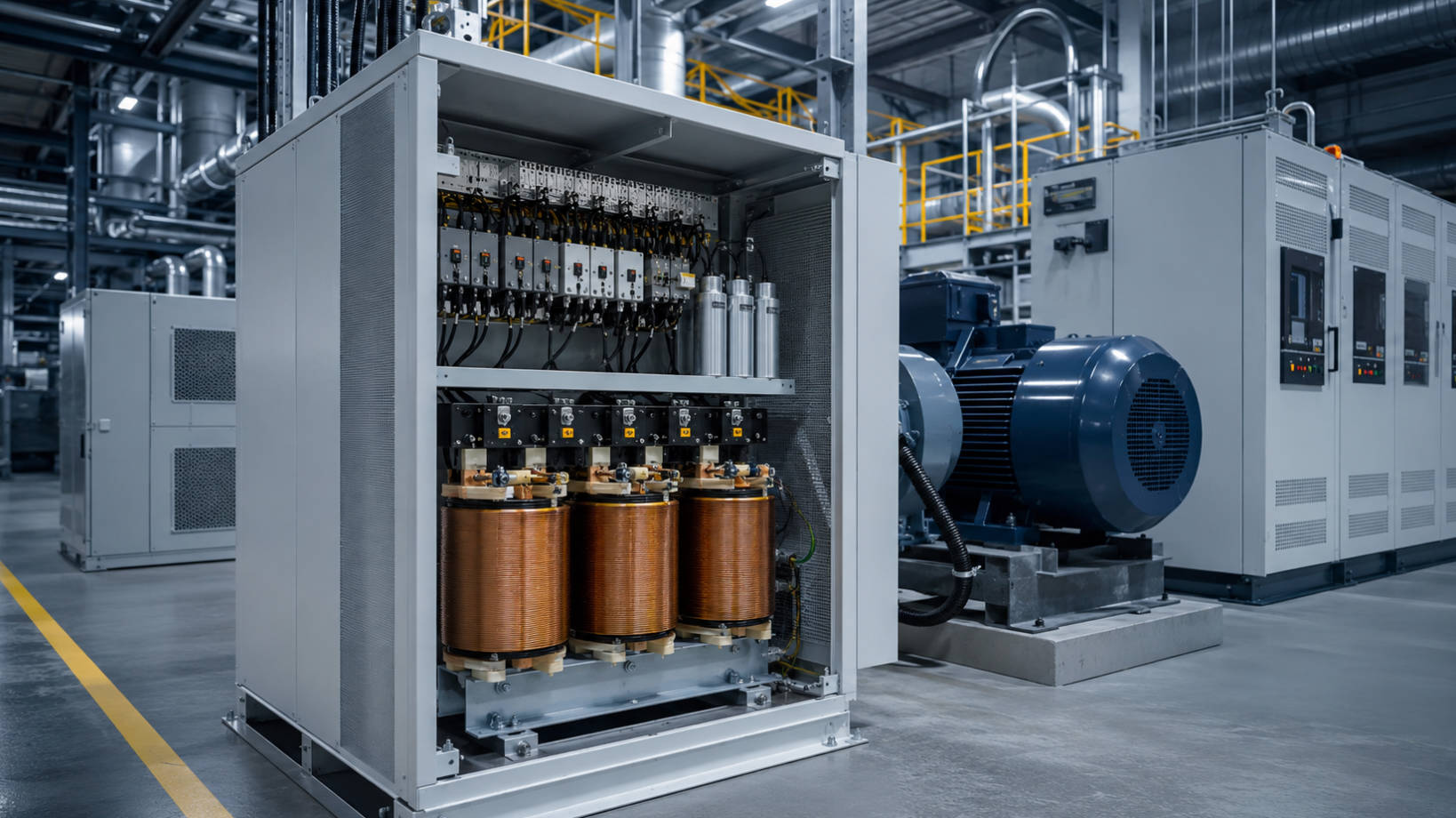

In metallurgy, petrochemical plants, automotive lines, and other heavy industrial sites, nonlinear loads are usually part of daily operation. These environments often combine large motors, drives, rectifiers, and switching equipment, which raises harmonic stress and makes a plain capacitor bank less forgiving.
For municipal infrastructure and large process facilities, the cost of one capacitor bank failure can outweigh the price difference between standard and detuned designs. That is why many power quality engineers treat detuning as a reliability decision, not only a technical one.
- Standard capacitor bank: low-distortion systems, simple power factor correction needs.
- Detuned harmonic filter: plants with VFDs, rectifiers, furnaces, or unstable harmonic conditions.
From a procurement perspective, the cheapest system is not always the lowest-cost system. In high harmonic networks, a low-price capacitor bank may create hidden costs through downtime, replacement cycles, and energy losses caused by resonance-related stress.
From an engineering perspective, the better question is: "What is the harmonic environment today, and how will it change after expansion?" That question matters because many plants add new drives and automation equipment over time, which can silently turn a safe network into a harmonic-sensitive one.
If your plant already has significant harmonic sources, choose detuned protection first and optimize further after measurement. This approach aligns with reliability-first design and helps prevent preventable capacitor failures.
As a capacitor and reactor manufacturer, DINGNUO ELECTRIC CO., Ltd. can support customers with reactive power compensation and harmonic control solutions tailored to industrial operating conditions. That matters because the right design depends on site data, load behavior, voltage level, and long-term operating goals.
For export-oriented manufacturers and EPC teams, the most valuable support is not only product supply but also application guidance, sizing logic, and system-level matching. That is where a well-designed detuned harmonic filter package often delivers stronger lifecycle value than a standard capacitor bank.
In high harmonic networks, the choice is clear in most industrial cases: a standard capacitor bank is suitable only when harmonic risk is low, while a detuned harmonic filter offers a much safer path for protecting equipment and maintaining stable power quality.
If your plant operates with VFDs, rectifiers, furnaces, or other nonlinear loads, the next step should be a harmonic assessment and a compensation design review before installation. Request a power quality evaluation and let the system be designed for your real operating conditions, not assumptions.
A standard capacitor bank mainly corrects power factor, while a detuned harmonic filter also helps prevent resonance in harmonic-rich systems.
It can be used only if harmonic levels are low and resonance risk is controlled, but it is generally not the safest option in nonlinear industrial networks.
Reactors shift the resonant frequency away from dominant harmonics, which reduces harmonic amplification and protects the capacitors from overload.
Industries with VFDs, rectifiers, furnaces, and heavy process equipment often benefit most, including metallurgy, petrochemicals, automotive, and manufacturing plants.
Not always. Severe harmonic conditions may require additional solutions such as active filtering or a hybrid power quality system.
Start with harmonic measurement, analyze load type, check resonance risk, and then choose the safest compensation method for the site.
