Variable Frequency Drives (VFDs) improve motor control and energy efficiency, but they also create harmonics, reactive power issues, and power factor problems that can hurt plant performance. In this article, I compare APF (Active Power Filter) and SVG (Static Var Generator) for VFD applications, so you can choose the right solution for your power quality goals. The right answer is not always "APF or SVG"; in many industrial plants, the best result comes from matching the device to the actual problem at the point of common coupling and near the VFD load.

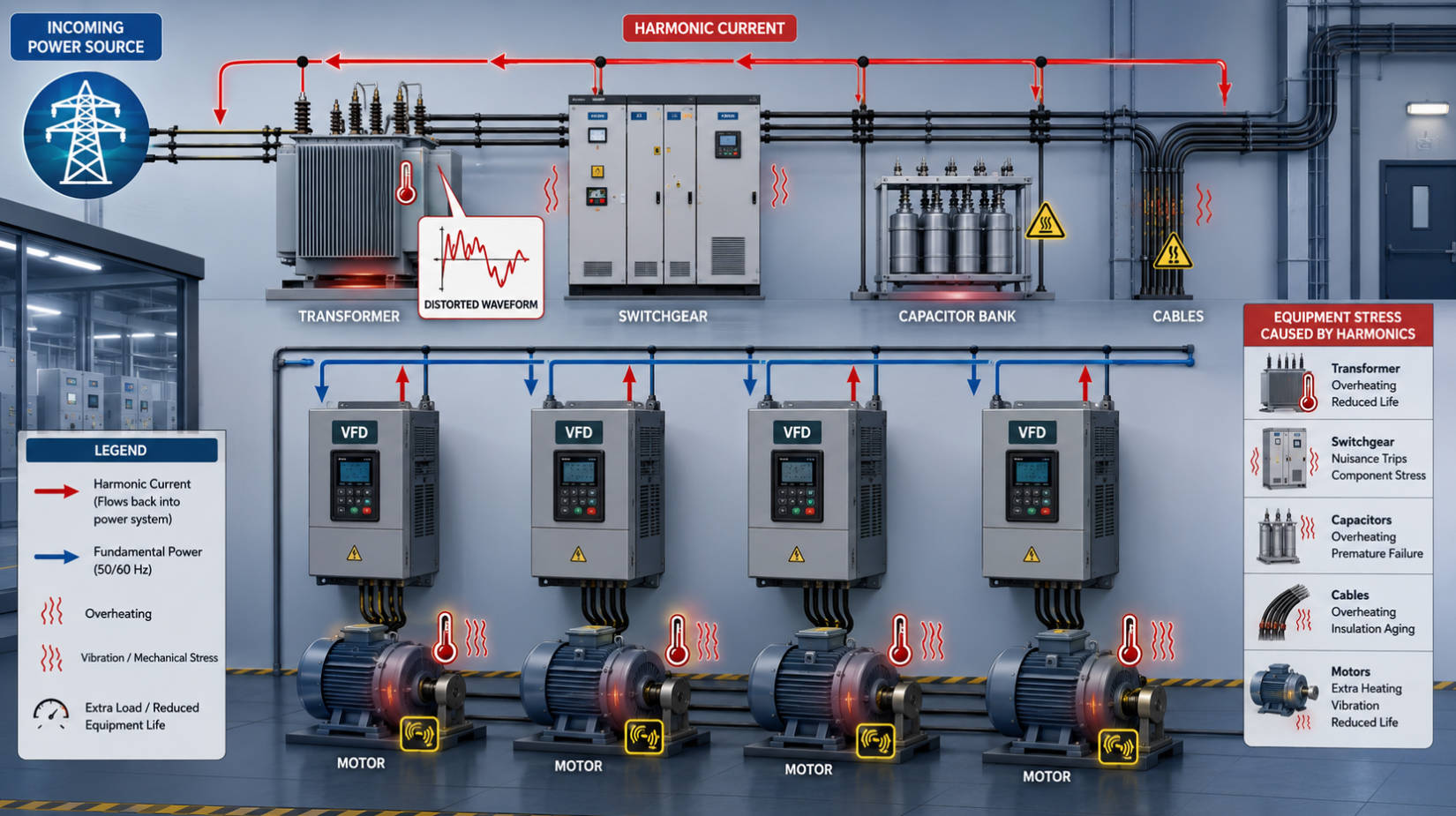

VFDs are nonlinear loads, and nonlinear loads draw distorted current rather than clean sine-wave current. That distortion creates harmonics, which can increase heating, stress transformers and cables, and affect sensitive equipment elsewhere in the facility. As VFD use has expanded, power quality has become a major design concern in industrial systems, especially where multiple drives operate on the same bus or feeder.
In practical terms, a VFD project may trigger three separate issues:
- Current harmonics, which can increase THD/TDD and violate power quality limits.
- Reactive power demand, which reduces power factor and can increase utility penalties.
- Voltage distortion and instability, especially when the supply is weak or the load changes quickly.
For many engineers, this is where the APF vs SVG decision begins.
An APF is designed primarily to cancel harmonic currents by injecting equal and opposite compensation current into the system. In other words, it targets the harmonic problem first.
An SVG is designed primarily to supply or absorb reactive power quickly so the plant can maintain better power factor and voltage stability. In other words, it targets the reactive power problem first.
A simple way to remember it:
- APF = harmonic cleanup.
- SVG = reactive power correction.
This distinction matters because VFD-related power quality issues are often mixed, not isolated. If your plant has both high harmonics and poor power factor, one device alone may not solve everything.
The table below gives a practical comparison for industrial decision-making.

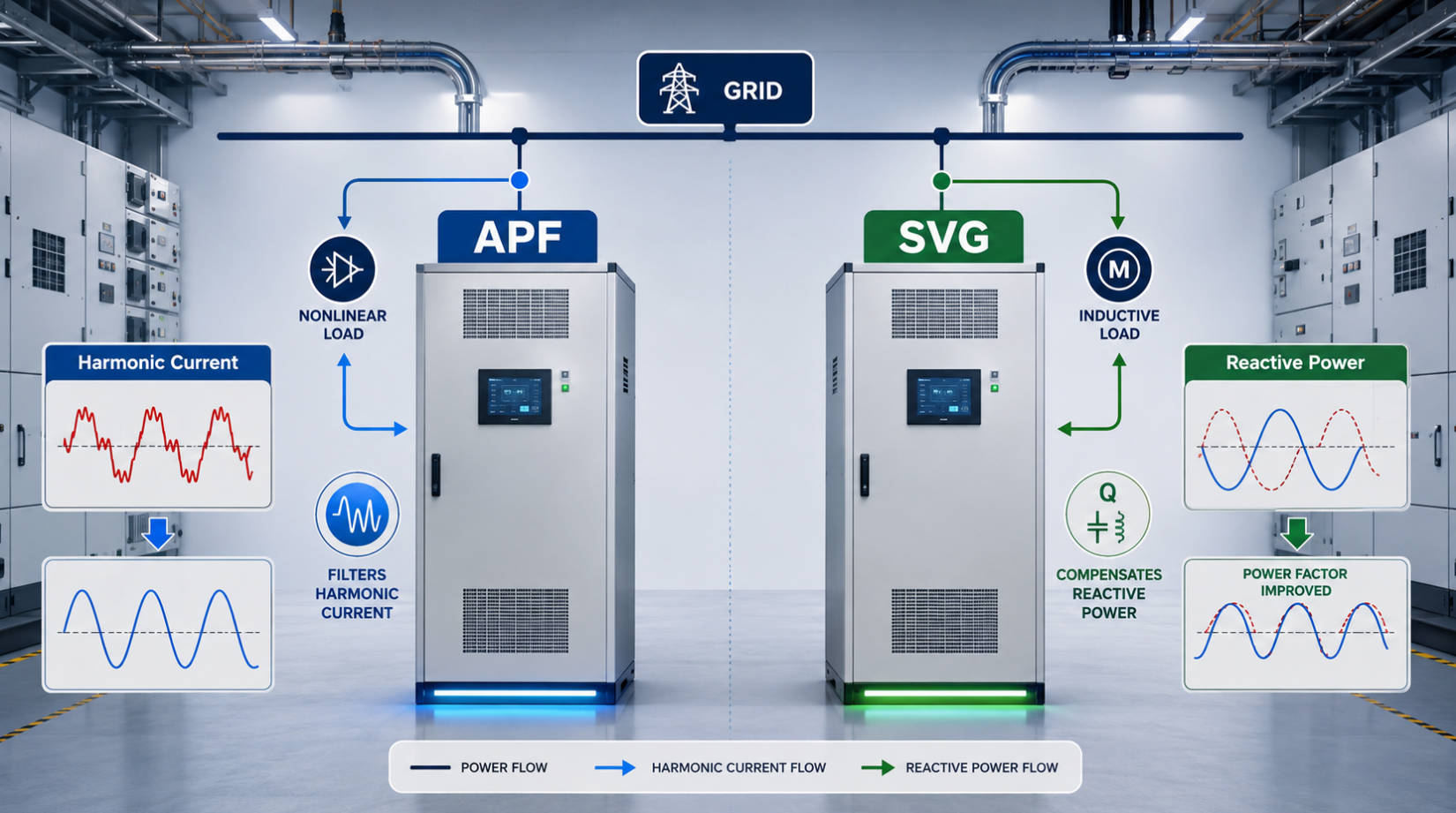

| Item | APF | SVG |
|---|---|---|
| Main job | Harmonic mitigation | Reactive power compensation |
| Best for | Nonlinear loads such as VFDs, UPS, rectifiers | Rapid PF correction, fluctuating inductive loads, voltage support |
| Harmonic performance | Strong | Limited, secondary function |
| Power factor support | Moderate, depending on design | Strong and fast |
| Response focus | Harmonic current cancellation | Dynamic reactive current injection |
| Typical use case | Plants with high THD caused by VFDs | Plants with unstable PF or fluctuating load demand |
| Best selection trigger | Harmonic alarms, overheating, distortion complaints | PF penalties, voltage fluctuation, reactive demand |
| Limitations | May not fully solve PF issues alone | Not a primary harmonic cure |
For VFD-heavy facilities, the core question is simple: Are you fighting harmonics, or are you fighting reactive power? If harmonics dominate, APF is usually the stronger fit. If power factor and voltage instability dominate, SVG is usually the better choice.
From an application standpoint, VFDs often behave as harmonic-producing loads because of their rectifier front end. IEEE-related material on VFDs shows that harmonic distortion is a recognized and measurable issue, and harmonic mitigation is often evaluated against IEEE 519-style limits.
That is why APF is commonly selected in these cases:
- Multiple VFDs are operating on the same bus.
- The facility has sensitive instrumentation or automation equipment.
- Transformer heating, nuisance trips, or abnormal current distortion are being observed.
- The design target is harmonic reduction at the plant level.
SVG is often selected when the VFDs are not the main issue, but the plant still sees poor PF because of fluctuating motor loads, hoists, pumps, compressors, welding equipment, or mixed industrial loads. SVG's fast dynamic response makes it effective where reactive demand changes quickly.
In short, VFDs create a strong case for APF, but not always for SVG alone.

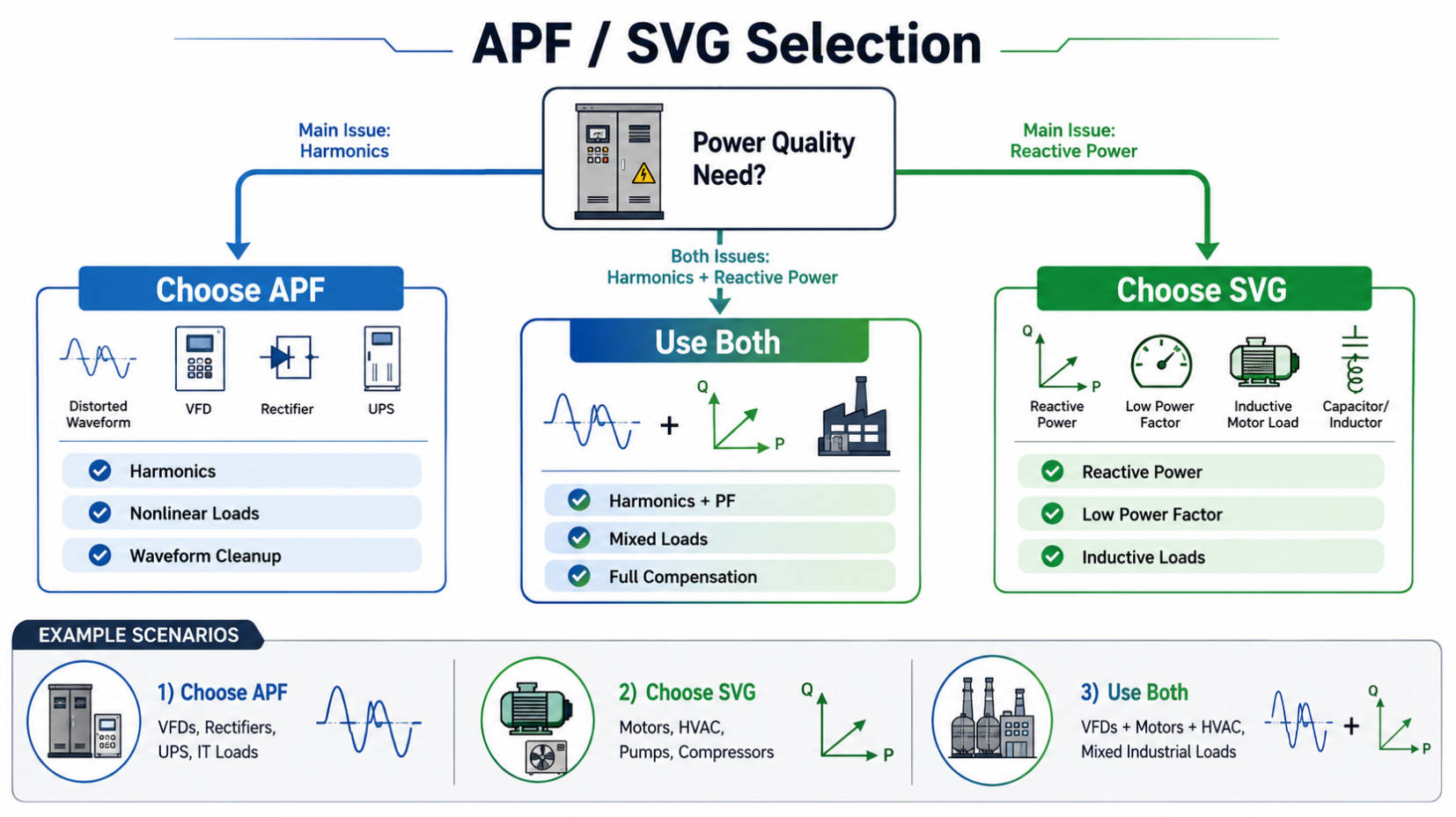

One of the most useful ways to evaluate APF vs SVG is to rank the disturbance by priority. In field projects, I recommend this three-step logic:
1. Measure harmonic distortion at the PCC and at the VFD feeder.
2. Measure the power factor trend across normal operating cycles.
3. Check whether the plant's pain point is thermal stress, utility penalties, or process instability.
This matters because a plant can have a "bad power quality" complaint while the actual root causes are different. If your issue is distorted current, APF addresses the source more directly. If your issue is reactive current swings, SVG responds more efficiently.
For B2B buyers, this is also a purchasing advantage: it prevents overspecifying equipment and helps justify ROI to finance and operations teams.
In real industrial facilities, APF and SVG are often complementary rather than competitive. Some plants deploy both in a coordinated architecture: APF for harmonic filtering and SVG for dynamic power factor support.
This hybrid strategy is especially attractive when:
- The facility has many VFDs, welders, or other nonlinear loads.
- The plant also faces utility penalties for low power factor.
- The load profile changes throughout the day.
- The system needs future expansion flexibility.
A hybrid approach can improve power quality, operating stability, and compliance readiness at the same time. For large manufacturing sites, that often delivers better total lifecycle value than choosing one device and hoping it solves everything.
Use the following quick rules during early-stage design:
1. Choose APF when harmonic distortion is the primary concern.
2. Choose SVG when low power factor or fast reactive power fluctuation is the main issue.
3. Choose both when the facility has mixed harmonic and PF problems.
4. Always confirm the system voltage, load profile, available short-circuit capacity, and future load growth before final selection.
A practical example: if a packaging plant installs multiple VFD conveyor lines and sees overheating plus harmonic alarms, APF is usually the first device to evaluate. If a steel or lifting application has rapid load swings and PF penalties but moderate harmonics, SVG is often the stronger starting point.
A technically correct product can still fail if it is not applied correctly. For best results, the engineering team should consider:
- System survey first, including harmonic measurements and PF trend logs.
- PCC-based analysis, not just individual drive nameplate data.
- Coordination with capacitor banks, because poor coordination can create resonance or control conflicts.
- Thermal and ventilation design, especially in dense MCC or electrical rooms.
- Future scalability, because many industrial plants add drives later.
This is where a manufacturer with engineering support becomes valuable. A strong solution is not just the cabinet hardware; it is also the sizing method, the control logic, and the ability to integrate the device into the plant's actual operating conditions.
For sectors such as metallurgy, petrochemicals, automotive, paper, textiles, building materials, and municipal projects, power quality is not an academic topic. It affects uptime, equipment life, production consistency, and maintenance cost.
As a capacitor and reactor manufacturer, DINGNUO ELECTRIC CO., Ltd. is positioned to support broader power quality system design, especially where reactive power compensation and harmonic control must be integrated into a single plant strategy. In VFD-heavy systems, that means the choice between APF and SVG should be made with a full view of the electrical environment, not only the drive itself.
This is also where expert consultation becomes part of the value proposition: plant owners want lower losses, fewer alarms, and stable operation, not just a product brochure.
If your plant uses VFDs and you are not sure whether the real problem is harmonics, reactive power, or both, start with a site power quality assessment. The correct APF or SVG configuration should be based on measured data, not guesswork, because the wrong choice can waste budget and still leave the root problem unresolved.
APF is usually better when the main issue is harmonic distortion caused by VFDs. SVG is better when the main issue is reactive power and power factor correction.
SVG may offer limited harmonic suppression in some systems, but it is not a dedicated harmonic filter. For strong harmonic control, APF is the more direct solution.
Yes, APF can provide some reactive compensation depending on design, but its primary job is harmonic mitigation. If PF correction is the priority, SVG usually performs better.
Yes. In mixed-problem facilities, APF and SVG can be combined so one handles harmonics while the other handles reactive power.
Measure current harmonics, power factor trend, voltage stability, and the operating profile at the PCC and at the drive feeder. Those measurements make sizing and selection far more accurate.
