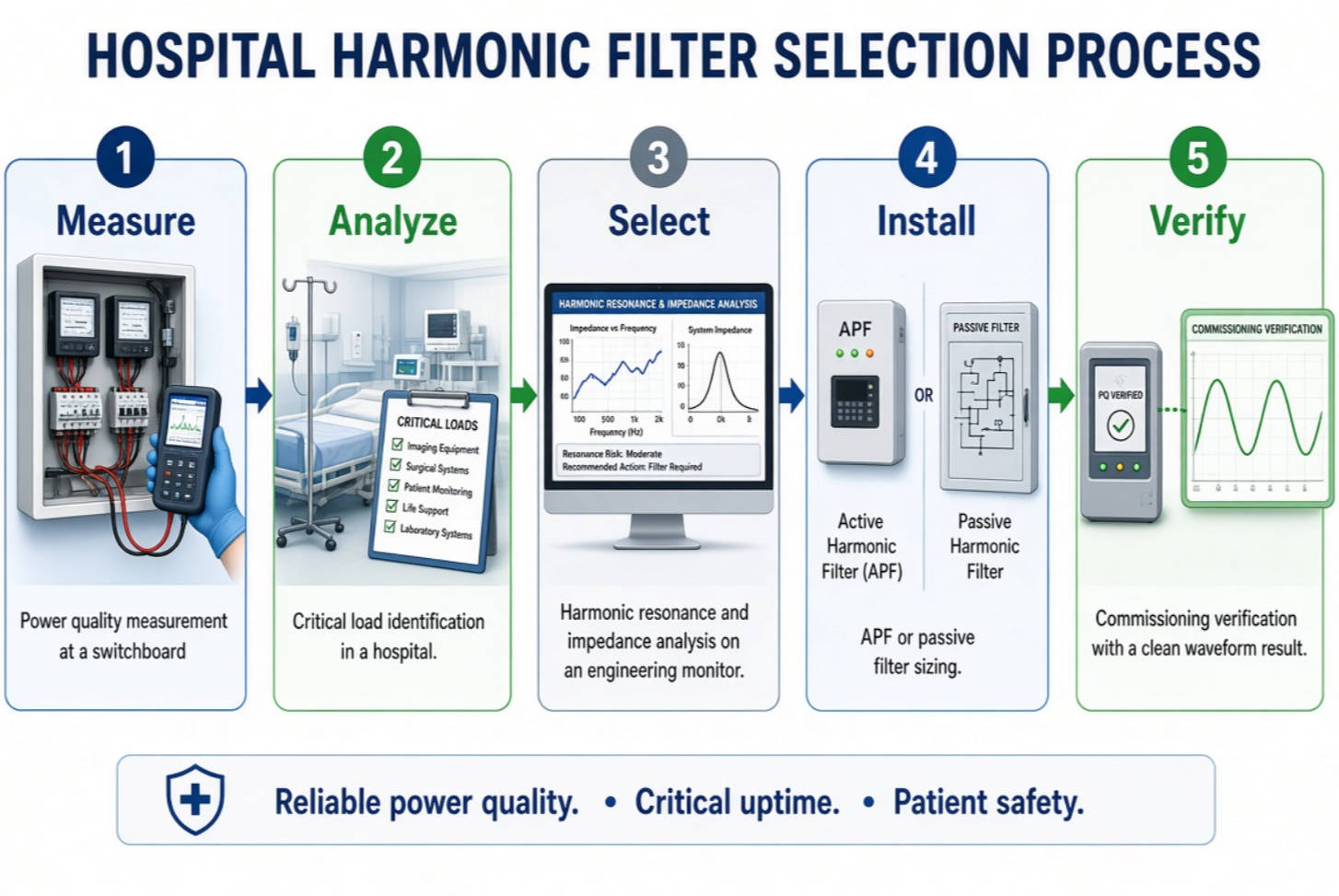

● Hospital Harmonic Filter Selection: A Practical Engineering Workflow
>> Step 1: Perform a Site Power Quality Assessment
>> Step 2: Identify Critical Electrical Loads
>> Step 3: Study Resonance Before Installing Capacitor-Based Equipment
>> Step 4: Size the Solution for Real Conditions
>> Step 5: Verify Performance After Commissioning
● Expert Recommendation: Consider a Hybrid Harmonic Mitigation Strategy
● Choosing the Right Harmonic Filter Partner
● Final Decision: APF or Passive Harmonic Filter for a Hospital?
● FAQ
>> 1. What is the main difference between an APF and a passive harmonic filter?
>> 2. Are active power filters suitable for hospital emergency generator systems?
>> 3. Can passive harmonic filters improve hospital power factor?
>> 4. Can harmonics affect medical equipment?
>> 5. How do I know whether my hospital needs an APF?
>> 6. Can an APF and a passive filter be used together?
>> 7. Where should harmonic filters be installed in a hospital?
For hospitals, choosing between an Active Power Filter (APF) and a passive harmonic filter is not simply a cost comparison. It is a decision about protecting sensitive medical equipment, maintaining electrical-system reliability, supporting emergency-power operation, and managing changing harmonic loads across a complex facility.
Hospitals contain a growing number of nonlinear electrical loads, including MRI and CT systems, imaging equipment, UPS systems, LED lighting, variable-frequency drives, laboratory analyzers, data rooms, and medical IT infrastructure. These loads can introduce harmonic currents that distort voltage, overheat transformers, overload neutral conductors, reduce power factor, and create avoidable reliability risks. An APF is generally better suited to dynamic, multi-source hospital harmonics, while a passive harmonic filter can remain an economical and effective option for stable, predictable harmonic conditions.
A hospital electrical system is fundamentally different from a conventional commercial building. Electrical continuity affects patient care, clinical operations, diagnostic accuracy, life-safety systems, and emergency response capability.
The Essential Electrical System in a healthcare facility is designed to provide continuity of power to designated areas and functions when normal power is disrupted, while also minimizing disturbances within the internal electrical system. This makes harmonic control an important part of a broader power-quality strategy.
Modern hospitals rely heavily on electronic power conversion. These technologies improve efficiency and control, but they can also create nonlinear current waveforms.

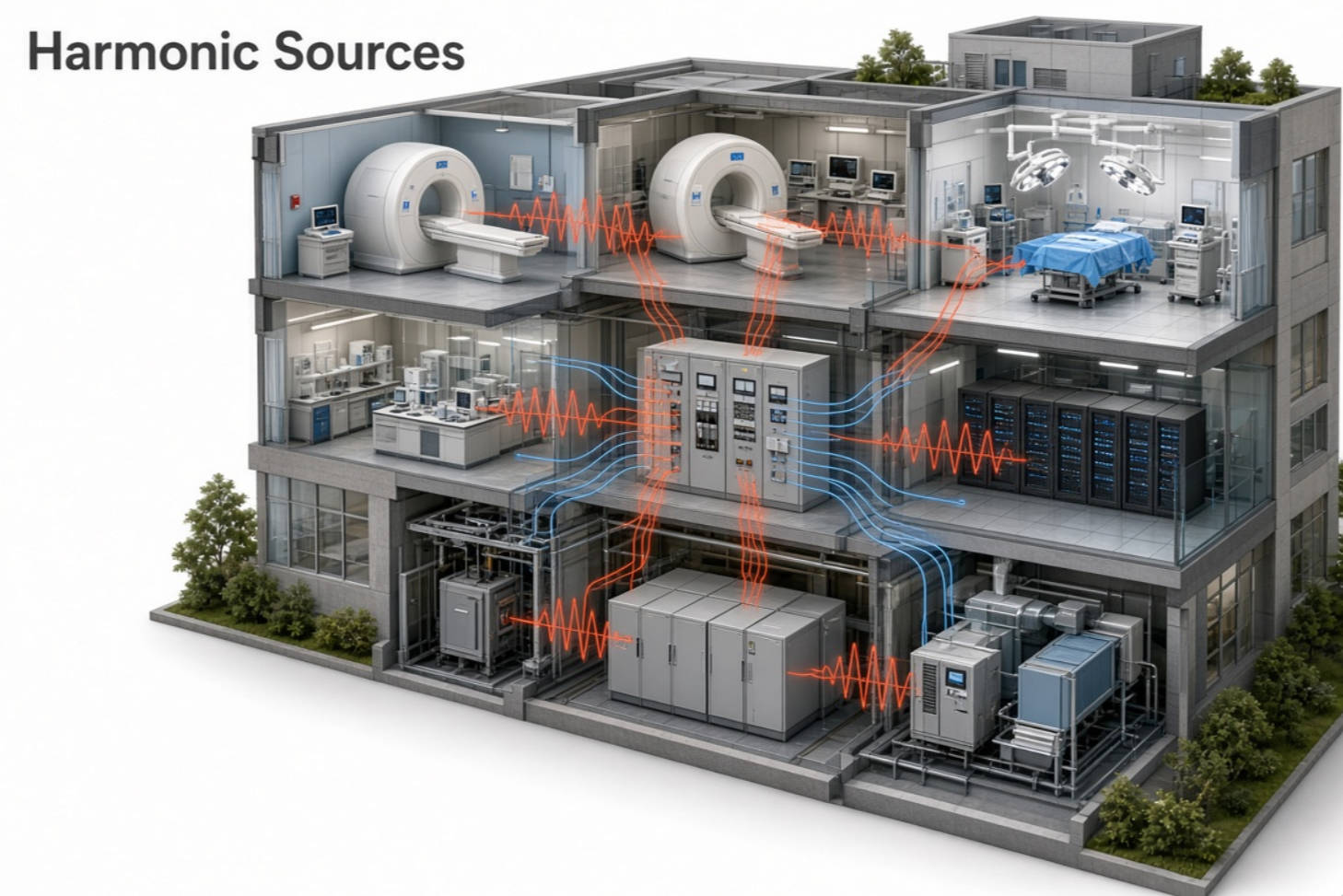

Common hospital harmonic sources include:
- MRI, CT, X-ray, and radiology equipment
- Uninterruptible power supply systems
- Variable-frequency drives for HVAC, pumps, chillers, and air-handling units
- Elevators and escalators
- Data centers and server rooms
- LED lighting drivers
- Battery chargers and medical-device chargers
- Laboratory and pharmaceutical equipment
- Switch-mode power supplies in clinical and IT equipment
When many nonlinear loads operate at the same time, harmonic currents can accumulate at distribution panels, transformer secondaries, and the point of common coupling (PCC).
Harmonics do not always cause an immediate outage. In many cases, they create gradual stress that reduces the useful life of electrical assets and increases the risk of difficult-to-diagnose faults.
Possible consequences include:
- Transformer overheating and reduced available capacity
- Neutral conductor overheating caused by triplen harmonics
- Capacitor-bank overload or premature failure
- Nuisance tripping of breakers and protective devices
- Reduced power factor and higher utility charges
- Voltage distortion affecting sensitive electronics
- Poor generator performance during emergency operation
- Interference with monitoring, imaging, and communication systems
- Reduced reliability of UPS-supported critical circuits
For hospitals, the goal is not only to lower total harmonic distortion. The goal is to create a stable electrical environment during both normal utility operation and emergency generator operation.
Before selecting a solution, facility managers and consulting engineers need to understand the operating difference between an APF and a passive harmonic filter.

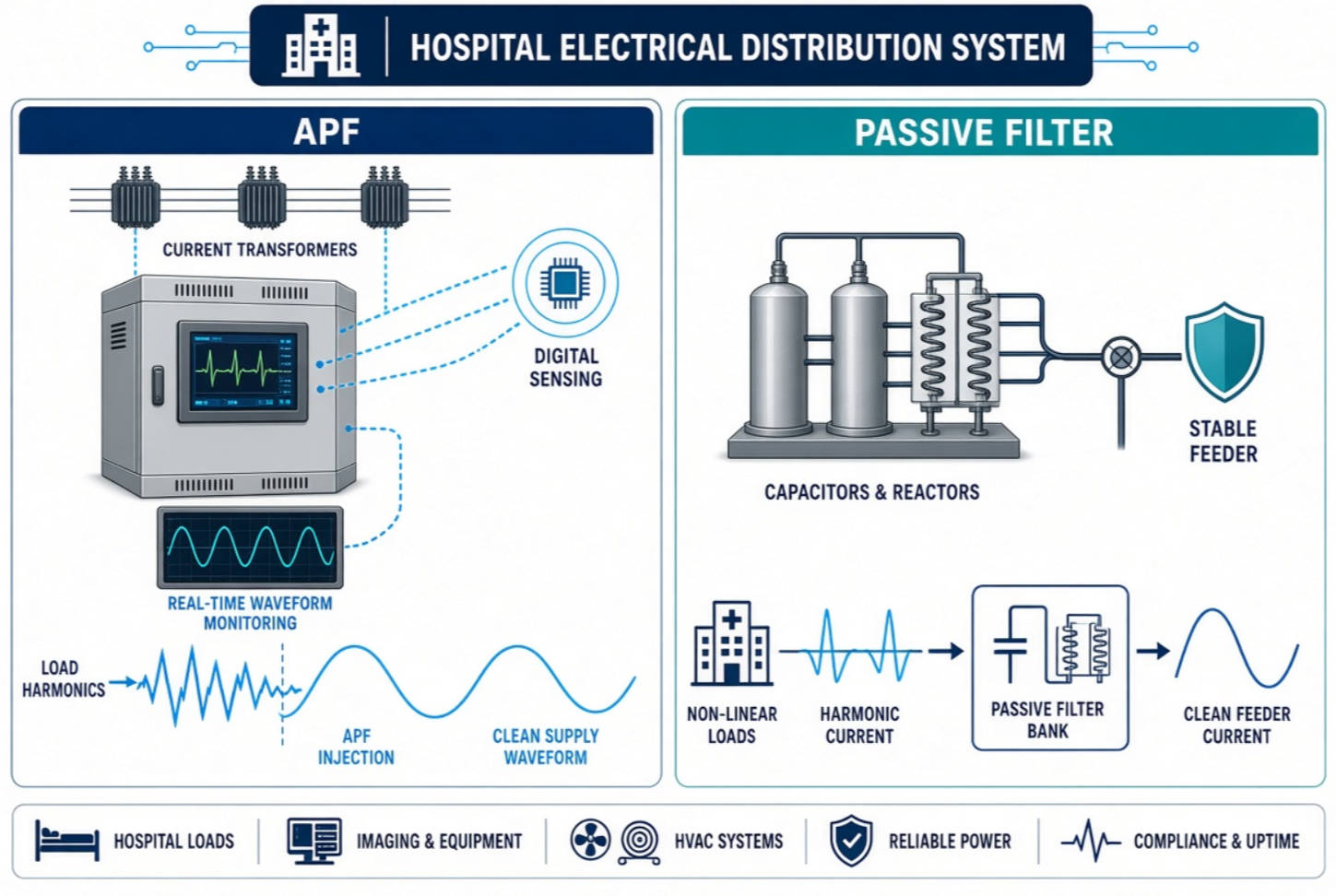

An Active Power Filter, often called an APF or AHF, is a power-electronic device that continuously measures harmonic current in the electrical system. It then injects an equal and opposite compensating current into the network to reduce harmonic distortion.
In practical terms, an APF monitors changing hospital loads in real time. If a large imaging system, UPS load, VFD-driven HVAC system, or data center load changes its harmonic signature, the APF can adjust its output accordingly.
An APF is usually connected in parallel with the electrical distribution system. It commonly uses current transformers, digital control algorithms, power electronics, and reactors to provide compensation.
A passive harmonic filter uses combinations of capacitors, reactors, and sometimes resistors. These components are designed or tuned to provide a low-impedance path for selected harmonic frequencies.
For example, a passive filter may be designed to reduce the fifth, seventh, eleventh, or thirteenth harmonic order produced by a known group of six-pulse drives or a stable industrial load.
Passive filters can also provide reactive power compensation. This can improve power factor while reducing specific harmonic components.
However, their performance is inherently linked to the original system design assumptions. If the load profile changes significantly, the harmonic spectrum changes, or system impedance changes, the passive filter may not perform as intended.
The key distinction is simple:
- Passive filters are frequency-tuned and condition-specific
- APFs are dynamic and continuously adaptive
This distinction is especially important in hospitals, where electrical demand varies by department, time of day, occupancy level, diagnostic activity, and emergency-power operating condition.
| Comparison Factor | Active Power Filter (APF) | Passive Harmonic Filter |
|---|---|---|
| Operating method | Injects compensating harmonic current in real time | Uses tuned capacitors and reactors to absorb selected harmonics |
| Harmonic coverage | Can address multiple harmonic orders within its control range | Most effective for selected, pre-designed harmonic orders |
| Response to changing loads | Highly adaptive | Limited; performance depends on stable load conditions |
| Hospital suitability | Strong option for complex, variable, and sensitive hospital loads | Suitable for predictable loads with a clear harmonic signature |
| Power factor support | Can often provide dynamic reactive power compensation | Commonly provides fixed or stepped reactive power compensation |
| Resonance risk | Does not rely on tuned capacitor branches, but system analysis remains necessary | Requires careful resonance and impedance analysis |
| Neutral-current reduction | Can support triplen and neutral-current compensation, depending on design | Usually limited unless specifically engineered |
| Initial investment | Typically higher | Usually lower for a simple, targeted application |
| Lifecycle flexibility | High; settings and capacity can be adapted | Lower; physical redesign may be needed if loads change |
| Space requirements | Compact modular cabinets are often available | May require larger capacitor and reactor assemblies |
| Maintenance considerations | Requires cooling, monitoring, and electronic-component maintenance | Rugged design, but capacitors and reactors require inspection |
| Best use case | Variable hospital loads, mixed nonlinear loads, high compliance requirements | Stable feeder loads, dedicated equipment, well-defined harmonic orders |
Passive harmonic filters are generally effective when the harmonic spectrum is stable and well understood. Active harmonic filters are more suitable when harmonic sources vary, when multiple feeders contribute to distortion, or when facility expansion is expected.
An APF is usually the stronger long-term option when a hospital has dynamic loads, critical electronic equipment, uncertain future expansion, or strict power-quality requirements.
A large hospital rarely has just one harmonic source. It may include several departments with independent and changing load profiles.
For example, a hospital may operate:
- Imaging systems during daytime diagnostic peaks
- HVAC drives throughout the day and night
- UPS systems supporting data and clinical equipment
- Laboratory equipment with intermittent demand
- Operating-room equipment requiring a stable electrical environment
- Emergency generators during routine testing or utility interruptions
A passive filter designed around one feeder's harmonic profile may not adequately address the combined and changing distortion from the entire facility. An APF can respond to the measured harmonic content rather than a fixed design assumption.
This is one of the most important hospital-specific considerations.
During utility operation, a hospital may have strong grid stiffness and a high available short-circuit capacity. During generator operation, the source impedance can increase significantly. The same nonlinear load may therefore create more voltage distortion when supplied by an emergency generator.
A documented medical-center application found that a detuned filter-bank solution reduced voltage distortion from 10.31% to below 3% under emergency power, while also improving performance under normal utility supply. The same application guidance recommends considering active harmonic filtering when harmonic levels are unusually high, dynamically variable, or when the required balance between harmonic suppression and power-factor correction changes over time.
For hospitals with multiple generators, emergency power distribution systems, and frequent load changes, an APF can provide valuable flexibility.
Hospitals are rarely electrically static. They add imaging equipment, digital systems, EV charging, laboratory capacity, surgery suites, outpatient departments, data infrastructure, and energy-efficiency upgrades over time.
An APF can be a more future-ready choice because modular capacity can often be expanded and operating settings can be adjusted after new loads are introduced.
This does not eliminate the need for a new power-quality study. However, it can reduce the risk of installing a fixed filter that becomes mismatched after the facility changes.
Passive filters work best when the problematic harmonic orders are known and consistent. APFs can mitigate multiple selected harmonic orders and can respond within milliseconds to changes in load conditions.
For a hospital with many independent nonlinear loads, that broader response can improve electrical-system resilience.
Passive harmonic filters should not be viewed as outdated or universally inferior. In the right application, they can offer dependable performance and attractive lifecycle value.
A passive filter can be an excellent choice when a hospital has a stable harmonic source such as:
- A dedicated chiller plant with a predictable VFD load
- A large fixed-speed or steady-duty drive system
- A known group of six-pulse drives
- A stable mechanical-services feeder
- A fixed industrial-style utility plant within a medical campus
If measurement confirms that the harmonic spectrum is stable, and if engineering analysis confirms there is no unacceptable resonance risk, a tuned passive filter may deliver reliable mitigation at a lower initial cost.
Passive filter banks can provide two benefits at the same time:
1. Targeted harmonic reduction
2. Reactive power compensation
This can make them especially attractive when a hospital has low power factor, stable inductive loads, and known harmonic orders.
However, capacitor-based systems must be carefully designed. Capacitors can interact with network inductance and create resonance conditions if the installation is not based on detailed measurements and impedance analysis.
For a small medical facility, outpatient center, or hospital subsystem with stable loads, a passive harmonic filter may be the most economical solution.
The right decision is not "APF is modern, therefore APF is always better." The right decision is based on the load profile, harmonic spectrum, generator operating mode, network impedance, required compliance level, and future expansion plan.
The best filter decision begins with measurement, not product selection.
Measure electrical conditions at relevant points, such as:
- Main low-voltage switchboard
- PCC with the utility
- Transformer secondary
- Emergency generator output
- Critical-care distribution boards
- UPS input and output
- Imaging-equipment feeders
- HVAC and chiller feeders
- Neutral conductors serving nonlinear loads
Measure at different times. A single short test may miss the hospital's real operating profile.
A meaningful survey should capture:
- Voltage THD
- Current THD
- Total demand distortion
- Individual harmonic orders
- Power factor
- Load current
- Neutral current
- Voltage unbalance
- Transients and switching events
- Utility mode versus generator mode
Not every feeder requires the same power-quality target.
Prioritize circuits supporting:
- Life-safety systems
- Intensive care areas
- Operating rooms
- MRI, CT, and diagnostic imaging
- Emergency-power distribution
- Data rooms and clinical IT
- UPS-supported equipment
- Laboratory and pharmacy functions
This risk-based approach helps the project team allocate budget where power-quality improvement produces the greatest operational value.
Before specifying a passive filter, capacitor bank, or detuned reactor bank, conduct a harmonic load-flow and impedance study.
The study should assess:
- Existing capacitor banks
- Transformer impedance
- Generator impedance
- Utility short-circuit capacity
- Cable and feeder characteristics
- Harmonic-source locations
- Potential parallel resonance
- Potential series resonance
- Changes in generator operating mode
This step is essential because a poorly coordinated capacitor installation can amplify distortion instead of reducing it.
APF sizing should be based on measured harmonic current, load variation, desired compensation level, future capacity, and simultaneous operation of major nonlinear loads.
Passive-filter sizing should be based on the target harmonic orders, kVAr requirement, feeder characteristics, resonance analysis, and voltage variation.
Do not select a harmonic filter solely by matching it to transformer kVA, breaker size, or nameplate current. The harmonic spectrum and operating scenario matter more.
After installation, repeat the power-quality measurements under:
- Typical weekday operation
- Peak demand
- Low-load conditions
- Imaging-equipment operation
- Maximum HVAC demand
- Generator-test conditions
- Emergency-power operating conditions, where safely practical
The result should be a documented before-and-after power-quality report.
In many large healthcare projects, the best answer is not exclusively APF or passive filtering. It is a hybrid power-quality solution.
For example:
- Use an APF at the main distribution board to compensate changing facility-wide harmonic currents.
- Use detuned capacitor banks or passive filter banks where stable reactive-power compensation is needed.
- Use dedicated harmonic-mitigation solutions for major VFD groups, chiller plants, or imaging equipment where appropriate.
- Coordinate the entire solution with generator operation, UPS systems, transformers, and existing capacitor equipment.
This approach can balance technical performance, initial investment, power-factor improvement, and long-term adaptability.
For hospitals, a hybrid strategy is often valuable because the electrical system contains both stable mechanical loads and highly dynamic electronic loads.
A reliable harmonic filter manufacturer should provide more than a cabinet of capacitors, reactors, or power electronics. The supplier should support the engineering process from diagnosis through commissioning.
When evaluating APF or passive harmonic filter suppliers for hospitals, look for:
- Power-quality measurement and harmonic analysis capability
- Experience with reactive power compensation and harmonic control
- Customization based on site electrical data
- APF, SVG, capacitor-bank, reactor, and passive-filter integration
- Generator-mode and emergency-power assessment
- Clear technical documentation
- Commissioning guidance and post-installation verification
- Responsive product-service support
- Scalable designs for future hospital expansion
DINGNUO ELECTRIC CO., Ltd. provides power-quality solutions centered on reactive power compensation and harmonic control, including APF, SVG, capacitor banks, reactors, and customized filtering solutions. The company's broader experience in demanding industrial and municipal applications supports a practical, measurement-driven approach to solving complex power-quality challenges.
Choose an Active Power Filter when your hospital has variable harmonic loads, multiple nonlinear sources, sensitive electronic equipment, changing power demand, future expansion plans, or concerns about generator-mode distortion.
Choose a passive harmonic filter when the harmonic source is stable, the required mitigation targets are well defined, reactive power compensation is also needed, and a detailed resonance study confirms that the design is safe and effective.
For many healthcare facilities, the most reliable result comes from a carefully engineered hybrid solution that combines APF flexibility with the cost-effective reactive power support of passive or detuned capacitor-based equipment.
Need a hospital-specific harmonic mitigation plan? Contact DINGNUO ELECTRIC CO., Ltd. for a professional power-quality assessment, harmonic measurement strategy, APF sizing proposal, passive filter design, and customized reactive power compensation solution for your healthcare electrical system.
An APF uses real-time sensing and power electronics to inject compensating current against changing harmonic currents. A passive harmonic filter uses fixed reactors and capacitors tuned to selected harmonic frequencies. APFs are more adaptable, while passive filters are usually more economical for stable, predictable loads.
Yes. APFs can be suitable for generator-backed hospital systems because they can adapt to changing harmonic conditions. However, the APF must be correctly sized and coordinated with generator capacity, source impedance, transformer characteristics, critical loads, and emergency distribution requirements.
Yes. Many passive harmonic filters include capacitor and reactor combinations that provide both harmonic reduction and reactive power compensation. Engineering analysis is necessary to avoid resonance, capacitor overload, and overcompensation at light load.
Harmonic distortion can contribute to voltage distortion, overheating, nuisance tripping, and electrical interference. Sensitive medical, diagnostic, IT, and monitoring systems may be more vulnerable to poor power quality, especially if voltage distortion increases during generator operation.
Start with a professional power-quality survey. If measurements show changing harmonic levels, multiple harmonic orders, high neutral current, unstable power factor, or distortion that becomes worse during generator operation, an APF may be appropriate.
Yes. A hybrid solution can be effective in large hospitals. An APF can manage dynamic, multi-order harmonics, while passive filters or detuned capacitor banks can provide stable reactive power compensation and targeted harmonic mitigation.
Possible locations include the main low-voltage switchboard, PCC, transformer secondary, emergency-power switchboard, chiller plant, major VFD feeder, UPS distribution panel, or a dedicated feeder serving imaging equipment. The final location should be determined through power-quality measurements and system analysis.
1. IEEE. “IEEE Standard 519: Harmonic Control in Electric Power Systems.”
[https://standards.ieee.org/ieee/519/10470/]
2. National Fire Protection Association. “Essential Electrical System (EES) in Healthcare Facilities.”
3. Powerside. “Reactive Power Compensation and Harmonic Filtering in Medical Centers.”
4. Eaton. “Addressing 2021 NFPA 99 Updates to Electrical System Reliability.”
5. Chen, S. “Analysis and Comparison of Passive and Active Harmonic Filters.” IEEE Xplore.
[https://ieeexplore.ieee.org/document/849539/]
6. Hartungi, R. “Investigation of Power Quality in Health Care Facility.” International Conference on Renewable Energies and Power Quality.
[https://www.reepqj.com/icrepq%2710/555-Hartungi.pdf]
7. MTE Corporation. “Passive vs. Active Harmonic Filters: Which Is Right for You?”
[https://mtecorp.com/blog/2025/11/21/passive-vs-active-harmonic-filters-which-is-right-for-you/]
8. DINGNUO ELECTRIC CO., Ltd. “Reactive Power Compensation and Harmonic Filter Solutions.”
