Active power factor correction (PFC) and dynamic reactive power compensation help industrial facilities manage changing reactive loads, improve electrical capacity utilization, and address power-quality challenges. However, choosing the right solution requires more than comparing equipment ratings. Capacitor banks, reactors, static var generators, and active harmonic filters perform different jobs.
For manufacturers operating motors, welding equipment, variable-frequency drives, or large production lines, the practical question is straightforward: which combination solves the measured problem without creating another?
At DINGNUO ELECTRIC CO., Ltd., our focus on capacitors, reactors, and integrated power-quality solutions supports a measurement-first approach. Measurement should determine the technology—not the other way around.
Power factor expresses the relationship between active power, measured in kilowatts, and apparent power, measured in kilovolt-amperes:
PF=kW/kVA
A lower power factor means the electrical system carries more current for the same useful power output. However, the cause matters.
Displacement power factor describes the phase relationship between fundamental-frequency voltage and current. Inductive equipment, including motors and transformers, creates reactive demand that can reduce this value.
True power factor also accounts for waveform distortion. Nonlinear loads, including many rectifiers and drives, draw harmonic currents.
This distinction prevents a common specification error: installing additional capacitors when harmonic distortion, rather than fundamental reactive demand, limits true power factor.
A facility can have a high displacement power factor while its true power factor remains substantially lower.
The term "active PFC" also appears in electronic power supplies, where input circuitry shapes current drawn from the supply.
Here, it refers to facility-level compensation using controlled power-electronic equipment. Specifications should identify the actual function required:
- Fundamental reactive power compensation.
- Harmonic current mitigation.
- Phase-load balancing, where supported.
- A coordinated combination of these functions.
Do not assume every product described as "active" performs all four.
A dynamic compensation system measures electrical conditions and adjusts compensating current as demand changes.
An inverter-based static var generator, or SVG, can supply capacitive reactive current or absorb excess capacitive reactive power within its operating limits. This makes it useful where loads fluctuate or alternate between lagging and leading conditions.
STATCOM describes the broader voltage-source-converter compensation technology. Distribution-level implementations and products marketed as SVGs belong to this related technology family, although their ratings and control capabilities differ.
A controller's sampling interval is not the same as complete system response.
When evaluating dynamic reactive power compensation, ask suppliers to distinguish:
1. Detection time.
2. Initial corrective response.
3. Settling time within an agreed tolerance.
4. Performance during repeated load changes.
Performance depends on the equipment, control settings, measurement arrangement, and disturbance magnitude. A headline millisecond figure alone does not establish application suitability.
Fast response also does not guarantee the elimination of leading power factor. Incorrect current-transformer wiring, unsuitable settings, or insufficient capacity can still cause poor regulation.

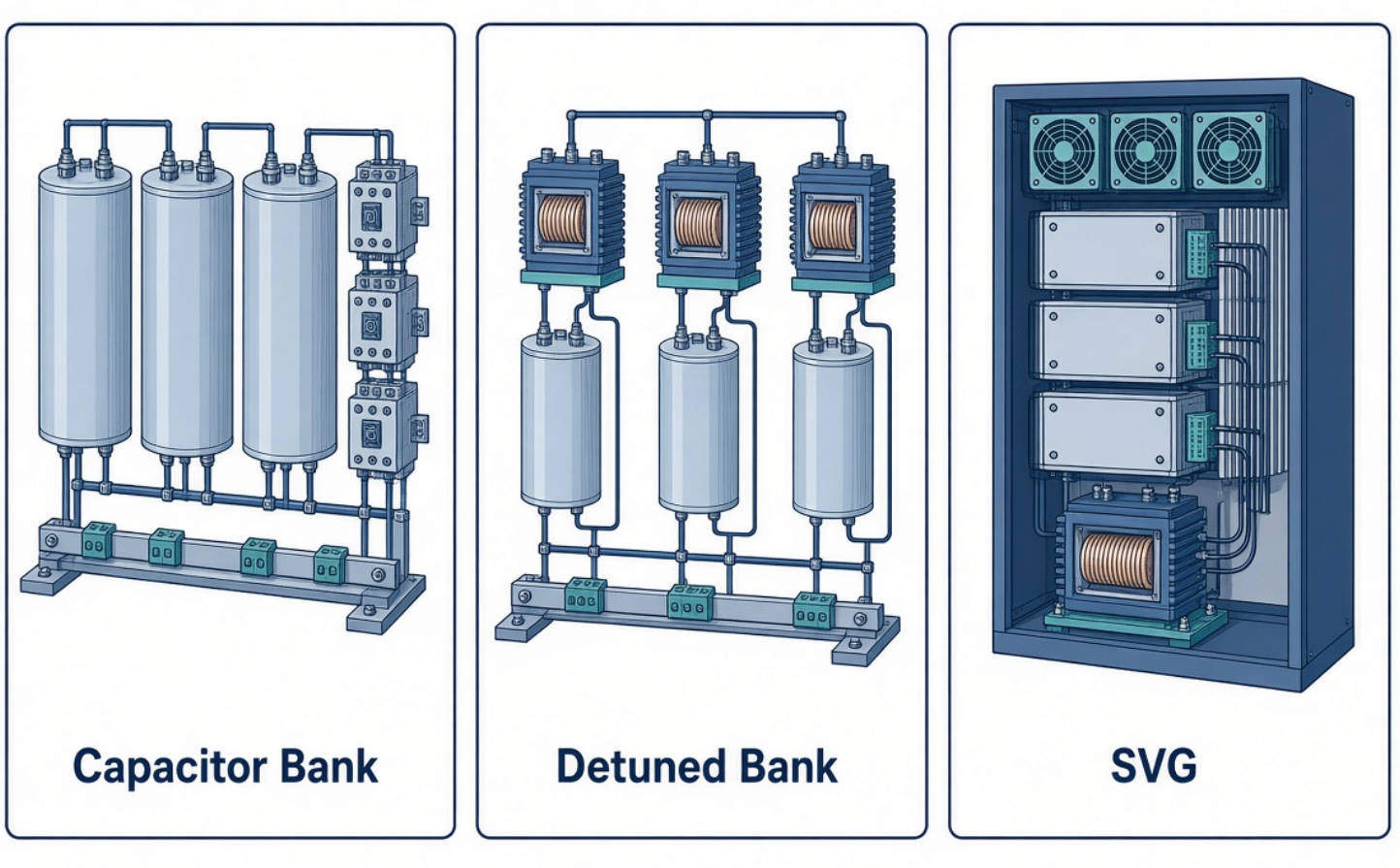

There is no universally best compensation technology. The correct choice depends on reactive demand, harmonic conditions, load dynamics, and lifecycle cost.
| Technology | Primary function | Suitable application | Important limitation |
|---|---|---|---|
| Contactor-switched capacitor bank | Stepped capacitive compensation | Relatively stable inductive loads | Switching delays and discrete steps |
| Thyristor-switched capacitor bank | Faster stepped compensation | Repetitive or rapidly changing inductive loads | Still provides discrete capacitive steps |
| Detuned capacitor-reactor bank | Reactive compensation with reduced resonance risk | Networks requiring capacitors under harmonic exposure | Not equivalent to comprehensive harmonic filtering |
| SVG / STATCOM | Continuously controlled reactive compensation | Fast-changing or leading/lagging reactive demand | Harmonic filtering must be explicitly specified |
| Active harmonic filter | Injection of compensating harmonic current | Nonlinear loads with harmonic problems | Available current may be shared with other functions |
Capacitor banks remain a practical option for steady reactive demand. Thyristor switching also means capacitor-based systems should not automatically be classified as slow.
Likewise, an SVG should not automatically be treated as an active harmonic filter. Some products combine functions, but procurement documents must state their simultaneous operating capabilities.
For a capacitor and reactor manufacturer, component coordination is central to reliable compensation.
Capacitors can interact with network inductance and create resonance near a harmonic frequency. The resulting amplification can increase electrical stress rather than improve operating conditions.
A detuned reactor connects in series with a capacitor bank. The combination is selected to shift its resonant frequency away from problematic harmonic conditions and reduce the risk of harmful amplification.
However, a detuned bank is not automatically a tuned harmonic filter. Its main purpose is safe reactive compensation in an appropriate harmonic environment.
Selection should consider:
- Measured harmonic spectrum.
- Network frequency and operating voltage.
- Transformer impedance and supply configuration.
- Existing capacitor banks.
- Capacitor current and voltage capability.
- Reactor temperature rise and ventilation.
Adding a reactor changes capacitor operating conditions. Capacitor voltage ratings and effective bank output must therefore be checked together, rather than selected independently.
Replacing a capacitor bank with active equipment does not remove every network interaction.
Existing capacitors, cable capacitance, transformers, and converter controls remain part of the system. Complex installations may require a harmonic or impedance study before equipment is added.
For approximately sinusoidal conditions, the fundamental reactive compensation requirement can be estimated using:
Qc=P[tan(cos−1PF1)−tan(cos−1PF2)]
Where:
- Qc is required compensation in kvar.
- P is active power in kW.
- PF1 is initial displacement power factor.
- PF2 is target displacement power factor.
Consider an illustrative 300 kW load operating at 0.80 displacement power factor. The target is 0.95.
Qc=300(0.750−0.329)≈126 kvar
Apparent power falls from:
S1=300/0.80=375 kVA
to:
S2=300/0.95≈316 kVA
This represents approximately 59 kVA of reduced apparent demand under the stated assumptions.
It does not mean the production equipment consumes 59 kW less active power. Potential benefits include released upstream capacity, reduced current-related losses, and lower applicable tariff charges.
Final equipment selection must also account for minimum demand, load variations, harmonics, operating voltage, and future expansion. This calculation alone does not determine active harmonic filter capacity.

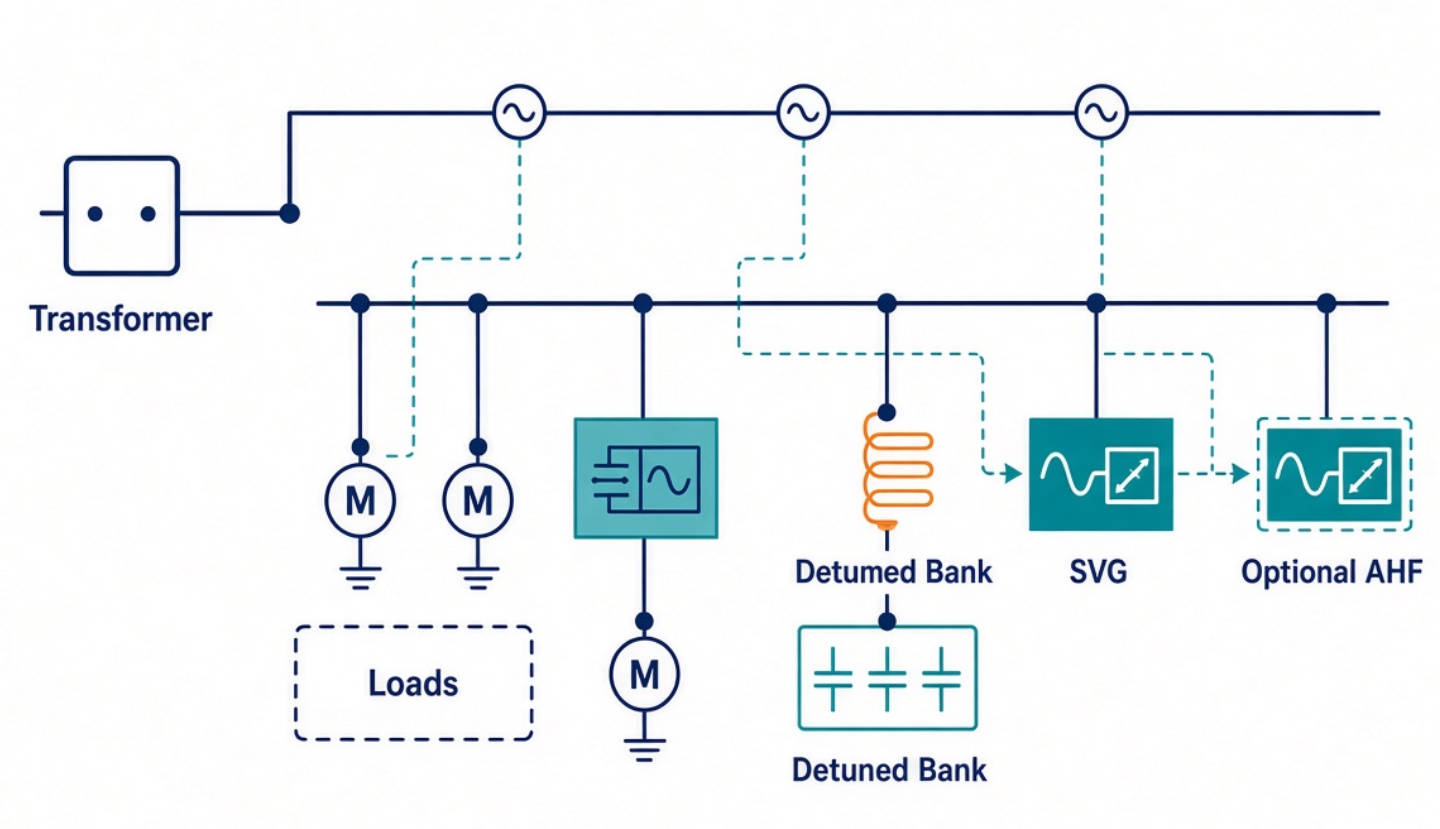

A hybrid system combines capacitor-based compensation with active equipment.
The engineering logic is to separate steady demand from rapidly changing demand:
- Capacitor banks supply an appropriate portion of persistent inductive demand.
- An SVG manages the changing residual reactive requirement.
- An active harmonic filter addresses harmonic currents where necessary.
This can avoid sizing an active converter to carry the entire steady reactive load.
Imagine a facility with continuously operating motors and intermittent production equipment.
A detuned capacitor bank may support the stable reactive baseline. An SVG can handle short-term changes as machines start, stop, or change operating conditions.
If measurements identify significant harmonic currents from drives, harmonic mitigation becomes a separate design requirement.
This is an application concept, not a reported DINGNUO installation or a guaranteed performance outcome.
Hybrid controls also need coordination. Poorly aligned switching thresholds can cause capacitor steps and active compensation to work against each other.
A useful assessment captures how the facility operates—not just one favorable meter reading.
Record representative production periods, including light load, peak demand, equipment transitions, and shutdown conditions.
Collect:
- Active power, reactive power, and apparent power.
- True and displacement power factor.
- Voltage and current distortion.
- Individual harmonic components.
- Phase currents and imbalance.
- Existing capacitor switching activity.
Identify the measurement location clearly. A machine feeder, main switchboard, and utility interface can show different results.
Use the measurements to determine whether the priority is reactive demand, harmonics, imbalance, or a combination.
For welding-intensive automotive production, rapid load variation may dominate. For drive-heavy petrochemical or building-material operations, harmonic conditions may strongly influence selection.
Industry labels alone are insufficient. Two plants in the same sector can require different solutions.
Agree on targets before ordering equipment.
Specify the measurement point, operating conditions, target power-factor range, harmonic criteria, response test, and thermal limits.
IEEE 519-2022 addresses steady-state harmonic performance at the user point of common coupling. It should not be reduced to a universal "below 5% distortion" promise for every internal panel.
Voltage distortion and current distortion require different evaluation criteria.
Commissioning should include current-transformer polarity, phase association, protection settings, compensation direction, and control interaction.
Repeat measurements under comparable production conditions. Confirm performance during light load as well as heavy load, when overcompensation risks and control limitations may become visible.
Installation and testing should be performed by qualified electrical personnel using appropriate isolation and safety procedures.
A credible business case separates several potential benefits:
1. Avoided reactive-energy or power-factor charges.
2. Reduced billed apparent demand, where applicable.
3. Reduced losses upstream of the compensation point.
4. Released transformer and cable capacity.
These benefits depend on the tariff and electrical arrangement. Compensation installed at a main switchboard does not reduce reactive current in every downstream branch.
Include equipment losses, cooling, maintenance, replacement components, and installation costs when estimating lifecycle value.
Do not apply a generic electricity-saving percentage to the entire facility. Verify the actual billing mechanism and measurable loss reduction first.
DINGNUO ELECTRIC CO., Ltd. manufactures capacitors and reactors and provides reactive power compensation and harmonic-control solutions for industrial and municipal applications.
Our recommended starting point is a clear technical brief rather than an isolated kvar request.
Send DINGNUO your single-line diagram, supply voltage and frequency, transformer rating, load profile, existing compensation details, and available power-quality measurements. Include utility requirements and planned equipment additions.
Request a coordinated proposal covering capacitor-reactor selection, any required active compensation, protection, ventilation, control strategy, and measurable acceptance criteria. This creates a stronger basis for a solution matched to your facility.
No. Capacitors can economically support stable inductive demand. Active compensation becomes attractive when continuous adjustment, fast tracking, or bidirectional reactive control is required. Some installations benefit from both.
Only when the specified product includes that capability. Confirm supported harmonic orders, compensating current, and performance when reactive compensation and harmonic filtering operate simultaneously.
Capacitors primarily improve displacement power factor. Harmonic distortion can continue to limit true power factor. Insufficient capacity, unsuitable step sizes, or measurement errors can also contribute.
No. Select the target according to utility requirements, operating conditions, and control capability. Pursuing exact unity without considering light-load behavior can introduce unnecessary cost or leading operation.
No. They reduce particular capacitor-related risks when correctly selected. Harmonic measurements and network assessment remain necessary to establish suitability and determine whether additional filtering is required.
Provide the electrical diagram, voltage, frequency, transformer data, load profile, existing capacitor details, power-factor records, harmonic measurements, and project targets. Identify environmental conditions and future expansion where relevant.
