An electric arc furnace (EAF) can produce harmonic distortion and voltage flicker at the same time, but those problems call for different compensation priorities. In an active power filter vs SVG decision, an active power filter (APF) is usually the stronger choice when harmonic current is the principal concern; a static var generator (SVG) is usually the stronger choice when rapid reactive-power swings and flicker dominate. Neither label, by itself, guarantees that an EAF installation will meet its grid-connection requirements.
For a steelworks, the practical question is not "Which device is better?" It is: What disturbance must be controlled, at which measurement point, under which furnace operating conditions? This guide compares APF and SVG performance, explains where a combined solution makes sense, and sets out the evidence a supplier should provide before equipment is specified.
Unlike a steady industrial load, an EAF changes as electrodes move and scrap melts. Its current and reactive-power demand can vary sharply, particularly during initial melting. The arc is also nonlinear, so its electrical effects can include harmonics, interharmonics and phase imbalance. The severity changes across the heat; a measurement taken only during relatively stable refining can miss the worst conditions.
These disturbances have different consequences:
- Harmonic current can contribute to voltage distortion and place additional stress on electrical equipment.
- Reactive-power swings can drive rapid voltage changes and flicker.
- Phase imbalance can complicate compensation and increase the demands placed on the supply system.
- Operating-stage variation means a solution that looks adequate on an average trend may be inadequate during scrap bore-in.
A distinction is measurement location. The furnace bus is useful for diagnosing plant performance, but utility requirements may be assessed at the point of common coupling (PCC). IEEE 519-2022 addresses steady-state harmonic voltage and current distortion at the user PCC; it is not, on its own, a flicker test. Flicker measurement and connection assessment require separate methods and agreed limits.

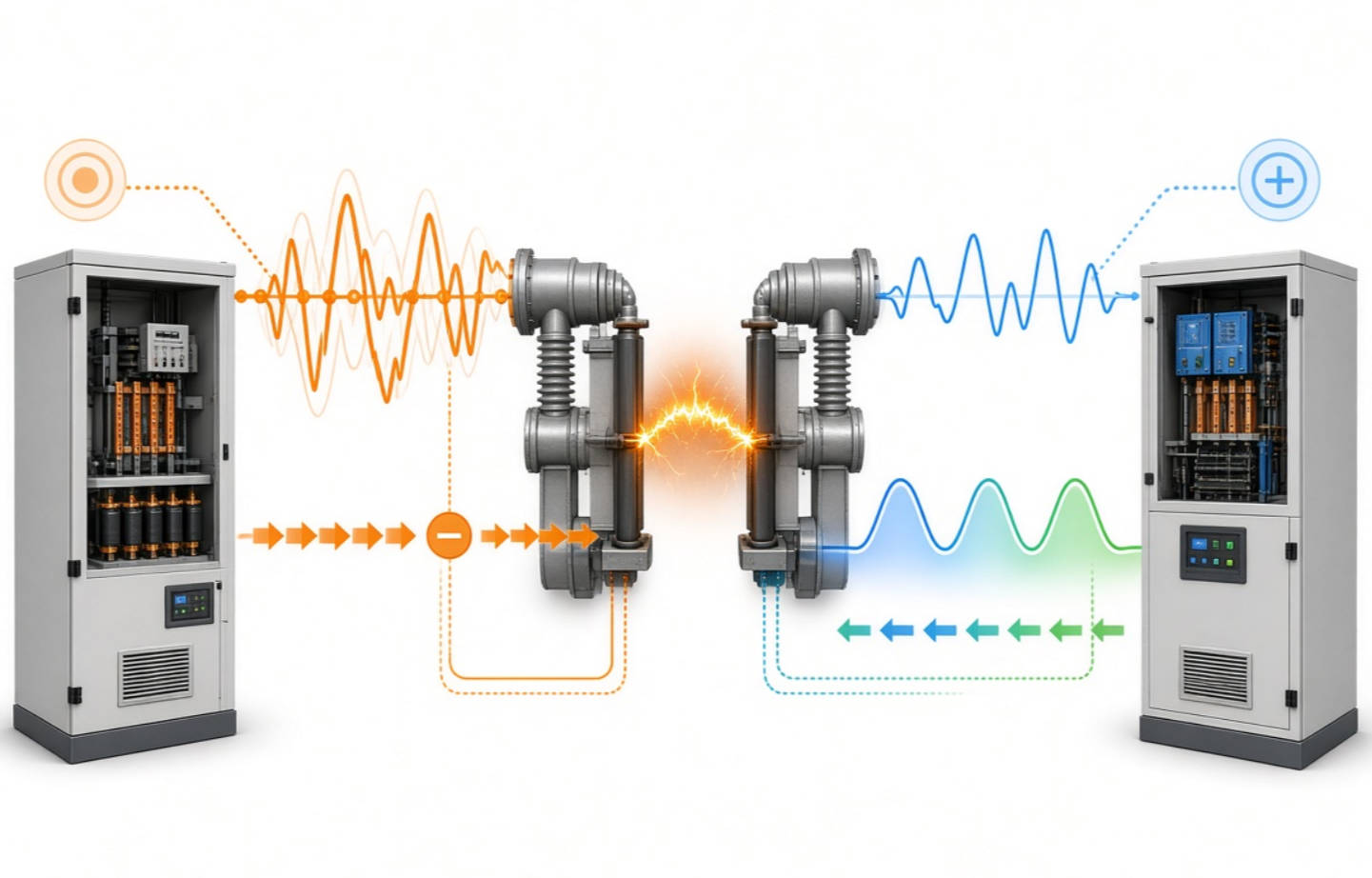

Both devices may use power-electronic converters, and product capabilities can overlap. An APF measures unwanted current components and injects compensating current, principally to reduce harmonic current. Depending on its design and rating, it may also correct power factor and balance loads.
An SVG, often described in larger grid applications as a STATCOM, primarily supplies or absorbs reactive power dynamically. Its role in an EAF installation is to support bus voltage as furnace demand changes. Some STATCOM designs can also provide active filtering, but that capability must be specified; it should not be inferred from the name alone.
| Decision factor | Active power filter (APF) | Static var generator (SVG/STATCOM) |
|---|---|---|
| Primary task | Reduce selected harmonic-current components | Compensate changing reactive power and support voltage |
| Strongest EAF use case | Measured harmonic-current problem with an identifiable compensation duty | Rapid var swings, voltage fluctuation or flicker |
| Power-factor support | Possible, if specified and capacity is available | A principal design function |
| Flicker mitigation | Possible only to the extent that its control strategy and remaining current capacity address the relevant fluctuations | A principal application when correctly controlled and sized |
| Harmonic mitigation | A principal design function | Product- and control-dependent; may require separate filtering |
| Key sizing question | Which harmonic currents must be cancelled during the worst operating stage? | How much reactive compensation is needed, and how quickly must it respond? |
| Main procurement risk | Assuming harmonic filtering alone will solve flicker | Assuming fast var compensation will meet harmonic limits |
The table describes functions, not guaranteed results. APF products may combine harmonic mitigation, power-factor correction and load balancing. STATCOM products may offer active filtering. For either option, the available performance depends on the converter, controls, connection point and installed rating.
If measurements show problematic harmonic current during EAF operation, an APF offers a direct control route: detect the relevant current components and inject a compensating waveform. This is valuable when the harmonic spectrum changes with the process rather than remaining fixed at one predictable operating point.
An APF should nevertheless be sized against the measured current it must compensate, not simply against the furnace transformer's nameplate rating. The engineer should establish which harmonic orders matter, how their magnitude changes during bore-in and refining, and whether the proposed APF must reserve capacity for reactive current or imbalance correction.
Harmonic current at a plant bus and harmonic voltage at the PCC are also different quantities. A supplier should show how its proposed arrangement affects the contracted PCC targets, rather than promising compliance from an APF's filter rating alone. IEEE 519-2022 sets PCC-oriented steady-state distortion goals, making the agreed measurement point central to the design.
For an EAF with large, fast reactive-power variations, an SVG is the more direct tool. By changing its reactive output as the furnace demand changes, it can help stabilize voltage and reduce flicker. Industry guidance identifies dynamic compensation—including SVG/STATCOM equipment—as an EAF flicker-control approach; STATCOM suppliers likewise describe millisecond-scale converter action.
Fast response is necessary, but it is not a performance guarantee. Control settings, system strength, measurement delay, available var output and the character of the furnace fluctuations all matter. A quoted response time should therefore be accompanied by a proposed control method and predicted flicker results at the relevant bus and PCC.
An SVG also does not automatically remove every harmonic of concern. If a proposal includes harmonic mitigation, request the supported operating modes and the performance available while the unit is meeting peak reactive-power demand. That simultaneous-duty question is often more useful than asking whether the catalogue calls the unit "multifunctional."
An APF-plus-SVG arrangement deserves evaluation when the plant has material harmonic-current and flicker obligations that neither proposed device can meet alone. The SVG can be assigned the dynamic var and voltage-support duty, while the APF addresses defined harmonic-current components. That division is a design approach, not a universal prescription: a suitably specified multifunction converter, or another engineered compensation arrangement, may also meet the project targets.
For DINGNUO ELECTRIC CO., Ltd., the useful commercial conversation begins with the whole compensation system, not a product label. As a manufacturer of capacitors and reactors serving industrial power-quality applications, the company can frame a proposal around the measured problem, the proposed active equipment, and any capacitor–reactor or filter elements the study shows are appropriate. Capacitors or reactors should not be added by rule of thumb to a nonlinear EAF system; their interaction with harmonics must be evaluated in the electrical design. Published EAF projects demonstrate that engineered filter banks can form part of a broader compensator arrangement, but their configuration is specific to the installation.
A published Standard Steel EAF upgrade illustrates why a combined power-quality specification matters. The plant installed an 80 Mvar static var compensator (SVC) with a three-stage harmonic filter bank. During the reported comparison, average short-term flicker severity, \(P_{st}\), at the 46 kV mill bus fell from 2.01 without the SVC to 1.24 with it. The authors projected an average \(P_{st}\) of 0.31 at the 230 kV PCC, using a relationship established from earlier measurements and system studies.
This is not an APF-versus-SVG trial: an SVC is a different compensator arrangement. The case is useful because it shows the value of separating mill-bus measurements from PCC projections, testing several power-quality outcomes, and documenting the actual equipment configuration. It does not establish that an SVG—or any particular APF—would reproduce those numbers at another furnace.
The most reliable purchase specification starts with evidence. Before comparing APF and SVG quotations, ask the plant electrical team and prospective suppliers to work through these steps.
1. Define the obligation. Record the utility agreement's measurement point, flicker criteria, harmonic criteria, power-factor target and required operating scenarios. Do not substitute a generic "IEEE 519 compliant" claim for the actual interconnection requirements.
2. Capture a representative baseline. Measure the relevant voltages and currents through multiple heats, including bore-in and refining. Record operating state alongside the electrical data so peaks can be tied to furnace behavior.
3. Separate the disturbances. Review harmonic current and voltage distortion independently from \(P_{st}\), \(P_{lt}\), voltage variation, reactive-power swings and imbalance. IEC 61000-4-15 specifies flickermeter measurement methodology; it does not itself set a universal allowable flicker limit.
4. Model the electrical network. Include the connection point, transformers, likely network operating conditions and any existing compensation. Check proposed capacitor–reactor or filter arrangements for harmonic interaction before selecting ratings.
5. Test candidate duties simultaneously. Ask what happens when harmonic current and reactive demand peak together. Compare an APF, an SVG and a combined arrangement against the same measured baseline and acceptance criteria.
6. Specify acceptance testing. Require commissioning results at the agreed locations and operating conditions, with a clear distinction between measured PCC performance and values inferred or projected from another bus.
The decisive output is not a preferred acronym. It is a schedule of required compensation duty versus demonstrated equipment capability. This approach also makes bids easier to compare: every supplier responds to the same disturbances, measurement points and acceptance tests.
- Which furnace operating stage establishes your proposed equipment rating?
- What harmonic-current components will the APF compensate, and with what capacity left for other functions?
- What reactive-power range and control response will the SVG provide under the specified grid conditions?
- How will the solution perform when harmonic and var demands occur together?
- Which results are simulated, which are measured, and where will final acceptance measurements be taken?
- What changes, if any, are required to existing capacitor banks, reactors, filters or protection settings?
For harmonic-dominant EAF problems, begin by evaluating an APF's current-compensation capability. For flicker-dominant problems, begin with the SVG's dynamic var duty and predicted voltage performance. Where both matter, compare a coordinated solution against a single multifunction unit using the same network study and acceptance tests. The final selection should follow the plant's measurements and utility agreement—not a generic claim that either technology "solves power quality."
CTA: Share your EAF single-line diagram, transformer and furnace ratings, recent power-quality recordings, and PCC requirements with DINGNUO ELECTRIC CO., Ltd. Request a project-specific review of harmonic control, reactive-power compensation, and any capacitor–reactor or filter elements before asking for a final equipment quotation.
Not by assumption. An APF may correct reactive current if designed and rated to do so, but a harmonic-filtering specification alone does not establish flicker performance. Ask for predicted and tested \(P_{st}\) and \(P_{lt}\) results at the agreed measurement point.
Some STATCOM designs offer active filtering, but harmonic performance is product- and control-dependent. Specify the harmonic duty explicitly, including the capacity available when the unit is also supplying peak reactive compensation.
No. Both are used for reactive-power and voltage control, but a STATCOM/SVG uses voltage-source-converter principles; an SVC may use a thyristor-controlled reactor with filter banks, as in the documented Standard Steel installation. Do not transfer one project's results to the other technology without a study.
Start with the location in the utility agreement. IEEE 519-2022 describes steady-state harmonic voltage and current distortion limits at the user PCC, while internal bus measurements remain useful for diagnosis and commissioning.
There is no single value to assume from the flickermeter standard. IEC 61000-4-15 addresses how flicker is measured; IEC TR 61000-3-7 provides guidance for assessing fluctuating installations, while the system operator specifies the applicable connection requirements.
When measurements and studies show that substantial harmonic-current compensation and rapid reactive-power support are both needed—and a proposed single unit cannot demonstrate both duties simultaneously. Compare the alternatives on performance, integration and acceptance criteria rather than on equipment count alone.
1. IEEE Standards Association. "[IEEE 519-2022: IEEE Standard for Harmonic Control in Electric Power Systems]." Standard overview; PCC and steady-state harmonic-distortion scope. [standards.ieee]
2. International Electrotechnical Commission. "[IEC 61000-4-15:2010—Flickermeter: Functional and Design Specifications]." Flicker measurement methodology and scope. [webstore.iec]
3. International Electrotechnical Commission. "[IEC TR 61000-3-7:2008—Assessment of Emission Limits for the Connection of Fluctuating Installations]." Guidance for MV, HV and EHV connection assessments. [webstore.iec]
4. Schneider Electric. "[Forging a Sustainable Future: Navigating Power Quality Challenges in Green Steel Production]." August 1, 2024. Industry discussion of EAF disturbances and dynamic compensation. [blog.se]
5. Schneider Electric. "[PowerLogic AccuSine PCS Plus Power Correction System]." Manufacturer description of active harmonic filtering, power-factor correction and load balancing. [se]
6. Hitachi Energy. "[Static Compensator (STATCOM)]." Manufacturer description of converter operation, reactive support and optional active filtering. [hitachienergy]
7. Sam Morello, Thomas J. Dionise and Thomas L. Mank. "[Installation, Startup and Performance of a Static Var Compensator for an Electric Arc Furnace Upgrade]." Presented at the 2015 IEEE IAS Annual Meeting; documented equipment configuration and measured mill-bus results. [eaton]
8. Divya Sajeesh and Seema Jadhav. "[Research on Power Quality Issues in Electric Arc Furnace and Its Mitigation Techniques]." International Journal of Engineering Research & Technology, January 2014; overview of EAF disturbances and mitigation approaches. [ijert]
