Why Is High Temperature the Arch-Enemy of Film Capacitors? Scientific Research Unravels the Underlying Logic Behind the 85°C Temperature Limit

1. Film Capacitors: Core Buffer Components in Power Electronics Systems

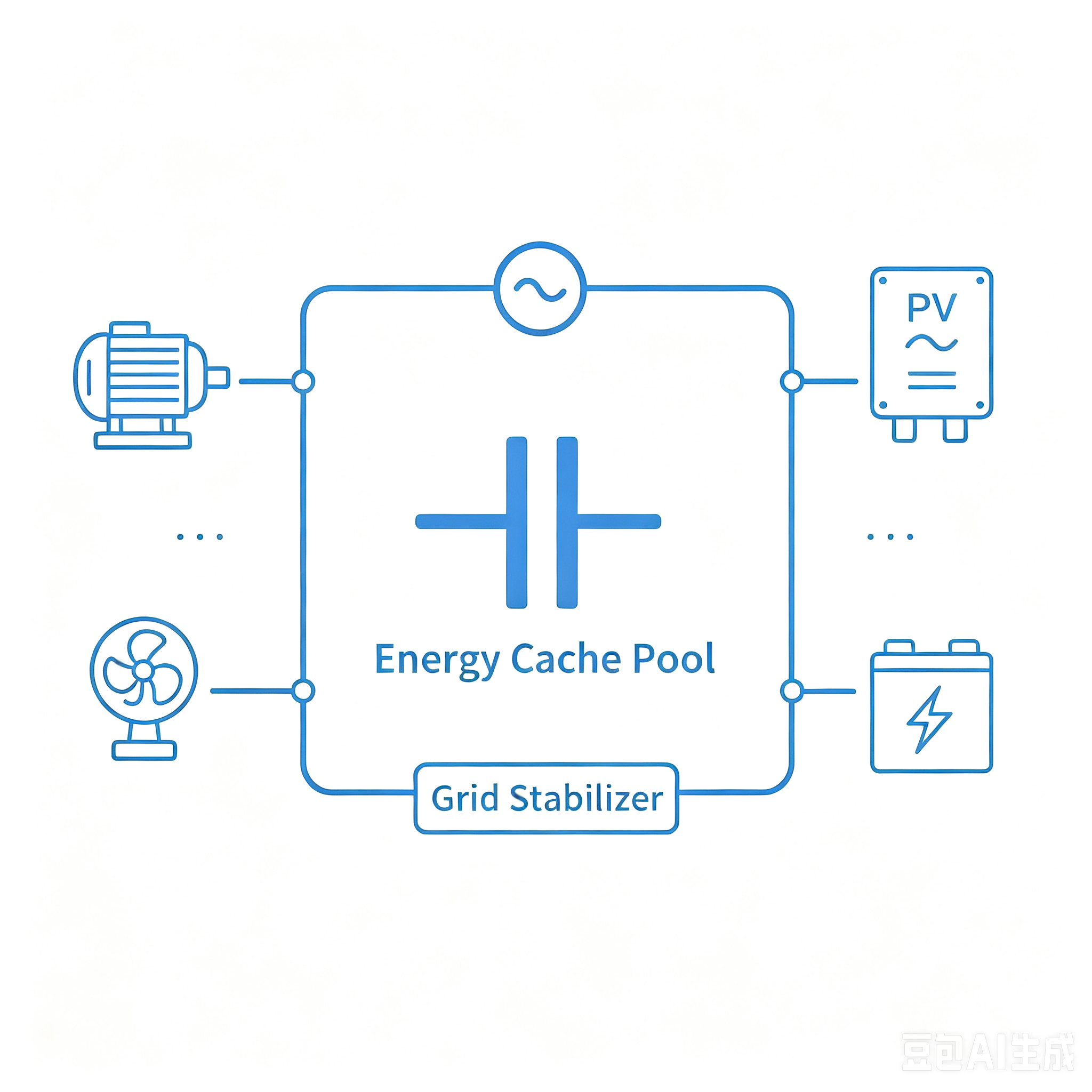

In high-power, compact power equipment, DC bus film capacitors play a central role in voltage stabilization, buffering, harmonic suppression, and the storage of transient electrical energy. They serve as the circuit’s “stabilizing buffer,” directly determining the system’s operational stability and service life.

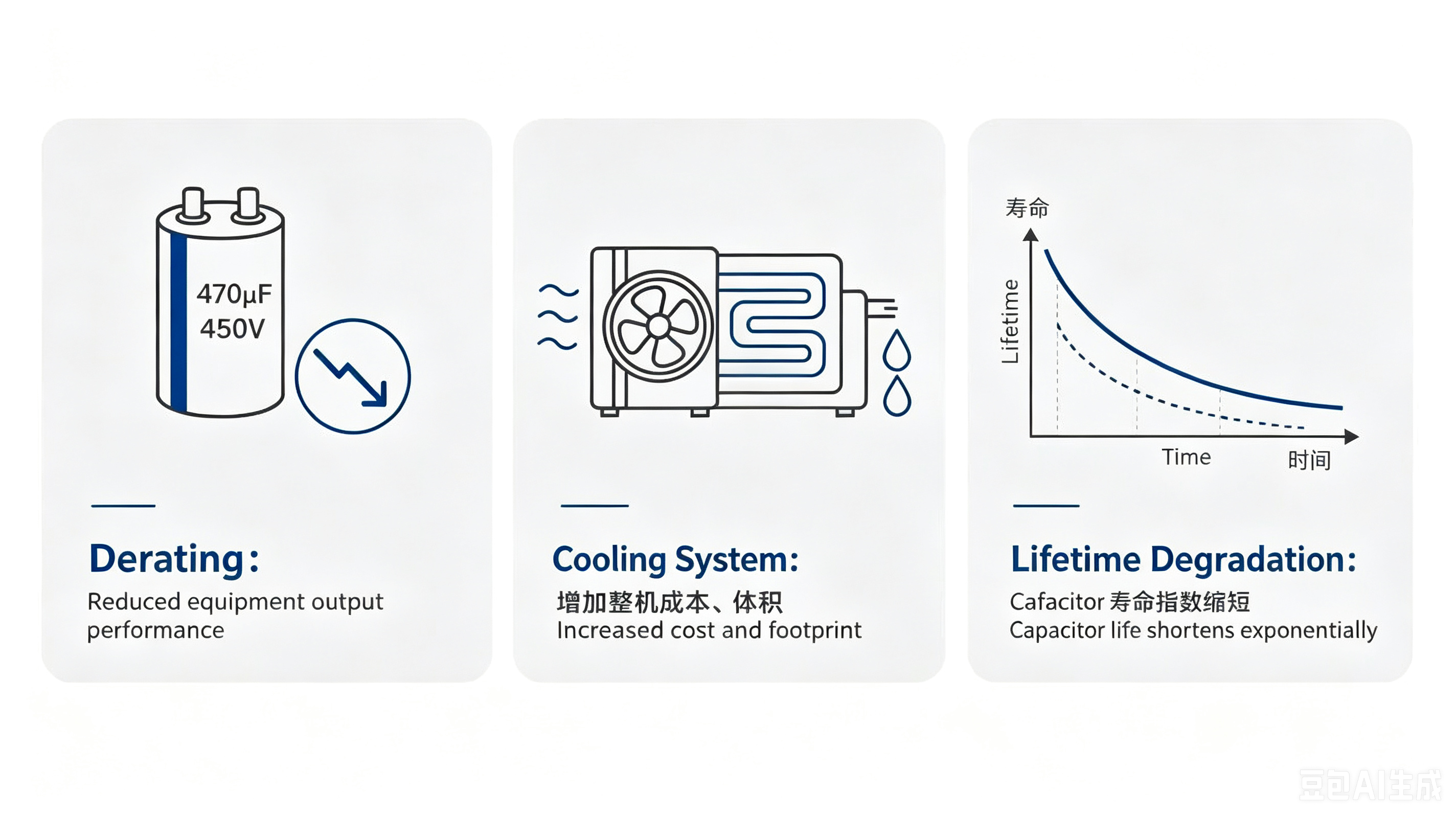

Bi-axially oriented polypropylene (BOPP) film is currently the standard dielectric material for capacitors used in reactive power compensation and new energy applications. Thanks to its three core advantages—extremely low dielectric loss, excellent insulation properties, and self-healing protection—it has become the industry-standard material. However, its inherent limitation in heat resistance significantly restricts upgrades in equipment integration: operating temperatures inside vehicle electronic control units and photovoltaic inverter enclosures easily exceed 100°C. To prevent high-temperature damage to capacitors, engineers are forced to choose between two options—either derate the capacitors’ rated power, sacrificing the system’s overall output performance; or install complex water-cooled or air-cooled heat dissipation systems, which increase equipment costs and enlarge the cabinet size.

2、85°C is not an empirical value; molecular motion within the material is the true cause of failure.

It has long been tacitly accepted in the industry that high-temperature failures in capacitors are caused by the gradual chemical aging of the film. Research published in *Giant* by Professor Zhu Lei’s team at Case Western Reserve University confirms that the core cause of critical failure at 85°C is a sudden change in the microscopic physical structure resulting from αc relaxation, rather than a gradual aging reaction.

We can visualize the microstructure of BOPP film as follows: The material consists of an interwoven network of a rigid crystalline framework and flexible molecular chains (spring-like structures). At room temperature, the molecular chains are stably bound, resulting in a dense overall structure with insulation strength that meets standards. When the ambient temperature rises to the critical range of 85–95°C, the molecular chains are thermally activated and undergo synchronized, violent back-and-forth twisting—referred to in the text as “collective motion”—which triggers three types of irreversible damage:

1. Dramatic decline in mechanical strength: The film softens overall, becoming highly susceptible to deformation under an electric field, resulting in shifts in the spacing between film layers;

2. Breakdown of the insulating barrier: Current-carrying charges can more easily penetrate the film dielectric, significantly increasing the risk of localized breakdown;

3. Dissociation of the rigid framework: The amorphous rigid phase that maintains the film’s stability gradually dissociates, causing the microstructure to completely disintegrate.

When these three types of damage accumulate, the breakdown strength of the film insulation drops sharply, and the capacitor’s service life declines exponentially. The 85°C threshold is not an arbitrary standard set by manufacturers; rather, it serves as a safety warning threshold before the material’s microstructure collapses—a performance cliff that marks the dividing line between stable operation and rapid failure.

3、Four Major Technical Approaches to Overcome the 85°C Heat Resistance Bottleneck

Once it was determined that αc relaxation was the core cause of high-temperature failure, the industry established four well-established technical research pathways to raise the upper limit of heat resistance by focusing on four dimensions: thin-film structure, molecular formulation, composite modification, and new material systems:

Optimize the biaxial stretching process for the film to align the internal crystal structure, forming a dense charge barrier layer; combine this with high-temperature annealing to increase crystal grain size, enhance the overall structural rigidity, and suppress the vigorous movement of molecular chains at high temperatures.

By introducing rigid aromatic ring groups into the polypropylene molecular chains, or by using a cross-linking process to add fixed nodes to the molecular network, the molecular chains are locked in place at the source, thereby weakening the αc relaxation effect at high temperatures.

By incorporating functional nano-fillers into the film substrate, free molecular chains are anchored by nanoparticles, which simultaneously enhances the film’s overall thermal conductivity and rapidly dissipates internal heat, achieving the dual benefits of structural reinforcement and improved heat dissipation.

Moving beyond the polypropylene material system, we have developed new medium materials such as modified polyolefins and specialty polystyrene. Their native molecular structures offer superior high-temperature resistance, enabling them to withstand operating conditions of 120°C and 150°C without the need for additional modification.

This fundamental research into the αc relaxation mechanism of BOPP film has resolved the high-temperature failure issue that has plagued the power electronics industry for many years, providing a clear R&D roadmap for specialized high-temperature film capacitors rated for 150°C. With the continuous advancement of dielectric materials and film manufacturing processes, a new generation of high-temperature-resistant, miniaturized, and long-life film capacitors will enter mass production. These will thoroughly resolve heat dissipation challenges in new energy vehicles, photovoltaic energy storage, and industrial variable-frequency equipment, providing more reliable core power components to support the clean energy and high-end equipment industries.
