In many industrial facilities, poor power factor is not caused by one motor, one feeder, or one capacitor bank. It is the result of the entire electrical system—including transformers, inductive loads, fluctuating production equipment, and harmonic-producing devices.
For plants in metallurgy, petrochemicals, automotive manufacturing, paper, textile, building materials, and municipal infrastructure, transformer reactive power and SVG compensation at the medium-voltage side are central power-quality issues. If reactive power is not managed correctly, the facility may experience higher current, reduced transformer capacity, voltage fluctuations, increased line losses, and utility power-factor charges.

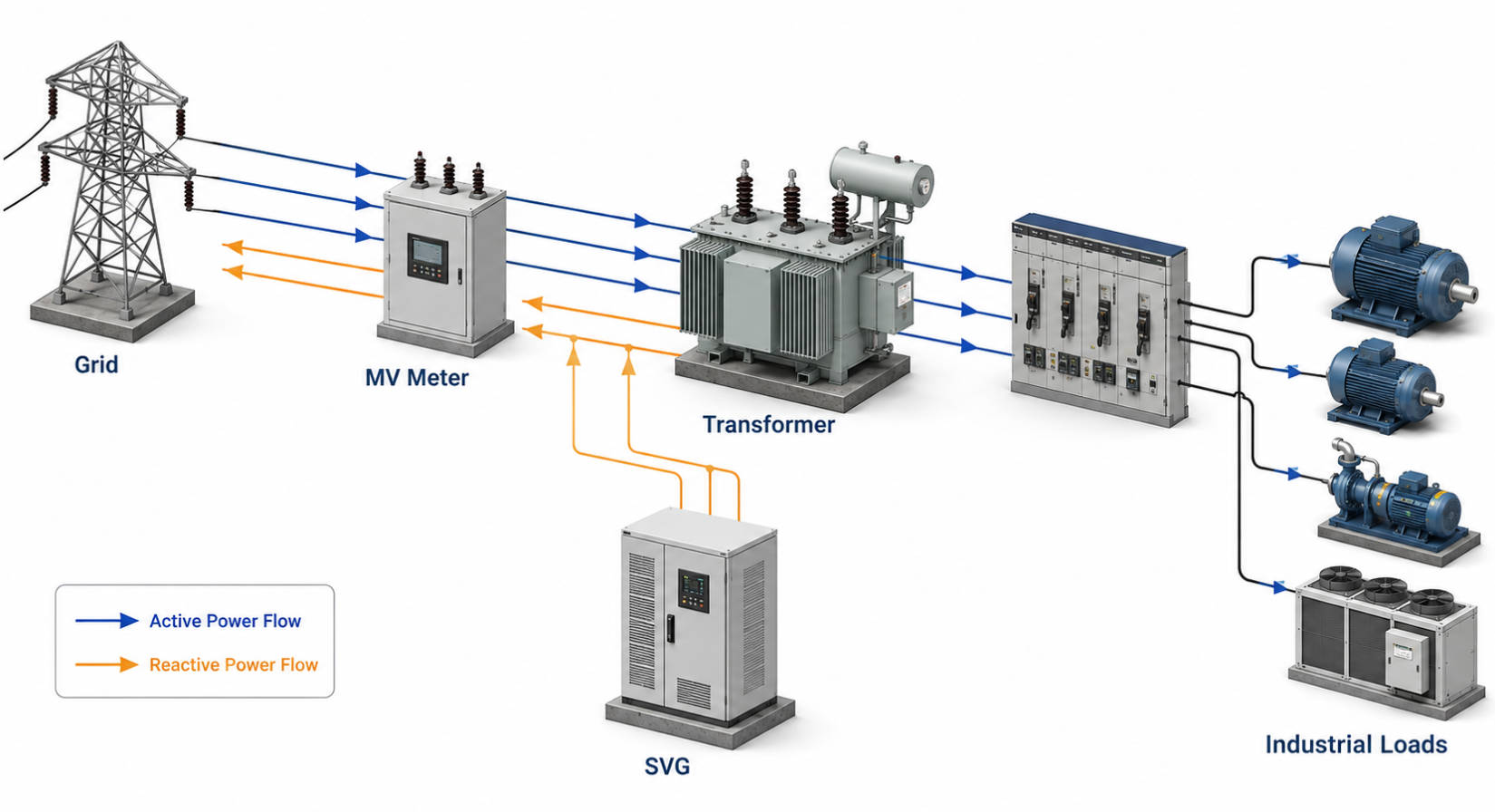

A Static Var Generator (SVG) installed or measured at the MV side can provide fast, continuously adjustable reactive-power compensation. More importantly, it can help the facility manage reactive demand across the transformer and downstream load system—not merely at one low-voltage distribution board.
This guide explains how transformer reactive power works, when MV-side SVG compensation makes sense, how to estimate capacity, and what engineers should verify before selecting a solution.
A transformer does not consume active power in the same way as a production machine. However, it needs magnetizing current to establish magnetic flux in its core. This current includes a reactive component.
At the same time, industrial loads such as induction motors, pumps, compressors, welding systems, arc furnaces, and variable-frequency drives can also create substantial reactive-power demand. The result is a lagging power factor at the point where the utility measures energy performance.
When the power factor falls, the system must carry more current to deliver the same active power.
The relationship is:
S = sqrt{P^2 + Q^2}
Where:
Sis apparent power, measured in kVA
Pis active power, measured in kW
Q is reactive power, measured in kVAr
For a three-phase system:
P=S×PF

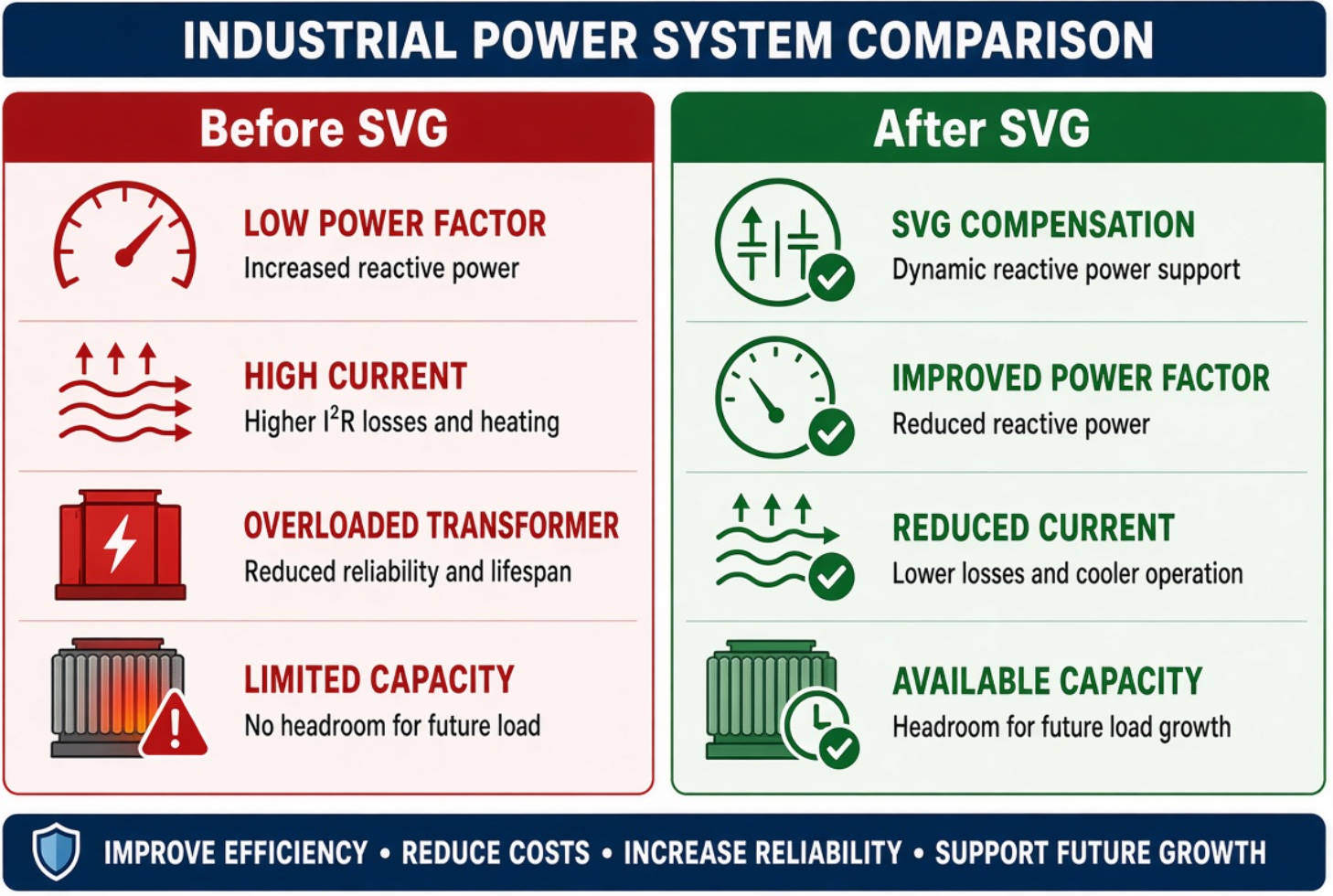

A lower power factor means a larger apparent-power requirement for the same useful active power.
For example, a facility requiring 4,000 kW of active power at 0.80 power factor needs 5,000 kVA of apparent power. If the power factor improves to 0.95, the apparent-power requirement falls to approximately 4,211 kVA.
That difference can release valuable capacity in transformers, cables, switchgear, and generators.
Reactive power does not directly produce mechanical work or heat for the process. However, it increases current flowing through the electrical network.
Higher current can lead to:
- Higher I⊃2;R losses in cables and busbars
- More voltage drop during load changes
- Reduced available transformer capacity
- Greater thermal stress on electrical equipment
- Potential utility penalties where reactive-energy billing or minimum power-factor requirements apply
- Poorer voltage support for sensitive production equipment
Reactive-power compensation is therefore not only an energy-efficiency topic. It is also a capacity-management and operational-reliability decision.
Transformer reactive-power demand is not a fixed percentage that applies equally to every installation. It depends on transformer rating, core design, voltage level, loading condition, impedance, excitation current, and system voltage.
A transformer normally has two main loss components:
- No-load loss, primarily associated with the energized core
- Load loss, which increases with current and includes winding-related effects
Likewise, transformer reactive demand has both magnetizing and load-related components. At light load, magnetizing reactive power can become a relatively large share of the facility's total reactive demand. At higher load, the combined effect of transformer leakage reactance and inductive loads becomes more significant.
This distinction matters when setting an SVG control strategy.
A transformer operated for long periods at very low load may still draw magnetizing current. If the downstream load is small, the transformer's reactive component can materially influence the measured power factor.
This does not automatically mean that an SVG should be oversized. It means the engineering team should measure the actual MV-side power flow over representative operating periods.
A proper study should capture:
- Active power in kW
- Reactive power in kVAr
- Apparent power in kVA
- Power factor
- Voltage profile
- Load variation by shift, day, and production cycle
- Harmonic current and voltage distortion
- Transformer loading percentage
- Existing capacitor-bank switching behavior
Do not select compensation capacity from transformer nameplate rating alone. Select it from measured system demand, operating objectives, expansion plans, and harmonic conditions.
Low-voltage compensation is often appropriate when a specific LV busbar or motor-control center has a stable, well-defined reactive-power problem. However, it may not fully improve the power factor measured by the utility at the medium-voltage side.
An MV-side SVG compensation strategy becomes especially relevant when the billing meter, grid interconnection, or power-quality target is located upstream of the transformer.
MV-side SVG compensation should be evaluated when:
- The utility meter measures power factor at the MV incoming point
- Transformer reactive power must be included in the compensation target
- The facility has multiple LV loads supplied by one or more transformers
- Reactive demand changes rapidly during production
- The site includes large motors, rolling mills, crushers, pumps, compressors, or welding loads
- Capacitor banks cause overcompensation during light-load periods
- Voltage stability is a concern at the MV bus
- Renewable energy, VFDs, rectifiers, or other nonlinear loads complicate system behavior
- A central power-quality solution is preferred over several isolated compensation panels
The key concept is simple: the current transformer (CT) measurement location determines what the SVG sees and compensates.
If the CT is located on the LV side, the SVG primarily responds to downstream LV loads. If the CT is placed on the MV side, the control system can account for the reactive-power flow seen upstream, including transformer-related effects.

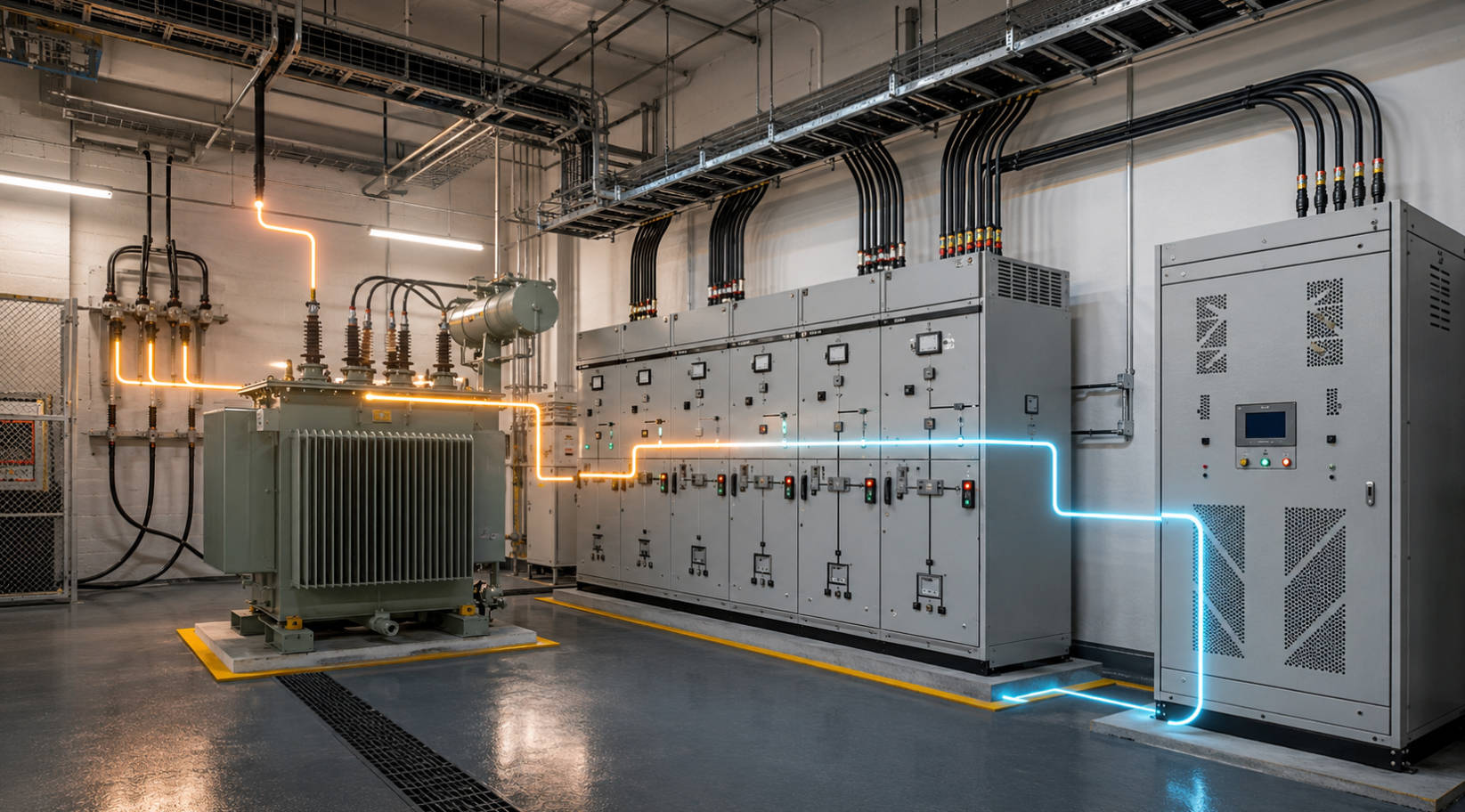

In some system architectures, the SVG equipment is physically installed at the low-voltage side while the CT feedback is obtained from the medium-voltage side.
This approach can offer practical installation advantages:
- The SVG cabinet can be installed in an accessible LV electrical room
- The control target can reflect MV-side power factor
- The system can compensate for transformer-related reactive demand
- Retrofitting may be easier than installing a complete MV SVG system
- The solution can centralize power-factor correction for multiple LV loads
However, this configuration requires careful engineering. CT ratio, polarity, phase sequence, transformer vector group, communication reliability, and control response must all be verified before commissioning.
The standard sizing equation for power-factor correction is:
Qc=P×(tanϕ1−tanϕ2)
Where:
Qcis required compensation capacity in kVAr
Pis active power in kW
ϕ1is the initial phase angle
ϕ2is the target phase angle
PF=cosϕ
Assume an industrial load consumes 480 kW at a power factor of 0.80. The facility wants to improve the power factor to 0.98.
Qc=480×[tan(cos−10.80)−tan(cos−10.98)]
The theoretical compensation requirement is approximately 263 kVAr.
In a real project, the final SVG selection should not simply equal the theoretical number. Engineers should consider:
| Selection Factor | Why It Matters |
|---|---|
| Load fluctuation | Fast-changing loads may require extra dynamic range |
| Transformer reactive demand | MV-side measurement may include transformer-related kVAr |
| Future expansion | New production lines can increase kW and kVAr demand |
| Harmonic conditions | Harmonics may affect capacitor-bank suitability and filtering needs |
| Redundancy target | Critical processes may require modular or N+1 design |
| Target PF | A target of 0.95 may be more appropriate than maintaining 1.00 |
| Utility requirements | Metering rules and penalty thresholds vary by location |
For the example above, an engineer may select a 300 kVAr or 350 kVAr SVG, depending on measured demand variation and the desired operating margin.
Avoid designing for permanent unity power factor. In many systems, a controlled target such as 0.95 to 0.99 is more practical and reduces the risk of leading power factor during low-load operation.
Traditional capacitor banks remain useful for stable base-load compensation. They are often cost-effective when the reactive demand is predictable and harmonic conditions are acceptable.
However, their step-based switching cannot always follow rapid changes in industrial loads.
SVG technology uses power-electronic switching devices to inject or absorb reactive current dynamically. This makes it particularly suitable for fluctuating loads and applications where both capacitive and inductive compensation may be required.
| Feature | Capacitor Bank | Static Var Generator |
|---|---|---|
| Compensation method | Switched fixed capacitor steps | Continuously adjustable reactive current |
| Response speed | Seconds to minutes | Typically milliseconds |
| Inductive compensation | No | Yes |
| Capacitive compensation | Yes | Yes |
| Performance under fluctuating load | Limited | Strong |
| Risk of overcompensation | Higher during low load | Lower with correct control settings |
| Harmonic sensitivity | Can require detuning reactors | Requires harmonic assessment but offers flexible control |
| Best use case | Stable base reactive load | Dynamic, variable, or complex power-quality loads |
A hybrid system may be the best option for some large facilities. In this approach, capacitor banks provide base compensation, while the SVG handles fast changes and fine control.

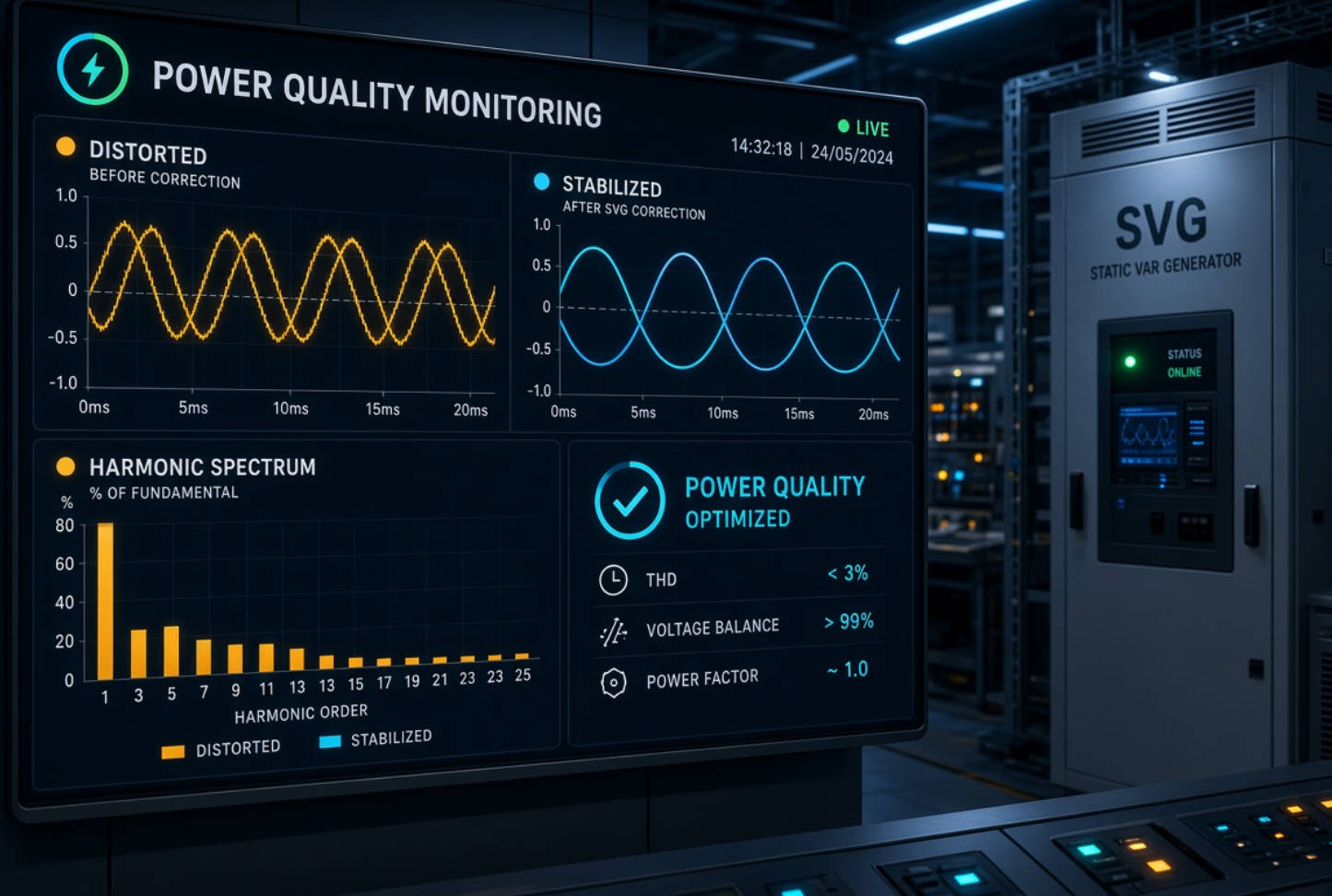

Power-factor correction and harmonic control are related, but they are not the same engineering task.
Nonlinear loads—including VFDs, rectifiers, UPS systems, welding machines, arc furnaces, and some renewable-energy interfaces—can generate harmonic currents. If capacitor banks are added without a harmonic study, the system may experience resonance, overheating, capacitor failure, nuisance tripping, or elevated voltage distortion.
This is why every serious compensation project should begin with power-quality measurement.
1. Measure at the point of common coupling and major LV buses.
2. Record kW, kVAr, kVA, PF, voltage, current, and demand profile.
3. Capture harmonic voltage distortion and harmonic current spectrum.
4. Identify the dominant harmonic orders and load operating states.
5. Check transformer loading, short-circuit capacity, and existing capacitor stages.
6. Review utility requirements and applicable harmonic limits.
7. Model resonance risk before adding fixed capacitor capacity.
8. Define SVG control mode, target PF, and leading-PF protection settings.
For systems with significant harmonic content, the solution may include detuned reactors, passive harmonic filters, active harmonic filters, or an SVG-based integrated power-quality architecture. The correct choice depends on measured distortion, source impedance, load behavior, and compliance requirements.
A well-sized SVG can still underperform if commissioning is rushed. The following checklist helps prevent common installation and control errors.
- Confirm MV and LV single-line diagrams match the actual site installation.
- Verify CT location, ratio, polarity, phase order, and secondary wiring.
- Confirm the transformer vector group and compensation algorithm settings.
- Validate the utility metering point and required power-factor target.
- Check SVG voltage rating, capacity, cooling clearance, and protection coordination.
- Test response under low load, normal load, and maximum expected load.
- Confirm the SVG does not create leading power factor during light-load operation.
- Measure power factor at the utility meter, not only at the SVG display.
- Review THD, TDD, voltage unbalance, and temperature after commissioning.
- Establish remote monitoring, alarm thresholds, and preventive-maintenance intervals.
The most reliable projects use a measure–design–install–verify process. This creates a documented baseline, supports correct equipment selection, and gives the facility a clear method for proving results.
Reactive-power compensation should be designed around the actual electrical behavior of your plant—not generic capacity assumptions.
DINGNUO ELECTRIC CO., Ltd. provides capacitor, reactor, SVG, and power-quality solution support for industrial and municipal applications. Our engineering team can help assess transformer reactive power, MV-side metering requirements, load fluctuation, harmonic risk, and the most appropriate compensation architecture for your facility.
Contact DINGNUO ELECTRIC to request a power-quality assessment, SVG selection proposal, or customized reactive-power compensation solution for your MV and LV distribution system.
Yes. An SVG can compensate transformer-related reactive demand when its measurement and control strategy captures reactive power upstream of the transformer. An MV-side CT measurement arrangement is commonly used when the objective is to improve the power factor seen at the MV metering point.
Neither solution is always better. Capacitor banks are suitable for stable base loads, while SVGs are better for fast-changing loads, variable reactive demand, and applications that require both capacitive and inductive reactive-power control.
The utility may measure power factor at the MV side, where transformer reactive power and other upstream losses are included. The capacitor bank may correct a local LV load but not fully compensate the reactive power measured at the incoming supply point.
Yes. Improving power factor reduces the apparent power and current needed to deliver the same active power. This can release capacity in transformers, cables, switchgear, and generators, subject to the overall system design and operating conditions.
An SVG primarily manages reactive power and voltage support. Some solutions can integrate harmonic-control functions, but harmonic mitigation should be based on measured harmonic data and a dedicated system study. A separate active harmonic filter or detuned filter may be needed.
The appropriate target depends on utility requirements, operating load profile, transformer behavior, and harmonic conditions. Many facilities use a controlled target between 0.95 and 0.99 rather than forcing permanent unity power factor.
Key inputs include active power, reactive power, power factor, load fluctuations, transformer rating and loading, voltage level, CT location, harmonic measurements, utility requirements, and expected future expansion.
