Static VAR generators (SVGs) have become a practical solution for industrial facilities that need stable voltage, high power factor, and rapid reactive power compensation. For plants with fluctuating loads, harmonic distortion, large motors, welding equipment, rectifiers, or variable-frequency drives, an SVG can provide a more responsive alternative to conventional capacitor-bank power factor correction.
At DINGNUO ELECTRIC CO., Ltd., we work with customers facing real power-quality challenges in metallurgy, petrochemicals, automotive production, paper, textile, building-materials manufacturing, and municipal infrastructure. In these environments, power factor correction is not simply about avoiding utility penalties. It is about improving system reliability, protecting equipment, releasing transformer capacity, and maintaining consistent production.

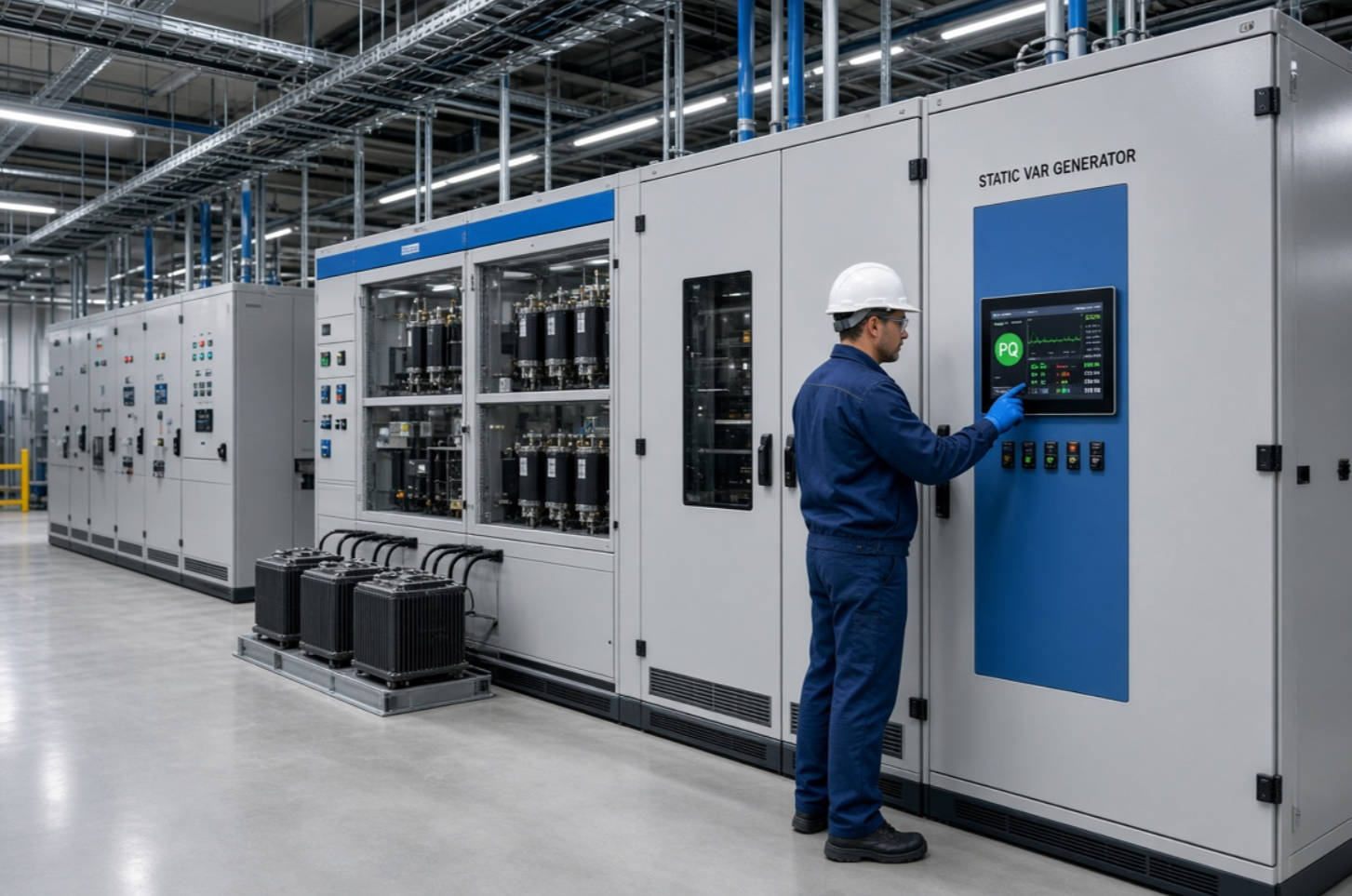

A Static VAR Generator, commonly called an SVG or STATCOM in certain applications, is a power-electronics-based device that dynamically generates or absorbs reactive power. Its main purpose is to maintain a target power factor and support voltage stability when the reactive-power demand of the load changes.
Unlike a conventional capacitor bank, which typically switches compensation in fixed steps, an SVG continuously monitors the electrical system and adjusts its output in real time. It can supply capacitive reactive power when inductive loads pull power factor down, or absorb reactive power when the system becomes overcompensated.
In simple terms:
- Inductive loads such as motors, transformers, pumps, compressors, and welding machines consume reactive power.
- Reactive power demand can reduce the facility's power factor.
- A low power factor increases current for the same amount of useful active power.
- Higher current can increase cable losses, transformer loading, voltage drop, and utility charges.
- An SVG compensates for that reactive power demand quickly and accurately.
For industrial users, the difference is important. A conventional capacitor bank may work well for stable loads, but an SVG is often better suited to loads that change rapidly, frequently, or unpredictably.
An SVG uses power electronic switches, typically insulated-gate bipolar transistors, to create a controllable AC current. Through high-speed measurement and control, the device detects the phase relationship between voltage and current, calculates the reactive-power requirement, and injects compensation current into the electrical network.

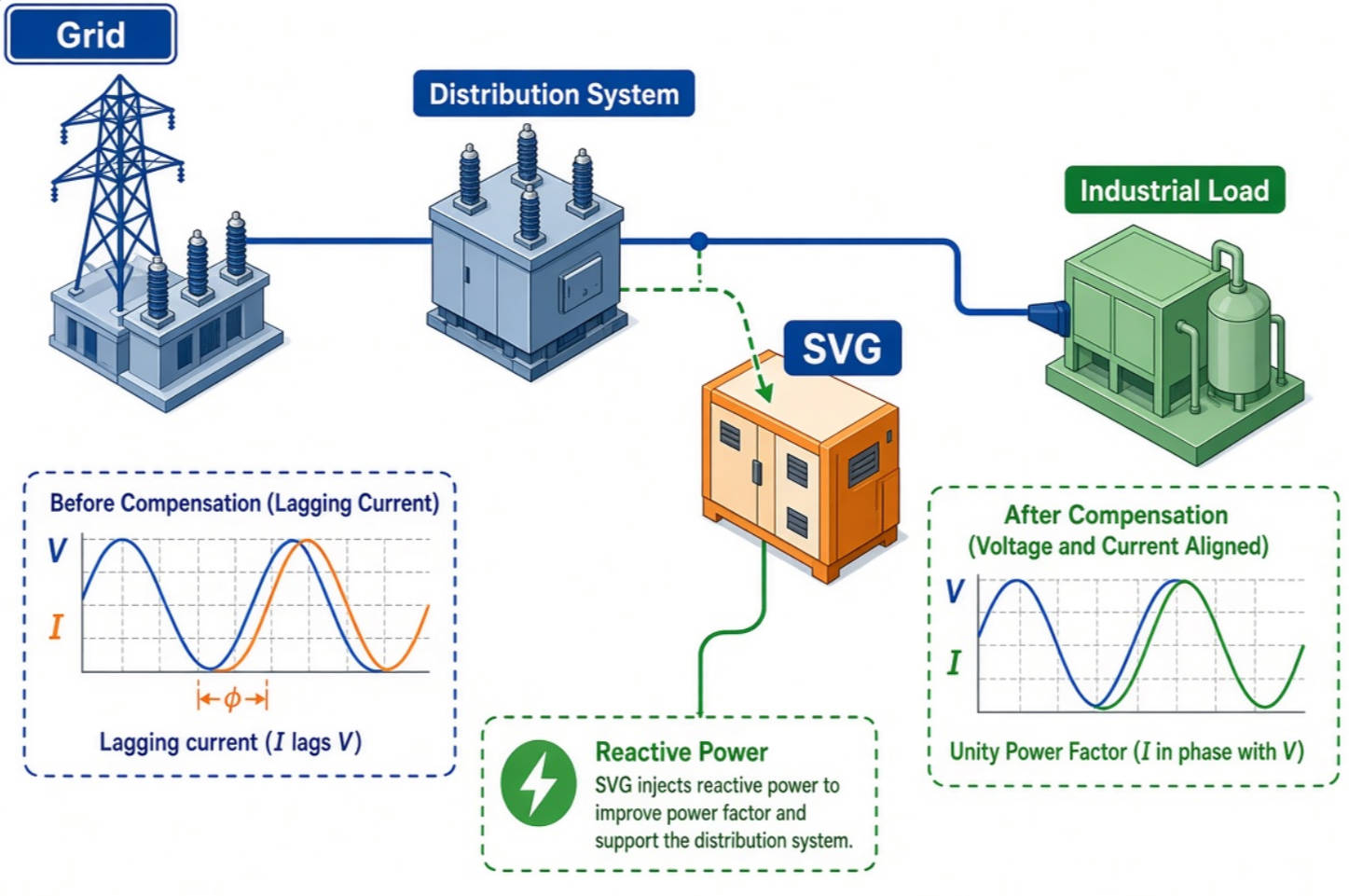

The core process is straightforward:
1. The SVG measures voltage, current, power factor, reactive power, and often harmonic conditions.
2. Its controller calculates how much capacitive or inductive reactive current is required.
3. The power module generates the required compensation current.
4. The SVG responds continuously to keep the system near the desired power factor.
Because the compensation is electronically controlled, an SVG can respond much faster than a mechanically switched capacitor bank. This is especially valuable in operations where load conditions change within seconds or even cycles.
Power factor describes how efficiently a facility converts supplied electrical power into useful work. It is commonly expressed as a value between 0 and 1.
A power factor closer to 1.00 means that active power is being used more efficiently relative to reactive power. A lower power factor means the electrical system must carry more current to deliver the same active power.
The relationship can be expressed as:
Power Factor=Active Power (kW)/Apparent Power (kVA)
For a three-phase system, current is approximately related to power factor through:
I=P/(sqrt(3)×V×PF)
Where:
- I = line current
- P = active power
- V = line voltage
- PF = power factor
As power factor falls, current rises. That added current can create operational and financial consequences.
Low power factor can contribute to:
- Higher utility demand charges or reactive-power penalties
- Increased transformer loading
- Higher cable and switchgear current
- Additional I2R losses in conductors
- Reduced usable capacity of transformers and generators
- Greater voltage drop at the load
- Reduced efficiency of electrical distribution equipment
- Higher risk of overheating in overloaded systems
A factory may have enough installed transformer capacity on paper, yet still face overload alarms or voltage instability because unnecessary reactive current consumes part of that capacity.
For example, if two facilities consume the same active power but one operates at a lower power factor, the lower-power-factor facility must draw more current. That means it may require larger cables, more transformer capacity, and more robust switchgear to support the same production output.

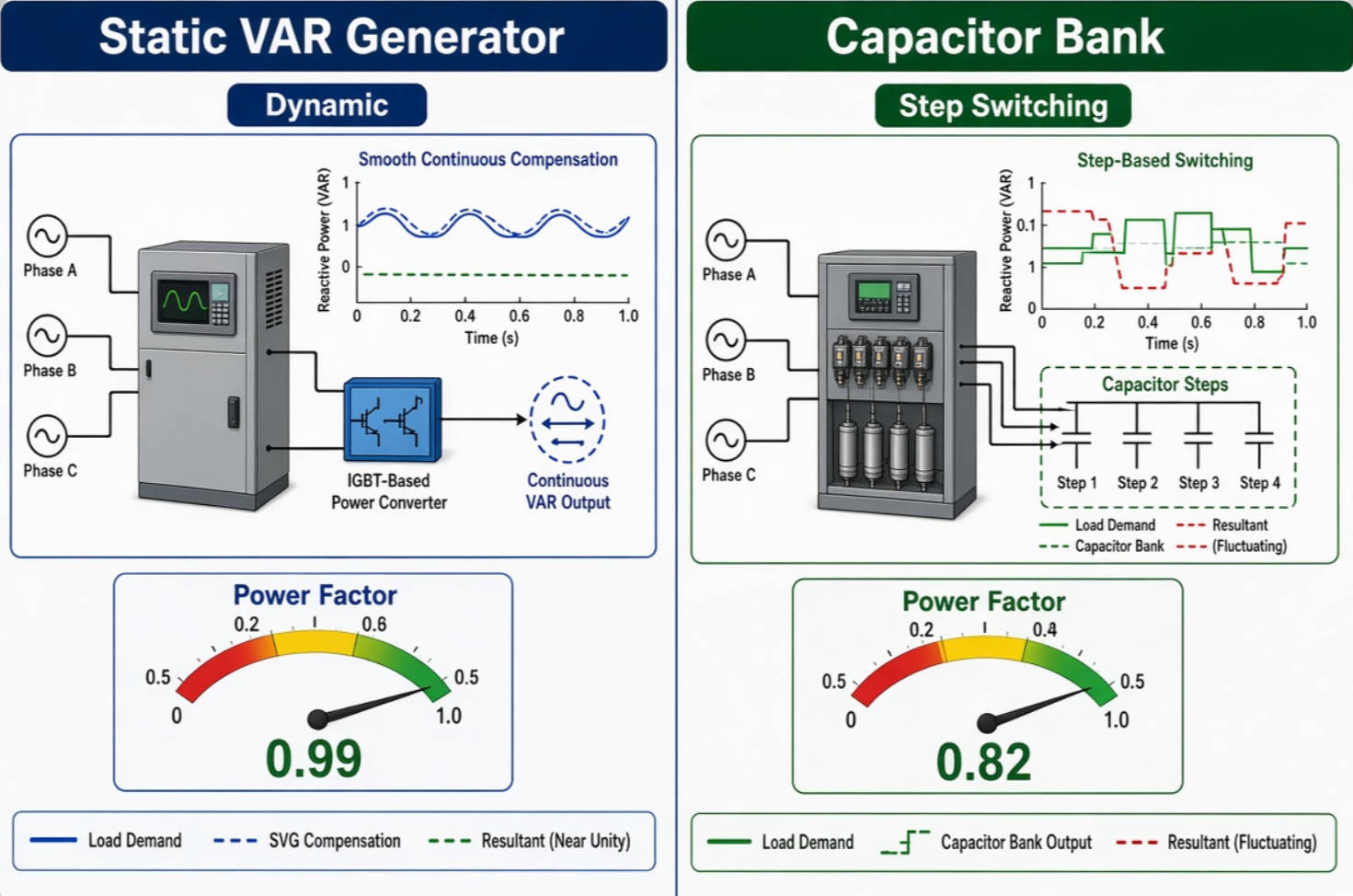

Both SVGs and capacitor banks can improve power factor. The best choice depends on the load profile, harmonic environment, response-speed requirements, installation space, budget, and desired operating performance.
| Comparison Area | Static VAR Generator (SVG) | Conventional Capacitor Bank |
|---|---|---|
| Compensation method | Continuous and dynamic | Fixed or step-based switching |
| Response speed | Very fast electronic response | Slower mechanical or thyristor switching |
| Best load profile | Rapidly changing or unstable loads | Stable and predictable loads |
| Reactive power direction | Can generate and absorb reactive power | Primarily supplies capacitive reactive power |
| Risk of overcompensation | Low with correct control settings | Higher when load changes between switching steps |
| Harmonic tolerance | Can operate effectively in complex systems when properly designed | May require detuned reactors or filters |
| Maintenance profile | Fewer mechanical switching components | Contactors, capacitors, and switching components require periodic attention |
| Initial investment | Usually higher | Usually lower |
| Long-term application value | Strong for dynamic and sensitive systems | Strong for basic, stable compensation needs |
A capacitor bank is not outdated. It remains an effective and economical solution for many installations. However, it can be limited when load demand changes faster than the bank can switch or when the electrical network has significant harmonic distortion.
An SVG is generally the stronger option when the plant operates:
- Large variable-frequency drives
- Arc furnaces or electric furnaces
- Welding lines

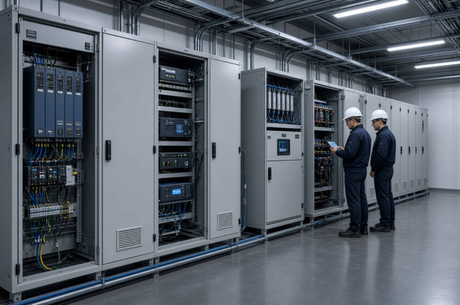

- Hoists, cranes, and elevators
- Injection-molding machines
- Crushers, mills, conveyors, and mixers
- Automated production lines with frequent load changes
- Large pump and compressor systems
- Renewable-energy-connected facilities
- Data-intensive or electronically controlled equipment
From an engineering perspective, the key question is not, "Is an SVG better than a capacitor bank?" The better question is, "Which compensation technology matches the electrical behavior of this site?"
An SVG is often the preferred option when one or more of the following conditions exists.
A production line may cycle continuously between low and high load. Welding operations can change current demand abruptly. Cranes and hoists can move from regenerative to inductive operating conditions within short periods.
A traditional capacitor bank may switch too slowly or in steps that are too large. This can lead to undercompensation, overcompensation, repeated switching, or unstable power factor.
An SVG can continuously follow the load. It can maintain a more stable power factor without relying on frequent mechanical switching.
Some facilities need to maintain power factor close to a utility-defined threshold. Others seek a high and stable target to reduce internal current, improve electrical capacity utilization, or meet corporate energy-efficiency goals.
In these cases, an SVG can be configured to maintain a specific setpoint, such as 0.98 or 0.99, depending on site conditions and utility requirements. The target should not automatically be set to 1.00. In some systems, excessive capacitive compensation may cause leading power factor or voltage-rise issues.
A professional site assessment should determine the correct operating target.
Repeated capacitor failures, contactor damage, blown fuses, overheating, or nuisance trips may indicate that a conventional correction system is not suited to the electrical environment.
Common underlying causes include:
- Harmonic resonance
- High ambient temperature
- Insufficient ventilation
- Inadequate capacitor voltage rating
- Incorrect reactor selection
- Excessive switching frequency
- Rapid load variation
- Incorrect compensation capacity
- Poor maintenance practices
Replacing failed capacitors without diagnosing the root cause can create an expensive cycle of recurring failure. In a heavily dynamic or harmonic-rich environment, the long-term solution may require detuned capacitor banks, active harmonic filtering, SVG technology, or a hybrid power-quality system.
Power factor correction and harmonic control must be evaluated together. Modern facilities increasingly use non-linear loads, including variable-frequency drives, UPS systems, rectifiers, servo drives, LED lighting systems, and automated production equipment. These loads can introduce harmonic currents into the distribution network.
Harmonics can cause:
- Transformer heating
- Cable overheating
- Capacitor overload
- Nuisance breaker tripping
- Metering inaccuracies
- Motor vibration and additional losses
- Communication interference
- Resonance between capacitors and system inductance
A conventional capacitor bank can amplify harmonic problems if it is installed without a harmonic study. Capacitors and network inductance can form a resonant circuit at or near a harmonic frequency. When that happens, current and voltage distortion may increase rather than decrease.
A detuned reactor is commonly installed in series with a capacitor bank to shift the resonant frequency away from dominant harmonic frequencies. This helps protect capacitors and reduce the risk of harmonic amplification.
A capacitor-and-reactor system can be a highly effective solution when:
- The load is relatively stable.
- Harmonic levels are moderate.
- The correct detuning factor is selected.
- The system is engineered using actual site measurements.
- Capacitor voltage, reactor current, and thermal design are correctly specified.
For more complex conditions, an SVG may be combined with active harmonic filtering and capacitor-reactor banks.

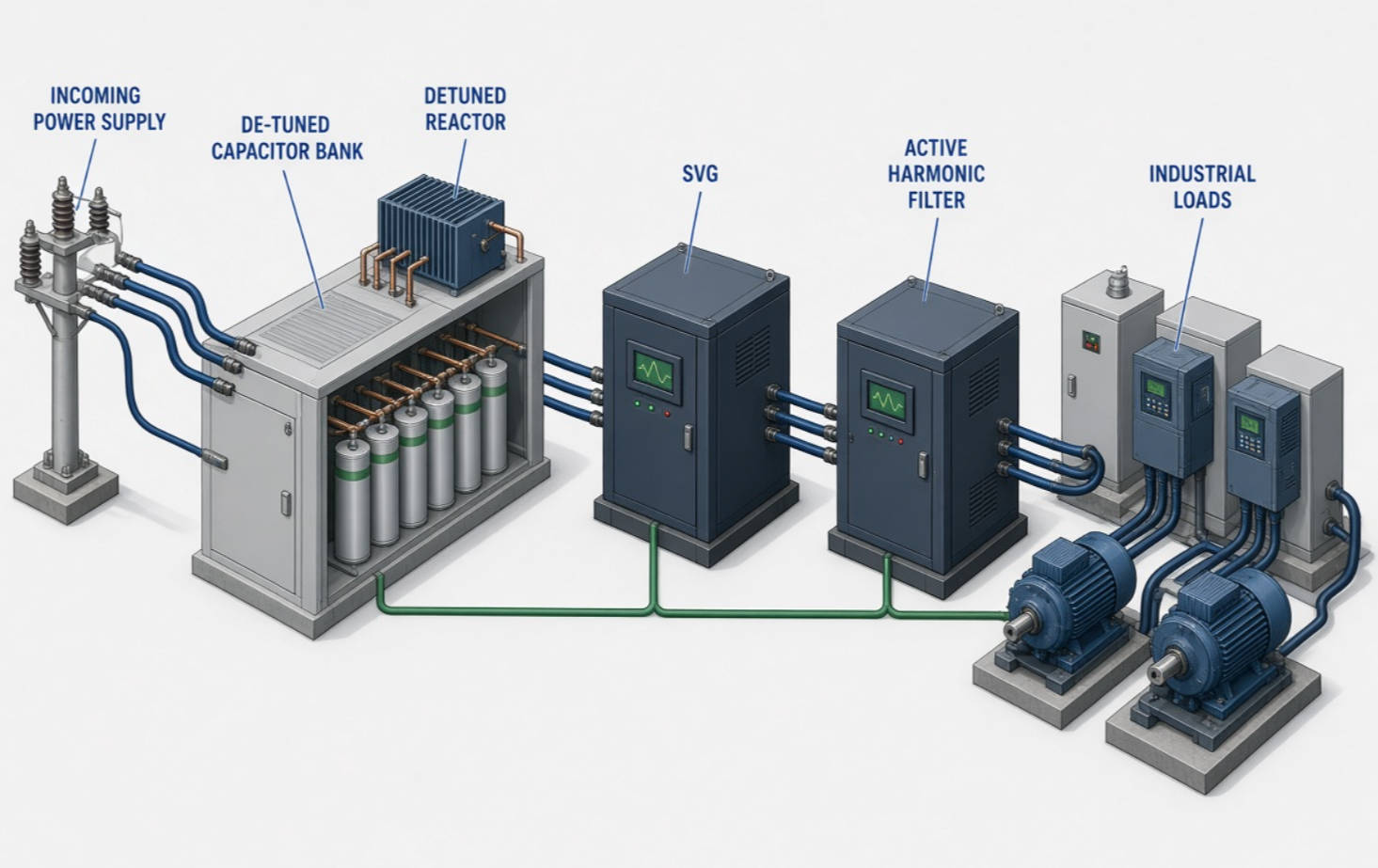

A hybrid reactive power compensation system combines the strengths of conventional capacitor banks and SVG technology.
In this design:
- The capacitor bank provides the base reactive-power compensation economically.
- Detuned reactors protect the capacitor bank in harmonic environments.
- The SVG handles rapidly changing reactive power.
- The SVG fine-tunes the power factor between capacitor switching steps.
- Active harmonic filters may be added when harmonic mitigation is also required.
This approach is often attractive for facilities with high reactive-power demand but limited budgets for a full-capacity SVG system.
For instance, a facility with a large, relatively stable motor load may use capacitor-reactor banks to handle the base kvar demand. An SVG can then manage sudden changes caused by welding equipment, variable-speed drives, or automated machinery. The result is a more stable power factor with lower switching stress on the capacitor bank.
Selecting an SVG should be based on measurement and engineering analysis, not only on transformer capacity or a standard percentage rule.
Start with a power-quality audit. Measure at the main incomer and, where necessary, at major load feeders.
Important parameters include:
- Active power in kW
- Reactive power in kvar
- Apparent power in kVA
- Power factor trend
- Maximum demand
- Transformer loading
- Voltage variation
- Total harmonic distortion of voltage
- Total harmonic distortion of current
- Dominant harmonic orders
- Load fluctuation speed
- Existing capacitor-bank performance
A single snapshot is not enough. Measurements should cover representative production periods, including peak demand, low-load periods, shift changes, equipment start-up, and high-variation processes.
The objective may be different for each facility. Common goals include:
- Maintaining power factor above a utility threshold
- Reducing reactive-power penalties
- Releasing transformer capacity
- Stabilizing voltage during load changes
- Reducing capacitor-bank switching frequency
- Improving production-line reliability
- Supporting renewable-energy integration
- Correcting phase imbalance where required
A clear target prevents overdesign and helps select the most cost-effective configuration.
SVG capacity should be determined from measured reactive-power demand and expected future operating conditions. Engineers should consider the maximum inductive kvar requirement, the rate of change, the desired power-factor target, and reasonable expansion capacity.
Do not size an SVG solely from the transformer rating. A large transformer may have a low actual reactive-power requirement, while a smaller transformer supplying rapidly changing loads may need fast and substantial dynamic compensation.
If harmonic distortion is present, evaluate whether the SVG must operate alongside detuned capacitor banks, active harmonic filters, or both. The overall system must be coordinated to avoid resonance, overload, and control conflict.
A properly designed solution considers the complete electrical ecosystem rather than treating power factor correction as an isolated component purchase.
Before finalizing equipment selection, review:
- Supply voltage and frequency
- Required compensation capacity
- Indoor or outdoor installation
- Ambient temperature
- Ventilation and dust conditions
- Altitude
- Available panel space
- Cable routing
- Protection coordination
- Communication requirements
- Future expansion needs
Metal-processing facilities often operate furnaces, rolling mills, welding systems, cranes, compressors, and large motors. These loads can create substantial reactive-power fluctuations and voltage variation.
An SVG can help stabilize the power factor during changing production cycles. When harmonics are also significant, the SVG should be part of a coordinated power-quality solution that may include active filtering and detuned capacitor banks.
Petrochemical facilities depend on continuous operation. Large pumps, compressors, fans, motors, and variable-speed drives place major demands on electrical systems.
The primary value of an SVG in this environment is not only energy performance. It is process continuity. Stable voltage and controlled reactive power can reduce electrical stress on critical distribution assets and support more reliable operation.
Automotive plants commonly combine robotic welding, conveyor systems, compressors, paint-shop equipment, automated assembly lines, and variable-speed drives. Their electrical loads can vary quickly across production stages.
SVG systems are useful where traditional capacitor banks cannot maintain a stable power factor during frequent load changes.
These industries often rely on high volumes of motor-driven equipment, including drives, fans, pumps, presses, mixers, extruders, and conveyors. Improving power factor can reduce current demand and make more effective use of existing transformer and switchgear capacity.
The correct solution may be a capacitor-reactor system, an SVG, or a hybrid system, depending on measured load variation and harmonic conditions.
Before investing in a static VAR generator, ask these questions:
- What is the current power factor during peak and low-load periods?
- How quickly does reactive-power demand change?
- Are utility penalties based on reactive energy, demand, or power-factor thresholds?
- What is the maximum measured kvar demand?
- Are harmonic levels within acceptable limits?
- Does the facility already have capacitor banks or detuned reactors?
- Are capacitors failing, overheating, or switching too frequently?
- Is transformer capacity constrained by high current?
- Does the process include welding, VFDs, rectifiers, cranes, or furnaces?
- Will the production line expand within the next two to five years?
- Does the supplier provide measurement support, system design, commissioning, and after-sales service?
The final question is especially important. Power-quality equipment should not be selected as a standalone commodity. Correct application depends on electrical data, system design, manufacturing quality, commissioning, and long-term support.
A static VAR generator can deliver meaningful benefits when it is correctly selected and integrated into the wider electrical system. It can improve power factor, respond quickly to reactive-power changes, reduce current loading, and support more stable industrial power distribution.
However, the strongest results come from a complete approach: measure the site, identify harmonic risks, understand the load profile, define the operational target, and select the right combination of SVGs, capacitor banks, detuned reactors, and active harmonic filters.
DINGNUO ELECTRIC CO., Ltd. provides reactive power compensation and harmonic-control solutions for industrial and municipal projects worldwide. Our engineering approach focuses on the real operating conditions of each customer's electrical system, from stable base-load compensation to high-speed dynamic power-factor correction.
Contact our technical team for a power-quality assessment, SVG selection guidance, or a customized reactive power compensation solution for your facility.
An SVG is a power-electronics-based device that provides fast and continuously adjustable reactive-power compensation. An SVC, or static VAR compensator, generally uses thyristor-controlled reactors and capacitor banks. SVG technology typically delivers faster response and better performance under low-voltage or rapidly fluctuating conditions.
Yes, an SVG can replace a capacitor bank in many applications. However, a full SVG solution may require a higher initial investment. For sites with large and stable base reactive-power demand, a hybrid solution using capacitor-reactor banks plus an SVG may provide a better balance between cost and performance.
An SVG is primarily designed for reactive-power compensation. Some SVG systems can provide limited harmonic-current compensation depending on their design and capacity, but dedicated active harmonic filters are normally used when harmonic mitigation is a primary requirement.
SVGs use electronic control and can respond much faster than mechanically switched capacitor banks. Actual response performance depends on equipment design, control settings, site conditions, and the specific electrical disturbance.
Yes. Unlike a standard capacitor bank, an SVG can generally both generate capacitive reactive power and absorb reactive power. This allows it to address both lagging and leading power-factor conditions when properly configured.
Reactors are installed with capacitors to reduce resonance risk and protect capacitor banks in harmonic environments. A properly selected detuned reactor shifts the system's resonant frequency away from problematic harmonic frequencies.
The correct SVG capacity should be based on measured reactive-power demand, power-factor trend, load fluctuation, harmonic conditions, future expansion, and the desired compensation target. A professional power-quality survey is the most reliable starting point.
1. DINGNUO ELECTRIC CO., Ltd. [Reactive Power Compensation, Active Power Filter, Static VAR Generator and Harmonic Filtering Solutions]
2. DINGNUO ELECTRIC CO., Ltd. [Product Portfolio]
3. DINGNUO ELECTRIC CO., Ltd. [Industrial Power Quality Projects]
4. YT Electric. [Static VAR Generator and Power Factor Correction]
5. YT Electric. [Hybrid SVG and Capacitor Bank Reactive Power Compensation Solution]
6. IEEE. [IEEE 519: Recommended Practice and Requirements for Harmonic Control in Electric Power Systems]
7. International Electrotechnical Commission. [IEC 61000 Electromagnetic Compatibility Standards]
