● What This Comparison Means for Smart Factories
● Quick Definition: Traditional vs Digital Power Factor Controller
>> What is a Power Factor Controller?
>> What is a Digital Power Factor Controller?
● Core Differences at a Glance
● Why Smart Factories Need More Than Basic Power Factor Control
>> Changing power demands in Industry 4.0
>> The cost of ignoring digital power factor control
● Technical Comparison: How Each Controller Works in Practice
>> Control logic and compensation strategy
>> Harmonic and resonance management
● Smart Factory Use Cases: When Each Option Makes Sense
>> When a traditional power factor controller is still viable
>> When a digital power factor controller becomes essential
● Practical Implementation Steps for Smart Factories
● Choosing the Right Controller for Your Industry
● When to Move from Power Factor Controller to Digital Power Factor Controller
>> Q1: Is a digital power factor controller always better than a traditional one?
>> Q2: Can a digital power factor controller replace active harmonic filters?
>> Q3: How does a digital power factor controller support predictive maintenance?
>> Q4: What communication protocols are typically supported by digital power factor controllers?
For smart factories aiming at high power quality, energy efficiency and Industry 4.0 integration, digital power factor controllers generally offer more flexibility, data visibility and long‑term value than traditional power factor controllers. However, the right choice still depends on your plant size, harmonic profile, and automation strategy.
As someone who has spent years working with industrial power quality projects and OEM partners, I see the same pattern again and again: manufacturers know they "need power factor correction", but are not sure whether a conventional power factor controller is enough, or whether they should move directly to a digital power factor controller that fits into their smart factory roadmap.
In this article, I will compare Power Factor Controller vs Digital Power Factor Controller specifically in the context of smart factories, where systems must:
- Maintain high power factor under rapidly changing loads
- Mitigate harmonics from VFDs, rectifiers, robots and welding units
- Integrate with SCADA, EMS and IIoT platforms
- Support predictive maintenance and lifecycle optimization
DINGNUO ELECTRIC CO., Ltd., as a professional capacitor and reactor manufacturer focused on reactive power compensation and harmonic control, works daily with metallurgy, petrochemical, automotive, paper, textile, and building materials plants. The insights below are drawn from that practical environment.
A power factor controller (often an analog or simple microcontroller-based relay) is a device that:
- Measures the power factor of an electrical system
- Automatically switches capacitor banks and sometimes reactors in or out
- Keeps the power factor near a set target (for example 0.95 or 0.98 lagging)
In many legacy plants, these controllers are panel-mounted units connected to fixed or stepped capacitor banks, offering basic status indication and local parameter setting.

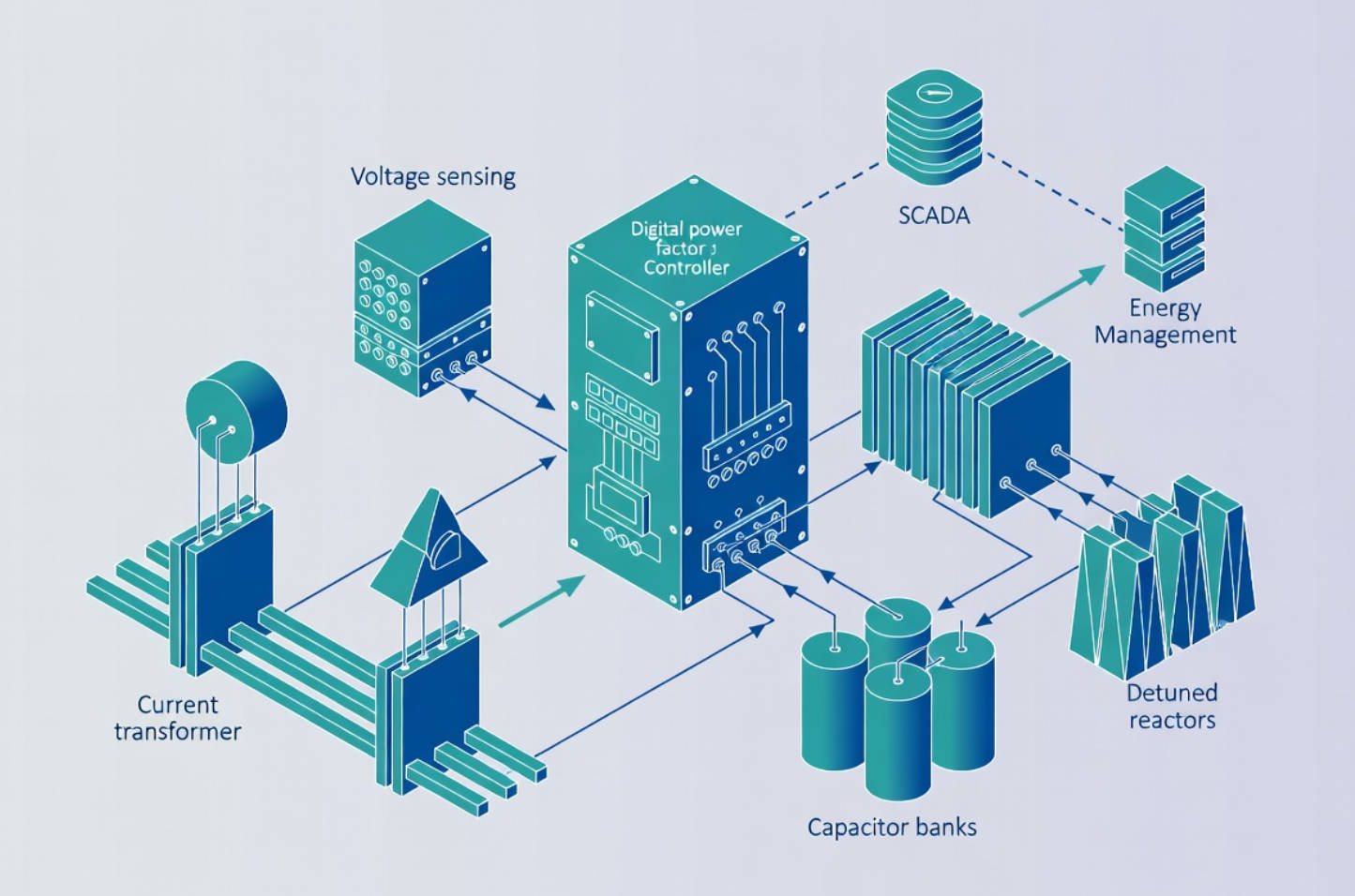

A digital power factor controller is the next evolution. It uses advanced digital signal processing (DSP) or microcontroller platforms to:
- Measure voltages and currents with higher resolution and sampling frequency
- Compute real-time power factor, THD, unbalance and other power quality parameters
- Control mixed banks of capacitors and detuned / tuned reactors dynamically
- Provide communication interfaces (Modbus, Ethernet, PROFINET, etc.) for integration with smart factory systems
Recent comparative studies on analog vs digital power factor control show digital implementations can achieve power factors above 0.99 and very close to unity, with better noise immunity and easier implementation of complex control algorithms.
| Aspect | Power Factor Controller | Digital Power Factor Controller |
|---|---|---|
| Control Technology | Analog or simple microcontroller; limited processing | DSP/advanced microcontroller; complex algorithms and logic |
| Power Factor Accuracy | Typically 0.95–0.98 under stable loads | PF up to 0.99 with better response to dynamic loads |
| Harmonic Handling | Basic or none; may require separate filters | Integrated control of capacitors + reactors + filters, better THD management |
| Data Visibility | Local display only, minimal logging | Detailed real-time and historical data, multi-parameter dashboards |
| Connectivity | Often no communication or only simple RS-485 | Industrial Ethernet, Modbus TCP/RTU, integration with SCADA/EMS/IoT |
| Adaptability | Limited parameter adjustments, manual tuning | Programmable, firmware upgradable, supports evolving load profiles |
| Maintenance | Reactive, based on alarms or failures | Predictive, driven by condition monitoring and analytics |
| Best Fit | Small to medium plants with stable loads | Smart factories, high automation, variable and harmonic-rich loads |
Industry 4.0 and smart manufacturing require more distributed, automated and data-driven power systems. Modern production lines frequently use:
- Variable frequency drives (VFDs) on motors
- Robots and automated handling systems
- High-power welding machines, furnaces, compressors
- Nonlinear loads from IT, EV chargers, and power electronics
These loads introduce harmonics, unbalance, voltage sags and fast power factor changes. Traditional controllers can still correct average power factor, but they struggle to:
- React fast enough to rapid load changes
- Maintain PF under distorted waveforms
- Provide usable data for energy management and optimization
Digital controllers, by contrast, support smart energy management and power quality analytics, which are essential for Industry 4.0 environments.
From my experience working with equipment suppliers and plant teams, the "hidden" cost of staying with simple controllers often appears as:
- Frequent penalties from utilities for low power factor or excessive harmonics
- Unplanned downtime due to capacitor or reactor failures
- Over‑dimensioning of transformers, cables and switchgear
- Higher CapEx and OpEx compared with a more optimized solution
Smart factories already invest heavily in sensors, MES and analytics platforms. It rarely makes sense to leave power quality outside that digital ecosystem.
- Power Factor Controller
- Measures line voltage and current, often with low sampling rates
- Assumes mostly sinusoidal waveforms
- Accuracy can drop with high THD or unbalanced loads
- Digital Power Factor Controller
- Uses high-speed ADCs and DSP algorithms
- Calculates power factor, THD, individual harmonics, unbalance and sometimes flicker
- More accurate under nonlinear and dynamic conditions, which are common in smart factories
- Power Factor Controller
- Uses simple step-based switching logic (for example, C–2C–2C)
- Limited optimization for step sequencing and wear balancing
- May cause overcompensation or oscillation near target PF in fast‑changing loads
- Digital Power Factor Controller
- Implements advanced control algorithms (PI/PID, fuzzy, or adaptive control)
- Can dynamically adjust step size, priority and timing
- Provides finer granularity of reactive power compensation with less switching stress
In technical trials, digital controllers achieved lower overshoot, faster settling time, and lower current ripple, which directly translate to more stable voltage and less stress on equipment.
In plants with many VFDs and nonlinear loads, installing capacitor banks without reactors can create parallel resonance and dangerously amplify harmonics.
- Traditional power factor controllers usually treat harmonic filtering as a separate system. Coordination between capacitor banks, reactors and active filters often depends on manual engineering.
- Digital power factor controllers can coordinate:
- Detuned reactors (for general harmonic mitigation)
- Tuned filters (for dominant harmonic orders)
- Hybrid solutions together with active harmonic filters
This integration supports a system-level power quality strategy rather than treating power factor and harmonics separately.
For some factories, especially in early stages of modernization, a conventional controller may be sufficient:
- Load profile: Mostly steady induction motor loads (pumps, fans)
- Limited harmonics: Few VFDs and rectifiers, low THD
- Budget constraints: Need a low CapEx starting point
- No immediate digitalization plan: Factory automation still basic
In these scenarios, a high‑quality capacitor bank with detuned reactors and a reliable analog or simple digital controller can already remove penalties and free up transformer capacity.
From a smart factory and power quality engineering perspective, a digital controller is strongly recommended when:
- High penetration of nonlinear loads: many VFDs, welders, furnaces, robots
- Frequent production changes: batch production, flexible lines, rapid start/stop cycles
- Tight compliance requirements: strict limits on THD, flicker and voltage deviations
- Corporate energy management: group‑level goals for energy intensity and CO₂ reduction
Energy management frameworks and smart factory power guidelines highlight the role of integrated power quality and energy monitoring as a core enabler of predictive maintenance and OEE improvement.
In such environments, a digital power factor controller is more than a reactive power device; it becomes a data node in the smart factory infrastructure.

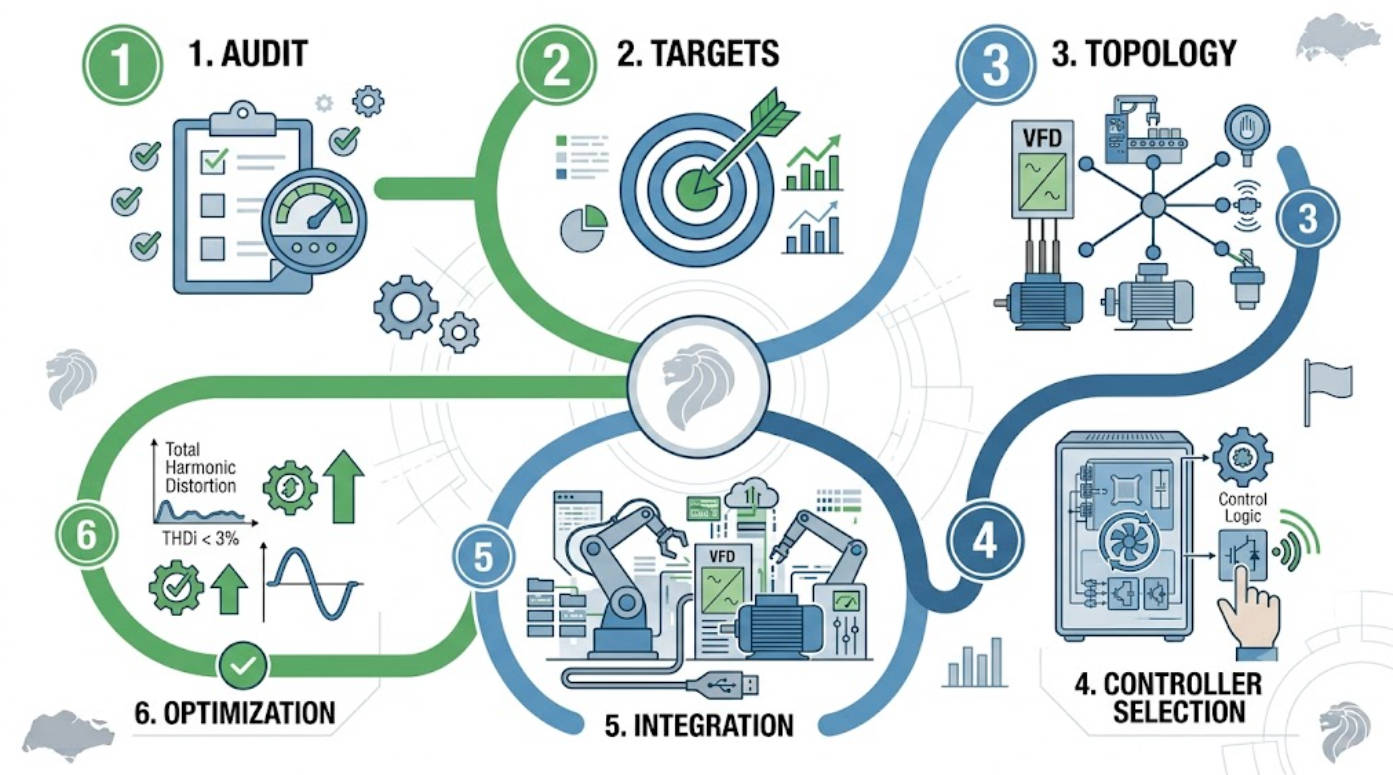

To move from concept to implementation, industrial users can follow a structured roadmap. Based on best practices for power quality solutions in industrial applications, a typical approach is:
1. Conduct a power quality and energy audit
- Measure existing power factor, load profiles, THD and voltage quality
- Identify major loads by department, line and equipment type
2. Define performance targets
- Example: PF ≥ 0.99, THD below relevant standards, no utility penalties
- Align targets with energy efficiency and sustainability KPIs
3. Select compensation topology
- Decide between fixed, stepped, or automatic banks
- Choose whether you need detuned/tuned reactors, active filters, or hybrids
4. Choose controller type and communication standard
- For smart factories, prioritize digital controllers with:
- Support for required protocols (e.g., Modbus TCP, PROFINET)
- Local and remote monitoring capabilities
5. Integrate with SCADA/EMS
- Map controller data points into existing systems
- Configure dashboards for PF, THD, alarms and trend analysis
6. Establish maintenance and optimization routines
- Monthly review of PF, THD, capacitor switching cycles
- Schedule preventive maintenance based on data-driven insights
From a UX perspective, this "implementation roadmap" section performs very well as:
- A numbered list (as shown above)
- Accompanied by a simple flowchart or infographic

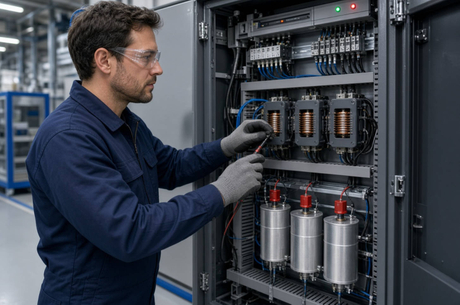

Drawing on typical cases in metallurgy, petrochemical, automotive, paper, textile and building materials plants, here are some practical selection guidelines:
- Metallurgy and heavy industry
- Highly fluctuating, high-current, harmonic-rich loads
- Strongly recommended: digital power factor controller plus detuned reactors and active filters
- Petrochemical and process industries
- Continuous operation, high criticality, strong compliance needs
- Digital solutions help maintain very stable PF and THD and support centralized monitoring
- Automotive and component manufacturing
- Robotic welding, painting, and assembly lines
- Mixed loads and frequent cycle changes favor fast, adaptive digital control
- Paper, textile and building materials
- Significant motor loads and increasing use of VFDs
- Migrating from conventional to digital controllers aligns with broader digitization projects
From a total cost of ownership (TCO) view, even if the initial price of a digital controller is higher, the payback often comes from:
- Reduced penalties and losses
- Longer equipment lifetime
- Time saved in troubleshooting due to better visibility
In summary, for smart factories:
- A traditional power factor controller still fits small, stable, low-harmonic plants where digitalization is not yet a priority.
- A digital power factor controller is the logical choice when:
- You operate in an Industry 4.0 context
- Your loads are dynamic and harmonic-rich
- You need data visibility, remote access and integration
- You want to align power quality with energy efficiency and sustainability goals
For a manufacturer like DINGNUO ELECTRIC CO., Ltd., which already provides capacitors, reactors and harmonic control products, digital power factor controllers become the central brain that coordinates these devices into a complete smart power quality solution.
A: Technically, digital controllers offer higher accuracy, better harmonic tolerance, advanced connectivity and more flexible control. However, for small plants with simple, stable loads and limited digitalization needs, a conventional controller may still be cost-effective.
A: No. A digital controller can coordinate capacitors and detuned reactors and reduce some harmonic issues, but heavily distorted systems may still require active harmonic filters. The best approach is usually a hybrid solution that combines digital control, passive filters and active filtering based on a detailed study.
A: Digital controllers can track switching cycles, temperatures, voltage distortion, alarm histories and component behavior over time. This data helps detect degrading capacitors, overheating reactors or abnormal switching patterns early, enabling planned maintenance instead of unexpected failures.
A: Most modern digital controllers support Modbus RTU/TCP as a baseline. Advanced models may also support PROFINET, Ethernet/IP, BACnet or IEC protocols, making them easy to integrate into SCADA, BMS, EMS and cloud platforms.
A: Payback varies by utility tariff, penalty levels, plant size and existing power quality. Many industrial users see benefits within 1–3 years, driven by reduced penalties, improved energy efficiency, fewer failures and shorter troubleshooting times. The more complex and digital your factory becomes, the stronger the long‑term ROI.
