A kVAR unit supplies reactive power to an electrical system, reducing the reactive current drawn from the upstream supply. For a plant with rapidly changing loads, a static var generator (SVG) can provide continuous, real-time compensation where a conventional capacitor bank may respond too slowly or in steps. The right choice depends on more than the power factor displayed on a meter: load variation, harmonics, phase imbalance, installation location, and the utility tariff all matter.
For engineers and plant managers, the useful question is not simply, "How many kVAR do we need?" It is, "What is causing our measured power-quality problem, and which equipment can correct it without creating another one?"
Electrical loads draw two types of power. Active power, measured in kilowatts (kW), performs useful work such as turning a motor or heating a process. Reactive power, measured in kilovolt-amperes reactive (kVAR), supports the electric and magnetic fields required by many AC devices. The supply must carry both.
The combination is expressed as apparent power, measured in kilovolt-amperes (kVA). Power factor compares useful power with apparent power:
Power factor = kW ÷ kVA
A low power factor can mean more current is flowing than necessary to deliver the same useful output. That current occupies capacity in transformers and conductors and can increase distribution losses. It does not, by itself, prove that a plant is wasting the same proportion of its metered kWh.
A kVAR unit provides compensation close to the load or at a selected distribution point. Traditional units use capacitors to offset inductive reactive demand. An SVG uses power electronics to generate a controlled compensating current. Both can improve power factor, but they behave differently as operating conditions change.
A meter may report a displacement power factor based on the phase relationship between fundamental-frequency voltage and current. True power factor also reflects waveform distortion. The two readings can diverge when variable-frequency drives (VFDs), rectifiers, UPS equipment, or other nonlinear loads produce harmonics.
This distinction changes the equipment decision. A capacitor bank or SVG may correct a reactive-power shortfall, while significant harmonic current may require a separately specified active harmonic filter or another engineered filtering solution. A good displacement power factor does not guarantee low harmonic distortion.

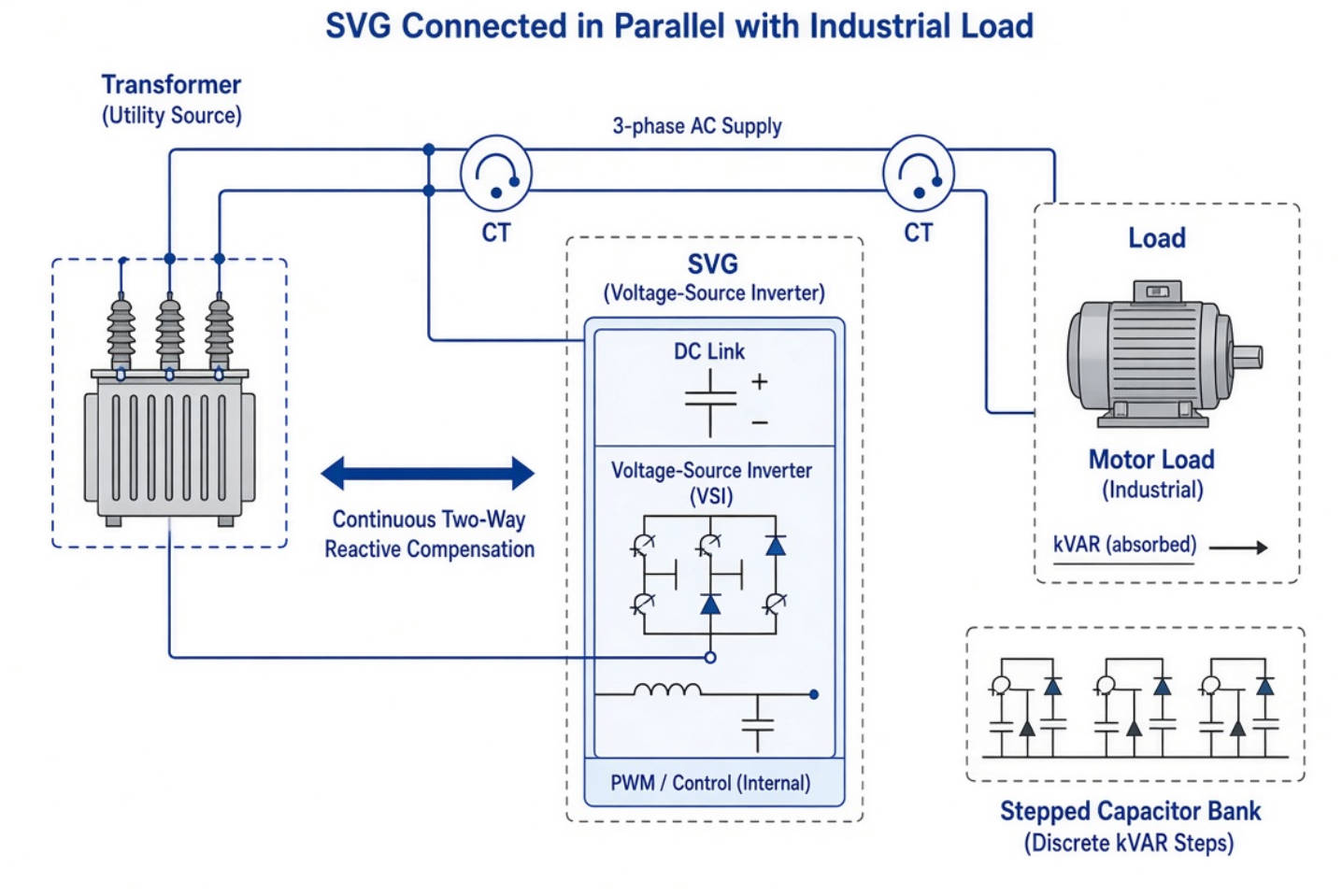

An SVG monitors the electrical system and adjusts its output as reactive demand changes. In a typical low-voltage installation, current transformers (CTs) provide measurements to a controller. A voltage-source inverter then produces compensating current to help the installation meet its selected power-factor target.
When the load needs inductive reactive power, the SVG can provide a capacitive compensating effect. When the system becomes excessively capacitive, a suitably designed SVG can respond in the opposite direction. Its output is continuous rather than limited to fixed capacitor steps.
That makes an SVG particularly useful where reactive demand changes faster than a conventional switched bank can follow. Examples include welding equipment, rapidly cycling production machinery, and mixed industrial loads whose operating states vary throughout a shift.
Response time and balancing capability are product-specific, not universal SVG specifications. For example, TDK publishes a response time of less than 15 ms for its PQvar low-voltage series. That figure should not be presented as a verified performance claim for a different manufacturer's model. Likewise, phase-balancing capability must be checked against the proposed unit, wiring arrangement, and project requirements.
Not automatically. An SVG's primary purpose is dynamic reactive-power compensation. Some products also provide phase balancing or additional power-quality functions, but an SVG should not be assumed to replace a dedicated active harmonic filter (AHF).
The distinction is especially important in plants with many drives. An installation can reach its reactive-power target while still having unacceptable current distortion. Specify harmonic mitigation according to measured harmonic conditions and the functions documented for the selected equipment.

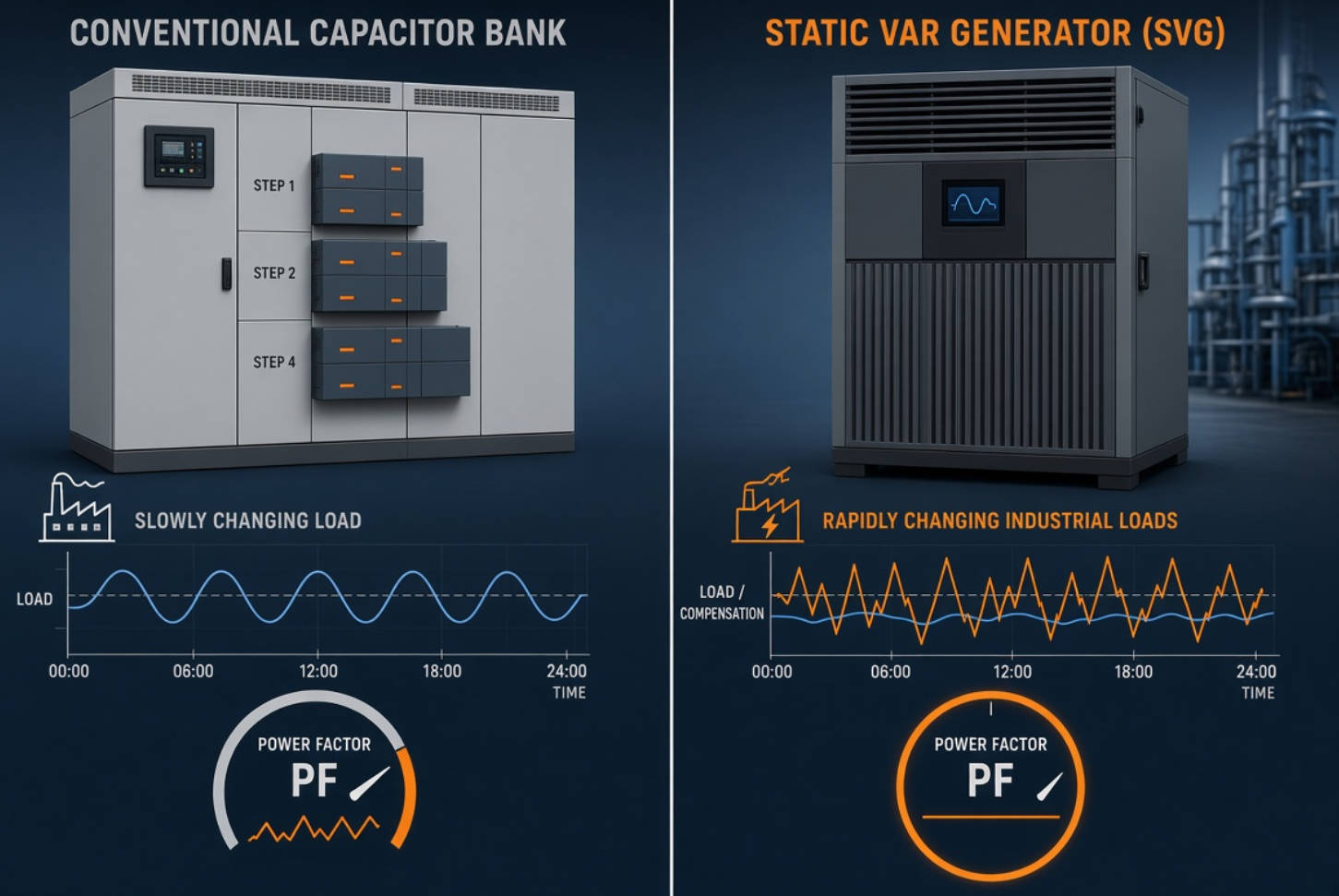

Neither technology is the best answer for every facility. The decision begins with the load profile and continues with a harmonic and protection review.
| Selection factor | Conventional capacitor bank | Static var generator |
|---|---|---|
| Compensation method | Supplies capacitive kVAR through fixed or switched steps | Produces continuously controlled compensating current |
| Stable inductive loads | Often a practical choice | May be unnecessary if demand rarely changes |
| Rapidly changing loads | Step size and switching behavior can limit performance | Designed to track changing reactive demand |
| Leading and lagging conditions | A conventional bank supplies capacitive compensation | A suitable SVG can compensate in both directions |
| Harmonic-rich system | Requires careful review; detuned reactors may be appropriate | Avoids introducing a conventional capacitor bank, but does not automatically filter harmonics |
| Key design checks | Step size, switching, discharge, resonance, capacitor and reactor ratings | Output capacity, CT arrangement, controls, cooling, protection, and documented functions |
A hybrid arrangement can also make sense. Capacitor banks can provide the larger, relatively stable share of compensation, while an SVG covers the changing portion between steps. The control scheme must coordinate both devices so they do not work against each other.
Before choosing any bank, check for harmonic resonance risk. In a harmonic-rich network, a detuned reactor installed in series with a capacitor bank can help prevent harmonic amplification and capacitor overload. Its selection requires the system frequency, harmonic spectrum, capacitor ratings, and network design—not a default percentage copied from another project.
A preliminary calculation helps establish the scale of a project. For a predominantly sinusoidal, inductive load, engineers commonly estimate the required correction as:
Required kVAR = kW × [tan(arccos existing PF) − tan(arccos target PF)]
Suppose a facility operates at 400 kW with an existing power factor of 0.80. Its target is 0.95. The calculation gives approximately 169 kVAR of correction. At a constant 400 kW, apparent power would fall from 500 kVA to approximately 421 kVA if the target were achieved.
Those numbers are an illustrative calculation, not a product recommendation. They describe one operating point. If the facility runs at different loads throughout the day, its reactive demand will also change. Selecting a fixed 169 kVAR installation solely from the peak-load reading could leave it overcompensated during light-load periods.
For an SVG, compare the required reactive-power profile with the proposed equipment's continuous rating and operating range. Confirm its rated voltage, system frequency, installation temperature, ventilation needs, and ability to meet the project's target under the conditions that matter.

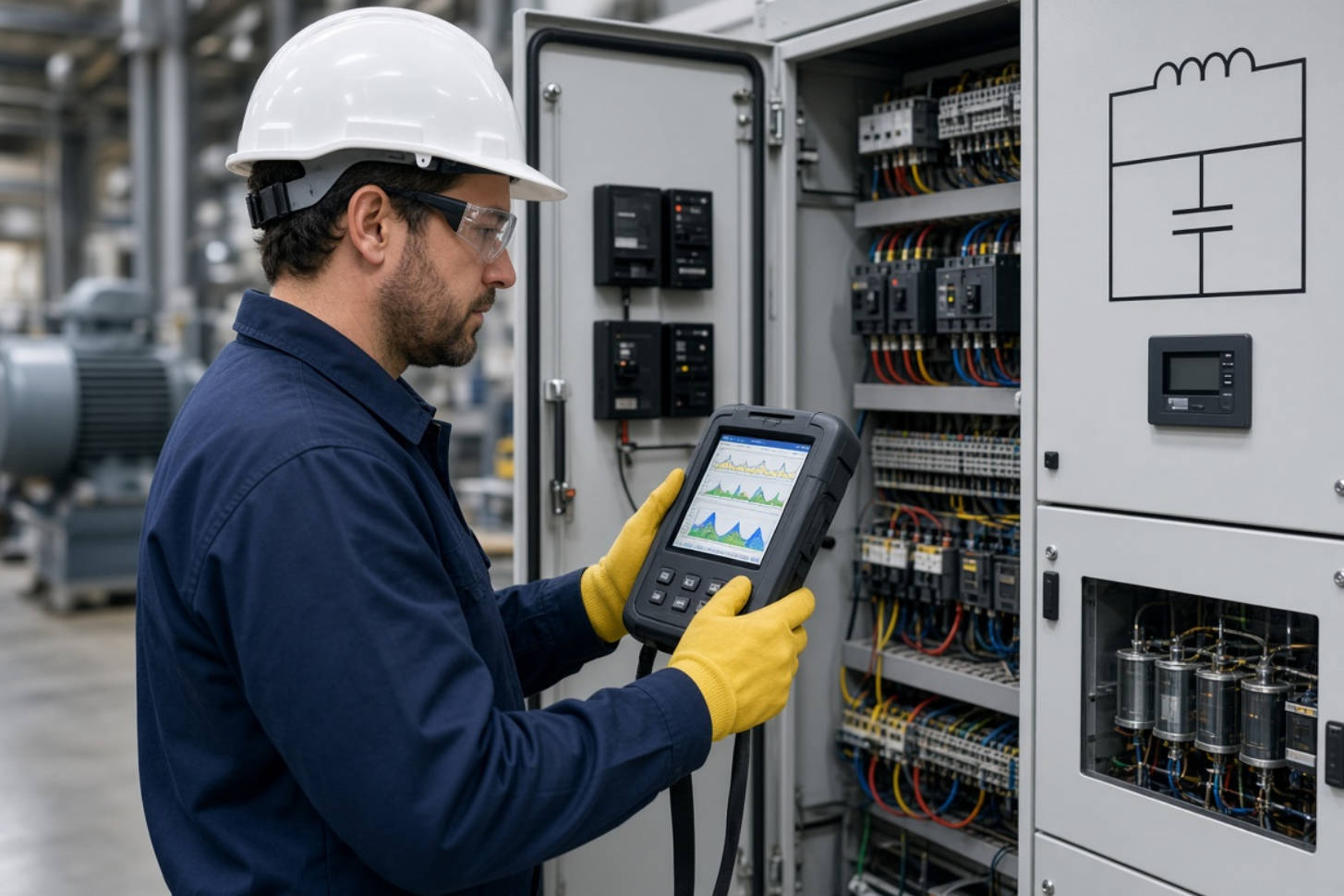

A defensible selection needs more than a monthly bill or one meter screenshot. Ask the site team to collect:
- Active and reactive demand: kW, kVAR, kVA, and power factor over representative operating periods.
- Load behavior: Normal shifts, start-up, shutdown, batch cycles, and the largest rapid changes.
- Harmonic measurements: Voltage and current distortion, dominant orders, and the measurement location.
- System information: Single-line diagram, transformer data, voltage, frequency, grounding, and available installation space.
- Existing equipment: Capacitor banks, reactors, filters, CTs, controllers, and relevant protection settings.
- Commercial requirements: The utility's power-factor rules, demand charges, and any agreed power-quality limits.
This survey can reveal whether the problem is mainly persistent inductive demand, rapid kVAR swings, harmonic distortion, or a combination. It also helps identify the correct point for compensation. A device at the main bus may improve the reading seen upstream, while compensation closer to a particular load may reduce reactive current along more of the facility's internal distribution path.
An SVG needs measurements that represent the load it is intended to compensate. During design and commissioning, confirm the CT location, ratio, polarity, and controller settings against the manufacturer's wiring instructions.
An incorrect measurement arrangement can cause poor tracking or an unexpected power-factor reading, even when the SVG's kVAR rating appears sufficient. Document the intended measurement point on the single-line diagram before installation.
The active edition of IEEE 519-2022 addresses steady-state voltage and current distortion at the user point of common coupling (PCC). Its limits should not be described as a single universal percentage that every machine terminal must meet.
If harmonic compliance is part of the project, define the PCC, establish the applicable assessment criteria, and measure or model the installation accordingly. Then specify the necessary filtering separately from the reactive-power requirement. This avoids buying an SVG for a problem it was not designed to solve.
Commissioning should compare before-and-after measurements at similar load conditions. Record the measured power factor, kW, kVAR, kVA, and relevant harmonic values. Check the response during rapid load changes as well as steady operation.
Review light-load and shutdown periods, too. A system that performs well at peak production but becomes leading overnight may need different settings or a revised coordination strategy. If the project includes an existing capacitor bank, test how it interacts with the new device.
The appropriate solution follows the process, not simply the industry label.
In metallurgy, large motors and rapidly varying equipment can produce substantial changes in reactive demand. A power-quality review should determine whether compensation is needed centrally, near selected feeders, or in a coordinated arrangement.
In petrochemical and automotive facilities, drives, compressors, welding systems, and production lines may operate in different combinations. Engineers should look at both the variation in kVAR and the harmonic contribution of nonlinear equipment before selecting a single technology.
In paper, textile, and building-material plants, numerous motors may create a sizable base reactive load. Where that load is relatively stable, a properly engineered capacitor bank may cover it economically. If the remaining demand changes quickly, an SVG can be assessed for the variable portion.
These are application scenarios, not documented DINGNUO project results. A credible project case study would need the customer's permission and measured details: the original problem, system configuration, selected equipment, operating conditions, and verified outcome. No customer review or project measurement was supplied for this article, so none is presented as a testimonial or performance claim.
DINGNUO ELECTRIC CO., Ltd. manufactures capacitors and reactors and provides reactive-power compensation and harmonic-control solutions for industrial power-quality applications. The most useful starting point for a proposal is a clear description of the electrical problem, supported by site measurements.
Send DINGNUO your single-line diagram, voltage and frequency, operating kW and kVAR trends, power-factor target, harmonic measurements, and details of existing compensation equipment. Ask for an engineering review of the appropriate capacitor, reactor, SVG, filtering, or hybrid approach—and for product-specific ratings to be confirmed in the resulting technical proposal.
kVAR is a unit of reactive power. On an SVG nameplate, it indicates the equipment's rated reactive compensation capacity under its specified conditions. Confirm whether the stated rating covers the operating voltage, temperature, and compensation direction required by your project.
Not in every application. An SVG is useful when reactive demand changes rapidly or when compensation is needed in both inductive and capacitive directions. A correctly designed capacitor bank can be well suited to a stable inductive load. Measurements should decide the choice.
It may, depending on the utility tariff and the facility's electrical conditions. Improving power factor can reduce billable kVA demand or power-factor penalties where those charges apply. It should not be advertised as a guaranteed percentage reduction in kWh consumption.
A detuned reactor may be needed when harmonics create a risk of resonance or capacitor overload. Do not select its tuning or the associated capacitor rating without reviewing the harmonic spectrum and system design.
Some SVG models can, subject to their documented functions and the system connection. Phase balancing should be written into the project requirements and verified against the specific proposed product; it should not be assumed from the term "SVG" alone.
Not by default. An SVG primarily addresses reactive-power compensation. If harmonic-current reduction is required, assess a dedicated AHF or another suitable filtering solution against measured results and the proposed equipment's published capabilities.
