Cement plants need more than conventional power factor correction. With large variable-frequency drives (VFDs), soft starters, rectifiers, crushers, conveyor systems, kiln drives, and high-power fans operating across the facility, harmonic distortion can create a serious risk for capacitor banks, transformers, switchgear, cables, and sensitive control equipment.
When comparing a harmonic filter bank vs detuned harmonic filter for cement plants, the main question is not simply which solution improves power factor. The correct question is: Does the plant need to actively reduce existing harmonic distortion, or does it primarily need to prevent capacitor-bank resonance while improving power factor?
For many cement facilities, a detuned harmonic filter is a reliable first line of protection when harmonic-producing loads are present but distortion remains within acceptable limits. A tuned harmonic filter bank becomes the more appropriate solution when harmonic distortion is already excessive, utility requirements are not being met, or a detailed harmonic study identifies dominant harmonic orders that require targeted mitigation.
At DINGNUO ELECTRIC CO., Ltd., we work with industrial customers that require dependable reactive power compensation and harmonic control under demanding operating conditions. Cement production is one of the most challenging environments because its electrical loads are large, variable, continuous, and increasingly driven by power electronics. A successful solution must therefore balance power factor correction, harmonic mitigation, resonance avoidance, equipment protection, and long-term operating cost.
A modern cement plant is an energy-intensive industrial operation. Its electrical system often includes medium-voltage and low-voltage motors, VFD-controlled fans, conveyor drives, rotary kiln systems, vertical roller mills, crushers, separators, pumps, compressors, bag filters, and packing lines.
Many of these loads generate or are affected by harmonics.
Harmonics are voltage or current waveforms that occur at integer multiples of the fundamental frequency. In a 50 Hz system, the fifth harmonic is 250 Hz, the seventh harmonic is 350 Hz, and so on. In a 60 Hz system, the fifth harmonic is 300 Hz.

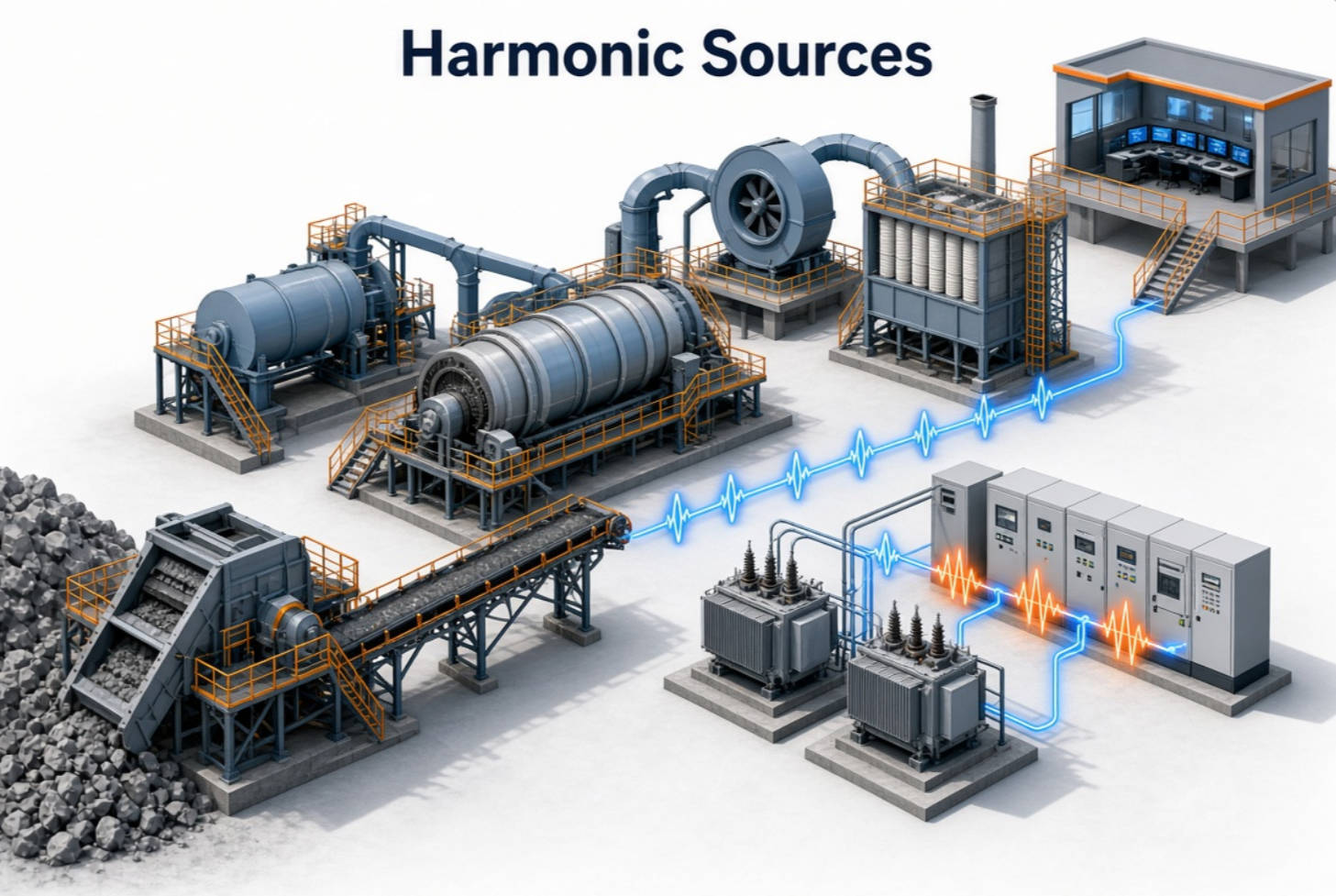

Common harmonic-producing equipment in cement plants includes:
- Variable-frequency drives for kiln, mill, fan, and conveyor motors
- Six-pulse and twelve-pulse rectifier systems
- Soft starters and DC drives
- UPS systems and battery chargers
- Welding equipment
- LED lighting systems and electronic control power supplies
- High-power automation and process-control equipment
The most common concern is not only the existence of harmonics. The real concern is the interaction between harmonics and power factor correction capacitors.
When a conventional capacitor bank is installed in a harmonic-rich electrical network, it can combine with the upstream transformer and system inductance to form a resonant circuit. If the resonant frequency is close to a dominant harmonic frequency, harmonic current and voltage may be amplified instead of reduced.
This can result in:
- Capacitor overheating
- Frequent capacitor fuse operation
- Reactor overload
- Nuisance tripping of breakers
- Transformer temperature rise
- High cable losses
- Voltage distortion
- Control-system instability
- Reduced service life of electrical equipment
For a cement plant running continuous or near-continuous production, these failures can become costly. A power quality solution should therefore be selected using actual plant measurements rather than a generic capacitor-bank rating.

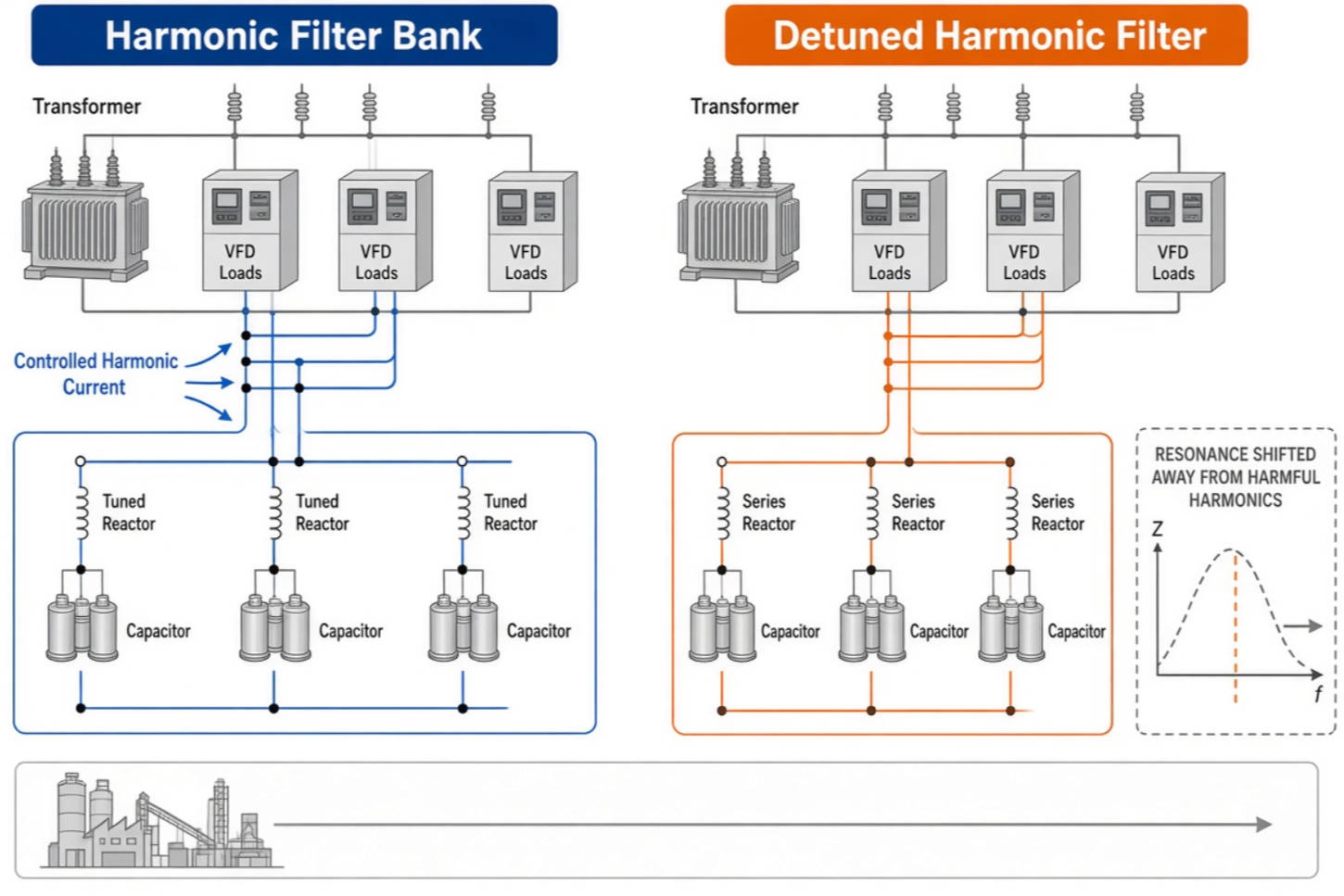

A harmonic filter bank and a detuned harmonic filter both normally combine capacitors and reactors. However, they serve different purposes and are designed differently.
| Comparison Item | Harmonic Filter Bank | Detuned Harmonic Filter |
|---|---|---|
| Primary purpose | Reduce targeted harmonic distortion while supplying reactive power | Improve power factor while preventing resonance and capacitor overload |
| Harmonic performance | Actively absorbs or diverts selected harmonic frequencies | Does not substantially remove existing harmonics |
| Typical tuning range | Usually tuned near a specific harmonic order, such as the 5th, 7th, 11th, or 13th | Usually tuned below the lowest dominant harmonic, commonly below the 5th |
| Best use case | Plants with excessive harmonic distortion or utility-compliance issues | Plants requiring safe power factor correction in a harmonic environment |
| Design complexity | Higher; requires detailed harmonic study and system modeling | Moderate; still requires system data and harmonic assessment |
| Cost | Usually higher | Generally lower than a dedicated tuned filter system |
| Resonance prevention | Yes, when properly engineered | Yes; this is the main function |
| Harmonic reduction | Stronger for selected harmonic orders | Limited; mainly avoids amplification |
| Typical cement-plant application | High VFD penetration, excessive THD, repeated harmonic-related failures | Moderate VFD penetration, capacitor-bank protection, routine power factor correction |
The distinction is important.
A detuned harmonic filter is often selected when the cement plant needs capacitors but cannot safely install ordinary capacitor banks because harmonics are present. It shifts the resonant point of the capacitor-reactor network below the problematic harmonic frequency.
A harmonic filter bank, sometimes called a tuned passive harmonic filter, is selected when the plant already has a distortion problem that must be reduced. It is designed to present a low impedance path at one or more targeted harmonic frequencies, helping to absorb harmonic current before it spreads through the plant electrical network.
A detuned harmonic filter is a power factor correction system that combines capacitors with series reactors. The reactor is selected so that the capacitor-reactor combination is tuned below a major harmonic frequency, typically below the fifth harmonic.
In a 50 Hz cement plant, a commonly used 7 percent detuned reactor arrangement can produce a tuning frequency around 189 Hz. This is below the fifth harmonic frequency of 250 Hz. The purpose is to keep the system from becoming resonant at the fifth harmonic or other critical harmonic orders.
A detuned filter is not designed to be a high-performance harmonic absorber. Instead, it allows the capacitor bank to operate more safely in a network with existing harmonic distortion.
- Protect capacitor banks from harmonic overcurrent and overheating
- Prevent parallel resonance between the plant transformer and capacitor bank
- Improve power factor and reduce reactive-power demand
- Reduce the risk of nuisance tripping and capacitor fuse operation
- Provide a practical solution for plants with moderate harmonic levels
- Extend equipment life by lowering electrical stress on capacitors and related components
- Support automatic power factor correction when installed in stepped APFC capacitor-bank systems
For a cement plant that has installed VFDs for fans, mills, and conveyors but does not currently exceed harmonic distortion limits, a detuned harmonic filter can be a highly effective and cost-conscious solution.
A detuned harmonic filter should not be presented as a complete harmonic-removal system.
It can reduce the risk of harmonic amplification, but it may not bring plant-wide harmonic current or voltage distortion down to a required target. If the facility already experiences high total harmonic distortion, transformer heating, repeated drive alarms, voltage distortion, or utility non-compliance, a detuned bank alone may be insufficient.
This is where a properly designed harmonic filter bank becomes necessary.
A harmonic filter bank is an engineered passive filtering system made from capacitors, reactors, resistors where required, switching devices, protection components, and monitoring equipment. It is designed to reduce harmonic currents at selected frequencies while also providing reactive power compensation.
For example, a cement plant with a large number of six-pulse VFDs may show strong fifth and seventh harmonic currents. A tuned harmonic filter bank can be designed to target the fifth harmonic, seventh harmonic, or multiple harmonic orders depending on the results of the harmonic study.
Unlike a detuned system, the harmonic filter bank intentionally creates a low-impedance path near selected harmonic frequencies. Instead of allowing harmonic current to circulate in transformers, cables, and the upstream grid, the filter provides a controlled path for that current.
- Actively reduce harmonic current distortion
- Help maintain voltage quality at critical buses
- Improve power factor while filtering harmonics
- Reduce transformer, cable, and switchgear stress
- Support compliance with utility requirements and power-quality guidelines
- Reduce overheating and premature failure of electrical assets
- Improve reliability for automation, PLC, instrumentation, and drive systems
- Enable customized designs for specific cement-process loads
A properly engineered harmonic filter bank is especially useful at the main distribution bus, transformer secondary, large VFD bus, mill-drive feeder, kiln-drive feeder, or other locations where harmonic current is concentrated.
The selection should never be based only on capacitor kVAR requirements. The plant must first understand its load profile, harmonic spectrum, transformer impedance, short-circuit capacity, existing capacitor-bank configuration, and operating scenarios.
A detuned harmonic filter is usually the better choice when:
- The main objective is power factor correction
- The plant has VFDs or nonlinear loads but harmonic distortion is not excessive
- A standard capacitor bank would create resonance risk
- Capacitor-bank failures have occurred after VFD installation
- The facility needs a cost-effective way to protect power factor correction equipment
- The harmonic study confirms that targeted harmonic absorption is not required
- The plant requires automatic stepped reactive power compensation
For example, a cement grinding station may add VFD-controlled bag filters, separator fans, and conveyor drives. The power factor declines because of motor loading, and the plant plans to install an automatic capacitor bank. If measurements show moderate harmonic content but no serious distortion-limit violation, a detuned harmonic filter can improve power factor without creating harmful resonance.
A tuned harmonic filter bank is usually more suitable when:
- Harmonic current or voltage distortion already exceeds acceptable levels
- The plant has a high concentration of six-pulse VFDs or rectifier loads
- The utility requires improvement at the point of common coupling
- Existing equipment suffers from overheating, repeated trips, or capacitor failures
- The plant has major fifth, seventh, eleventh, or thirteenth harmonic components
- Transformer capacity is being reduced by harmonic heating
- Process automation is affected by poor power quality
- A detailed study identifies specific harmonic frequencies that need mitigation
In practical terms, a harmonic filter bank is appropriate when the plant has a harmonic problem to solve, not merely a capacitor bank to protect.
From an engineering perspective, selecting between a harmonic filter bank and a detuned harmonic filter requires more than reviewing total harmonic distortion on a portable meter.
A qualified assessment should include the following items.
Measurements should capture normal and worst-case operations. Cement plants often have significantly different electrical conditions during startup, grinding, kiln operation, maintenance, production changes, and partial-load operation.
Measure:
- Active power in kW
- Reactive power in kvar
- Apparent power in kVA
- Power factor
- Current and voltage THD
- Individual harmonic spectrum
- Demand profile over time
- Transformer loading
- Capacitor-bank switching events
A monitoring period of at least several representative production days is generally more useful than a short spot measurement. The objective is to capture actual operating conditions, not only the lowest-load or highest-load moment.
The fifth and seventh harmonics are common in systems supplied by six-pulse converters. However, no engineer should assume the harmonic spectrum without measurement.
A cement plant may also have meaningful eleventh, thirteenth, seventeenth, nineteenth, or higher-order harmonics depending on its VFD topology, transformer connections, active front ends, and load diversity.
The filter design must reflect the measured harmonic spectrum.
The same capacitor bank can behave differently at two plants because the upstream transformer capacity, transformer impedance, utility short-circuit level, and feeder arrangement are different.
This is why a capacitor bank cannot be safely copied from one site to another without system analysis.
Important information includes:
- Transformer rating and impedance
- Utility fault level or short-circuit capacity
- Cable lengths and conductor sizes
- Existing capacitor bank sizes
- Generator operation, if applicable
- Parallel transformer operation
- Medium-voltage and low-voltage bus configuration
- Planned expansion of VFD loads
Cement plants often add grinding capacity, new bag filters, larger fans, waste heat recovery systems, alternative-fuel handling equipment, or additional automation systems.
A filter system designed only for today's electrical load may become unsuitable after the next expansion project.
At DINGNUO ELECTRIC CO., Ltd., our engineering approach emphasizes selecting capacitor and reactor ratings with realistic operating margins, appropriate thermal performance, and allowance for foreseeable load growth. This helps avoid premature redesign and replacement.
One of the most common mistakes in industrial power factor correction is assuming that all reactor-equipped capacitor banks provide the same level of harmonic mitigation.
They do not.
A detuned harmonic filter primarily provides harmonic protection. It helps prevent the capacitor bank from attracting excessive harmonic current and reduces the risk of resonance.
A tuned harmonic filter bank provides harmonic removal at designed frequencies. It can lower harmonic current flowing through the system when correctly sized, tuned, protected, and coordinated with the electrical network.
This distinction affects system performance, budget, maintenance expectations, and compliance strategy.
A plant that only needs safe reactive compensation may overspend if it installs a complex multi-tuned harmonic filter bank. Conversely, a plant with a real harmonic compliance problem may waste money if it installs a detuned capacitor bank and expects it to correct high distortion.
The best solution is the one that matches the measured problem.

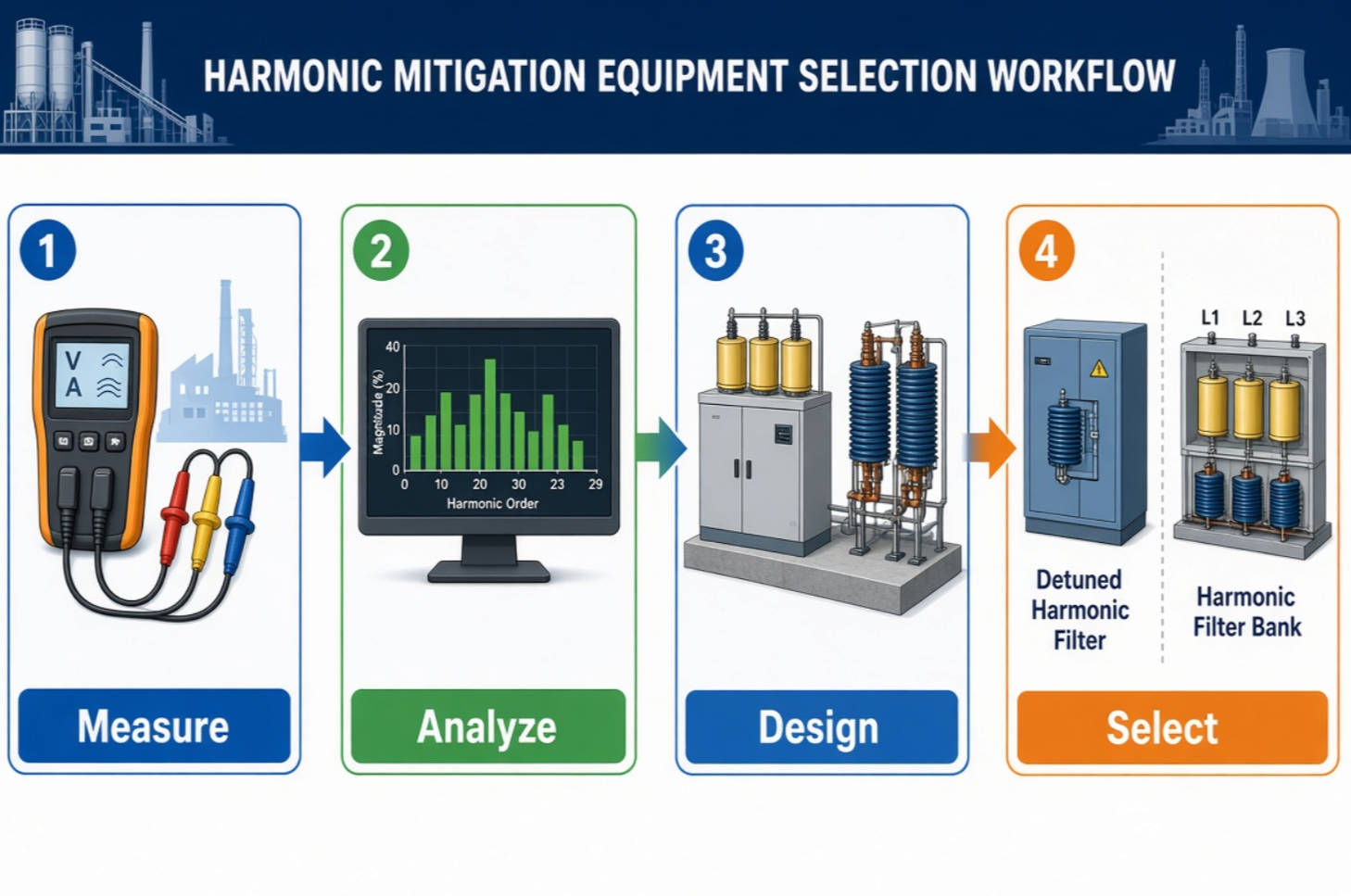

A structured decision process reduces technical and financial risk.
1. Conduct a power quality survey. Measure voltage, current, power factor, THD, and individual harmonic orders at critical buses and feeders.
2. Review the plant's operating modes. Include kiln operation, mill operation, fan loading, startup conditions, and partial-load production.
3. Calculate reactive power demand. Determine the required kvar capacity based on actual demand rather than nameplate motor ratings alone.
4. Assess resonance risk. Model the interaction among transformers, utility source impedance, cables, capacitors, and reactors.
5. Compare measured distortion with project requirements. Consider utility requirements, point-of-common-coupling targets, internal equipment sensitivity, and power-quality guidelines.
6. Select the appropriate technology. Use a detuned harmonic filter for resonance-safe power factor correction, or use a harmonic filter bank when targeted harmonic reduction is needed.
7. Specify protection and monitoring. Include capacitor protection, reactor thermal protection, switching coordination, harmonic monitoring, and alarm functions.
8. Commission and verify results. Measure power factor, harmonic levels, capacitor current, reactor temperature, and voltage quality after installation.
For cement plants, the choice between a harmonic filter bank and a detuned harmonic filter should be based on a complete power quality assessment, not on a standard product specification.
A detuned harmonic filter is often the right solution when the priority is power factor correction with capacitor-bank protection in a harmonic environment. It is practical, reliable, and cost-effective when the plant's harmonic levels remain manageable.
A harmonic filter bank is the stronger solution when the plant needs to reduce existing harmonic distortion, protect critical electrical assets, improve reliability, and meet demanding utility or internal power-quality requirements.
DINGNUO ELECTRIC CO., Ltd. provides customized capacitor banks, detuned reactor systems, harmonic filter banks, reactive power compensation equipment, and comprehensive power quality solutions for industrial customers. For cement plants, we evaluate the electrical system, load characteristics, harmonic spectrum, reactive power requirement, and future expansion plans before recommending a solution.
Contact DINGNUO ELECTRIC today to discuss your cement plant's power factor correction and harmonic control requirements. A properly engineered solution can protect your electrical assets, improve operational stability, and support long-term energy efficiency.
A harmonic filter bank is designed to reduce specific harmonic frequencies while also supplying reactive power compensation. A detuned harmonic filter is mainly designed to improve power factor and prevent resonance between capacitor banks and the electrical system. It protects the capacitor bank but does not normally provide strong targeted harmonic removal.
A detuned harmonic filter may influence system harmonic behavior, but its primary role is to avoid resonance below the fifth harmonic rather than actively absorb fifth harmonic current. If fifth harmonic distortion is already high, a properly designed tuned harmonic filter bank or another harmonic mitigation solution may be required.
Capacitor banks may fail because of harmonic overcurrent, resonance, overvoltage, high ambient temperature, incorrect capacitor sizing, insufficient reactor protection, frequent switching, or poor ventilation. Cement plants with VFDs and large nonlinear loads should assess harmonic conditions before installing conventional capacitor banks.
No. A 7 percent detuned reactor is commonly used, but it is not automatically correct for every installation. The appropriate reactor rating depends on the system frequency, harmonic spectrum, capacitor rating, transformer impedance, utility fault level, and plant operating conditions. A harmonic study should determine the final design.
The best location depends on the harmonic source and distribution architecture. Common installation points include the main low-voltage bus, transformer secondary bus, dedicated VFD bus, mill-drive feeder, kiln-drive feeder, or other sections where harmonic current is concentrated. Engineering analysis should determine the most effective location.
No. Power factor correction and harmonic mitigation are related but different objectives. A standard capacitor bank can improve power factor while making harmonic problems worse if resonance occurs. Harmonic analysis is necessary before adding capacitors in facilities with nonlinear loads.
Plants should test harmonic levels before installing or expanding capacitor banks, VFD systems, large rectifier loads, or major electrical equipment. Periodic monitoring is also recommended after commissioning and whenever recurring electrical problems, overheating, capacitor failure, or unexplained trips occur.
