Smart capacitor technology has moved from "nice to have" to critical infrastructure for modern industrial and commercial power systems, especially as harmonics and dynamic loads become more complex in sectors like metallurgy, petrochemicals, automotive, paper, and municipal projects.
Conventional capacitor banks were designed for power systems that looked far simpler than the ones we operate today.
Smart capacitors and advanced reactive power compensation systems emerged to solve problems that legacy banks cannot handle: fast‑changing loads, high harmonic content, and stricter power quality requirements from utilities and standards bodies.
This article draws on practical field experience and industry best practices to help engineers, facility managers, and project owners decide when to upgrade, how to design smarter systems, and where solutions from DINGNUO ELECTRIC CO., Ltd. fit into long‑term power quality strategies.
Power quality used to be treated mainly as a maintenance issue. Today it is a strategic risk that affects finance, safety, and production continuity.
Short‑term voltage fluctuations, poor power factor, and excessive harmonics are no longer just technical details. They translate into:
- Higher electricity costs and penalties
- Reduced equipment lifespan
- Nuisance trips and unplanned downtime
- Difficulties in meeting internal audit and external compliance requirements
For manufacturers and infrastructure projects, poor power quality can undermine production output, increase failure rates, and even affect the reputation of the organization in domestic and international markets.
Conventional low‑voltage and medium‑voltage capacitor banks provide fixed or stepped reactive power compensation.
They are designed to:
- Improve power factor under stable load conditions
- Reduce apparent power demand and transformer loading
- Help maintain acceptable voltage levels where loads are predictable
In facilities with relatively linear loads and limited penetration of modern power electronics, a well‑designed conventional capacitor bank remains a practical and cost‑effective tool.
Conventional solutions still work well in applications such as:
- Smaller manufacturing plants driven mainly by directly started motors
- Sites with stable, repetitive production cycles
- Installations where harmonic levels are low and disturbances are rare
- Projects with limited budgets and straightforward power quality requirements
When these conditions apply, conventional banks can deliver solid performance with simple operation and maintenance.
Modern industrial and commercial sites often rely on variable frequency drives, soft starters, robotics, and automated systems. These technologies create rapidly changing reactive power demands.
Conventional capacitor banks typically use mechanical switching and fixed steps. They are unable to:
- Track fast changes in load
- Respond within cycles when motors start or drives ramp
- Prevent over‑ or under‑compensation during dynamic operation
As a result, power factor can swing widely during the day, and operators may see periods of instability even if nameplate capacities appear adequate.
Under non‑linear loads, capacitors can enter resonance with the network and amplify specific harmonic orders.
This can lead to:
- Elevated total harmonic distortion
- Overheating of transformers and cables
- Malfunction of protective devices and relays
- Frequent tripping of capacitor banks and other equipment
In sectors such as metallurgy, petrochemicals, and large commercial buildings, these issues become more pronounced due to dense concentration of drives, inverters, and sensitive electronics.
Many conventional banks operate with minimal monitoring. At most, operators may see basic power factor data, with little detail on harmonics, trends, or individual events.
This lack of visibility makes it difficult to:
- Detect early signs of failure
- Correlate disturbances with specific loads or production steps
- Optimize compensation settings over time
- Communicate clear, data‑driven insights to management
As power systems grow more complex, this "blind operation" becomes increasingly problematic.
A smart capacitor bank integrates real‑time measurement, digital control, and communication into the reactive power compensation system.
Instead of simply switching fixed steps, a smart system:
- Continuously measures voltage, current, power factor, and harmonic content
- Uses microprocessor‑based controllers and algorithms to adjust compensation
- Interfaces with supervisory or building management systems for remote visibility
From the perspective of an engineer or facility manager, a smart capacitor is not just a static component. It is a managed power quality solution that interacts intelligently with the grid.
Typical smart capacitor solutions, including static var generators (SVG) and active harmonic filter–based architectures, offer:
- Fast dynamic response within electrical cycles
- Adaptive compensation matched to load changes
- Harmonic mitigation rather than amplification
- Detailed measurement and logging of power quality indicators
- Alarm and diagnostic functions for proactive maintenance
- Remote access and configuration where required
These features are especially valuable in high‑value environments where downtime is costly and technical teams need high‑resolution data to make informed decisions.

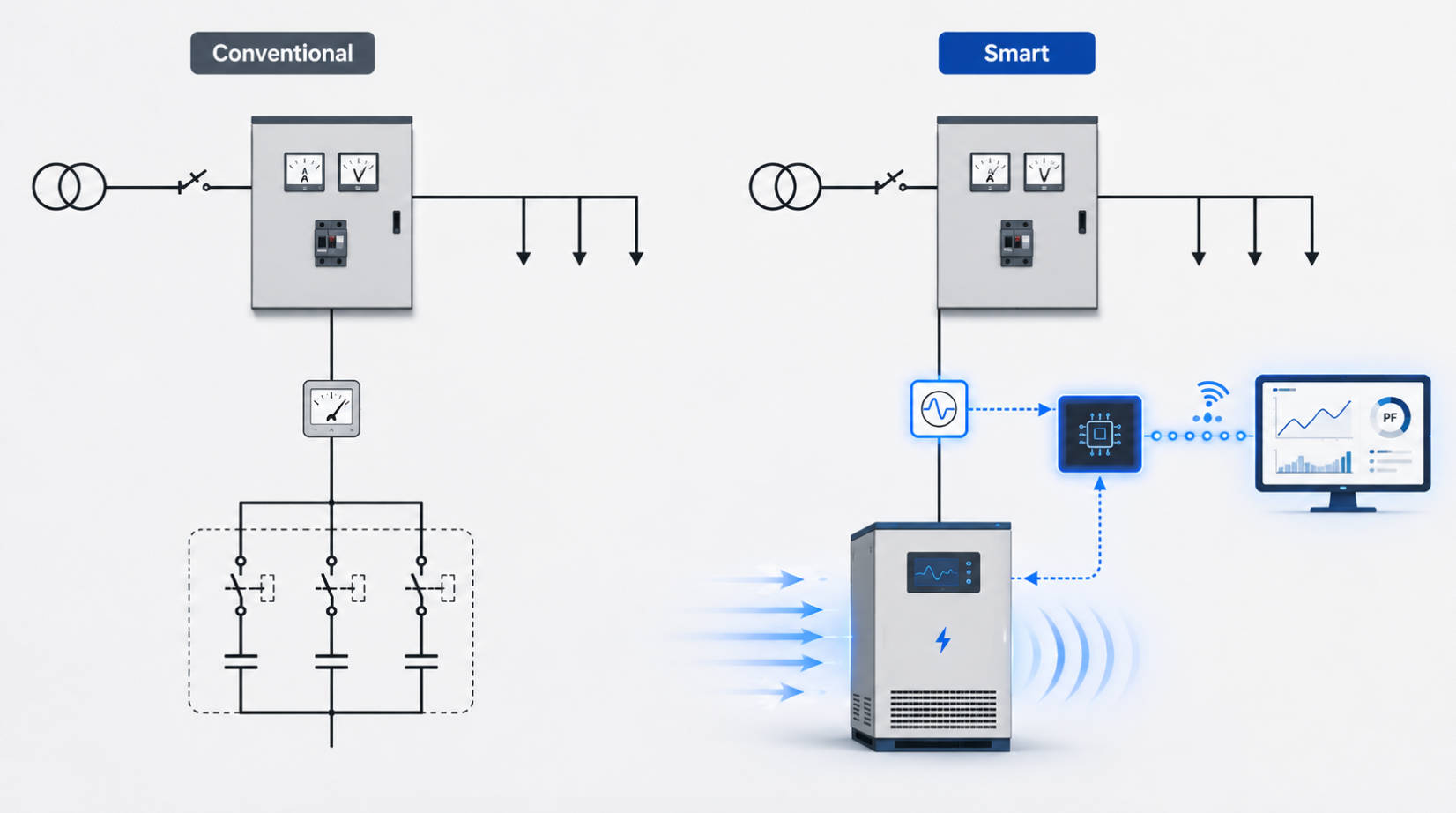

| Aspect | Conventional Capacitor Bank | Smart Capacitor / SVG System |
|---|---|---|
| Load profile | Stable, mostly linear | Dynamic, non‑linear, electronics‑rich |
| Response speed | Seconds to minutes | Cycles to milliseconds |
| Harmonics | May amplify certain orders | Actively mitigates and stabilizes |
| Monitoring | Basic, often minimal | Advanced, with logs and analytics |
| Configuration | Fixed or stepped | Adaptive and programmable |
| Investment | Lower upfront | Higher, but targeted to risk |
| Reliability under distortion | Degrades | Engineered for such conditions |
This comparison highlights a simple reality: conventional banks are appropriate tools in the right context, but they are not a universal solution. As soon as non‑linear loads and dynamic behavior dominate, smart systems deliver greater stability and safer operation.
Modern campuses combine laboratories, data centers, lecture theaters, offices, and accommodation in a single network. The result is a blend of non‑linear loads and sensitive equipment.
Typical challenges include:
- Rapid fluctuations in power factor across different time periods
- Voltage flicker during major events or peak hours
- Malfunction of protective devices due to harmonic distortion
- Visible impact on sensitive instruments and IT assets
Smart capacitor systems and SVG solutions respond dynamically to such diversity. They help maintain stable conditions, protect equipment, and support both teaching and research activities across the campus.
In office towers and commercial complexes, IT equipment, elevators, HVAC systems, lighting controls, and electric vehicle chargers create constantly changing reactive and harmonic profiles.
Conventional capacitor banks installed in these environments often:
- Trip frequently under distortion
- Age prematurely due to thermal stress
- Deliver inconsistent power factor improvement
Smart capacitor technology stabilizes performance by reacting to load changes in real time, maintaining a more consistent operating point and supporting long‑term reliability of building infrastructure.
Solar pumping systems combine motors, inverters, and variable generation profiles. This combination can be particularly challenging for conventional banks.
Smart capacitors in these systems:
- Help stabilize power factor as solar output and pumping demand vary
- Protect motors from voltage disturbances and harmonic stress
- Support reliable irrigation and agricultural operations in remote areas
For farms and agribusinesses, this reliability translates into greater confidence in daily operations and reduced maintenance overhead.
Even as smart technology expands, not every installation requires advanced systems.
Conventional capacitors may be sufficient when:
- The majority of load consists of directly started induction motors
- Non‑linear loads are small and harmonics remain within acceptable limits
- The production cycle is predictable with limited rapid change
- There is a clear focus on simplicity and low initial cost
In these scenarios, conventional banks can perform reliably, especially when combined with passive filters and carefully selected reactors to control resonance.
From a practical engineering perspective, over‑specifying advanced systems for simple networks can allocate budget inefficiently. A balanced approach considers:
- Present load characteristics
- Expected future expansion and modernization
- Specific power quality incidents already observed
- Available technical capabilities on site
The result is a solution matched to risk and complexity rather than a one‑size‑fits‑all answer.

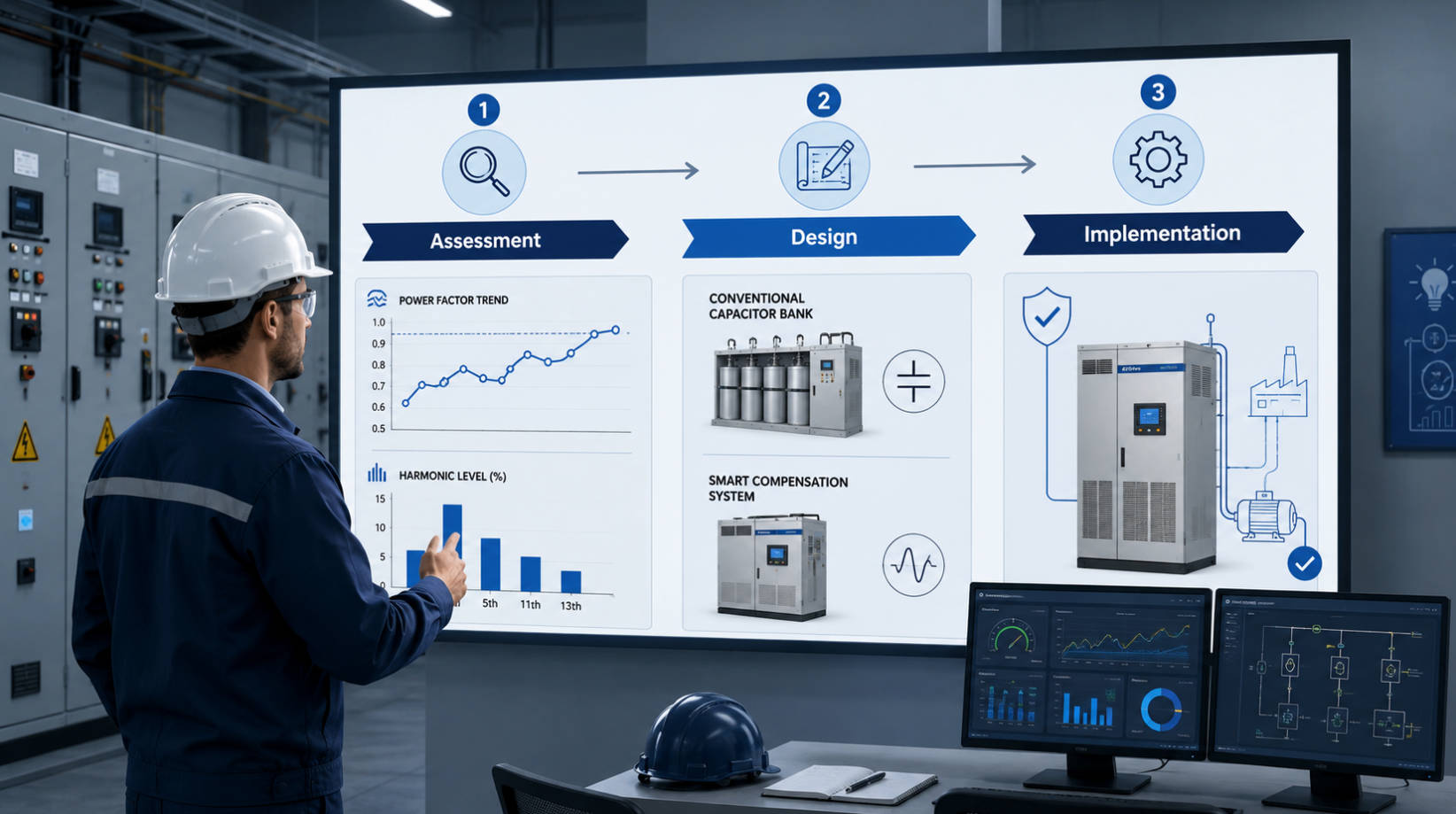

Before considering changes, it is important to perform a comprehensive power quality assessment and understand the existing situation.
Typical data points include:
1. Power factor profiles over different operating periods
2. Harmonic distortion levels and dominant orders
3. Voltage stability at key nodes or feeders
4. Historical records of trips, alarms, and failures
5. Existing contractual or internal performance thresholds
This baseline creates a factual foundation that supports both technical design and management decisions.
Once the baseline is understood, the next step is to translate findings into specific objectives, such as:
- Target power factor values for the site or critical feeders
- Acceptable ranges for total harmonic distortion and individual harmonics
- Required response speed during production changes or equipment starts
- Integration needs with existing monitoring systems
Defining these objectives ensures that the chosen solution is tailored to measurable outcomes rather than vague expectations.
Based on the assessment and objectives, engineers can evaluate three main architectures:
- Conventional compensation for stable, low‑distortion networks
- Hybrid solutions combining conventional banks with SVG or active filters for critical sections
- Fully smart architectures where dynamic and non‑linear behavior dominates
A hybrid approach often offers an effective balance between cost and performance, particularly in large, diverse facilities.
Capacitor and reactor technology may seem generic at first glance, but each sector has its own load patterns and failure modes.
Specialized manufacturers bring:
- Detailed knowledge of how equipment behaves in metallurgy, petrochemicals, automotive, paper, textile, and building materials industries
- Proven configurations and parameter sets for common scenarios
- Focused research and development tuned to real industrial conditions
This experience allows projects to avoid trial‑and‑error and benefit from lessons learned across multiple installations.
A compensation system is not just hardware delivered to site. It is a long‑term asset that requires:
- On‑site commissioning and optimization under real load conditions
- Training for maintenance and operations personnel
- Ongoing technical support and upgrade pathways
- Rapid access to spare parts and system enhancements
Working with a partner dedicated to capacitors, reactors, and integrated power quality solutions ensures that the system evolves alongside the facility, rather than becoming obsolete prematurely.
DINGNUO ELECTRIC CO., Ltd. is a professional manufacturer of capacitors and reactors, providing advanced technology and comprehensive product support for reactive power compensation and harmonic control.
The company's solutions are widely applied in:
- Metallurgy and heavy industry
- Petrochemical complexes and process plants
- Automotive manufacturing lines
- Paper and textile mills
- Building materials production
- Key municipal engineering projects
By combining conventional capacitors, reactors, smart compensation technology, and tailored engineering services, DINGNUO ELECTRIC delivers integrated solutions aligned with the specific challenges of each sector.
If existing capacitor banks show signs of stress—frequent trips, uneven power factor, rising energy costs, or unexplained equipment issues—this is often an indication that compensation methods are no longer aligned with the current load profile.
A structured upgrade plan should include:
- A clear diagnostic phase
- Collaborative technical review with experienced specialists
- Comparison of conventional, hybrid, and fully smart options
- Phased implementation to minimize impact on operations
Treating power quality as a managed, evolving discipline rather than a one‑off purchase allows industrial and commercial facilities to improve performance, reduce risk, and support future expansion.
In many cases, it is possible to retain part of the existing conventional bank and complement it with additional equipment such as SVG or active filters. This hybrid approach focuses investment on the areas where distortion and dynamics are most severe, while keeping usable assets in service.
Smart capacitor systems typically respond within a few electrical cycles. This rapid reaction is crucial in environments with frequent motor starts, varying production speeds, and widespread use of drives and inverters, where slow mechanical switching would leave the system under‑ or over‑compensated.
Smart systems include more electronics and control functions, but they also offer better diagnostic capabilities. Trend data, alarms, and detailed measurements help maintenance teams identify issues early and plan interventions more effectively, often reducing unexpected failures compared to traditional banks operating without visibility.
Enhanced compensation and harmonic control can help facilities maintain a more stable power factor and reduce distortion. This often leads to fewer penalties, reduced losses in cables and transformers, and more efficient use of contracted capacity, all of which contribute to more favorable energy costs.
A solid business case combines technical and financial perspectives. It typically includes current energy costs and penalties, recorded failure and downtime events, maintenance spending, and projected reductions based on improved compensation and reliability. Presenting these elements over a multi‑year horizon helps stakeholders see the long‑term benefit of the upgrade.
1. Google Search Central – Creating Helpful, Reliable, People‑First Content.
[https://developers.google.com/search/docs/fundamentals/creating-helpful-content]
2. IndustrialSEO – How to Rank in Google Search: A Guide for Industrial Companies.
[https://industrialseo.com/articles/how-to-rank-in-google-search-a-guide-for-industrial-companies/]
3. AISEOShift – How to Write E‑E‑A‑T Content: A Practical Guide for 2026.
[https://aiseoshift.com/blog/how-to-write-eeat-content/]
4. Keywordseverywhere – Google E‑E‑A‑T Guidelines: an Overview (2026 Playbook).
[https://keywordseverywhere.com/blog/google-e-e-a-t-guidelines-an-overview/]
5. Digicobweb – A Complete Guide to E‑E‑A‑T Best Practices for SEO Success.
[https://digicobweb.com/guide-to-e-e-a-t-best-practices/]
6. YTELECT Technical Article Listing – Power Quality Case Topics (SVG and AHF Systems, Office Buildings, Solar Pumping, Energy Storage System in Singapore).
[https://www.ytelect.com/blog/difference-between-conventional-and-smart-capacitor_b295]
