Industrial plants depend on a stable voltage supply, but the incoming grid is not always stable. Voltage sags, swells, phase imbalance, switching events, and upstream faults can interrupt production lines in milliseconds. For facilities operating automated equipment, variable-frequency drives, PLCs, robotic cells, precision instruments, or continuous processes, even a short voltage disturbance can create a long and expensive recovery process.
An AVC active voltage conditioner is designed to protect critical loads from voltage fluctuations without relying on battery-based backup power. It detects supply-voltage disturbances, injects the required compensating voltage, and helps maintain a stable load-side voltage. For industrial users, the goal is straightforward: reduce nuisance trips, protect production continuity, and improve power-quality resilience.
At DINGNUO ELECTRIC CO., Ltd., we see voltage conditioning as one part of a broader power-quality strategy. A reliable plant does not only correct voltage sags. It also evaluates reactive power demand, harmonic distortion, load characteristics, network capacity, and the operational importance of each production process.
An active voltage conditioner, often called an AVC, is a power-electronic voltage compensation system installed between the electrical supply and protected loads. It continuously monitors the incoming voltage. When it detects a voltage sag, swell, or rapid fluctuation, it responds by injecting or absorbing voltage through a series-connected converter system.
Unlike a conventional voltage stabilizer that may use tap changing or mechanical adjustment, an AVC generally uses high-speed power electronics. This enables a much faster response to voltage events that could otherwise cause sensitive equipment to trip or malfunction.
An industrial AVC active voltage conditioner is typically used to protect:
- Production lines with automated controls
- PLCs, CNC machines, and process-control equipment
- Robotic welding and automotive assembly systems
- Semiconductor, electronics, and precision manufacturing equipment
- High-speed packaging, printing, textile, and paper machinery
- Pharmaceutical, food-processing, and chemical-process systems
- Data-processing equipment, communication infrastructure, and critical building loads
The value of AVC protection is not limited to preventing equipment shutdown. It can also reduce restart time, material waste, quality defects, maintenance pressure, and the operational disruption caused by an unstable incoming supply.
A voltage disturbance is often brief, but its consequences may be significant. In a modern factory, different devices have different voltage tolerance levels. A voltage sag that does not stop a large motor may still cause a PLC, contactor, drive controller, sensor, or communication module to reset.
For this reason, plant managers should evaluate voltage quality based on process sensitivity rather than only on the severity of a disturbance at the main incomer.
Voltage problems can originate inside or outside the facility. Common causes include:
- Short-circuit faults on the utility network
- Transformer energization and inrush current
- Startup of large motors, compressors, pumps, or crushers
- Arc furnaces, welding equipment, and high-impact loads
- Switching of capacitor banks or reactive-power equipment
- Faults in cables, switchgear, or upstream distribution systems
- Renewable-energy intermittency and weak-grid conditions
- Sudden changes in large industrial loads
A voltage sag is not the same as a complete power interruption. During a sag, voltage remains present but falls below the level required by some equipment. A process may stop even if lighting remains on and the main supply appears normal.
The direct effect of a voltage dip may last only a fraction of a second. The production impact can last hours.
For example, a paper machine, coating line, extrusion process, or automated packaging system may require inspection, cleaning, re-threading, material replacement, re-calibration, and controlled restart after one voltage-related trip. In chemical, pharmaceutical, and food applications, an interrupted batch may also require additional quality checks or disposal.
The right question is therefore not, "How often does the grid fail?" It is, "What does one avoidable process interruption cost our operation?"

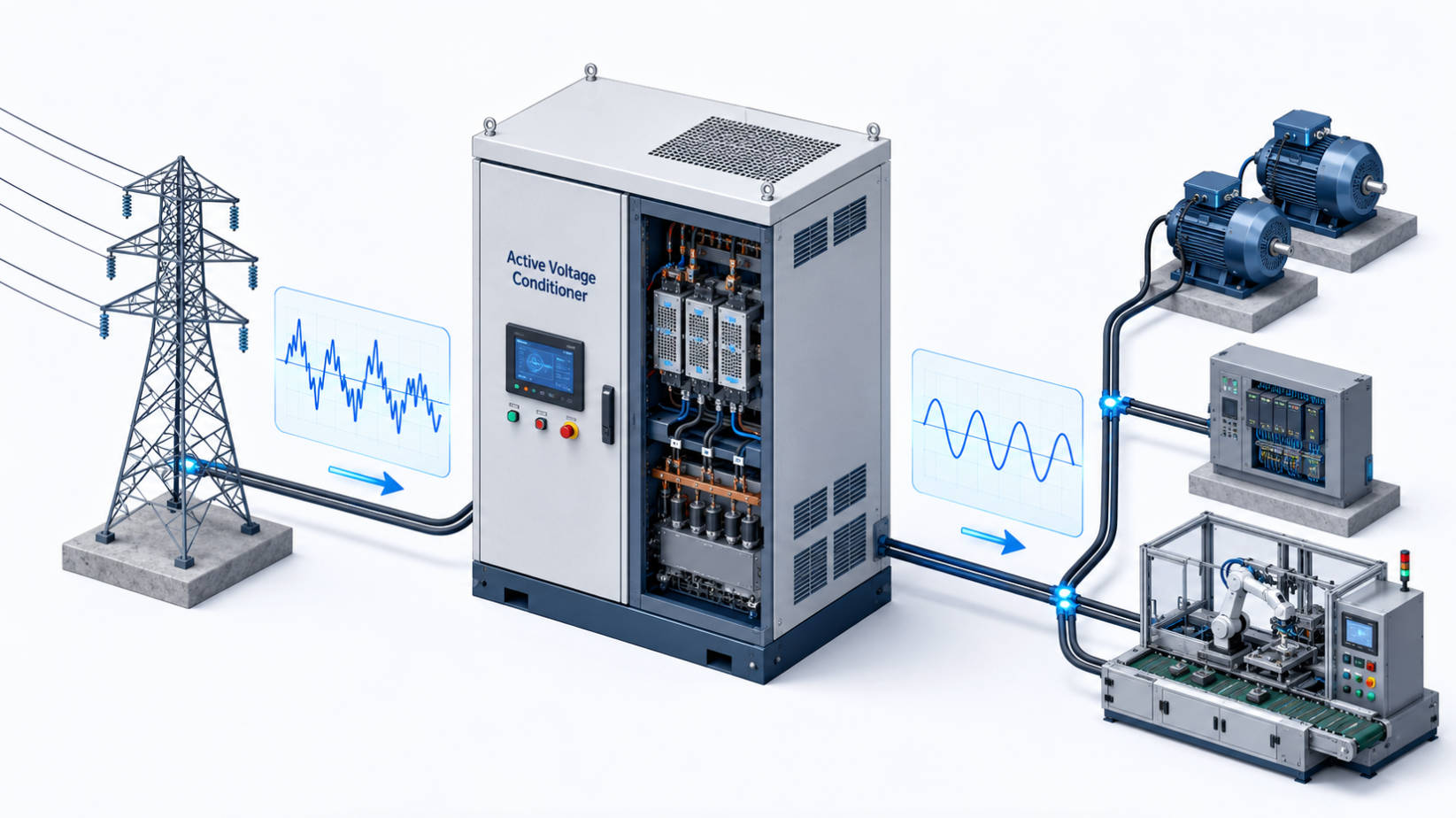

An AVC system typically includes a voltage detection and control unit, power converter, energy-storage components, injection transformer, bypass arrangement, and monitoring interface. Its operating sequence can be summarized in four steps.
1. Monitor the supply voltage. The AVC continuously measures incoming voltage and identifies abnormal conditions.
2. Calculate the required compensation. Its controller determines the difference between the actual supply voltage and the voltage required by the protected load.
3. Inject compensating voltage. The converter injects a precisely controlled voltage in series with the supply path.
4. Maintain load-side continuity. The protected equipment receives a voltage that remains within its acceptable operating range, provided the event is within the AVC system's design capability.
The system is not intended to replace every other type of power-quality equipment. An AVC is mainly designed for voltage-sag, voltage-swell, and rapid-voltage-variation mitigation. Harmonics, poor power factor, long-duration outages, and high-energy transients may require additional equipment or a coordinated power-quality solution.
Selecting the wrong solution can create an expensive protection gap. The following comparison helps clarify where an AVC fits.
| Solution | Primary Function | Best Fit | Key Consideration |
|---|---|---|---|
| AVC active voltage conditioner | Corrects sags, swells, and voltage fluctuations | Critical industrial loads and continuous processes | Designed around disturbance depth, duration, and load profile |
| UPS | Provides backup power during outages | IT systems, control systems, short-duration backup needs | Batteries require maintenance and have finite autonomy |
| DVR | Dynamic series voltage restoration | Distribution-level or high-capacity sag correction | Application and configuration may overlap with AVC terminology |
| Servo or tap-changing stabilizer | Corrects slower voltage changes | Loads tolerant of slower response | May not protect against fast voltage sags |
| Active harmonic filter | Reduces harmonic current distortion | Facilities with VFDs, rectifiers, and nonlinear loads | Does not primarily solve deep voltage sags |
| Capacitor bank with reactor | Improves power factor and manages resonance risk | Reactive-power compensation systems | Requires harmonic assessment before installation |
In practice, many industrial facilities need more than one technology. A plant may use an AVC for sag protection, detuned capacitor banks for reactive-power compensation, and active harmonic filters for dynamic harmonic mitigation. The best design begins with measurement, not with a product assumption.
An AVC active voltage conditioner should be considered when voltage events are linked to measurable operational consequences. Warning signs include repeated PLC resets, unexplained drive faults, production-line trips during grid disturbances, unstable automation behavior, or incidents that occur when large loads start elsewhere in the facility.
It is especially relevant when a plant has one or more of the following conditions:
- Continuous production with high restart cost
- High-value materials that may be wasted after interruption
- Sensitive automation equipment operating near voltage tolerance limits
- Frequent voltage dips caused by a weak utility network
- Large motors, welders, furnaces, or rapidly changing internal loads
- Customer delivery commitments that make downtime unacceptable
- A history of replacing components without eliminating the root cause
A useful engineering approach is to rank loads by operational criticality. The whole facility may not need AVC protection. Protecting a critical feeder, automation section, or production island can sometimes deliver a more economical result than conditioning every load.
An AVC should not be selected only by nominal voltage and rated kVA. The system must match the real power-quality event profile and the protected process.
Conduct a power-quality survey at the main incoming point and at critical downstream feeders. Record voltage sags, swells, interruptions, harmonics, unbalance, current demand, and load switching behavior.
Use measurement methods aligned with recognized power-quality practices. The survey should capture normal production, shift changes, motor starts, peak-load periods, and known problem events.
Identify exactly what must remain online during a voltage event. This might be a complete production line, a control section, a process skid, a robotic cell, or a group of sensitive drives.
Avoid including noncritical loads simply because they are physically close to the protected equipment. A defined protection boundary improves both system sizing and investment efficiency.
The depth and duration of actual voltage events determine the compensation requirement. A system designed for shallow, short sags may not protect against deeper or longer disturbances.
Engineering teams should review event records rather than relying only on nominal grid quality. A utility supply may appear stable on average while still producing occasional events that are severe enough to disrupt a sensitive process.
Capacitors, VFDs, rectifiers, welding machines, and nonlinear loads can create interactions that affect system performance. Before adding power-factor correction equipment, assess harmonic levels and resonance risk.
For many facilities, the correct sequence is to understand harmonics first, then design reactive-power compensation. A coordinated solution may include detuned reactors, harmonic filtering, automatic capacitor banks, and AVC voltage protection.
A professional AVC installation should include a maintenance strategy. Consider bypass operation, protection coordination, ventilation, cable routing, fault handling, communication protocols, spare-parts planning, and remote monitoring.
The best system is not only effective on commissioning day. It must remain manageable for the plant electrical team throughout its operating life.
Voltage fluctuation is only one dimension of power quality. Industrial facilities often face overlapping problems: low power factor, harmonic distortion, voltage unbalance, transformer overloading, and sensitive-load tripping.
DINGNUO ELECTRIC approaches these conditions as a system, not as isolated equipment issues. For example, a facility using large VFD-driven motors may require harmonic analysis before installing capacitor banks. If harmonic resonance is ignored, capacitors and electrical equipment can be exposed to excessive stress.

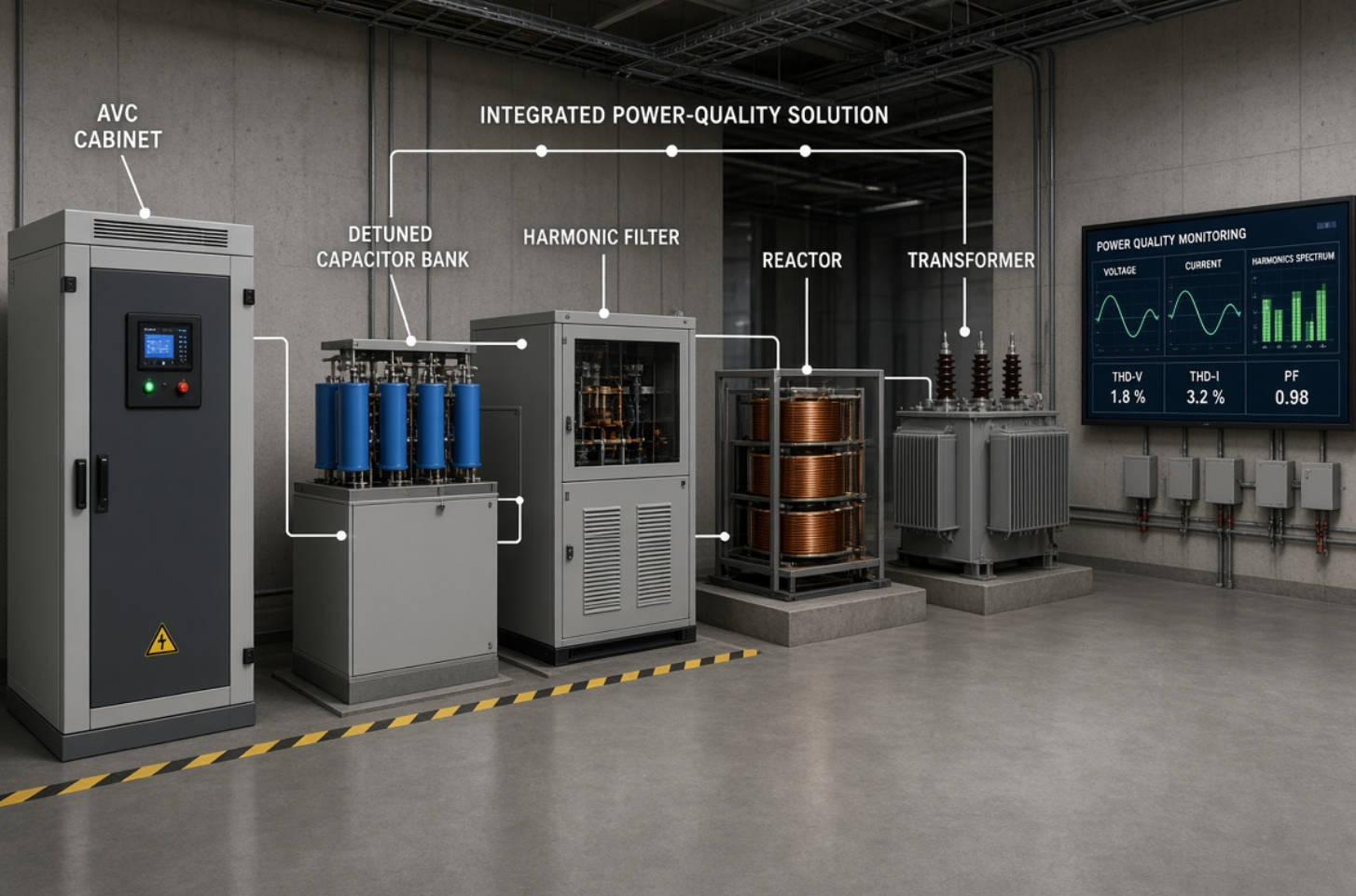

A more complete industrial power-quality architecture may include:
- AVC systems for voltage sag and swell compensation
- Detuned capacitor banks for safe reactive-power compensation
- Series reactors for limiting inrush current and controlling resonance
- Active harmonic filters for dynamically changing nonlinear loads
- Passive filters for defined harmonic frequencies and stable load conditions
- Power-quality meters for continuous event recording and performance verification
This coordinated approach is particularly relevant to metallurgy, petrochemical processing, automotive manufacturing, paper production, textiles, building materials, and municipal infrastructure projects, where load characteristics are complex and production continuity matters.
Consider a manufacturing line with automated drives, PLC controls, sensors, and motor-operated equipment. The plant experiences occasional upstream voltage sags during network faults and large-load switching.
Without voltage conditioning, a brief sag may trip a drive or reset a control system. The immediate effect is a line stop. The secondary effects can include rejected material, operator intervention, restart procedures, schedule disruption, and delayed delivery.
With an AVC solution designed from recorded event data, the conditioner can support the load-side voltage during disturbances within its compensation range. The production line has a better chance of riding through the event without unnecessary shutdown.
This is not a guarantee that every electrical disturbance can be eliminated. A credible engineering proposal should clearly state the applicable voltage range, response characteristics, event-duration capability, load assumptions, bypass arrangement, and limitations. Transparent scope is part of good power-quality engineering.
AVC performance depends on proper integration with the electrical system. Before installation, confirm upstream and downstream protection coordination, available space, cooling requirements, grounding, cable sizes, transformer compatibility, and the location of the protected load.
During commissioning, verify the following:
- Incoming and load-side voltage values under normal operation
- Phase sequence and phase balance
- Current loading and peak demand
- Bypass functionality and interlocking logic
- Alarm signals, event logs, and communication interfaces
- Compensation behavior during controlled or simulated test conditions
- Coordination with capacitor banks, filters, and other power-quality devices
- Operator training and maintenance documentation
After commissioning, compare operating data with the original power-quality baseline. This turns the project from a one-time equipment installation into a measurable reliability improvement program.
An AVC is a technical solution, not a generic commodity. Two factories with the same nominal voltage and similar load ratings can require very different designs because their disturbance profiles, process sensitivity, short-circuit capacity, harmonic environment, and operating priorities are different.
A capable manufacturer and solution partner should be able to support the project from diagnosis through lifecycle service. This includes power-quality measurement, system modeling, product selection, electrical design review, installation guidance, commissioning, and after-sales support.
DINGNUO ELECTRIC CO., Ltd. provides capacitors, reactors, reactive-power compensation equipment, harmonic-control products, and integrated power-quality solutions for domestic and international industrial customers. Our objective is to help customers make electrical systems more stable, efficient, and resilient—not simply to supply standalone equipment.
If voltage fluctuations are causing drive trips, automation resets, production losses, or maintenance uncertainty, start with a power-quality assessment. Measure the actual events, identify the critical loads, and select a protection strategy based on operational risk.
Contact DINGNUO ELECTRIC to discuss your application, voltage level, load profile, and power-quality challenges. Our engineering team can help evaluate whether an AVC active voltage conditioner, reactive-power compensation system, harmonic-control solution, or integrated design is the most appropriate path for your facility.
An AVC active voltage conditioner is used to protect critical electrical loads from voltage sags, swells, and fast voltage fluctuations. It is commonly applied in industrial facilities where short voltage disturbances can stop automation systems or interrupt production.
Not always. An AVC is primarily designed to correct voltage disturbances while the supply remains available. A UPS is designed to provide stored backup power during an interruption. Some facilities need both systems for different critical loads.
An AVC mainly addresses voltage fluctuation and sag/swell correction. Harmonic distortion usually requires dedicated solutions such as active harmonic filters, passive filters, detuned reactors, or a properly engineered reactive-power compensation system.
Capacity depends on the critical-load rating, voltage level, sag depth, sag duration, load power factor, overload conditions, and desired protection scope. A power-quality survey should be completed before final sizing.
Yes, but the system should be engineered as a coordinated power-quality solution. Harmonic conditions, resonance risk, switching behavior, and protection coordination should be evaluated before installation.
Industries with automated, continuous, high-value, or sensitive processes often benefit most. Typical examples include automotive, electronics, pharmaceuticals, food and beverage, textiles, paper, petrochemicals, metallurgy, building materials, and municipal infrastructure.
1. IEC. IEC 61000-4-30:2025 — Power Quality Measurement Methods. This standard defines methods for measuring and interpreting AC power-quality parameters, including voltage dips, swells, interruptions, unbalance, harmonics, and transients. [IEC source] [webstore.iec]
2. IEEE. IEEE Std 519-2022 — Standard for Harmonic Control in Electric Power Systems. This standard provides guidance for the design of electrical systems containing nonlinear loads and addresses harmonic-control considerations. [IEEE source] [ieeexplore.ieee]
3. ABB. PCS100 AVC-40 Active Voltage Conditioner for Sag and Surge Correction. Product documentation describing inverter-based active voltage conditioning for industrial and large commercial loads. [ABB source] [new.abb]
4. ABB. Power Quality Solutions for Industrial Applications. Technical material emphasizing the need to monitor and analyze facility power quality before selecting corrective solutions. [ABB PDF] [library.e.abb]
5. Electric Power Research Institute. Minimizing Power-Quality Costs. Guidance on gathering power-quality data, evaluating costs of power-quality-related losses, and prioritizing corrective action around bottleneck processes. [EPRI source] [restservice.epri]
6. Eaton. IEEE Std 519 Harmonic Limits Discussion. Background material on harmonic voltage-distortion limits and harmonic-control principles. [Eaton PDF] [eaton]
