Modern industrial facilities increasingly depend on variable frequency drives (VFDs), rectifiers, UPS systems, welding equipment, arc furnaces, automation lines, and other nonlinear loads. While these technologies improve efficiency and process control, they can also introduce harmonic currents, poor power factor, voltage distortion, phase imbalance, overheating, nuisance trips, and premature equipment failures.
For plant managers, electrical engineers, EPC contractors, and power-quality specialists, the key question is not simply whether to install a harmonic filter. The real question is: Should the facility use an active harmonic filter, a passive harmonic filter, or a hybrid harmonic filtering solution?
DINGNUO ELECTRIC CO., Ltd. provides power-quality solutions for industrial and municipal applications, including capacitor banks, reactors, active harmonic filters, reactive power compensation systems, and harmonic-control equipment. This guide explains the practical differences between active and passive harmonic filters, their operating principles, selection criteria, common applications, and the steps required to build a reliable harmonic mitigation strategy.
Electrical power systems are designed to operate with a smooth sinusoidal voltage and current waveform at the fundamental frequency, usually 50 Hz or 60 Hz. Harmonics are additional waveform components whose frequencies are integer multiples of that fundamental frequency.
For example, in a 50 Hz system:
- The 5th harmonic is 250 Hz.
- The 7th harmonic is 350 Hz.
- The 11th harmonic is 550 Hz.
- The 13th harmonic is 650 Hz.
In industrial facilities, harmonics are usually produced by nonlinear loads. These loads draw current in pulses rather than in a smooth sinusoidal pattern.
Common harmonic-producing equipment includes:
- Variable frequency drives and soft starters
- UPS systems and data-center power supplies
- Six-pulse and twelve-pulse rectifiers
- Welding machines
- Electric vehicle charging equipment
- Induction furnaces and arc furnaces
- CNC machines and robotics
- LED lighting drivers
- Battery chargers and electroplating equipment
- Large HVAC systems with VFD-driven motors
Harmonics may appear as an invisible electrical problem, but their consequences are very real. They can increase conductor and transformer losses, overheat neutral conductors, overload capacitor banks, cause protective devices to trip, create voltage distortion, and disrupt sensitive automation systems.
The IEEE 519 standard establishes harmonic-control goals at the point of common coupling (PCC), the electrical interface where a user's installation connects to the utility system or another electrical system. Harmonic performance should therefore be evaluated at the PCC rather than judged only by measurements taken at an individual load.
A passive harmonic filter uses passive electrical components—typically capacitors, reactors, inductors, and resistors—to reduce harmonic currents at selected frequencies.
Most passive filters are designed as tuned LC circuits. A tuned branch creates a low-impedance path for a targeted harmonic frequency, allowing unwanted harmonic current to flow through the filter rather than back into the distribution system.
Passive harmonic filters are commonly tuned for dominant low-order harmonics, including:
- 5th harmonic
- 7th harmonic
- 11th harmonic
- 13th harmonic
These harmonic orders are especially common in three-phase systems with six-pulse rectifier loads and conventional VFD front ends.
A typical passive harmonic filter is connected in parallel with a nonlinear load or electrical bus. At its designed tuning frequency, the LC branch presents a low impedance. This attracts the selected harmonic current and prevents a significant portion of that current from circulating through upstream transformers, cables, generators, and utility connections.
In many industrial projects, passive harmonic filters also provide reactive power. This means they can support power factor correction while reducing specific harmonic components.
However, this apparent advantage must be engineered carefully. Capacitors are sensitive to harmonic conditions. Installing conventional capacitor banks without suitable detuned reactors or harmonic analysis can create resonance, capacitor overheating, fuse operation, and shortened service life.
Passive harmonic filters are widely used because they offer several practical benefits:
- Lower initial cost for stable, predictable loads.
- Effective attenuation of known low-order harmonics.
- No active power-electronic switching stage is required.
- Can provide harmonic filtering and reactive power compensation together.
- Suitable for large, steady industrial loads.
- Reliable for applications with relatively stable system impedance and harmonic spectrum.
For a production line operating with consistent load patterns, a correctly designed passive harmonic filter can be a cost-effective solution.
Passive filters are not universal solutions. Their performance depends heavily on correct engineering assumptions.
Potential limitations include:
- They are designed for specific harmonic frequencies rather than a broad spectrum.
- Their effectiveness can decline when load conditions change significantly.
- System impedance changes can shift the filter's performance.
- Incorrect tuning can create or worsen resonance.
- Capacitor aging can gradually change tuning characteristics.
- They may not be ideal for rapidly changing load profiles.
- They require careful coordination with capacitor banks, transformers, generators, and utility-system conditions.
Passive filters are especially sensitive to source impedance and load composition changes. They can also attract harmonic currents from other parts of the electrical system if they are not properly designed and located.
An active harmonic filter (AHF) is a power-electronic device that measures electrical current in real time and injects compensating current into the network.
Instead of relying on fixed capacitor and reactor values, an active harmonic filter uses advanced digital control and power semiconductors to create a compensating current waveform. This injected current is equal in magnitude and opposite in phase to the unwanted harmonic current.
The result is a cleaner current waveform at the upstream electrical bus.
Active harmonic filters are also known as:
- Active power filters
- Active harmonic compensators
- Active harmonic correction systems
- Dynamic harmonic mitigation systems

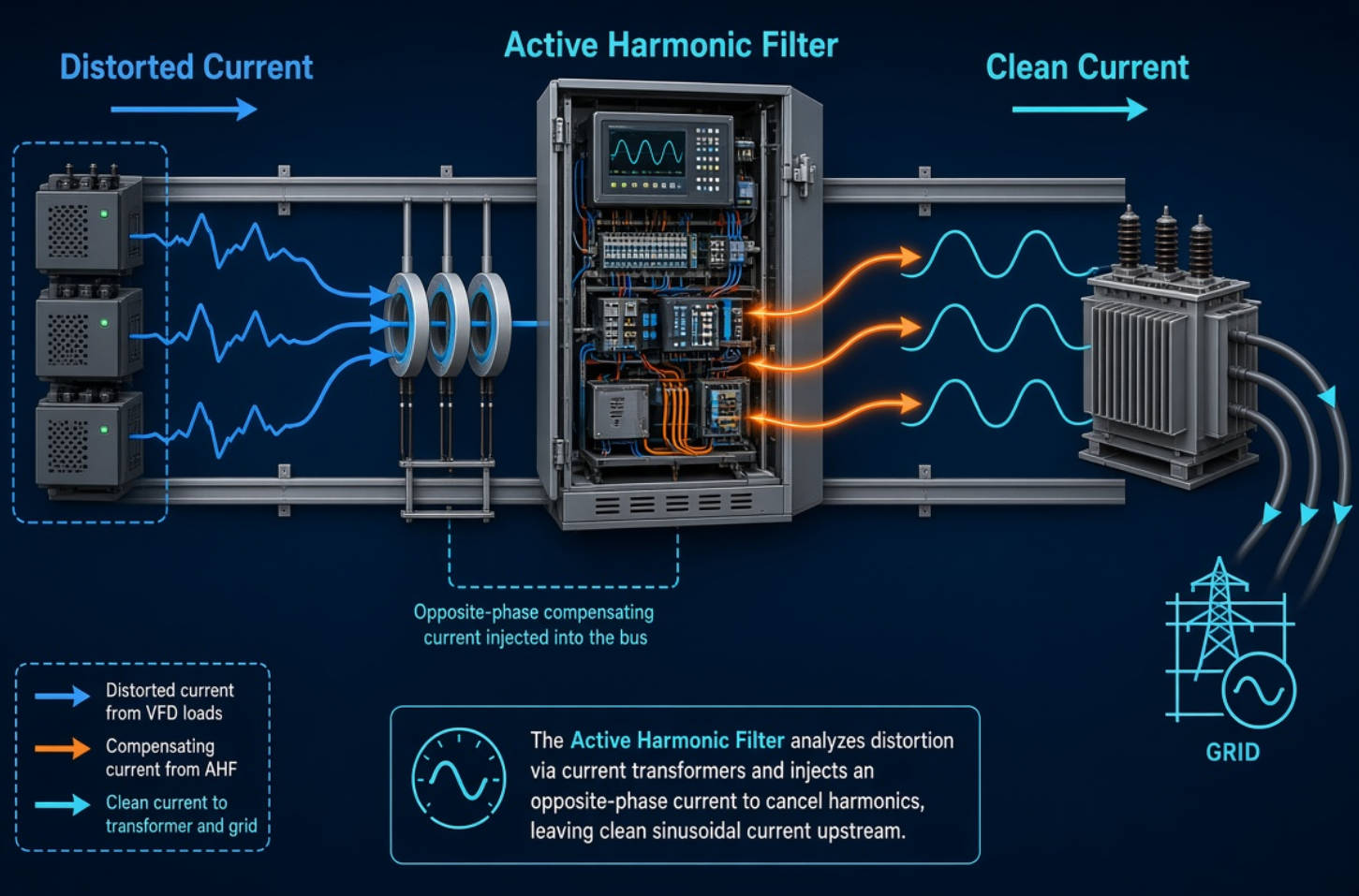

An active harmonic filter continuously monitors the load current through current transformers. Its controller analyzes the waveform and identifies harmonic content, reactive current, and phase imbalance.
The filter then calculates the compensation current required to reduce distortion. Its power-electronic inverter injects that current into the system in real time.
This dynamic process allows the AHF to respond to changing load conditions. Unlike a passive harmonic filter, an active filter can address multiple harmonic orders simultaneously rather than being tuned only to one or several fixed frequencies. Active filters typically use voltage-source inverter technology and pulse-width modulation to generate the compensating current.
Active harmonic filters are particularly valuable in facilities where the load changes often or where multiple nonlinear loads operate at different times.
Key advantages include:
- Broad-spectrum harmonic compensation across multiple harmonic orders.
- Dynamic response to changing loads and operating conditions.
- Harmonic mitigation, reactive power compensation, and phase balancing can be integrated in one system.
- Reduced risk of detuning compared with fixed passive filters.
- Suitable for facilities with mixed harmonic sources.
- Can be expanded modularly as electrical demand grows.
- Often easier to adapt when production lines, VFD quantities, or operating schedules change.
Active harmonic filters can compensate harmonic currents over a wide frequency range and adapt to changing load conditions.
An active harmonic filter also has important engineering limitations:
- Higher initial investment than a simple passive filter.
- Compensation capacity must be sized correctly in amperes.
- The filter cannot compensate more harmonic current than its rated capacity.
- Installation requires suitable current-transformer placement, wiring, protection, ventilation, and commissioning.
- Large, steady harmonic loads may require multiple modules or a hybrid solution to control project cost.
The correct question is not whether an AHF is "better" in every application. The correct question is whether its dynamic performance and multifunctional capabilities justify the investment for the actual load profile and power-quality target.
The following table provides a practical comparison for engineering and procurement teams.
| Comparison Factor | Active Harmonic Filter | Passive Harmonic Filter |
|---|---|---|
| Basic operating principle | Injects compensating current electronically | Uses capacitors, reactors, and resistors |
| Harmonic range | Broad and programmable | Targets selected harmonic frequencies |
| Response to load changes | Dynamic and real time | Limited; depends on fixed tuning |
| Reactive power compensation | Often available | Often available through capacitors |
| Three-phase balancing | Often available | Generally limited |
| Resonance risk | Lower when correctly engineered | Must be carefully evaluated |
| Best for | Variable, complex, mixed nonlinear loads | Stable loads with predictable harmonic spectrum |
| Initial investment | Usually higher | Usually lower |
| Maintenance focus | Electronics, cooling, monitoring, commissioning | Capacitors, reactors, connections, tuning condition |
| Expansion flexibility | Usually modular | May require redesign or additional branches |
A passive filter is often a strong choice when the facility has a stable load and a clearly identified dominant harmonic order. An active harmonic filter is usually more suitable when harmonic conditions change throughout the day, multiple production lines operate independently, or the facility needs simultaneous harmonic control, reactive power support, and phase balancing.
Selecting a harmonic filter should never begin with product capacity alone. A reliable solution starts with electrical measurement and system analysis.
The most meaningful measurements are usually taken at the PCC or at a defined point in the facility's electrical distribution system.
Measure:
- Voltage total harmonic distortion, or THDv
- Current total harmonic distortion, or THDi
- Individual harmonic orders
- Maximum demand current
- Power factor
- Reactive power demand
- Voltage unbalance
- Transformer loading
- Neutral current
- Daily and weekly load variation
IEEE 519 evaluates voltage and current distortion at the user PCC. Current-distortion targets depend on the electrical system's short-circuit strength and maximum demand load current, not on a single universal THDi figure.
Create a load inventory. Record the type, quantity, rating, operating schedule, and electrical connection of each nonlinear load.
For example:
| Equipment | Typical Harmonic Risk | Recommended Investigation |
|---|---|---|
| VFD-driven pumps | High | Measure 5th and 7th harmonic current, evaluate loading changes |
| UPS systems | Medium to high | Review rectifier topology and IT-load variation |
| Welding equipment | Variable | Measure peak operating periods and phase balance |
| Arc furnace | Very high | Conduct detailed harmonic and flicker analysis |
| Capacitor bank | High sensitivity | Check for resonance and reactor protection |
| EV chargers | Increasing | Measure simultaneous charging demand and harmonic spectrum |
A six-pulse VFD can produce substantial harmonic current. In some operating conditions, the current total harmonic distortion of an unmitigated six-pulse drive can exceed 60 percent.
The target may include more than harmonic reduction. A complete power-quality target may involve:
- Lower THDv at the PCC
- Lower current distortion
- Improved power factor
- Reduced transformer heating
- Reduced cable and neutral overheating
- Fewer capacitor-bank failures
- Better generator compatibility
- Improved performance of PLCs, sensors, relays, and automation equipment
- Compliance with customer, utility, or project specifications
Do not select a filter based only on "achieving THDi below 5 percent." Harmonic compliance is site-specific. The applicable target must reflect voltage level, PCC conditions, utility requirements, short-circuit ratio, demand current, and measurement methodology.
Use the following decision framework:
| Application Condition | Recommended Approach |
|---|---|
| Stable VFD or rectifier load with known harmonic spectrum | Passive harmonic filter |
| Rapidly changing nonlinear loads | Active harmonic filter |
| Need for harmonic mitigation plus dynamic reactive compensation | Active harmonic filter or SVG + AHF solution |
| Large base harmonic load with additional fluctuating loads | Hybrid harmonic filter |
| Existing capacitor-bank failures or resonance concerns | Engineering assessment before adding capacitors |
| Industrial plant with future capacity expansion | Modular active harmonic filter solution |
| Large continuous process load with strong economic pressure | Passive or hybrid solution after harmonic study |

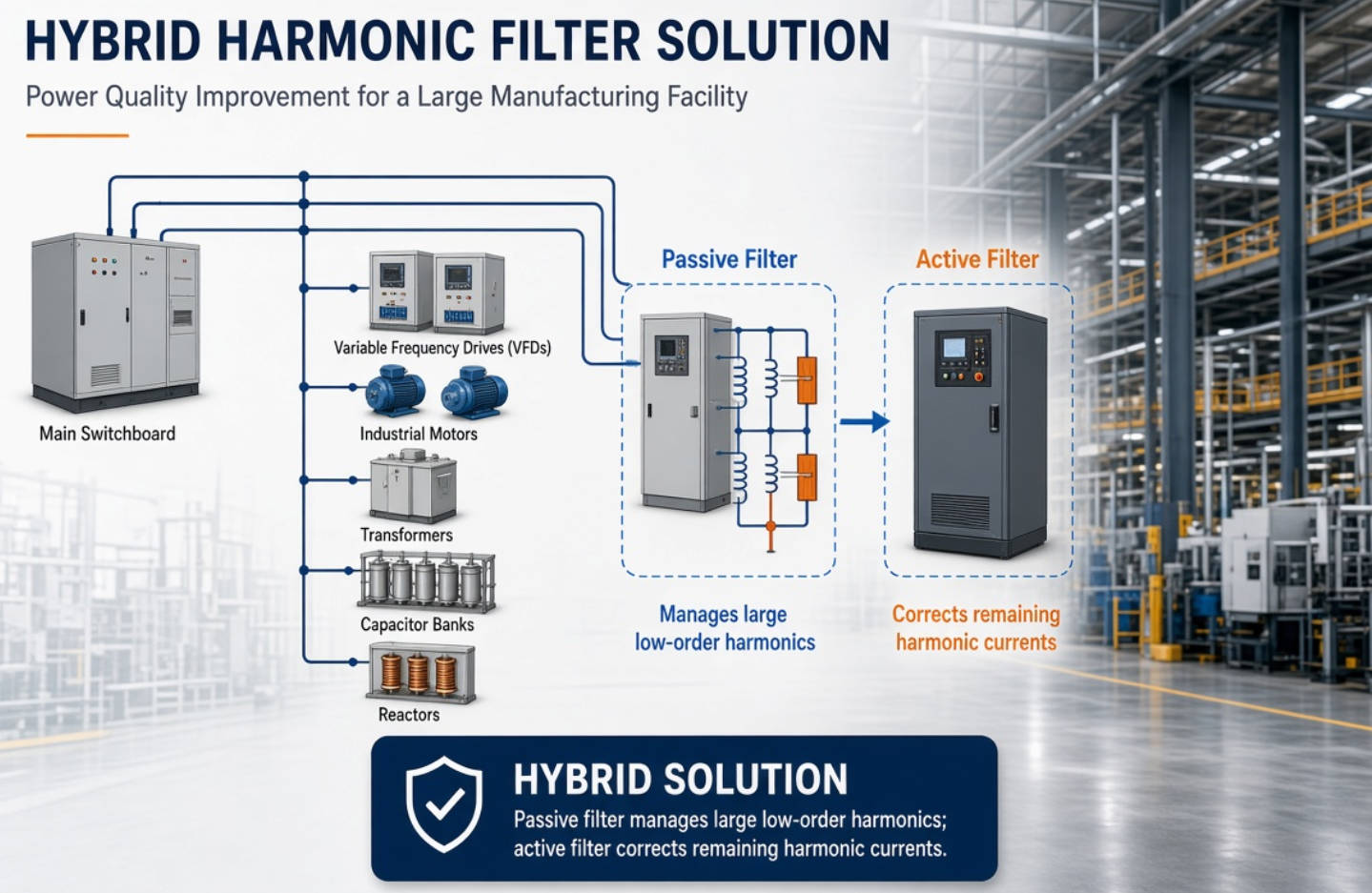

A hybrid harmonic filter combines passive and active filtering technologies.
In a typical hybrid design:
- The passive filter handles large, predictable, low-order harmonic currents.
- The active harmonic filter handles residual harmonics, higher-order components, changing load conditions, phase unbalance, and reactive-power fluctuations.
This approach can reduce the required active-filter capacity while retaining the flexibility of active compensation. It is often an effective option for high-power industrial facilities where a fully active solution would be unnecessarily expensive.
Hybrid filtering is particularly relevant in industries such as metallurgy, petrochemicals, automotive manufacturing, paper production, textiles, cement, building materials, municipal water treatment, and large commercial infrastructure projects.
A well-designed hybrid filter can use passive branches for bulk low-order harmonic mitigation while the active section corrects higher-order harmonics and compensates for system changes that could otherwise reduce passive-filter performance.
Many harmonic-filter projects underperform not because the product is defective, but because the system was not studied before selection.
Avoid these common mistakes:
1. Installing capacitor banks without checking resonance.
Capacitors can interact with transformer and system inductance. Detuned reactors or tuned filters may be necessary.
2. Sizing only from a single current reading.
Harmonic conditions can differ substantially between day shift, night shift, startup, peak production, and partial-load operation.
3. Measuring only THDi and ignoring THDv.
Voltage distortion affects the entire electrical system and can disrupt sensitive equipment.
4. Ignoring the PCC.
Compliance and utility impact must be evaluated at the correct electrical interface point.
5. Assuming every VFD has the same harmonic profile.
Drive loading, DC chokes, line reactors, pulse number, and network impedance all influence harmonic behavior.
6. Selecting an active harmonic filter with insufficient capacity.
An AHF must have adequate ampere capacity to compensate the required harmonic, reactive, and unbalance currents.
7. Failing to plan for future expansion.
New VFDs, chargers, automation lines, or UPS systems can increase harmonic loading after installation.
From an engineering perspective, harmonic mitigation should not be treated as a single-product purchase. It is a system-level power-quality design task.
A high-quality solution considers:
- Utility and transformer impedance
- Short-circuit capacity at the PCC
- Existing and future nonlinear loads
- Capacitor-bank configuration
- Generator operating conditions
- Cable lengths and distribution topology
- Harmonic spectrum under different production states
- Thermal loading of transformers, cables, switchgear, and neutral conductors
- Required power-factor and voltage-quality targets
For example, a textile factory may use dozens of VFDs for spinning, weaving, ventilation, pumping, and compressed-air systems. During partial production, the harmonic profile may differ greatly from full-load operation. A fixed passive filter designed only for peak conditions may not provide optimal performance during lower-load periods. In this situation, a modular active harmonic filter or hybrid solution may offer better long-term flexibility.
DINGNUO ELECTRIC CO., Ltd. supports customers with capacitor, reactor, reactive power compensation, and harmonic-control solutions designed for complex industrial and municipal power systems. The best result begins with reliable data: electrical measurements, load analysis, harmonic simulation where necessary, and a clear performance target.
Active harmonic filters and passive harmonic filters both play important roles in modern electrical systems.
Choose a passive harmonic filter when harmonic frequencies are known, load conditions are stable, and the project requires a cost-effective solution for dominant low-order harmonics.
Choose an active harmonic filter when the facility has dynamic nonlinear loads, complex harmonic patterns, phase imbalance, changing reactive-power demand, or a need for flexible expansion.
Choose a hybrid harmonic filter when the facility has a large and predictable base harmonic load but also requires dynamic correction for changing process conditions.
A professional harmonic study can prevent costly mistakes, protect electrical equipment, improve energy-system reliability, and support power-quality compliance.
Contact DINGNUO ELECTRIC CO., Ltd. for a power-quality assessment, harmonic measurement plan, and engineered solution covering active harmonic filters, passive harmonic filters, reactors, capacitor banks, reactive power compensation, and hybrid harmonic mitigation systems.
An active harmonic filter uses power electronics to measure harmonic current and inject an opposite compensating current in real time. A passive harmonic filter uses fixed capacitors, reactors, and resistors to absorb selected harmonic frequencies. Active filters are more adaptable, while passive filters are often more economical for stable loads.
Yes. Many active harmonic filters can compensate reactive current in addition to harmonic current. This allows the system to improve power factor dynamically, subject to the rated compensation capacity of the filter.
Yes. Passive filters must be engineered carefully because capacitors and system inductance can create resonance conditions. A harmonic study should examine transformer impedance, capacitor capacity, existing filter branches, and expected load changes before installation.
It depends on the quantity, size, loading pattern, and harmonic spectrum of the VFDs. For stable VFD loads with predictable harmonics, a passive filter may be suitable. For frequently changing VFD loads or mixed nonlinear equipment, an active harmonic filter or hybrid solution is often more appropriate.
A proper assessment should include THDv, THDi, individual harmonic orders, power factor, reactive power, maximum demand current, transformer loading, voltage unbalance, neutral current, and load variation over representative operating periods.
No. IEEE 519 establishes harmonic-control goals at the point of common coupling. The allowable current distortion depends on factors such as the system short-circuit current and the maximum demand load current. It should not be interpreted as a single identical THD limit for every VFD, panel, or load.
1. IEEE Standards Association. “IEEE 519-2022: IEEE Standard for Harmonic Control in Electric Power Systems.” Available at: [https://standards.ieee.org/ieee/519/10677/]
2. IEEE Technology Navigator. “Power Harmonic Filters.” Available at: [https://technav.ieee.org/topic/power-harmonic-filters/]
3. Siemens. “Harmonics in Power Systems: Whitepaper.” Available at: [https://assets.new.siemens.com/siemens/assets/api/uuid:8ab2a02e-ad94-41cb-a362-438f016aa704/drive-harmonics-in-power-systems-whitepaper.pdf]
4. Schneider Electric. “Harmonic Filtering: Electrical Installation Guide.” Available at: [https://www.electrical-installation.org/enwiki/Harmonic_filtering]
5. Electric Power Research Institute. “Technology Assessment and Application Guide for an Active Harmonic Filter.” Available at: [https://restservice.epri.com/publicdownload/000000000001016474/0/Product]
6. Eaton. “Understanding IEEE 519 Standard for Harmonics.” Available at: [https://videos.eaton.com/detail/video/6224251994001/19---ieee-519-standard-for-harmonics-%E2%80%93-what-do-i-need-to-know-and-where-do-i-start?autoStart=true&q=p%2012]
7. DINGNUO ELECTRIC CO., Ltd. “Active Harmonic Filter and Passive Harmonic Filter.” Available at: [https://www.ytelect.com/blog/active-harmonic-filter-and-passive-harmonic-filter_b128]
