A reactive power compensation controller and a power factor controller are often treated as the same device, but the terms can describe different control scopes in industrial power-quality projects. In many low-voltage capacitor-bank applications, a power factor controller is the device that measures power factor and switches capacitor steps. A reactive power compensation controller is the broader term: it may regulate capacitor banks, detuned reactor-capacitor banks, thyristor-switched systems, SVG equipment, or hybrid harmonic-control solutions.
For plant engineers, electrical contractors, and procurement teams, the correct choice depends on far more than a target power factor. You must assess load variation, harmonic distortion, switching speed, capacitor protection, transformer loading, utility billing rules, and the required level of automation. DINGNUO ELECTRIC CO., Ltd. provides capacitors, reactors, reactive power compensation equipment, harmonic-control products, and integrated power-quality solutions for industrial and municipal applications—including metallurgy, petrochemical processing, automotive production, paper, textile, and building-material facilities.
Before comparing the two controller types, it is important to separate three related concepts: real power, reactive power, and apparent power.
- Real power (kW) performs useful work, such as turning motors, running pumps, heating materials, or driving conveyor systems.
- Reactive power (kVAR) supports electromagnetic fields in inductive equipment such as motors, transformers, welding equipment, and inductive furnaces.
- Apparent power (kVA) is the total electrical capacity required by the load.
Power factor describes how effectively an electrical system converts supplied apparent power into useful real power:
Power Factor=kW/kVA
A lower power factor usually means the facility is drawing more current than necessary for the same useful output. That additional current can increase conductor losses, consume transformer capacity, raise voltage-drop risk, and create utility reactive-power or demand-related charges, depending on the local tariff structure. The U.S. Department of Energy notes that reactive power does not directly perform useful work, yet it circulates through the power system and adds demand to electrical infrastructure.
In a typical industrial site, the leading reactive current supplied by capacitors offsets the lagging reactive current demanded by motors and transformers. The objective is not simply to reach "100% power factor." The objective is to maintain a stable, economical, and electrically safe operating condition without overcompensation, excessive switching, resonance, or capacitor overload.
The key difference is usually one of scope and application complexity.
| Comparison Area | Reactive Power Compensation Controller | Power Factor Controller |
|---|---|---|
| Primary role | Manages reactive power compensation as part of a broader power-quality strategy | Measures power factor and controls capacitor-bank switching |
| Typical controlled equipment | Capacitor banks, detuned reactors, thyristor switches, SVGs, hybrid compensation systems | Contactor-switched capacitor steps or basic automatic capacitor banks |
| Main control target | Reactive-power balance, voltage support, power factor, load dynamics, and sometimes harmonic-aware operation | Target power factor, usually by connecting or disconnecting capacitor stages |
| Best-fit loads | Rapidly changing, heavily inductive, harmonic-rich, or technically demanding loads | Stable or moderately changing inductive loads with manageable harmonics |
| Harmonic strategy | May coordinate detuned reactors, filters, APF, SVG, or hybrid systems | Often limited unless paired with correctly designed detuned capacitor banks |
| Switching speed | Can range from conventional step switching to fast thyristor or power-electronic response | Usually based on mechanical contactors and stepwise switching |
| Engineering requirements | Requires detailed power-quality measurement and system design | Often simpler, but still requires correct CT placement, capacitor sizing, and programming |
| Typical industries | Steel, petrochemical, automotive, mining, paper, textile, cement, municipal infrastructure | Commercial buildings, general manufacturing, pump stations, workshops, and stable motor loads |
A power factor controller is therefore commonly one part of an automatic power factor correction system. A reactive power compensation controller may include power factor control but can be designed for a wider operating mission.

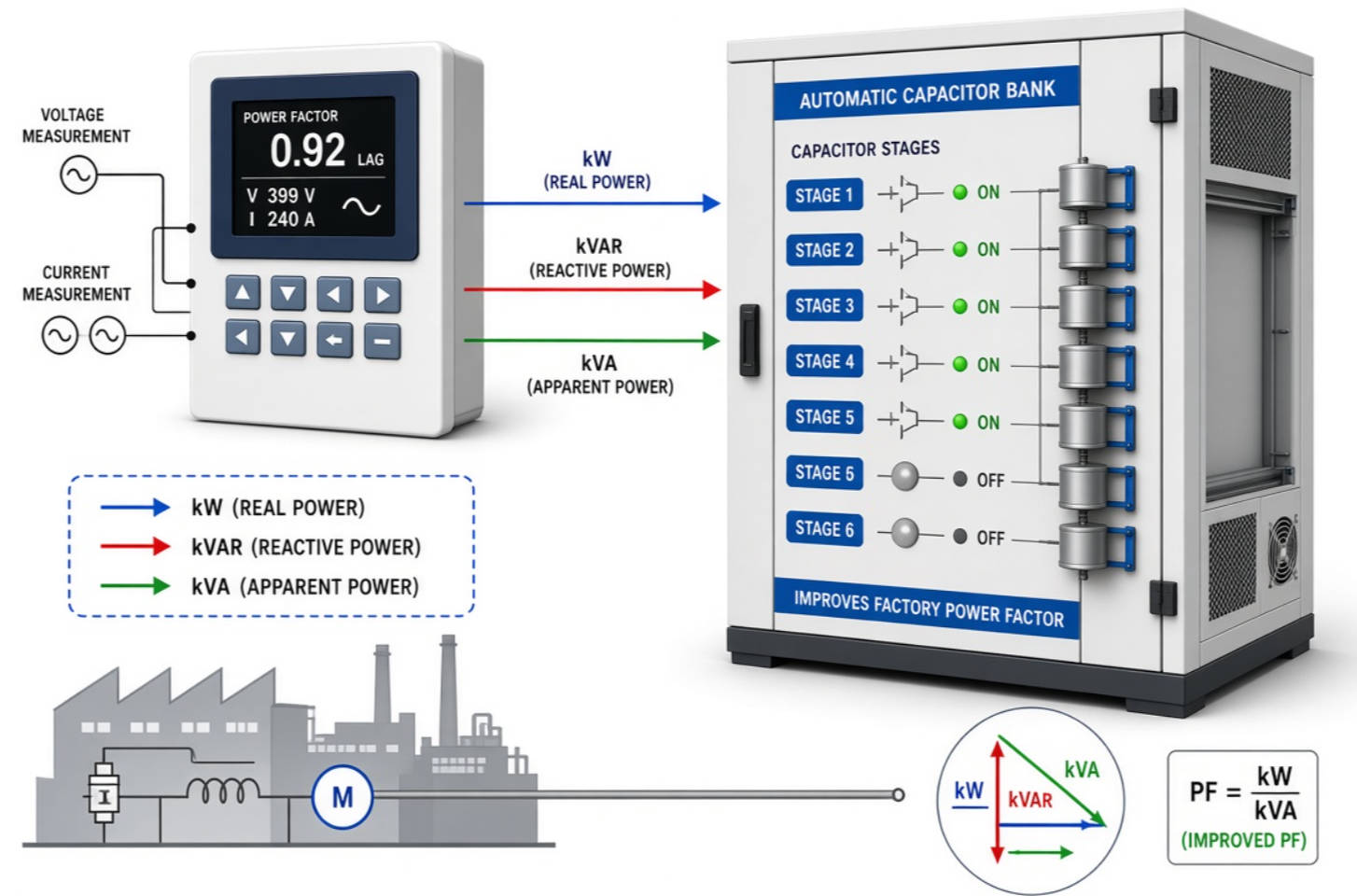

A power factor controller, also called an automatic power factor correction controller, PFC controller, or capacitor bank controller, continuously measures electrical conditions and decides when to connect or disconnect capacitor stages.
Its standard operating sequence is straightforward:
1. A current transformer measures line current.
2. The controller measures system voltage and calculates power factor.
3. The controller compares actual power factor with a programmed target.
4. If the system is too inductive, the controller switches in capacitor steps.
5. If the load decreases or becomes capacitive, it disconnects steps.
6. The controller observes programmed switching delays to protect capacitors and contactors.
For example, a factory with multiple induction motors may operate around 0.80 to 0.88 lagging power factor during production. A correctly sized automatic capacitor bank can raise the operating power factor toward the facility's selected target, often around 0.95 to 0.99 depending on utility requirements, site behavior, and harmonic conditions.
A conventional power factor controller is usually a practical choice when:
- The load profile is relatively stable or changes gradually.
- The site mainly has motors, pumps, fans, compressors, or transformers.
- Harmonic distortion is low or has already been evaluated.
- The required compensation can be divided into sensible capacitor steps.
- Mechanical contactor switching is fast enough for the production process.
- The project focuses primarily on reducing reactive-power charges or releasing electrical capacity.
For a conventional manufacturing workshop, this solution can be cost-effective and reliable. However, "simple" does not mean "install without engineering." Incorrect current-transformer direction, unsuitable capacitor-step ratios, poor switching delay settings, or no harmonic assessment can lead to hunting, overcompensation, contactor wear, and premature capacitor failure.

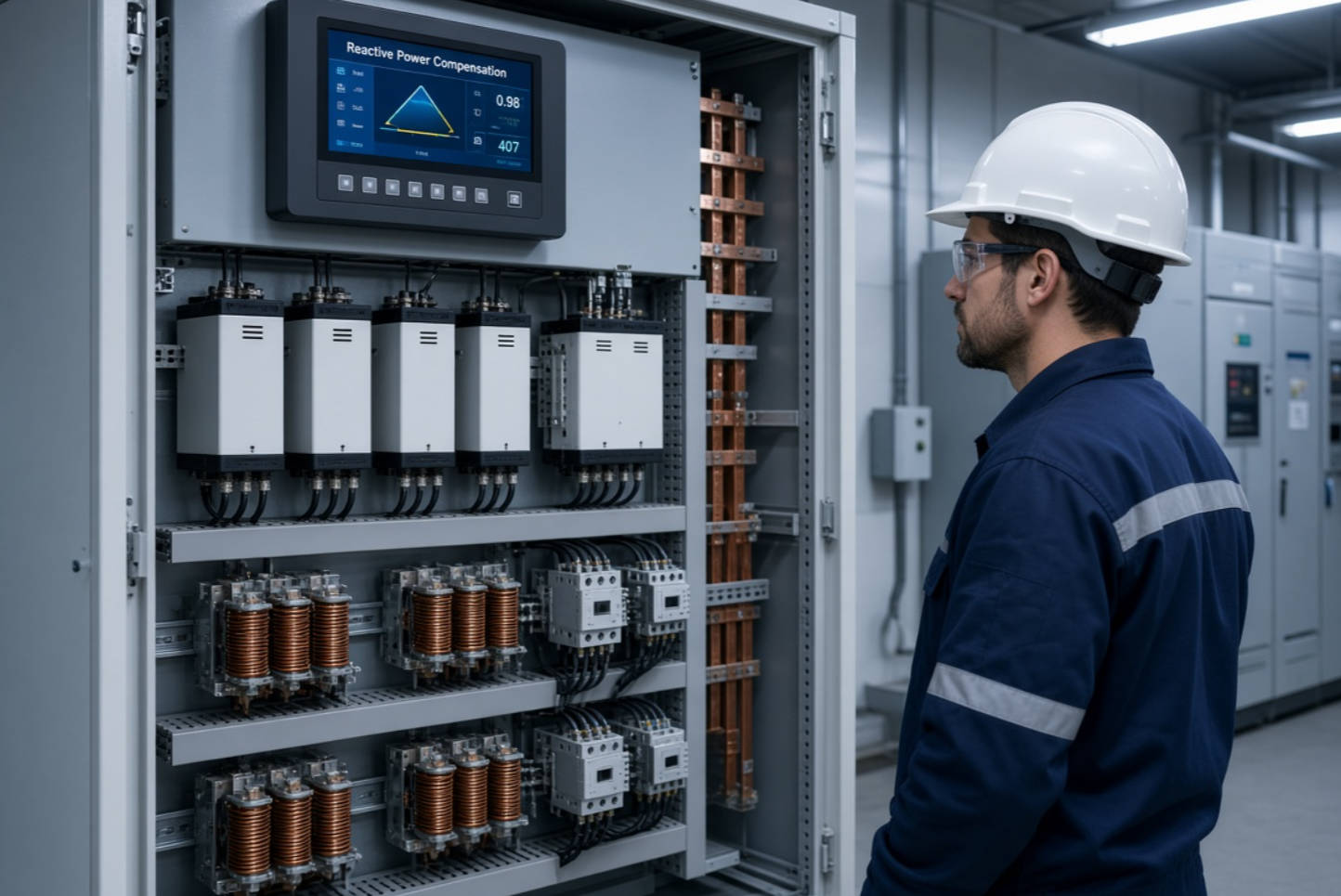

A reactive power compensation controller is a more comprehensive control concept. It may still use power factor as a key input, but it can be configured to manage reactive-power demand in more complex electrical environments.
This category can include controllers used with:
- Automatic capacitor banks
- Detuned reactor-capacitor banks
- Thyristor-switched capacitor banks
- Static VAR Generator (SVG) systems
- Static VAR Compensator (SVC) systems
- Active power filters (APF)
- Hybrid reactive-power and harmonic-filtering systems
The important distinction is that the controller can be designed around the entire power-quality problem—not merely a single power factor value.
In an industrial plant with arc welding, variable-frequency drives, rectifiers, rolling equipment, high-power presses, or rapid load changes, reactive-power demand can change too quickly for ordinary contactor-switched capacitors. Harmonics can also amplify capacitor current or create resonance between the capacitor bank and the upstream network impedance. In such cases, the compensation controller must work alongside properly selected reactors, filters, or power-electronic devices.
Electrical installation guidance emphasizes that reactors should be associated with capacitors in harmonic-affected systems to help avoid resonance, capacitor overloading, and excessive voltage distortion.
Consider a broader reactive power compensation solution when your site has one or more of the following conditions:
- Large and rapidly fluctuating motor loads.
- Electric arc furnaces, welding systems, crushers, rolling mills, or stamping machines.
- Multiple variable-frequency drives or soft starters.
- High harmonic current levels from rectifier-based equipment.
- Repeated capacitor failures, overheating, or nuisance tripping.
- Voltage fluctuation that affects production equipment.
- High reactive-power demand during peak operation.
- A need to combine capacitor compensation with harmonic mitigation.
- A requirement for faster response than conventional contactor switching can provide.
For example, a steel-processing line may experience abrupt changes in reactive demand as heavy motors accelerate, material loads change, or welding processes start and stop. A conventional capacitor bank may repeatedly switch stages, while a properly engineered dynamic or hybrid compensation system can respond more effectively and reduce stress on switching components.
Many procurement decisions fail because the buyer asks only one question: "How many kVAR do we need?"
That question matters, but it is incomplete. The better question is:
What type of reactive-power demand does the plant create, and what electrical conditions exist while that demand changes?
A facility with continuously operating pumps, fans, compressors, and lightly varying motors may be well served by a conventional automatic capacitor bank and power factor controller.
The controller selects capacitor stages based on demand. If the capacitor-step design matches the load pattern, the system can maintain a stable power factor with reasonable switching frequency.
A facility with fast load variation may require a thyristor-switched capacitor bank, SVG, or another dynamic reactive-power compensation solution.
Mechanical contactors have physical operating limits. They should not be expected to switch rapidly every few seconds under demanding conditions. Excessive operation may shorten component life and reduce compensation accuracy.
Variable-frequency drives, UPS systems, DC drives, rectifiers, induction heating systems, and other nonlinear loads can generate harmonics. In these environments, installing standard capacitors without studying harmonic conditions can be risky.

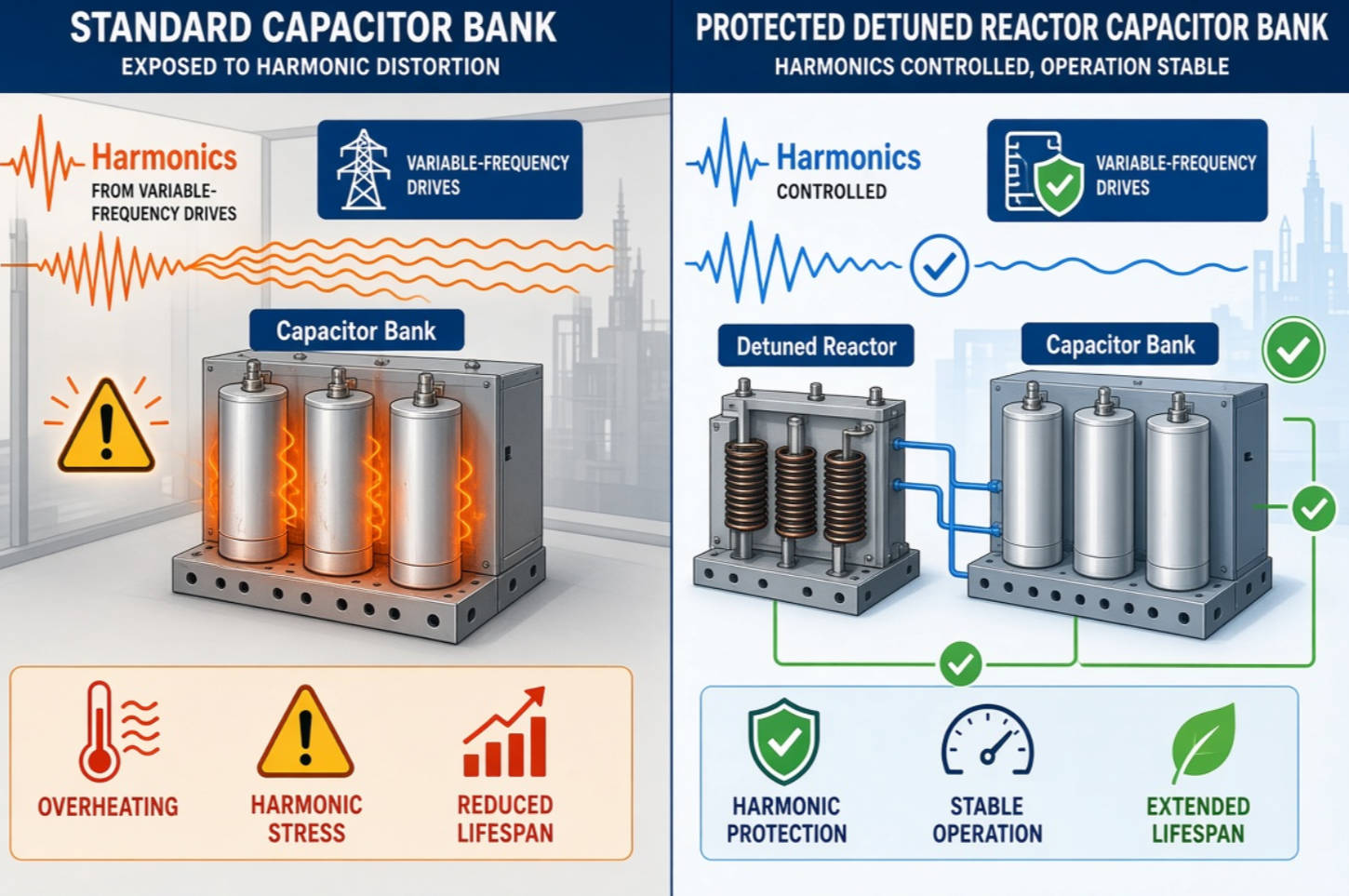

A detuned reactor in series with capacitor stages changes the system's resonant characteristics and protects the capacitor bank from harmonic amplification. Guidance for power-factor correction and harmonic filtering notes that automatic capacitor-bank control is typically advisable once compensation requirements rise beyond a fixed, low-level condition, while reactor-capacitor combinations are used to reduce resonance risks in harmonic environments.
Before choosing between a reactive power compensation controller and a power factor controller, gather real operating data. A short site survey is better than making a decision from nameplate capacity alone.
Use a qualified power-quality analyzer to record:
- kW, kVAR, kVA, and power factor.
- Maximum, minimum, and average demand.
- Daily and weekly load variation.
- Transformer loading.
- Voltage imbalance.
- Current imbalance.
- Harmonic voltage distortion and harmonic current distortion.
- Capacitor-bank operating history, if an existing bank is installed.
A single one-time reading is rarely enough. Production shifts, batch processes, and seasonal equipment operation can change the electrical profile significantly.
Document all major loads, especially:
- Induction motors.
- Transformers.
- Pumps and compressors.
- Variable-frequency drives.
- Welding machines.
- Rectifiers.
- UPS systems.
- Electric furnaces.
- HVAC equipment.
- Production lines with frequent starts and stops.
This step helps determine whether the project is mainly a power factor correction project or a broader power-quality project.
Do not automatically program the controller for unity power factor. A target that is too aggressive can cause leading power factor at light load, unnecessary switching, or utility compliance issues.
The appropriate target should consider:
- Local utility tariff and power factor requirements.
- Transformer and feeder characteristics.
- Daily load changes.
- Existing capacitive equipment.
- The selected compensation technology.
- Harmonic and resonance conditions.
Capacitor steps should reflect the size and speed of the load changes.
A plant with slow, predictable load changes may use larger stages. A plant with varying loads may need smaller stages and a more flexible switching sequence, such as 1:1:1:1 or mixed step ratios. Fast-changing loads may require thyristor switching or SVG-based compensation rather than frequent mechanical switching.
For harmonic-prone systems, confirm:
- Reactor tuning or detuning ratio.
- Capacitor voltage rating.
- Capacitor current capability.
- Reactor thermal rating.
- Contactor or thyristor suitability.
- Fuse or circuit-breaker coordination.
- Cabinet ventilation and ambient temperature.
- Harmonic filtering requirements.
IEC 60831-1 covers self-healing shunt power capacitors for AC systems up to 1,000 V, including applications for power factor correction and power filter circuits.
From an engineering perspective, a controller should not be selected as an isolated product. It is one component in a coordinated system that includes measuring devices, switching devices, capacitors, reactors, protection components, control settings, and the electrical network itself.
A high-quality controller cannot compensate for:
- Incorrect kVAR sizing.
- A wrongly installed current transformer.
- Capacitors exposed to uncontrolled harmonics.
- Undersized reactors.
- Poor cabinet cooling.
- Inadequate cable or busbar design.
- An unsuitable switching device for the load cycle.
- Missing power-quality measurements.
This is where a solution-oriented manufacturer adds value. DINGNUO ELECTRIC's product range includes reactive-power compensation, harmonic filtering, capacitors, reactors, active power filtering, and power-quality testing and analysis capabilities, allowing projects to be evaluated as complete systems rather than isolated components.
| Industry | Typical Electrical Challenge | Recommended Controller Direction |
|---|---|---|
| Metallurgy | Rapid load changes, arc equipment, high harmonics, heavy motors | Dynamic reactive power compensation, detuned reactors, SVG/APF or hybrid solutions |
| Petrochemical | Large motors, pumps, compressors, continuous operation | Automatic power factor controller with engineered capacitor and reactor design |
| Automotive | Robotic welding, VFDs, automated production lines | Harmonic-aware reactive power compensation with fast-response capability where needed |
| Paper and pulp | Large drives, pumps, process variation | Automatic capacitor bank or dynamic solution based on load measurements |
| Textile | Numerous motors, variable-speed drives, fluctuating production loads | Detuned capacitor bank or hybrid compensation after harmonic assessment |
| Cement and building materials | Crushers, mills, conveyors, high starting currents | Robust automatic compensation with reactors and equipment designed for industrial duty |
| Municipal projects | Pump stations, water treatment, infrastructure loads | Reliable automatic power factor correction with remote monitoring options |
No two facilities have identical electrical behavior. Even two sites in the same industry can require different compensation designs because of transformer size, cable length, production schedule, drive technology, and utility tariff structure.
The lowest-cost controller may not include the measurement accuracy, output stages, protection functions, communication capability, or harmonic-aware design required for your site.
This is one of the most serious risks. Capacitors can interact with system inductance and aggravate harmonic conditions. If variable-frequency drives or other nonlinear loads are present, perform a power-quality assessment first.
If each capacitor stage is too large, the controller may overshoot the target, disconnect a stage, and repeat the cycle. This "hunting" increases switching frequency and reduces component life.
A system may look correct during full production but become overcompensated at night, during maintenance periods, or when only a small number of motors are running.
In harmonic-rich facilities, reactive power correction and harmonic control should be planned together. The correct reactor, filter, APF, or hybrid solution depends on measured distortion and the operational consequences of poor power quality.
The choice between a reactive power compensation controller and a power factor controller should begin with your facility's electrical reality.
Choose a power factor controller when your goal is automatic capacitor-bank control for stable or moderately varying inductive loads. Choose a reactive power compensation controller when your project involves dynamic reactive demand, harmonic exposure, voltage-quality concerns, fast switching requirements, or a combined capacitor-reactor-filter solution.

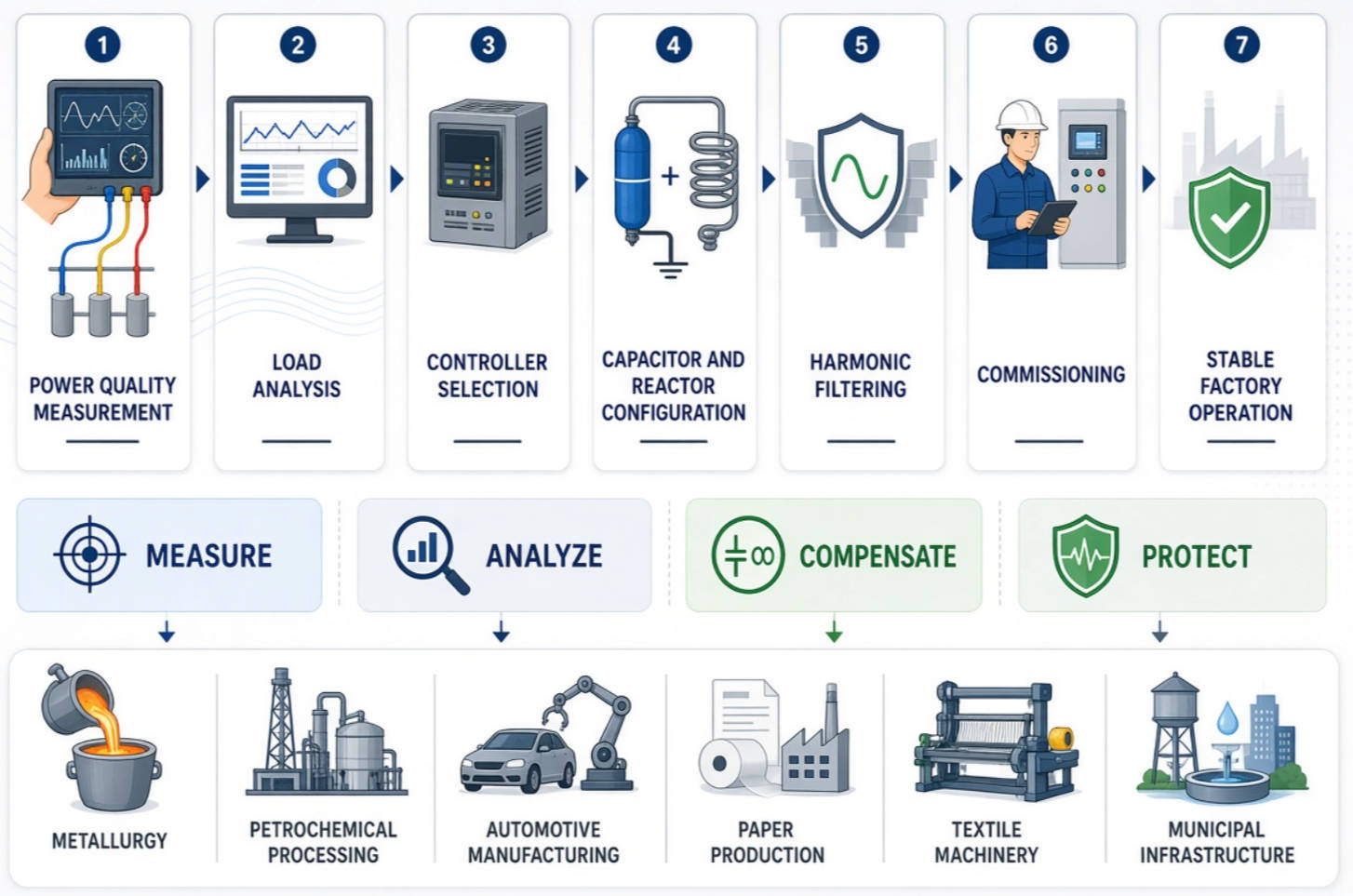

For complex industrial facilities, the best result comes from a complete engineering process: measure the system, analyze the load profile, identify harmonic risks, select compatible capacitors and reactors, configure the controller, and validate performance after commissioning.
DINGNUO ELECTRIC can help you evaluate your electrical system and develop a tailored reactive power compensation and harmonic-control solution for your plant, production line, or municipal project. Contact our technical team to discuss your load profile, power factor target, harmonic data, and compensation requirements.
Not always. A power factor controller usually focuses on measuring power factor and switching capacitor-bank stages. A reactive power compensation controller can describe a broader system controller that manages capacitors, reactors, dynamic compensation equipment, and sometimes harmonic-control devices.
Yes, provided the overall capacitor bank is correctly designed for detuned operation. The controller must be compatible with the switching arrangement, capacitor-step configuration, current-transformer installation, and programmed switching delays.
Possible causes include high harmonic current, resonance, excessive ambient temperature, unsuitable capacitor voltage rating, inadequate reactor selection, frequent switching, contactor problems, incorrect controller settings, or poor ventilation. A power-quality measurement should be performed before replacing components.
The best target depends on local utility rules, tariff structure, facility load behavior, and installed equipment. Many plants operate within a high but slightly lagging range rather than attempting permanent unity power factor. The target should be set after evaluating the site.
Often, yes. VFDs can create harmonics that affect capacitor banks. A harmonic study may show the need for detuned reactors, active harmonic filtering, or a hybrid power-quality solution rather than standard capacitors alone.
An SVG is often considered when reactive demand changes rapidly, when precise dynamic compensation is needed, when voltage stabilization is important, or when conventional capacitor switching cannot respond quickly enough. The decision should be based on measured load data and project economics.
It can reduce reactive-power penalties or demand-related costs where utility tariffs apply them. It may also release transformer and cable capacity and reduce losses caused by unnecessary reactive current. Actual savings depend on the facility's tariff, load profile, and system condition.
