Modern data centers depend on clean, stable electrical power. As UPS systems, high-density server racks, VFD-driven cooling equipment, EC fans, and AI workloads expand, harmonic distortion can become a serious power-quality risk. Choosing between a passive harmonic filter and an active harmonic filter therefore affects compliance, reliability, scalability, and total lifecycle cost.
From our power-quality engineering perspective, there is no universal "best" harmonic filter for every data center. Passive harmonic filters are highly effective for stable, predictable harmonic conditions. Active harmonic filters are usually the stronger choice for dynamic, mixed, expanding, or AI-oriented data center loads. The correct solution starts with measurement—not product selection.
Harmonics are unwanted frequency components that distort the ideal sinusoidal current or voltage waveform. They are typically created by nonlinear loads—equipment that draws current in pulses rather than smoothly.
In a data center, common harmonic sources include:
- UPS rectifiers and inverters
- Server switch-mode power supplies
- Variable frequency drives for chillers, pumps, and cooling towers
- EC fans and electronically controlled HVAC equipment
- Battery charging systems
- High-density AI and GPU computing clusters
- Renewable-energy interfaces and power-electronic converters
Excessive harmonic distortion can increase electrical losses and create heat in transformers, cables, switchgear, capacitors, and motors. It may also contribute to nuisance breaker trips, reduced equipment life, unstable power-factor correction, and difficulty meeting utility or project power-quality requirements.
For large facilities, harmonics are not only an internal reliability issue. They can become a grid-interconnection and community-relations concern when distortion is exported toward the point of common coupling (PCC).
AI computing does not automatically create more harmonics than every other IT workload. However, AI clusters can produce rapid and substantial changes in power demand. Those changes place additional stress on electrical distribution capacity, UPS systems, cooling infrastructure, and harmonic-control strategies.
A passive solution designed for a fixed harmonic profile may become less suitable if a facility changes its server mix, expands cooling capacity, adds VFDs, or moves from conventional enterprise racks to high-density GPU clusters.
Key principle: Harmonic-filter selection should consider both today's measured operating condition and the facility's likely load profile over the next three to five years.

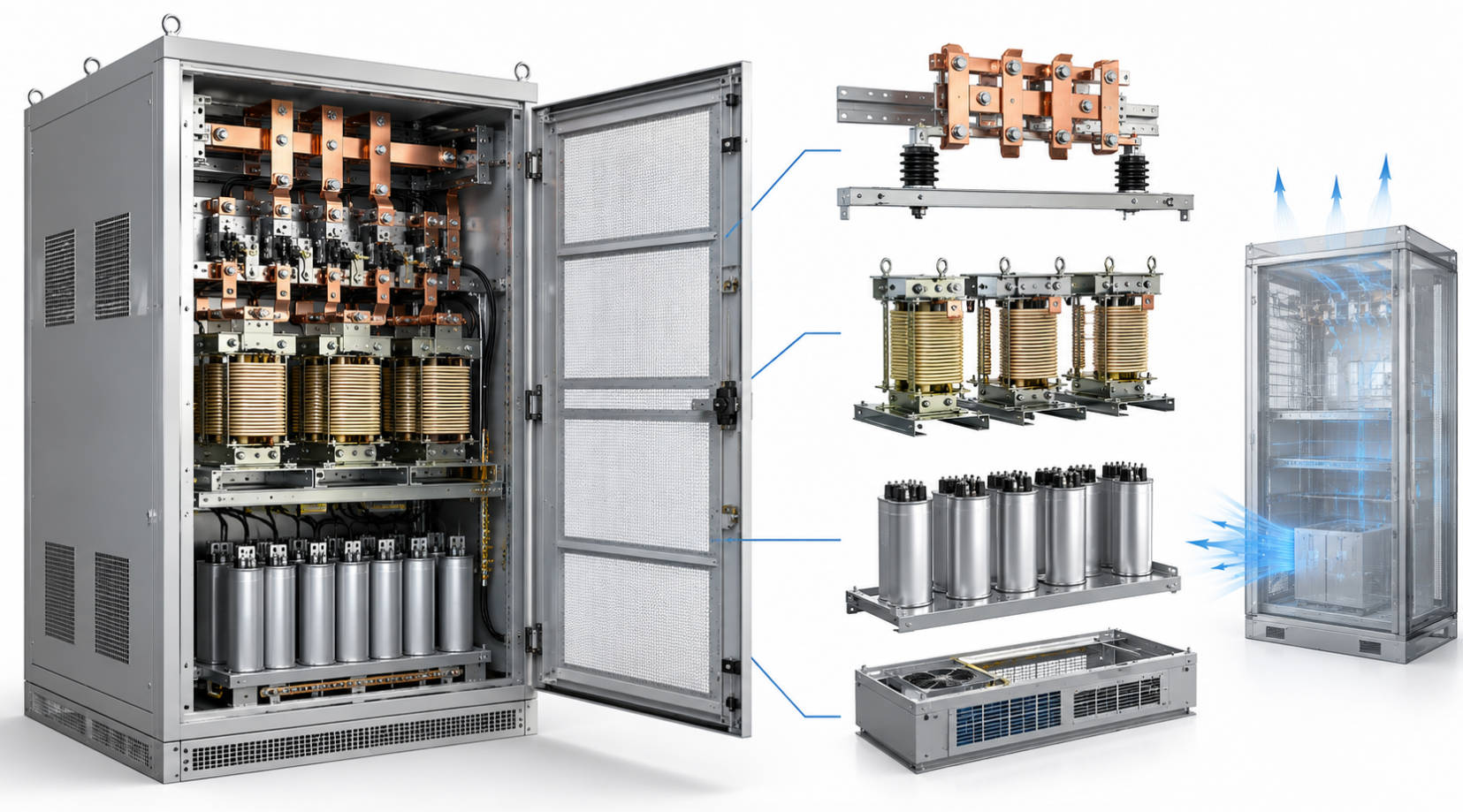

A passive harmonic filter uses passive electrical components, usually capacitors, reactors, and sometimes resistors. These components form an LC circuit tuned to absorb or divert targeted harmonic frequencies.
For example, a passive filter may be designed to address the 5th, 7th, 11th, or 13th harmonic order. At the selected frequency, the filter provides a low-impedance path, reducing the harmonic current flowing through the upstream electrical system.
Passive harmonic filters remain a practical option in the right data center application.
- Lower initial investment: Passive systems often cost less than active harmonic filtering at comparable high current ratings.
- Simple construction: They do not rely on complex power-electronic control systems.
- High capacity capability: They can be engineered for large, steady loads.
- Low maintenance requirements: Regular inspection of capacitors, reactors, connections, and thermal condition is normally sufficient.
- Reactive-power support: Depending on the design, a passive filter can also provide capacitor-based power-factor correction.
- Rugged performance: They can work well in harsh industrial electrical environments.
A passive harmonic filter is not automatically a low-risk solution. Its performance depends heavily on correct engineering.
- Fixed tuning: It targets selected frequencies and cannot dynamically compensate for a changing harmonic spectrum.
- Resonance risk: Interaction between filter capacitors and the upstream system impedance can amplify harmonics if the design is not properly studied.
- Load sensitivity: Performance can decline when the actual load differs substantially from the design load.
- Potential overcompensation: Capacitive reactive power may create a leading power factor under light-load conditions.
- Space requirements: Large reactor-capacitor assemblies can require considerable panel or electrical-room space.
- Expansion constraints: A major data center expansion may require redesigning or adding passive filter stages.
A passive harmonic filter can be an excellent choice when the following conditions are true:
- The major nonlinear load is known and stable.
- The dominant harmonic orders have been measured clearly.
- The facility has predictable operating patterns.
- Harmonic mitigation is required at a specific high-power source.
- The electrical network has been evaluated for resonance.
- Capital cost is a primary decision factor.
- Future load growth is limited or well defined.
A practical example is a dedicated mechanical plant with a stable group of VFD-driven pumps operating near consistent loading. In this situation, a properly tuned passive filter can deliver efficient and cost-effective harmonic reduction.

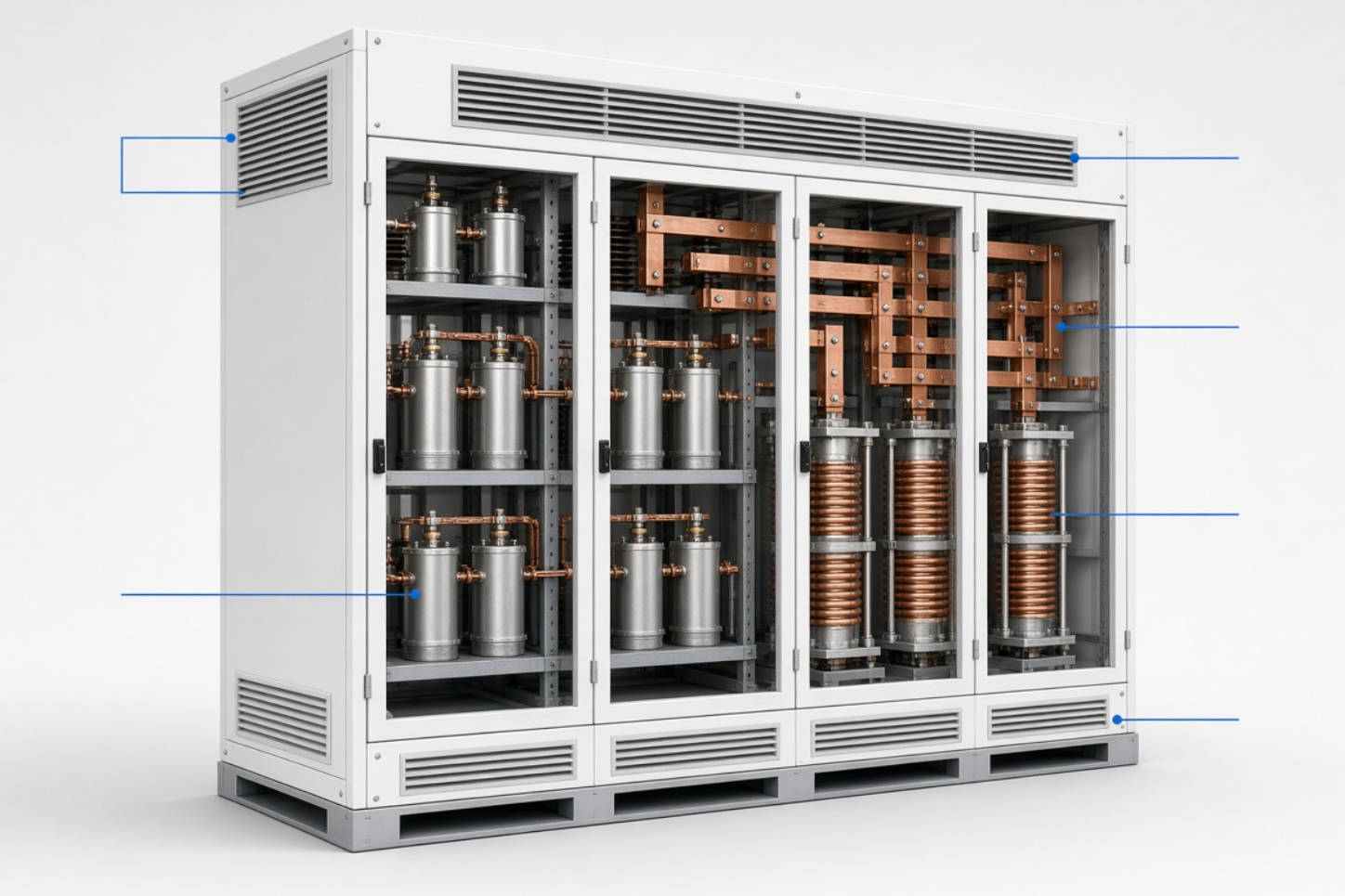

An active harmonic filter (AHF) is a power-electronic device that continuously measures load current, identifies harmonic components, and injects compensating current in the opposite phase. This cancels a portion of the unwanted harmonic current in real time.
Unlike a passive filter, an active harmonic filter is not tuned to only one or two fixed harmonic orders. It can typically compensate across a broad harmonic spectrum and adjust as electrical conditions change.
For many modern data centers, an AHF offers stronger operational flexibility.
- Dynamic harmonic compensation: The system responds as server loads, UPS operating modes, and cooling equipment change.
- Broadband filtering: One unit can address multiple harmonic orders rather than only a fixed tuned frequency.
- Modular scalability: Additional modules can be installed as facility load grows.
- Reduced resonance concern: Active filters do not use tuned capacitor-reactor branches in the same way as passive systems.
- Power-factor correction: Many AHFs can compensate reactive power while mitigating harmonics.
- Load balancing support: Certain models can also help reduce phase imbalance.
- Centralized mitigation: One AHF installation may serve multiple nonlinear loads at a distribution-board level.
Active technology also requires a realistic engineering and commercial assessment.
- Higher upfront cost: The initial equipment investment is usually higher.
- Thermal management needs: Power-electronic equipment requires suitable ventilation and ambient-temperature control.
- Capacity sizing matters: The AHF must be sized for harmonic current, not simply total load current.
- Electronic maintenance: Periodic checks, firmware management, fan inspection, and monitoring are required.
- Not a substitute for system design: An AHF cannot correct undersized transformers, overloaded cables, poor grounding, or a flawed UPS architecture.
An active harmonic filter is commonly the better option when a data center has:
- Multiple nonlinear sources across several distribution boards.
- Rapidly changing IT or AI load profiles.
- VFD-driven cooling systems with variable operating conditions.
- Frequent tenant changes in a colocation facility.
- Space constraints requiring compact, modular equipment.
- A need for harmonic mitigation plus power-factor correction.
- Expansion plans with uncertain future load composition.
- Strict performance requirements at the PCC.
For example, consider a growing colocation data center adding GPU racks and new VFD-controlled cooling capacity in phases. The harmonic signature may change every time a new hall is energized. An AHF can adapt without retuning each time the electrical profile shifts.
| Selection Factor | Passive Harmonic Filter | Active Harmonic Filter |
|---|---|---|
| Operating principle | Uses tuned capacitor-reactor circuits | Injects real-time compensating current |
| Harmonic coverage | Specific targeted harmonic orders | Broad range of changing harmonic orders |
| Best load condition | Stable and predictable | Variable, mixed, or rapidly changing |
| Response to load changes | Fixed; no dynamic tracking | Continuous and adaptive |
| Initial cost | Usually lower | Usually higher |
| Lifecycle flexibility | Limited after installation | High; modules can often be added |
| Resonance consideration | Must be analyzed carefully | Generally lower concern from tuned branches |
| Power-factor correction | Design-dependent and fixed | Often dynamic and adjustable |
| Installation space | May be larger at high ratings | Often compact and modular |
| Maintenance profile | Simple inspection-focused maintenance | Electronics, cooling, diagnostics, and software checks |
| Suitable data center use | Stable mechanical or dedicated load | Mixed IT, UPS, VFD, colocation, and AI environments |
The decision is not simply "passive is old" and "active is advanced." Both technologies are proven. The real question is whether the harmonic environment is stable enough to engineer around fixed frequencies.
Choose a passive harmonic filter when the harmonic spectrum is understood, the electrical system is stable, and a detailed resonance study confirms safe operation.
Choose an active harmonic filter when load behavior is uncertain, changing, distributed, or expected to grow. This is increasingly common in modern data center electrical systems.
The strongest projects begin with power-quality analysis rather than a generic equipment quotation. At DINGNUO ELECTRIC, we recommend a structured assessment that connects measurement results with the site's operational goals.
Install a power-quality analyzer at relevant points, such as:
- Main incomer
- PCC or utility interface
- Transformer secondary side
- UPS input and output
- Mechanical distribution board
- VFD feeder group
- High-density IT distribution section
Measure THDi, THDv, individual harmonic orders, power factor, load current, voltage unbalance, demand profile, and operating mode. Record data across representative operating conditions, including peak IT load, low-load periods, cooling transitions, and generator or UPS operating modes where possible.
Do not assume that the server room is the only source. In many facilities, mechanical loads outside the UPS path—especially VFD-driven cooling infrastructure—deserve equal attention.
Map harmonic sources by electrical zone. This helps determine whether targeted passive filtering, centralized active filtering, or a hybrid design is most economical.
For passive-filter projects, carry out a detailed harmonic study. The assessment should include transformer impedance, capacitor banks, cable characteristics, short-circuit level, generator operating condition, and expected future expansion.
Never install a tuned passive filter solely based on the assumption that the 5th harmonic is dominant. Site-specific electrical conditions determine whether the filter will perform safely.
For AHFs, size the system according to the measured harmonic current and the required mitigation target. Also reserve capacity for future IT racks, cooling equipment, tenant expansion, or AI deployments.
For passive filters, verify that the selected tuning and reactive-power output remain suitable across the full operating range.
Commissioning should include repeat measurement, not just visual inspection.
Confirm:
- THDi and THDv performance at the selected measurement point
- Individual harmonic-order reduction
- Power factor under light and heavy loads
- Temperature rise in transformers, cables, and filter equipment
- No unexpected resonance or capacitor overload
- A baseline report for future maintenance comparison

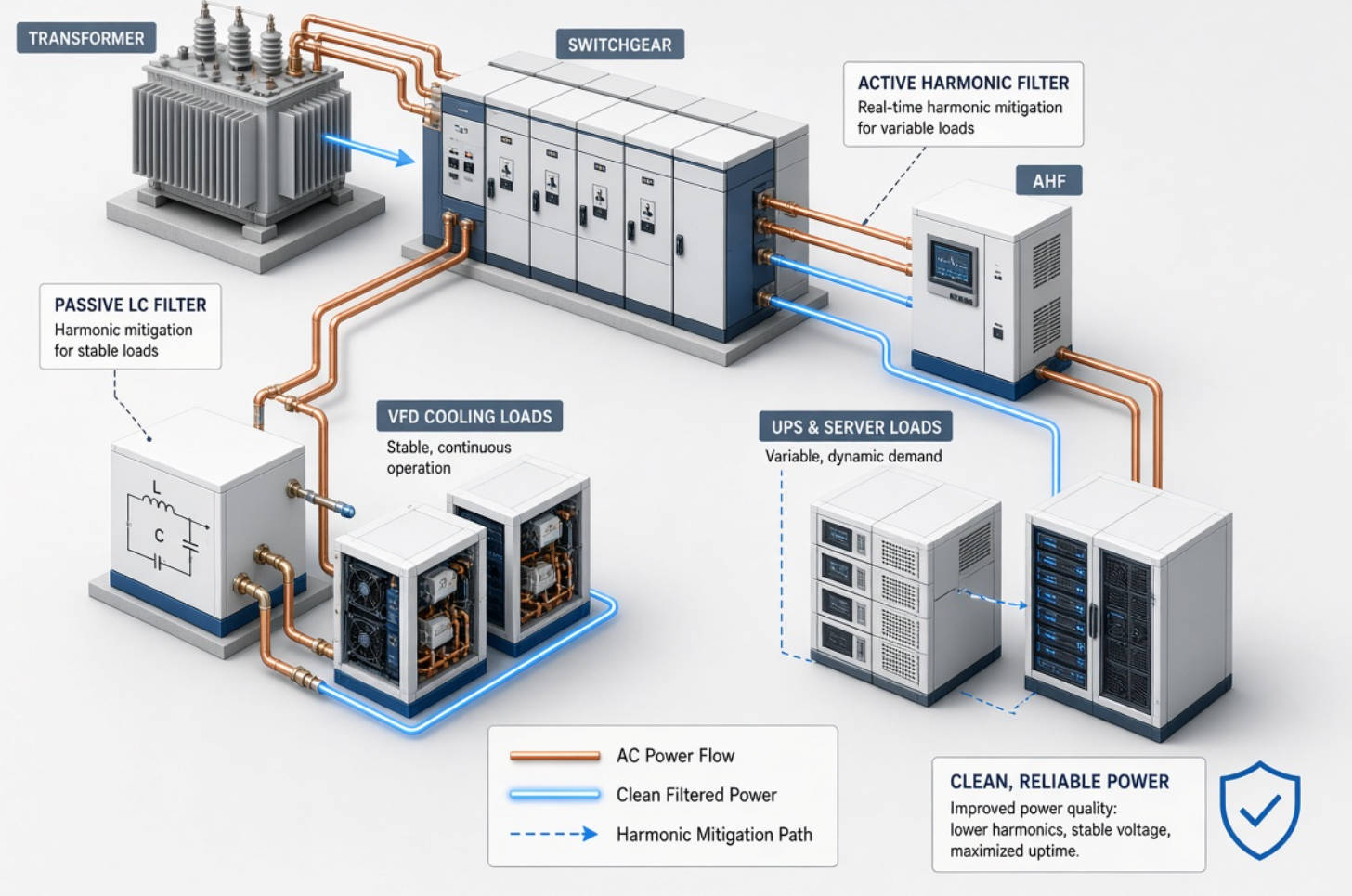

In large or complex data centers, the best answer may be neither fully passive nor fully active. A hybrid harmonic filter strategy combines passive and active technologies.
A passive filter can handle predictable, high-current harmonic components economically. An AHF can then manage residual distortion, changing harmonic orders, reactive power, and phase imbalance.
This approach can be particularly effective when:
- A facility has large, stable VFD loads plus variable IT loads.
- A passive system already exists but cannot keep up with expansion.
- The project requires lower capital cost than a fully active solution.
- The site needs both high-capacity mitigation and dynamic fine control.
Expert insight: Treat harmonic filtering as part of the data center's power architecture, not as an emergency add-on. The earlier it is modeled into transformer selection, UPS configuration, VFD design, capacitor-bank strategy, and monitoring architecture, the more reliable and cost-effective the final solution will be.
For a stable, well-understood electrical load, a passive harmonic filter can provide robust, economical harmonic mitigation. For a dynamic data center with expanding UPS capacity, variable-speed cooling, changing tenant demand, or AI workloads, an active harmonic filter normally offers more adaptable protection.
DINGNUO ELECTRIC provides capacitor, reactor, harmonic-filter, reactive-power-compensation, and power-quality solution support for industrial and critical-power applications. Contact our engineering team for a power-quality assessment, harmonic measurement review, and customized passive, active, or hybrid filter recommendation for your data center project.
A passive harmonic filter uses fixed capacitor-reactor circuits tuned to selected frequencies. An active harmonic filter measures harmonic current continuously and injects compensating current dynamically across a broader harmonic range.
An active harmonic filter is generally better for data centers with changing loads, UPS systems, VFD cooling equipment, mixed tenants, or AI expansion. A passive filter can be more economical for stable, predictable, high-power loads with known harmonic orders.
Yes. Passive filters often include capacitors that provide reactive power. However, the amount of compensation is relatively fixed, so the design must avoid excessive leading power factor during light-load operation.
Yes. Although AHFs are highly automated, they require periodic inspection of cooling fans, ventilation paths, terminals, alarms, operating temperature, and monitoring or firmware functions.
Yes. A hybrid solution can combine the high-capacity and economical benefits of passive filtering with the dynamic response of active harmonic filtering. It is often suitable for large or expanding data center projects.
No. THD is important, but selection should also consider individual harmonic orders, load variation, transformer impedance, short-circuit capacity, power factor, future expansion, electrical topology, and the measurement location.
