A variable frequency drive can make a production line easier to control while quietly adding harmonics to the electrical power system. The result may be overheated transformers, stressed capacitor banks, nuisance trips, or distorted voltage at sensitive equipment. An active harmonic filter (AHF) can reduce harmonic current, but it is not the answer to every power-quality complaint. The right approach starts with measurement, identifies the source, and considers harmonic mitigation alongside reactive power compensation.
For engineers in metallurgy, petrochemicals, automotive manufacturing, papermaking, textiles, building materials, and municipal infrastructure, that distinction matters. A plant with one troublesome drive may need a source-level change. Another with dozens of cycling loads may benefit from a centrally installed AHF. Here is how to tell the difference.
The utility supplies power at a fundamental frequency, commonly 50 or 60 Hz. A harmonic is a component at an integer multiple of that frequency. On a 50 Hz system, the fifth harmonic is 250 Hz; on a 60 Hz system, it is 300 Hz. Nonlinear loads draw current in pulses rather than as a smooth sine wave. Those pulses contain harmonic components that flow through the network's impedance and can distort its voltage.
Typical sources include six-pulse variable frequency drives (VFDs), rectifiers, uninterruptible power supplies (UPS), welding equipment, and other power-electronic converters. Different equipment and operating states produce different spectra. A frequently encountered six-pulse drive pattern includes fifth and seventh harmonics, but an actual installation must be measured rather than diagnosed from a generic list.
Harmonic current and harmonic voltage are not interchangeable. A load may draw highly distorted current while the voltage remains comparatively clean on a strong supply. Change the source impedance, transformer configuration, capacitor bank, or number of operating drives, and voltage distortion may change too.
Watch for recurring patterns, not one isolated alarm:
- Higher RMS current and additional heating in transformers, conductors, and switchgear.
- Capacitor-bank overheating or premature failure when network resonance amplifies harmonic current.
- Unwanted protective-device operation or control-system problems that track load changes.
- Extra losses and reduced usable capacity in affected parts of the distribution system.
These symptoms are clues, not proof. Loose connections, overloads, voltage sags, and other faults can look similar. A safe investigation checks those possibilities before attributing every failure to harmonics. Harmonics also do not automatically mean lower utility-billed power factor or a predictable increase in energy cost; billing rules and the mix of displacement and distortion matter.
Three related metrics answer different questions. Voltage THD (THDv) expresses the combined harmonic voltage relative to the fundamental voltage. Current THD (THDi) does the same for current relative to the fundamental current at that moment. Total demand distortion (TDD) compares combined harmonic current with a defined maximum demand load current. THDi can appear high at light load simply because its fundamental-current denominator is small; a single THDi snapshot cannot establish facility-wide compliance.
For a simplified current calculation, THDi equals the square root of the sum of squared harmonic currents, divided by the fundamental current, multiplied by 100%. TDD uses the same harmonic-current numerator but a demand-current reference instead. For formal assessments, use the applicable standard's definitions, measurement method, and agreed demand reference.
IEEE 519-2022 addresses steady-state voltage and current distortion at the user's point of common coupling (PCC) for facilities with harmonic-producing loads. It does not impose one universal THDi threshold on every drive or downstream panel. Current limits depend on factors including the available short-circuit current relative to maximum demand load current at the PCC. Establish the actual PCC with the utility or project engineer; a convenient switchboard measurement point is not necessarily the contractual interface.

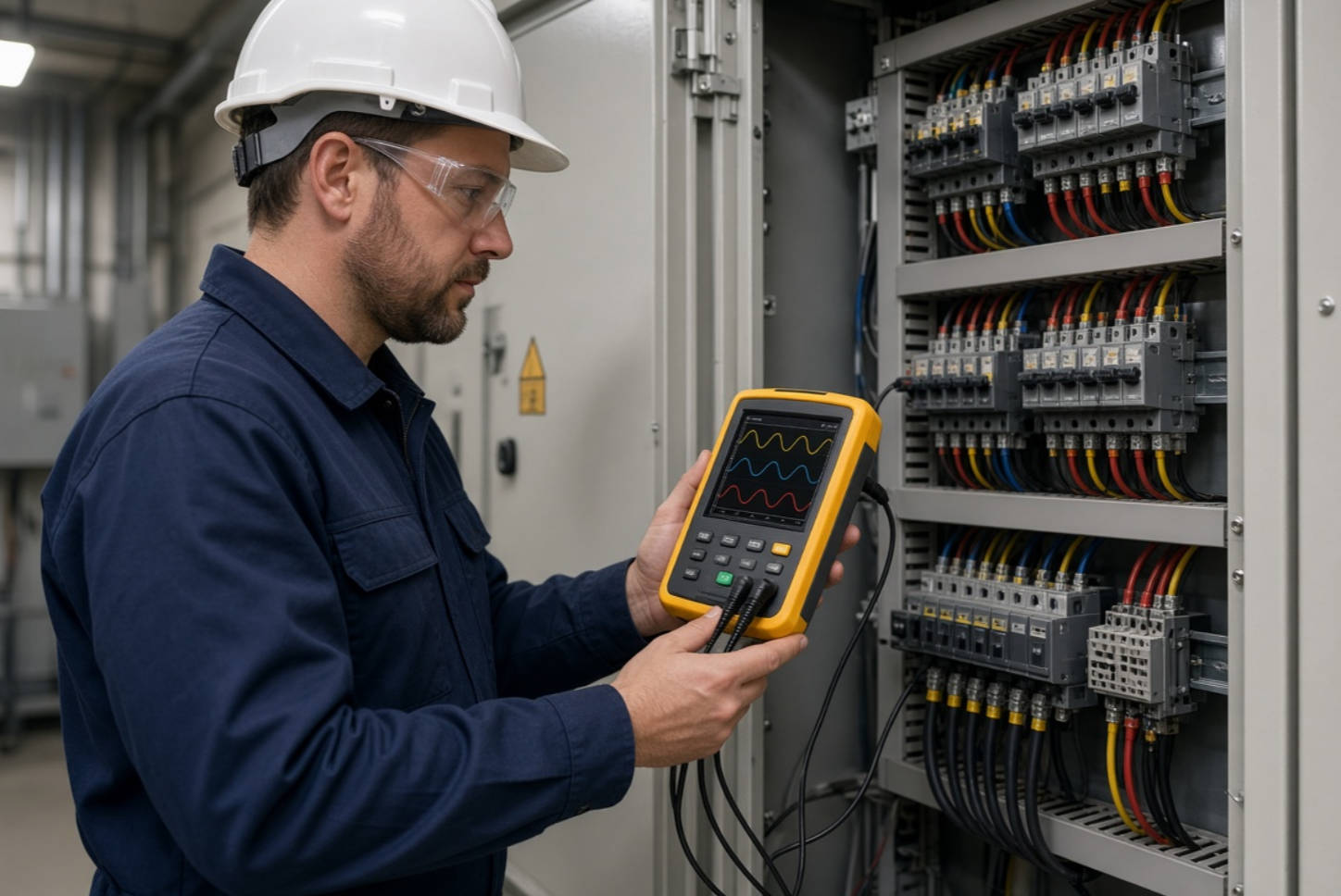

Inside the plant, measure at main buses and suspected feeders to locate sources and protect sensitive equipment. At the PCC, assess system-level objectives. Record individual harmonic orders, THDv, THDi, TDD where required, true-RMS current, kW, kvar, power factor, capacitor-step status, and load conditions. Compare like-for-like operating periods rather than quoting the highest number without context.
The best device depends on where distortion originates, how loads vary, whether power-factor correction is needed, and how capacitors interact with the supply. The following table is a selection guide, not a substitute for an engineered design.
| Option | Primary role | Strong fit | Main caution |
|---|---|---|---|
| Input line reactor or DC choke | Adds impedance at a drive input | Simple, source-level improvement | Cannot be assumed to solve fifth- and seventh-order problems or PCC compliance |
| Tuned passive filter | Targets selected harmonic frequencies | Predictable, relatively stable spectrum | Requires impedance and resonance study; system changes affect performance |
| Detuned capacitor bank | Supplies reactive power while limiting capacitor-related resonance | Power-factor correction in a harmonic-rich network | Is not a universal harmonic-current removal device |
| Shunt active harmonic filter | Injects compensating current as load harmonics change | Several diverse or cycling nonlinear loads; retrofit projects | Current rating, sensing, settings, thermal conditions, and placement govern results |
| Lower-harmonic drive or active front end | Reduces distortion at its source | New equipment or major drive replacement | Retrofit feasibility and cost depend on the drive system |
An input reactor is often the least disruptive first step for an individual drive. A tuned passive filter may be economical when operating conditions are stable, but the design must consider existing utility harmonics, capacitor switching, and future network changes. An active filter is attractive when multiple loads cycle independently: it measures current through current transformers (CTs) and injects an opposing harmonic-current component into the connected bus.
An AHF primarily acts on current at its installation point. It may reduce related voltage distortion, but it does not guarantee perfectly sinusoidal voltage or cure unrelated sags and transients. Whether a particular unit also compensates reactive power or unbalance depends on its verified design and available current capacity. Do not assume those functions are included in every quoted model.
Capacitors correct fundamental-frequency reactive power; they do not inherently remove the harmonic currents generated by VFDs. In a network with substantial harmonic content, a plain capacitor bank can interact with system inductance and amplify unwanted frequencies. A detuned reactor placed in series with the capacitor changes that interaction and helps protect the bank. It is selected so the combination's tuning sits below the troublesome harmonic range, subject to the network study.
This distinction matters commercially as well as technically. Replacing a failed capacitor with a larger unit, without finding the cause, can make matters worse. Equally, specifying an AHF solely because a capacitor overheated overlooks whether a properly engineered detuned bank and source-level mitigation would be more appropriate. Reactive power compensation and harmonic control must be coordinated, not sold as interchangeable remedies.
A practical engineering sequence turns a vague complaint into a defensible purchasing specification:
1. Define the problem. Document trip times, hot components, damaged capacitor stages, process interruptions, and any utility requirements. Separate suspected harmonics from confirmed observations.
2. Map the installation. Obtain the one-line diagram, transformer and generator data, drive inventory, capacitor ratings and switching steps, cable information, and planned expansions.
3. Log a representative operating cycle. Have qualified personnel install a suitable three-phase power-quality recorder using site safety procedures. Include high output, light load, startups, and capacitor switching as relevant.
4. Compare locations and spectra. Measure the agreed PCC and affected buses or feeders. Check individual orders and operating logs, not only total THD. Confirm whether distortion enters from upstream or is produced on site.
5. Model and specify. Check system impedance and potential resonance. Compare line reactors, detuned compensation, passive filters, and AHFs. For an AHF, specify compensating-current capacity, CT placement, phase configuration, temperature, expansion margin, and operating priorities.
6. Commission and verify. Repeat measurements under comparable loads. Confirm the agreed PCC metrics, equipment temperatures, capacitor behavior, and whether the original operational problem improved. Keep the baseline and post-installation trend files.
Do not size an AHF from a percentage alone. A statement such as "THDi is 30%" omits the fundamental load current, harmonic spectrum, duty cycle, and location. The required compensation depends on actual harmonic amperes and the device's other assigned duties. Simulation software can test candidate arrangements, but a model should be checked against measured site data.
A published data-center case illustrates why target metrics and measurement points need to be explicit. At one monitored switchboard, current THD was reported as 59.60% with the AHF off and 17.36% with it on. Current fell from 83.12 A to 74.58 A, while power factor moved from 0.82 to 0.93 in that same comparison. The case also describes other system-level results, but those should not be substituted for this particular panel's readings.
The lesson is not that every AHF will achieve those numbers. It is that a measured improvement is not the same as automatically meeting a 5% target at every panel. This was another supplier's installation, not a DINGNUO ELECTRIC project, and its loads differ from an industrial drive network. Buyers should ask any manufacturer for a matched-location baseline, stated operating conditions, target harmonic orders, and a post-commissioning acceptance test.
DINGNUO ELECTRIC CO., Ltd. manufactures capacitors and reactors and provides reactive power compensation and harmonic-control solutions for industrial and municipal applications. For a meaningful proposal, share the one-line diagram, nominal voltage and frequency, transformer details, measured harmonic spectra, load schedule, capacitor-bank information, and applicable utility requirements. Ask for an explanation of why the proposed arrangement suits your site—not just a product rating.
A technically useful quotation should identify the mitigation location, component roles, design assumptions, installation requirements, expected verification method, and maintenance responsibilities. If the proposed system includes active filtering, request the specific AHF datasheet and supported functions. If it includes capacitors and reactors, request the detuning design and capacitor-duty checks. That transparency helps procurement compare bids on engineering merit rather than broad promises.
Need to reduce harmonics without creating a capacitor-bank problem? Send DINGNUO ELECTRIC your one-line diagram and a representative power-quality recording. Ask our team to review your harmonic spectrum, reactive power requirement, and measurement location before recommending a capacitor, reactor, filter, or coordinated solution.
No. Its performance depends on the measured spectrum, available compensation current, placement, controls, and changing loads. Define a measurable target at an agreed location rather than promising complete elimination.
A conventional capacitor bank corrects reactive power, not harmonic generation. Without proper assessment, it can contribute to resonance. A detuned reactor helps manage that risk, but the combination is not a substitute for every filter application.
No. IEEE 519-2022 applies its steady-state voltage and current distortion limits at the user PCC. A drive's local THDi is useful for diagnosis; a facility assessment needs the correct PCC metrics and operating conditions.
Consider an AHF when multiple nonlinear loads vary independently and source-level measures cannot meet the agreed objectives. A line reactor may remain a simpler option for one drive. Measure and compare the alternatives before purchasing.
Measure at the agreed PCC for facility-level assessment and at affected buses or feeders for diagnosis. Record representative operating cycles; a single light-load snapshot can be misleading.

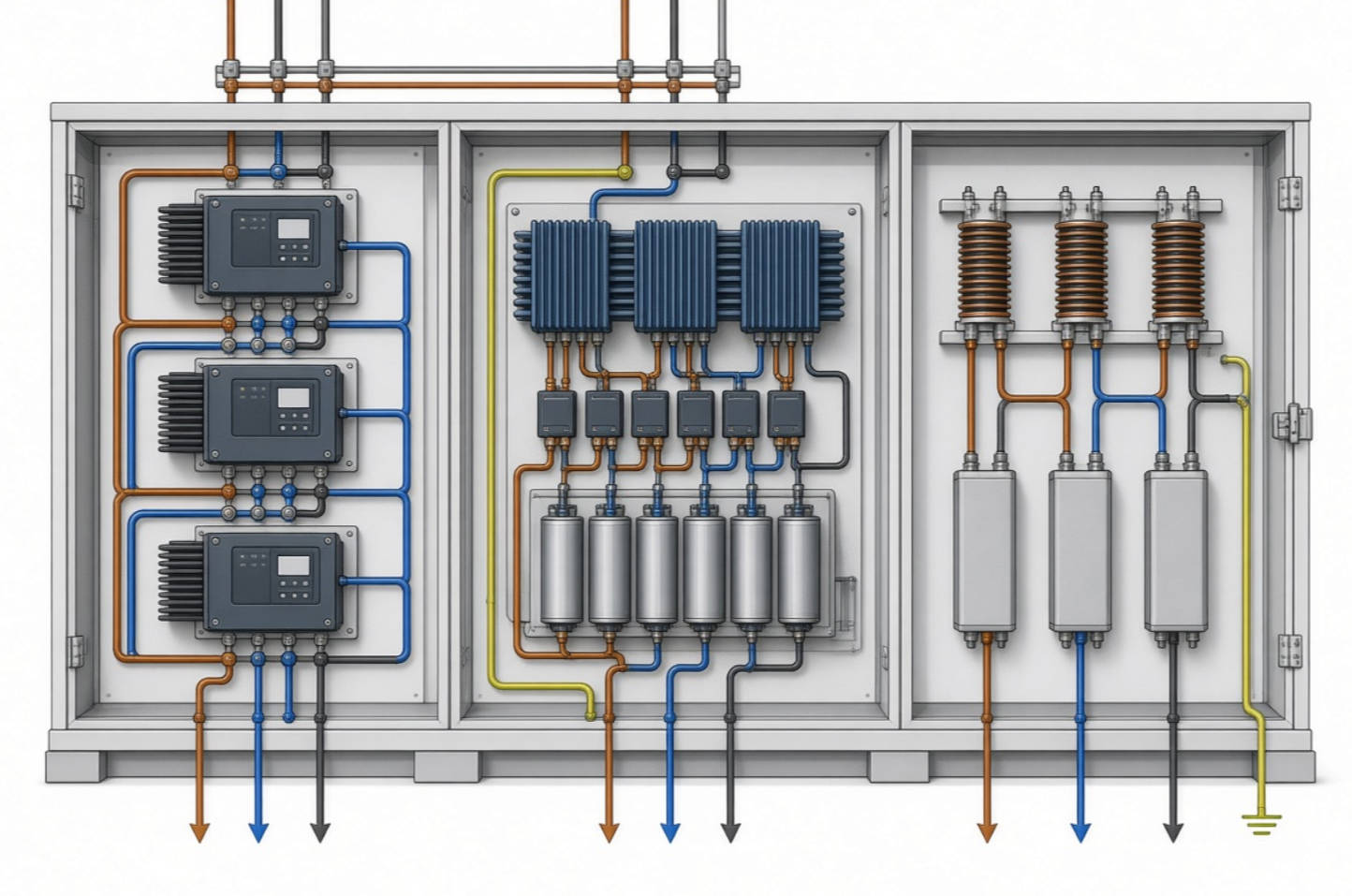

Sometimes, but verify the specific equipment functions and ratings. Detuned capacitor banks primarily provide reactive power while managing resonance risk. Some AHFs can also perform reactive compensation, subject to their specifications and available capacity.
