Choosing between an automatic power factor controller and an intelligent controller is no longer simply a question of how many capacitor steps a panel can switch. In modern industrial networks—especially those serving VFDs, welders, UPS systems, rectifiers, arc furnaces, pumps, compressors, and automated production lines—the correct controller directly affects power-factor stability, capacitor life, harmonic risk, maintenance workload, and operating cost.
For a conventional and relatively stable electrical load, an automatic power factor controller can be a practical and economical solution. For complex, dynamic, harmonic-rich, or remotely managed facilities, an intelligent controller generally provides stronger measurement capability, more adaptive control, better diagnostics, and a foundation for long-term power-quality management.
At DINGNUO ELECTRIC CO., Ltd., we see this distinction clearly across industrial and municipal applications. A power-factor correction system should not only compensate reactive power. It must also work safely with the actual electrical conditions of the site, including load fluctuations, capacitor switching frequency, voltage variations, harmonic distortion, and the operational requirements of the customer.

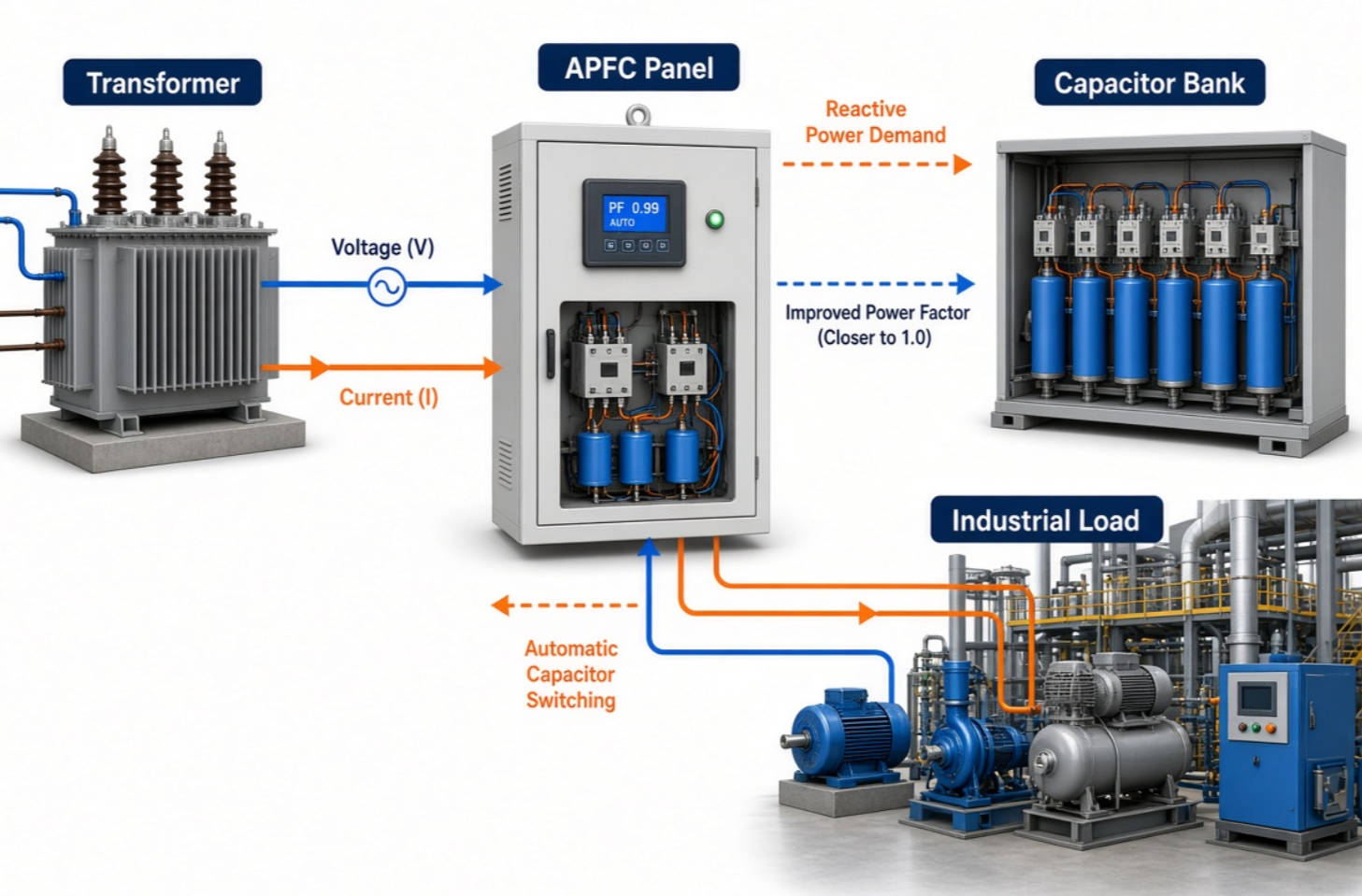

An automatic power factor controller, often called an APFC controller, is a device that automatically measures the electrical system's power factor and switches capacitor-bank steps on or off to keep power factor near a preset target.
Its core purpose is straightforward: compensate for inductive reactive power and reduce the reactive-power demand that the electrical system must supply.
Inductive loads are common in industrial plants. Motors, transformers, pumps, fans, compressors, welding machines, and many production machines require reactive power to establish magnetic fields. While this reactive power does not create useful mechanical output, it increases apparent power demand and can reduce overall power factor.
An automatic power factor controller typically performs the following functions:
- Measures voltage and current through connected sensing circuits and current transformers.
- Calculates the system power factor.
- Compares actual power factor with a programmed target.
- Connects capacitor steps when the system requires more reactive-power compensation.
- Disconnects capacitor steps when the load drops or power factor becomes leading.
- Uses programmed delays to reduce unnecessary switching.
A basic APFC controller may have 6, 8, 12, or more output stages. Each output can control a capacitor contactor, thyristor-switching module, or other switching device, depending on the design of the power-factor correction panel.
An automatic power factor controller is usually a good fit when a site has:
- Relatively predictable load patterns.
- Limited harmonic-producing equipment.
- A stable electrical network.
- A conventional capacitor-bank arrangement.
- No strong requirement for remote monitoring or energy-management integration.
- A budget-driven retrofit project.
For example, a small workshop with standard induction motors, a stable pumping system, or a commercial building with moderate HVAC loads may benefit from a standard APFC controller. The controller can maintain an appropriate power-factor target without requiring advanced communication or harmonic analysis functions.
However, "automatic" does not always mean "intelligent." A controller can automatically switch capacitors while still having limited awareness of harmonic conditions, capacitor health, abnormal switching behavior, or wider power-quality trends.

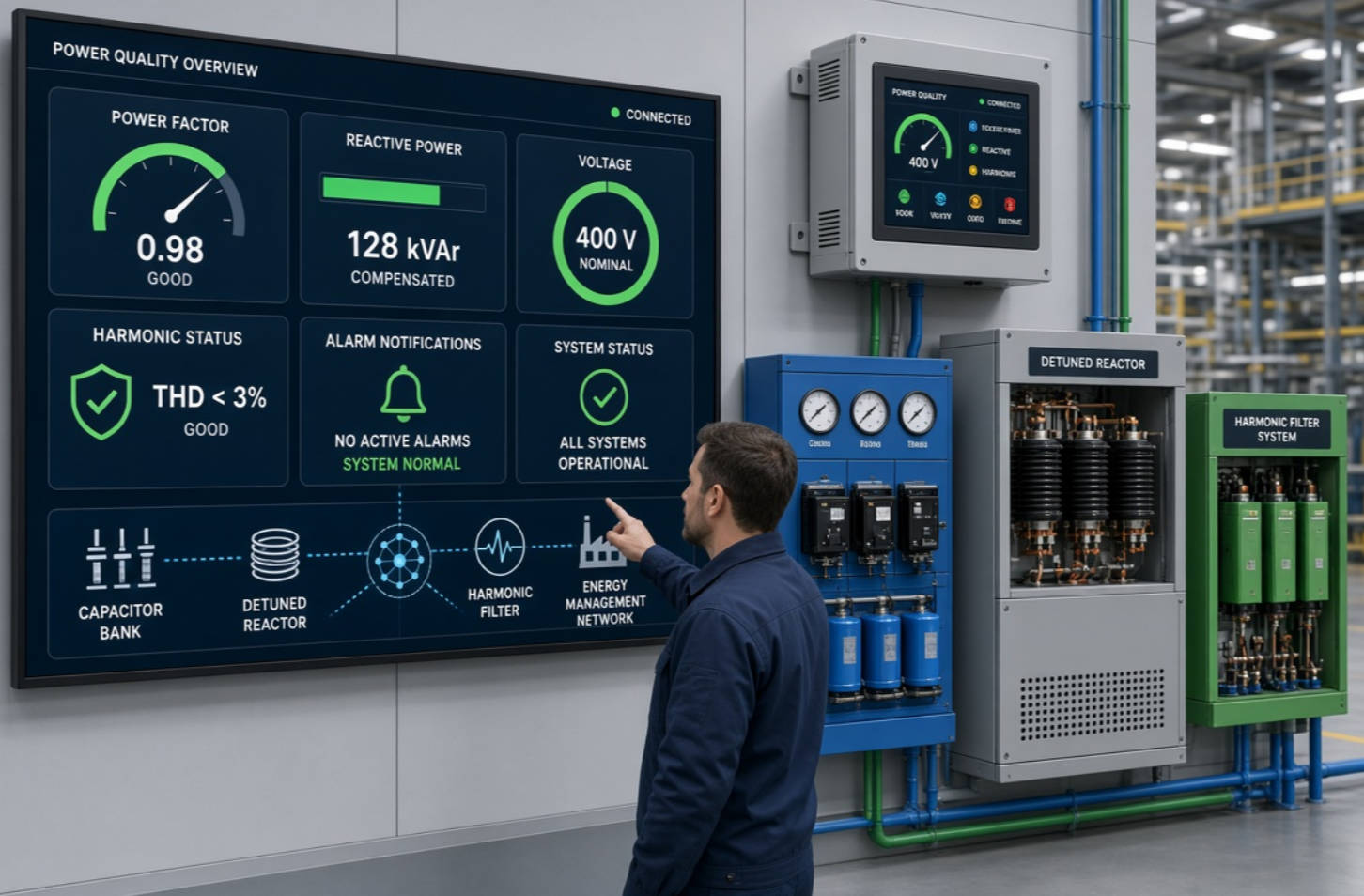

An intelligent controller is a more advanced power-factor correction control device designed to do more than switch capacitor steps based on a single power-factor reading.
It typically combines reactive-power control with enhanced metering, adaptive algorithms, diagnostics, event logging, alarms, communication capability, and—in certain designs—harmonic monitoring. It may also support different switching sequences, capacitor-step learning, automatic current-transformer polarity detection, phase recognition, temperature monitoring, and remote access through Modbus, RS-485, Ethernet, or industrial communication platforms.
In practical terms, an intelligent controller helps operators understand not only whether power factor is low, but also why compensation performance may be poor or unstable.
An intelligent controller may monitor:
- True power factor and displacement power factor.
- Active power in kW.
- Reactive power in kvar.
- Apparent power in kVA.
- Voltage, current, frequency, and phase conditions.
- Capacitor-step operating status.
- Harmonic-related parameters, depending on the model.
- Overvoltage, undervoltage, overcurrent, and overheating alarms.
- Capacitor switching frequency and step failure conditions.
- Communication status and historical electrical events.
This level of visibility is particularly valuable in facilities where power-quality conditions change throughout the day.
Modern industrial power systems often contain non-linear loads. Variable-frequency drives, servo drives, rectifiers, UPS equipment, battery chargers, CNC machinery, electric vehicle charging equipment, and LED power supplies can introduce harmonic currents into the network.
In these installations, conventional capacitor compensation without proper engineering assessment can create operational risks. Harmonics may increase capacitor current, raise temperature, accelerate component aging, and contribute to resonance conditions.
The role of an intelligent controller is not to replace a complete harmonic study or a properly designed harmonic-filtering solution. Instead, it gives the operating team better visibility into system behavior and supports more informed control decisions.
For facilities with meaningful harmonic exposure, DINGNUO ELECTRIC typically recommends evaluating the full solution, including:
- Capacitor voltage and current rating.
- Harmonic spectrum and total harmonic distortion.
- Transformer capacity and system impedance.
- Existing nonlinear-load percentage.
- Reactor detuning requirements.
- Switching technology and response speed.
- Protection coordination.
- Controller measurement and alarm requirements.
IEC 60831-1 applies to low-voltage capacitors and capacitor banks used for AC power-factor correction, including capacitors used in power-filter circuits. IEEE 519-2022 provides a system-level framework for managing harmonic distortion at the point of common coupling.

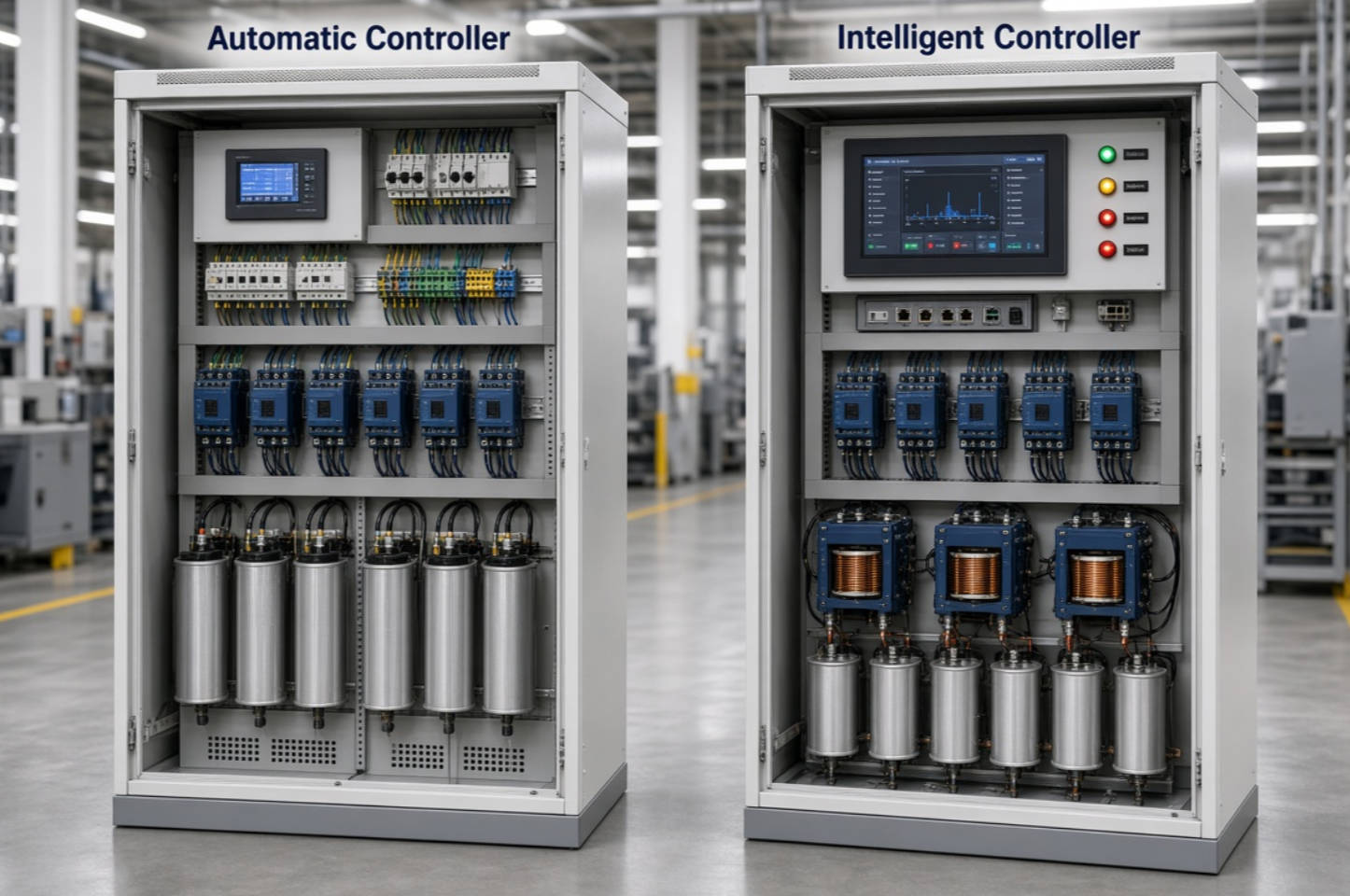

The most important difference is not simply the product label. It is the level of measurement, control logic, diagnostics, and integration that the controller can provide.
| Comparison Area | Automatic Power Factor Controller | Intelligent Controller |
|---|---|---|
| Primary role | Automatically switches capacitor steps to maintain a target power factor | Optimizes power-factor correction while providing advanced monitoring, diagnostics, alarms, and communications |
| Measurement depth | Usually basic power factor, voltage, and current measurement | Often includes kW, kvar, kVA, power factor, frequency, phase data, event records, and other operating parameters |
| Control logic | Fixed or semi-fixed switching logic | Adaptive switching logic, step learning, configurable priorities, and more detailed parameter settings |
| Capacitor-step management | Basic sequential or programmed switching | Can support optimized switching, capacitor-step balancing, runtime tracking, and failure identification |
| Harmonic visibility | Usually limited or unavailable | May offer harmonic indicators, distortion data, or alarm functions depending on configuration |
| Remote communication | Often absent or limited | Commonly supports RS-485, Modbus, Ethernet, or integration with monitoring systems |
| Fault diagnostics | Basic alarm indication | More detailed fault codes, historical events, and operational analysis |
| Best application | Stable, low-complexity electrical systems | Dynamic industrial systems, critical facilities, harmonic-rich networks, and remotely managed sites |
| Initial cost | Lower | Higher |
| Lifecycle value | Suitable when system conditions are simple | Often stronger where downtime, capacitor failure, or energy-management visibility matters |
The correct choice should therefore be based on application risk, not only purchase price.
A lower-cost controller may appear attractive during procurement. But if the plant experiences frequent capacitor failure, unstable power factor, nuisance trips, or limited visibility into electrical events, the total lifecycle cost may become much higher than the initial savings.
Both controller types use capacitor steps to compensate reactive power. The difference lies in how accurately and intelligently they decide when, how, and which steps to switch.
A typical automatic controller follows a relatively simple process:
1. Measure the current power factor.
2. Compare it with the target power factor.
3. Determine whether compensation is required.
4. Connect one or more capacitor steps after a programmed delay.
5. Disconnect capacitor steps if the system becomes overcompensated.
This approach can be reliable when the load changes gradually. However, basic controllers may have limited ability to distinguish between rapid load changes, harmonic distortion effects, incorrect current-transformer connection, capacitor-step failure, and abnormal phase conditions.
An intelligent controller can use more data before making a switching decision. Depending on the model and system configuration, it may consider:
- Reactive-power demand in kvar.
- Load variation rate.
- Capacitor-step availability.
- Switching delay and discharge time.
- Step-size configuration.
- Existing compensation level.
- Phase sequence and current-transformer connection.
- Alarms or abnormal electrical conditions.
- Historical switching patterns.
This can reduce unnecessary switching and improve capacitor-step utilization. It may also help operators identify whether a problem comes from insufficient capacitor capacity, a failed step, an unsuitable switching sequence, or a larger power-quality issue.
For example, if a factory's welding line and VFD-driven machinery start at different times, reactive-power demand may change quickly. An intelligent controller can be configured to respond more effectively than a simple controller that relies on fixed switching rules.
An automatic power factor controller remains a valuable product category. It should not be dismissed simply because intelligent controllers offer more functions.
Choose a standard automatic power factor controller when the following conditions apply:
- The electrical load is mostly linear.
- Power demand changes slowly.
- Harmonic levels are low or have already been addressed.
- The capacitor-bank size is moderate.
- Operators only need local control and basic indication.
- The project requires a cost-effective solution.
- The site does not need remote data integration.
- Maintenance personnel can perform routine inspection and testing.
A conventional automatic controller can deliver reliable power-factor correction when it is correctly sized, correctly wired, and paired with suitable capacitors, contactors, protection devices, and—where required—detuned reactors.
The controller should never be evaluated in isolation. A well-performing APFC panel depends on the compatibility of every component in the system.
An intelligent controller is normally the stronger option when the plant has frequent load variation, sensitive production equipment, stricter maintenance requirements, or an ongoing digital energy-management strategy.
It is particularly suitable for:
- Metallurgical plants with large and fluctuating loads.
- Petrochemical operations requiring continuous process reliability.
- Automotive production lines with robotic welding and VFD equipment.
- Paper and textile factories with extensive motor-drive systems.
- Building-material plants using crushers, conveyors, kilns, and high-power motors.
- Municipal projects with pumping stations, water-treatment equipment, or transport infrastructure.
- Facilities where electrical teams need remote monitoring.
- Sites that experience repeated capacitor damage or unexplained power-factor fluctuations.
In these environments, the added value comes from earlier fault detection and better operational insight. A controller that can report abnormal voltage, switching issues, or step failure can help maintenance teams intervene before a minor issue becomes a shutdown event.

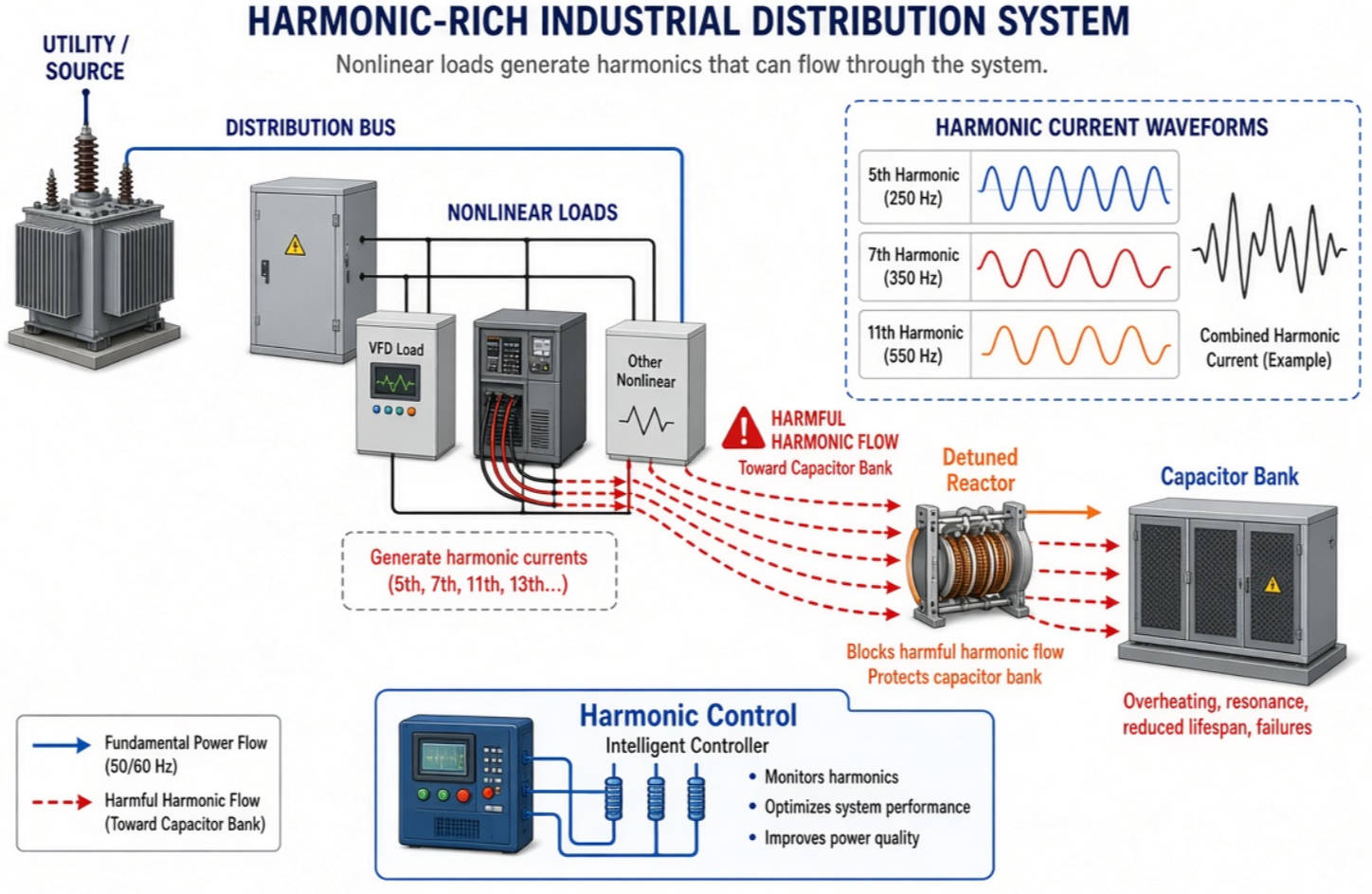

One of the most common procurement mistakes is selecting a power-factor controller based only on the number of output steps.
The controller is important, but harmonic conditions determine the safety of the whole compensation system.
A capacitor bank adds capacitance to the electrical network. In a system with significant harmonic currents, that capacitance can interact with transformer and network inductance. If the system approaches a resonant frequency, capacitor current and voltage stress can rise sharply.
Potential consequences include:
- Overheating of capacitors and reactors.
- Premature capacitor failure.
- Blown fuses and damaged contactors.
- Excessive noise or vibration.
- Repeated controller alarms.
- Reduced production reliability.
- Increased maintenance cost.
A capacitor bank combined with inductors can be used to limit harmonic effects in an electrical network; this capacitor-reactor arrangement is commonly used for detuned power-factor correction and harmonic-filter applications.
Before selecting either an automatic power factor controller or an intelligent controller, ask these questions:
1. What percentage of site load comes from VFDs, rectifiers, UPS systems, welders, or other nonlinear equipment?
2. Has the facility measured voltage THD and current THD under normal and peak-load conditions?
3. Are capacitors failing repeatedly, overheating, or producing abnormal noise?
4. Does the electrical system require detuned reactors?
5. Is the compensation bank installed near the main distribution point or close to nonlinear loads?
6. Are there existing harmonic filters, active filters, or reactor-based solutions?
7. Does the site require monitoring at the point of common coupling?
8. Are local utility power-factor requirements or harmonic requirements applicable?
A professional power-quality assessment should guide the final configuration. The goal is not merely to improve the displayed power-factor value. The goal is to achieve safe, stable, and sustainable compensation.
From an engineering and lifecycle perspective, the best controller is the one that fits the electrical behavior of the facility—not the one with the longest specification list.
Use this practical framework during project evaluation.
First, clarify what the customer actually needs:
- Reduce reactive-power penalties.
- Increase transformer capacity utilization.
- Stabilize power factor.
- Protect capacitor banks.
- Control harmonics.
- Improve visibility into electrical performance.
- Integrate power-quality equipment with a plant monitoring platform.
A basic power-factor target alone may justify an automatic controller. Multiple objectives usually support selecting an intelligent controller.
Do not rely only on nameplate information. Measure real operating conditions.
Important measurements include:
- Peak and average active power.
- Reactive-power profile.
- Existing power factor across operating shifts.
- Voltage stability.
- Current imbalance.
- Harmonic distortion.
- Load variation speed.
- Temperature inside the electrical cabinet.
This data determines capacitor-bank capacity, step sizes, reactor configuration, controller function requirements, and switching technology.
Capacitor steps should reflect the load profile.
For stable loads, equal-step arrangements can work well. For highly variable loads, a mixed-step arrangement may provide more flexible compensation. The controller must be able to manage the configured step ratio correctly.
For example, a 1:1:1:1 step arrangement is simple. A 1:2:2:4 arrangement may provide wider reactive-power adjustment with fewer steps. The best configuration depends on the required compensation resolution and actual load fluctuations.
The controller and switching device must work together.
- Contactor switching is commonly used for conventional capacitor banks and is appropriate for many stable or moderately changing loads.
- Thyristor switching provides faster response and is often preferable for rapidly fluctuating loads, such as welding applications, presses, cranes, or certain automated manufacturing processes.
An intelligent controller can add value in either design, but its benefits are especially visible where switching frequency and load change are high.
A high-quality controller should help the maintenance team, not create a black box.
Look for practical features such as:
- Clear display and intuitive parameter setup.
- Alarm history.
- Step-status indication.
- Communication capability.
- Configurable target power factor.
- Password protection.
- Accurate current-transformer settings.
- Support for periodic inspection and calibration.
Consider an automotive manufacturing facility with robotic welding stations, conveyor systems, compressed-air equipment, pumps, HVAC equipment, and variable-frequency drives.
A basic automatic power factor controller may improve power factor during relatively steady production. However, the plant load can change significantly between startup, welding cycles, shift changes, and idle periods.
The facility may also have nonlinear loads from welding power supplies, servo drives, and VFD systems. In this case, simply adding conventional capacitor banks without reviewing harmonics could create avoidable stress on the compensation equipment.
A stronger solution could include:
- An intelligent power factor controller.
- Correctly sized capacitor steps.
- Detuned reactors where harmonic conditions require them.
- Appropriate capacitor-duty contactors or thyristor switching.
- Thermal protection and ventilation.
- Harmonic assessment and monitoring.
- Communication to the facility's energy-management or supervisory system.
The result is not just a better power-factor number. It is a more visible, maintainable, and resilient power-quality system.
DINGNUO ELECTRIC CO., Ltd. is a professional manufacturer of capacitors and reactors, providing advanced technology, comprehensive product support, and high-quality solutions for reactive-power compensation and harmonic control.
For customers in metallurgy, petrochemical processing, automotive manufacturing, papermaking, textiles, building materials, and municipal infrastructure, the correct approach is to evaluate the full electrical environment.
A reliable solution may include:
- Low-voltage power capacitors.
- Detuned reactors.
- Harmonic-filter reactors.
- Automatic power factor correction controllers.
- Intelligent controllers.
- Capacitor-bank assemblies.
- Reactive-power compensation equipment.
- Harmonic-control solutions.
- Technical selection support and application engineering.
The objective is to help customers reduce power-quality risk while improving electrical-system efficiency, reliability, and operational transparency.
For a stable facility with limited harmonic exposure and straightforward compensation requirements, an automatic power factor controller can be a reliable and cost-effective choice.
For dynamic industrial loads, frequent switching, harmonic exposure, critical production processes, or remote-management requirements, an intelligent controller is usually the better long-term investment.
The decision should be made after reviewing the site's real power data, harmonic conditions, load profile, switching requirements, and maintenance objectives. An intelligent controller can improve control visibility, but it must be combined with properly selected capacitors, reactors, protection devices, and panel design.
Need help selecting an automatic power factor controller, intelligent controller, capacitor bank, or detuned reactor solution? Contact DINGNUO ELECTRIC with your single-line diagram, transformer rating, load profile, power-factor records, and harmonic test data. Our technical team can help develop a customized reactive-power compensation and harmonic-control solution for your project.
An automatic power factor controller primarily switches capacitor steps to maintain a target power factor. An intelligent controller provides this function plus more advanced metering, diagnostics, alarms, adaptive logic, event recording, and communication options.
It can help reduce costs when the utility applies reactive-power charges or power-factor penalties. It may also improve the use of transformers, cables, and electrical infrastructure. Actual savings depend on the utility tariff, existing power factor, load profile, and system design.
No. An intelligent controller may help detect or display harmonic-related conditions, but it does not remove harmonics by itself. Harmonic mitigation may require detuned reactors, passive harmonic filters, active harmonic filters, or a combined power-quality solution.
A detuned reactor may be necessary when the system contains significant nonlinear loads or harmonic distortion. The decision should be based on a power-quality assessment, harmonic measurements, network parameters, and capacitor-bank design.
An intelligent controller is usually the more suitable option because VFD-heavy facilities often have dynamic loads and elevated harmonic risk. However, the controller should be part of a complete solution that may include detuned reactors or harmonic filters.
The required number of steps depends on total reactive-power demand, load variation, desired compensation accuracy, switching frequency, and available panel space. More steps can provide finer control, but the optimal design is determined by the facility's actual load profile.
Many intelligent controllers support industrial communication protocols such as Modbus through RS-485, and some may support Ethernet-based communication. Buyers should confirm protocol, register map, and integration requirements before ordering.
1. International Electrotechnical Commission. “IEC 60831-1:2014: Shunt Power Capacitors of the Self-Healing Type for A.C. Systems Having a Rated Voltage up to and Including 1,000 V — Part 1: General.” [IEC Webstore]. This standard covers capacitor units and capacitor banks used for AC power-factor correction and power-filter circuits. [webstore.iec]
2. IEEE Standards Association. “IEEE 519-2022: Standard for Harmonic Control in Electric Power Systems.” [IEEE Standards]. This standard establishes system-level goals for harmonic control in electrical power systems. [standards.ieee]
3. ABB. “Power Factor Correction and Harmonic Filtering in Electrical Plants.” [ABB Technical Guide]. The guide discusses using capacitors combined with inductors to limit harmonic effects in power networks. [library.e.abb]
4. Schneider Electric. “PowerLogic PFC Power Factor Correction Controllers.” [Schneider Electric]. Product information describing intelligent PFC controllers that measure, monitor, and control reactive energy. [se]
5. Schneider Electric. “VarPlus Logic VPL 6 Power Factor Controller.” [Schneider Electric]. Product documentation for automatic power-factor correction controller applications. [se]
6. IEEE Standards Association. “IEEE 519-2022 Publication Information.” [IEEE 519 Standard]. Published August 5, 2022; this reference is useful for power-quality engineers assessing harmonic-control responsibilities at the point of common coupling. [standards.ieee]
