Welding equipment can create serious power-quality challenges, especially when multiple inverter welders, robotic welding stations, rectifiers, or arc-welding machines operate on the same low-voltage network. In this APF vs capacitor device comparison, the key finding is simple: an Active Power Filter (APF) actively cancels fluctuating harmonic currents, while a capacitor-based device mainly improves power factor and must be carefully designed with reactors to avoid harmonic resonance.
For welding facilities, the best choice depends on measured harmonic levels, load variability, power-factor targets, network strength, and compliance requirements at the point of common coupling (PCC). DINGNUO ELECTRIC provides capacitors, reactors, and integrated power-quality solutions that can be configured for industrial harmonic mitigation and reactive-power compensation.
Modern welding power sources often use rectifiers, inverters, switching devices, and electronic controls. These are non-linear loads. Instead of drawing a smooth sinusoidal current waveform, they draw pulsed current, which creates harmonic components in the distribution system.
This issue becomes more complex in plants where welding loads start and stop continuously. Current demand can change quickly as operators strike arcs, robotic cells cycle, or different welding programs run. The harmonic spectrum may also vary by welding method, machine design, loading rate, and supply impedance.
Common consequences include:
- Overheating of transformers, cables, capacitors, and switchgear
- Higher feeder and transformer losses
- Nuisance tripping of protective devices
- Voltage distortion affecting PLCs, servo drives, sensors, and automation systems
- Reduced capacitor-bank lifetime
- Voltage fluctuations and flicker near high-current welding processes
- Failure to meet contractual or utility power-quality limits at the PCC
A welding power source without power-factor-correction circuitry may operate at a power factor around 0.7, while appropriate PFC technology can raise it above 0.98. However, a better power factor does not automatically mean harmonic distortion has been adequately controlled. Harmonic mitigation requires separate measurement and engineering analysis.
In practical site assessments, engineers should distinguish between:
- Displacement power factor: The phase relationship between fundamental voltage and current.
- True power factor: A broader indicator that is also affected by harmonic distortion.
- Current harmonic distortion: Harmonic current produced by the load.
- Voltage harmonic distortion: Voltage distortion created when harmonic current flows through network impedance.

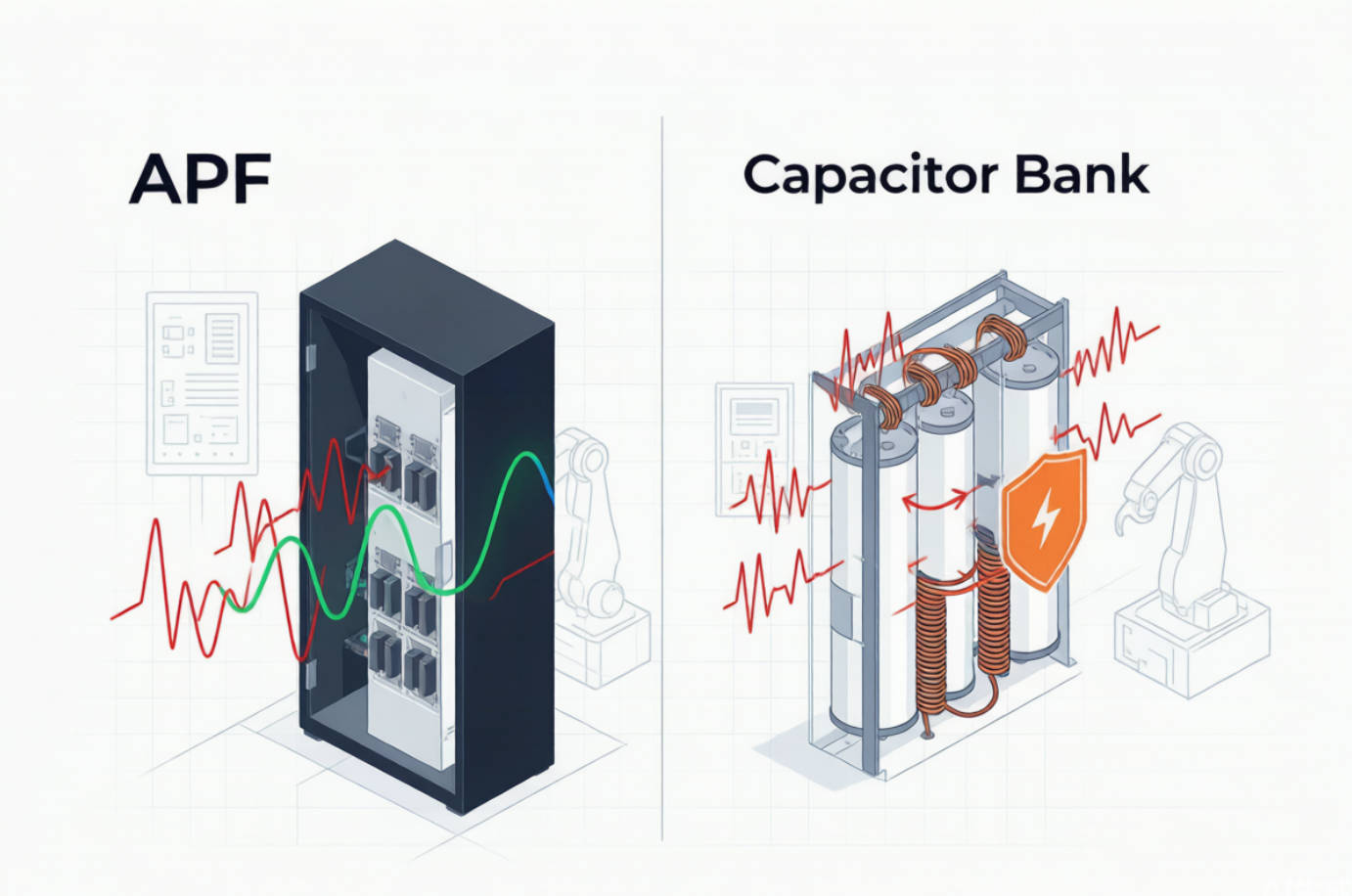

An APF and a capacitor device may both support better power quality, but they work in fundamentally different ways.
An Active Power Filter, also called an active harmonic filter or AHF, measures harmonic current in real time and injects a compensating current with the opposite phase. This dynamically reduces the harmonic current that would otherwise flow upstream into the electrical network.
A capacitor device is usually a power-factor-correction capacitor bank. It supplies reactive power locally to reduce the reactive demand seen by the upstream supply. In welding applications with significant harmonics, capacitors should generally be paired with detuned reactors. The reactor-capacitor combination shifts the system away from resonance and protects capacitors from excessive harmonic-current loading.
| Evaluation factor | Active Power Filter (APF) | Capacitor device with detuned reactor |
|---|---|---|
| Primary purpose | Dynamic harmonic cancellation | Reactive-power compensation and resonance prevention |
| Harmonic control | Actively compensates selected harmonic currents | Does not actively cancel broad harmonic currents |
| Power-factor correction | Can often provide dynamic reactive-power compensation | Strong and economical solution for reactive-power compensation |
| Response to welding load variation | Fast and adaptive | Step-based; response depends on controller and contactor/thyristor switching |
| Harmonic resonance risk | Does not create capacitor-bank resonance in the same way | Requires correct detuning and system study |
| Suitability for fluctuating welding loads | Excellent | Suitable when harmonic levels are controlled and kVAr demand is the main concern |
| Initial investment | Typically higher | Typically lower |
| Engineering requirement | Harmonic survey, compensation sizing, CT placement, installation design | Harmonic survey, kVAr calculation, reactor tuning, capacitor voltage/current selection |
| Best application | High, variable, multi-order harmonic loads | Stable reactive-power demand with controlled harmonic risk |
An APF is usually the stronger option when harmonic currents are the central problem rather than only low power factor.
Welding current is rarely constant across an entire shift. For example, a fabrication line may include manual arc welding, spot welding, robotic MIG/MAG welding, and laser welding. Each process can create a different electrical demand profile.
An APF can track changing harmonic current in real time. It is particularly useful when:
- Several inverter welding machines operate simultaneously
- Welding schedules change frequently
- The site has automated production lines with sensitive electronics
- Harmonic measurements fluctuate across operating periods
- Multiple harmonic orders must be mitigated
- The transformer or upstream feeder shows excessive thermal stress
- The customer needs a clear harmonic-control strategy at the PCC
Research and field discussion on welding power quality identify welding machines as disturbing sources because they behave as non-linear loads. One recent study of laser welding equipment also found that built-in filtering alone may not always keep total harmonic distortion within the applicable project target, reinforcing the need for site-specific measurement and external mitigation design.
An APF can provide several functions in one system, depending on model and configuration:
- Harmonic current compensation
- Dynamic reactive-power compensation
- Power-factor improvement
- Three-phase load balancing in selected applications
- Neutral-current reduction for four-wire systems, where applicable
- Better protection for upstream transformers and distribution equipment
The main limitation is cost. APF capacity must be sized around the actual compensating current needed, not simply the total load current. Oversizing wastes budget; undersizing leaves unresolved distortion.
A capacitor device is often the most economical choice when the plant's primary problem is low power factor caused by inductive loads, such as motors, transformers, pumps, fans, and conventional welding transformers.
However, this solution should not be treated as a simple "install capacitors and solve harmonics" approach.
In a welding plant, a plain capacitor bank can become a weak point. Capacitors and network inductance may form a resonant circuit. If resonance aligns with a harmonic frequency, capacitor current and voltage can increase sharply.
This can lead to:
- Capacitor overheating or premature failure
- Fuse operation or breaker tripping
- Increased voltage distortion
- Reactor or cable thermal stress
- Unstable power-factor correction performance
A detuned reactor is installed in series with the capacitor. Proper detuning moves the resonance frequency below the lowest significant harmonic frequency, reducing the risk of harmonic amplification and capacitor overload.
- The main target is reactive-power compensation
- The welding load is relatively stable
- Harmonic measurements are moderate or controllable
- The facility has a high reactive-power charge or low power-factor penalty
- The system requires a cost-effective kVAr solution
- The capacitor bank is engineered with the correct detuning factor
- The customer needs staged automatic power-factor correction
For many factories, the optimal configuration is not APF *or* capacitor equipment. It is a hybrid power-quality solution: an APF handles fluctuating harmonics, while a detuned capacitor bank supplies the bulk reactive power economically.
| Welding-plant condition | Recommended solution | Why |
|---|---|---|
| Low power factor, low measured harmonic distortion | Capacitor device | Provides economical reactive-power compensation |
| Low power factor plus meaningful 5th, 7th, or higher harmonic current | Detuned capacitor bank | Improves power factor while reducing resonance risk |
| High harmonic current from inverter welders | APF | Dynamically cancels harmonic currents |
| Rapidly changing robot-welding load | APF or hybrid system | Responds better to variable current demand |
| Large fixed kVAr need plus variable harmonic load | APF + detuned capacitor bank | Combines harmonic mitigation with cost-efficient kVAr supply |
| Frequent capacitor failures or overheating | Harmonic audit before replacement | Indicates possible resonance or excessive harmonic current |
| Sensitive PLC, CNC, servo, or automation systems nearby | APF, possibly with system redesign | Helps reduce distortion transmitted through the network |
The most common mistake is selecting equipment only from the total installed welding-machine rating. A proper solution begins with measurement, not assumptions.
Measure power-quality parameters at:
- The PCC
- Welding distribution boards
- Main transformer secondary side
- Capacitor-bank connection point
- Feeders supplying large welding clusters
Record values during real production, including peak welding cycles, low-load periods, shift changes, and different welding programs.
A complete harmonic survey should include:
- Voltage THD
- Current THD and total demand distortion
- Individual harmonic orders
- True power factor and displacement power factor
- kW, kVAr, and kVA
- Transformer loading
- Short-circuit capacity or estimated source impedance
- Existing capacitor-bank rating and switching steps
- Temperature and loading condition of transformers and cables
IEEE 519 is commonly used to set harmonic-control responsibilities at the PCC. It evaluates voltage and current distortion differently, and current limits depend on the ratio of available short-circuit current to maximum demand load current.
Avoid a generic instruction such as "reduce THD." Instead, define a measurable project target, for example:
- Maintain required power factor during production
- Reduce feeder harmonic current to an agreed level
- Prevent capacitor overcurrent
- Maintain PCC distortion within customer, utility, or applicable-standard limits
- Release transformer capacity for additional welding stations
For industrial locations up to 35 kV, IEC 61000-2-4:2024 addresses compatibility levels for conducted disturbances, including harmonics and interharmonics. The applicable class and project acceptance criteria should be confirmed before equipment selection.
A practical decision path is:
1. If reactive power is the main issue and harmonics are low, evaluate a capacitor device.
2. If harmonics are present, use a detuned reactor with the capacitor bank.
3. If harmonic current changes rapidly or remains high, evaluate an APF.
4. If both kVAr demand and harmonics are substantial, use a hybrid APF plus detuned capacitor-bank design.
5. Verify performance with post-installation measurements at the same locations and operating conditions.
From an engineering perspective, the most important distinction is this: capacitors correct reactive power; APFs actively compensate harmonic current.
A capacitor bank can improve the facility's power factor and reduce reactive-power demand. But if the harmonic environment is not assessed, the same capacitor bank can attract harmonic currents or create resonance with the network.
An APF, by contrast, is designed for dynamic harmonic mitigation. It is often the preferred technology where inverter-based welding equipment produces changing harmonic current and where nearby automation equipment needs a cleaner electrical environment.
For a welding workshop with stable inductive load and limited harmonic distortion, a correctly designed detuned capacitor device may offer excellent value. For a high-throughput automated welding plant with many non-linear loads, an APF or hybrid architecture is usually a more reliable long-term choice.
Choosing between an APF and a capacitor device for welding equipment harmonic mitigation should be based on measured harmonics, reactive-power demand, production variability, and compliance targets—not only on equipment nameplate power.
DINGNUO ELECTRIC can support your project with capacitors, detuned reactors, APF solutions, and integrated power-quality engineering for welding workshops, automotive production lines, metal processing plants, petrochemical facilities, textile factories, and other industrial applications. Contact our technical team to request a power-quality assessment and a tailored harmonic-mitigation proposal for your electrical system.
A standard capacitor bank is not an active harmonic-removal device. Its main role is reactive-power compensation. In a harmonic-rich welding network, it should normally be paired with detuned reactors to prevent resonance and protect the capacitors.
No. An APF is generally better for dynamic harmonic mitigation, but it may not be the most cost-effective solution when the main issue is stable reactive-power demand. The correct choice depends on measured electrical data.
Possible causes include harmonic overcurrent, resonance, overvoltage, inadequate reactor detuning, high ambient temperature, insufficient ventilation, excessive switching duty, or an incorrectly sized capacitor bank. A harmonic survey should be completed before replacement.
It depends on the system layout and objective. Installing close to the harmonic source can reduce harmonic current circulating through local feeders. Installing at the main panel can address combined distortion from several loads. A survey should determine the best connection point.
Yes. This is often a highly effective industrial solution. The detuned capacitor bank provides economical bulk kVAr compensation, while the APF dynamically manages variable harmonic current and can fine-tune reactive-power compensation.
At minimum, conduct a power-quality audit covering voltage distortion, current distortion, individual harmonic orders, power factor, load profile, transformer loading, existing capacitor condition, and PCC requirements.
