Active harmonic filters are usually the better choice for complex, fast‑changing industrial loads, while harmonic suppression (passive) filters remain ideal for stable, predictable systems with clearly defined harmonic profiles. For a manufacturer like DINGNUO ELECTRIC CO., Ltd., the most reliable approach is often a hybrid solution that combines both technologies with high‑quality capacitors and reactors to deliver robust reactive power compensation and harmonic control across diverse industries.
Industrial facilities today rely on a mix of drives, rectifiers, inverters and sensitive electronics, all of which make power quality a strategic issue rather than a purely technical detail. As someone who has worked closely with metallurgy, petrochemical, automotive, papermaking, textile and building materials plants, it is clear that well‑designed harmonic mitigation and reactive power compensation directly translate into fewer failures, higher efficiency and lower penalties from utilities.
For DINGNUO ELECTRIC, a professional capacitor and reactor manufacturer, the real question is not simply "active or passive filter?" Instead, the key objective is to design a system that stays stable, scalable and compliant over the entire lifecycle of the plant. The following sections present a structured way to make that decision for industrial applications.
Harmonics are voltage or current components at integer multiples of the fundamental frequency (50 or 60 Hz), generated mainly by nonlinear loads such as variable frequency drives (VFDs), rectifiers, UPS systems and modern lighting. They distort the waveform, increase losses and cause overheating, mis‑trips and premature aging of transformers, cables and capacitors.
In real plants, the symptoms include:
- Hot transformers and capacitor banks even when they appear to be within nameplate ratings.
- Frequent tripping of breakers or unexplained resets of control systems and PLCs.
- Rising total harmonic distortion (THD) levels, with warnings that the facility is close to exceeding recommended limits.
Ignoring harmonics effectively means accepting higher lifecycle costs and higher failure risk. For heavy industries and key municipal projects, that trade‑off is rarely acceptable.
Harmonic suppression filters, often referred to as passive harmonic filters, use inductors, capacitors and resistors tuned to specific frequencies. They form an L‑C network that absorbs or diverts selected harmonic currents. These filters are usually applied close to individual harmonic sources, such as specific drives or rectifiers.
Key characteristics include:
- Targeted, fixed‑frequency mitigation, very effective for well‑defined harmonic orders such as the 5th, 7th, 11th and 13th produced by common 6‑pulse drives.
- Rugged construction and low maintenance, suitable for harsh environments and high‑temperature industrial settings.
- Integrated support for power factor improvement, because appropriately sized capacitors contribute reactive power compensation.
In areas with stable process loads, such as large continuous drives on conveyors, pumps or fans, passive filters have proven reliable and cost‑effective. They are particularly well suited to metallurgy and other heavy process industries where operating profiles do not change rapidly.
Strengths:
- Simple, proven technology with predictable performance.
- Lower initial investment per installation point.
- High tolerance for dust, heat and mechanical stress when built with industrial‑grade components.
Limitations:
- Fixed behavior that does not adapt to rapid load changes or shifting harmonic spectra.
- Potential resonance issues if capacitors and reactors are not carefully coordinated with the network impedance.
- Generally applied to specific loads rather than providing system‑wide mitigation on a bus.
These strengths and weaknesses need to be considered against the actual load profile and expansion plans of the facility.

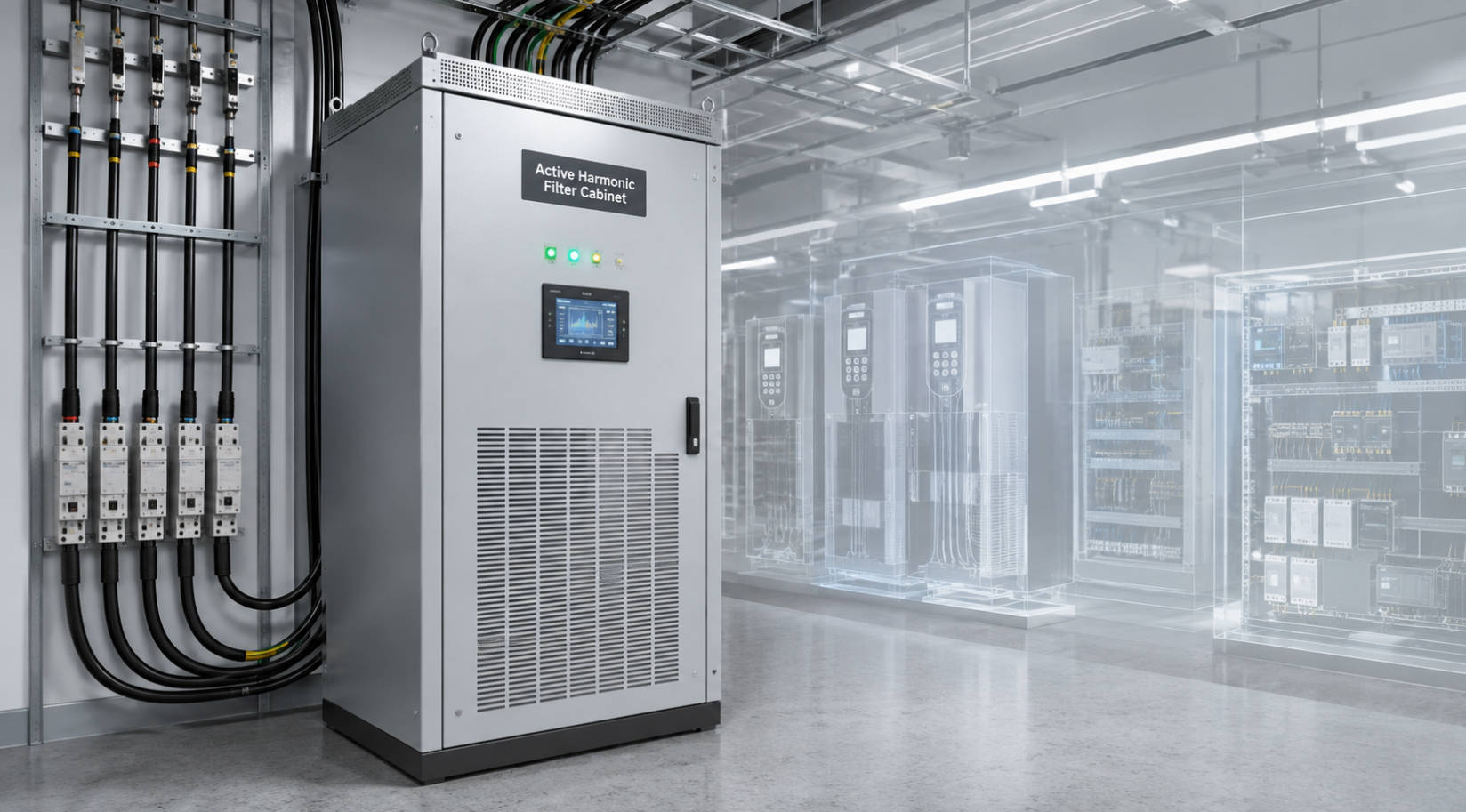

Active harmonic filters are power‑electronic devices that continuously monitor load currents, identify harmonic components and inject equal and opposite currents to cancel them. They usually operate over a wide frequency range, often up to the 50th harmonic or more. Installed in parallel with the system, they behave like dynamic "noise‑cancellation" for the electrical network.
Technical highlights:
- Real‑time, adaptive control using digital signal processing to separate harmonics from the fundamental and drive power electronic modules.
- System‑level coverage, with a single unit capable of mitigating harmonics from multiple loads connected to the same bus.
- Optional functions such as reactive power compensation and load unbalance correction, improving power factor and phase symmetry at the same time.
These properties make active harmonic filters particularly attractive for automotive plants, textile mills, complex petrochemical facilities and municipal projects where load patterns change frequently and process expansions are common.
Strengths:
- Fast response to dynamic harmonics and load changes.
- Wide‑spectrum mitigation, often covering many harmonic orders simultaneously.
- Scalability, with modular units that can be paralleled as plant demand grows.
- Capability to handle multiple feeders and mixed types of nonlinear loads.
Limitations:
- Higher initial investment compared with single passive filters at individual loads.
- Need for controlled environments with proper cooling, ventilation and electronic maintenance practices.
- More complex commissioning and monitoring, requiring skilled engineering support.
When applied correctly, active harmonic filters can deliver system‑wide stability and a significant reduction in THD, especially in diversified or rapidly evolving plants.
Instead of treating the choice as a simple either‑or decision, it is more useful to compare how each technology behaves under typical plant conditions. At a minimum, consider:
- Load profile – Are the main loads steady and predictable, or highly variable and cyclic?
- Number and distribution of harmonic sources – Is distortion caused by a few large drives or many smaller devices spread across multiple feeders?
- Environment and maintenance capabilities – Are filter rooms controlled and accessible, or exposed to harsh conditions with limited access?
- Future expansion plans – Will the plant layout and process mix stay stable, or is significant growth expected?
- Requirements for reactive power compensation and load balancing – Does the facility need integrated improvement in power factor and phase symmetry?
| Aspect | Harmonic Suppression (Passive) | Active Harmonic Filter |
|---|---|---|
| Typical load profile | Steady, predictable loads (large continuous drives). | Variable, fluctuating loads and mixed equipment. |
| Filtering method | Fixed, tuned to selected harmonic orders. | Dynamic, wide‑spectrum mitigation across many orders. |
| Deployment | Close to individual harmonic sources. | At bus level, covering multiple loads simultaneously. |
| Environment | Rugged, tolerant of harsh conditions. | Best in controlled environments with adequate cooling. |
| Power factor impact | Provides local reactive support via capacitors. | Often includes automatic power factor improvement features. |
| Response to changes | Limited adaptation to rapid load variations. | Millisecond‑level response to dynamic load changes. |
| Investment profile | Lower upfront cost per load point. | Higher initial cost, but broader coverage per unit. |
Many facilities achieve the best long‑term performance and cost balance by combining both technologies in a coordinated design.

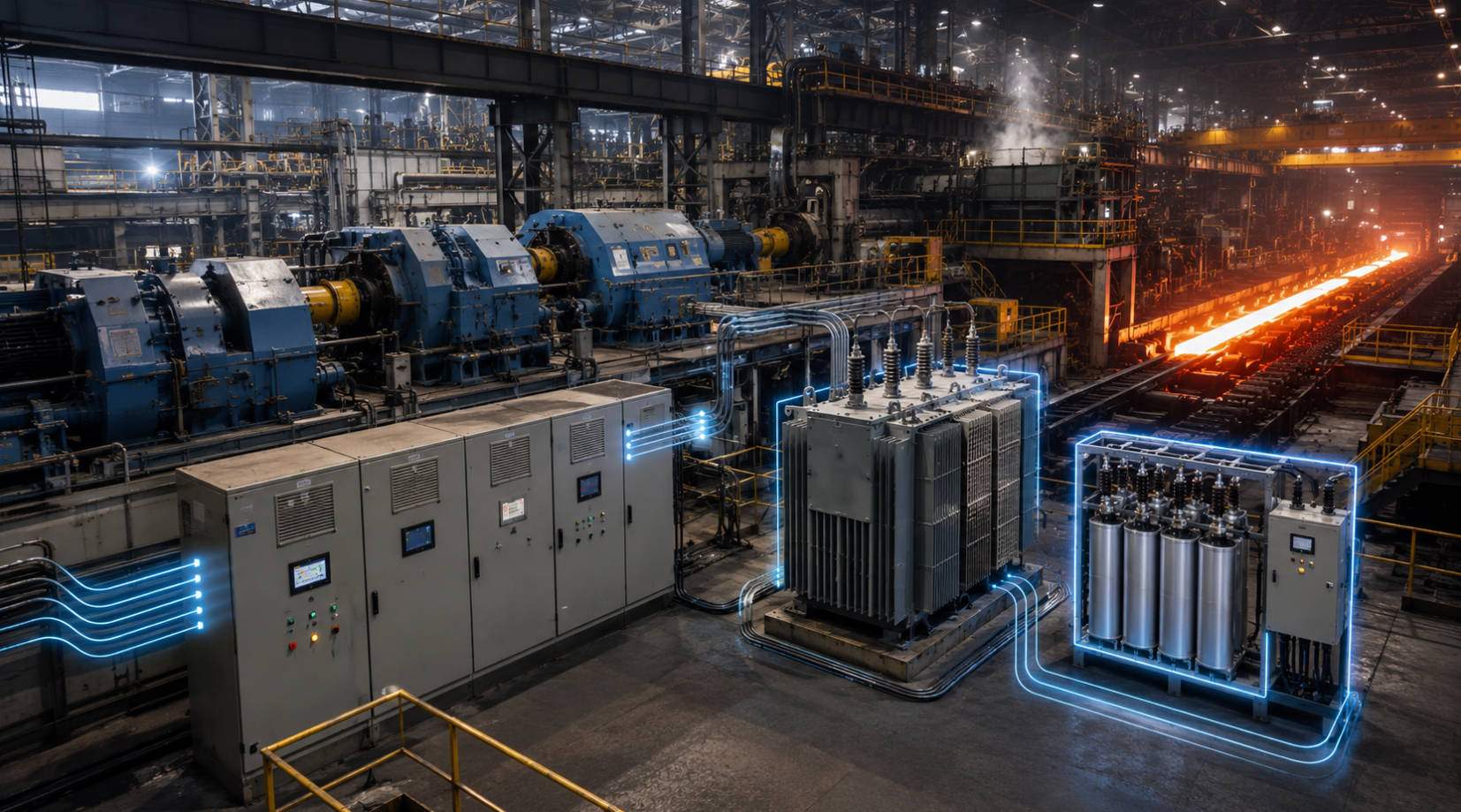

Metallurgy, smelting and rolling mills often rely on large drives and rectifiers with relatively stable operating profiles. In such environments:
- Passive harmonic suppression filters tuned to dominant orders, combined with detuned capacitor banks, provide robust mitigation and reactive compensation.
- In areas where auxiliary drives, cranes or finishing lines introduce more variation, an active harmonic filter at the relevant bus can stabilize the system and prevent interaction between multiple nonlinear loads.
This pattern allows the plant to allocate investment where it has the greatest impact while preserving reliability and simplicity in the most stable sections.
Petrochemical complexes, automotive assembly plants and textile mills tend to have more diversified load portfolios, featuring many smaller drives, robotics, process controls and sensitive instrumentation. In these contexts:
- Active harmonic filters are often the primary solution, because they adjust continuously to changing process flows and expansions.
- Passive filters are selectively applied to known "problem loads" where local mitigation is economical and predictable.
DINGNUO ELECTRIC's expertise in capacitors and reactors can be used to build robust passive systems and to support hybrid architectures in these demanding environments.
For water treatment, metro systems and other critical municipal projects, power quality is directly linked to public safety and service continuity. Here, the preferred approach typically includes:
- Active harmonic filters at critical buses to stabilize the entire system.
- Carefully tuned passive filters and capacitor banks to handle specific equipment and ensure efficient reactive power compensation.
- Redundant design and monitoring to guarantee predictable performance under all operating conditions.
This combination helps ensure reliable operation under peak loads and during future expansions.
In practice, reactive power compensation and harmonic control should be designed as a single, integrated project. Poorly coordinated capacitor banks can amplify certain harmonics and create resonance with the network, undermining the purpose of mitigation.
Recommended practices include:
- Conducting a thorough power quality survey to capture THD, load profiles and power factor by time period and plant section.
- Using reactors to detune capacitor banks, shifting resonance frequencies away from dominant harmonics and protecting components against overheating.
- Considering hybrid solutions that combine passive filters, detuned capacitor banks and active harmonic filters, balancing cost, stability and flexibility.
For DINGNUO ELECTRIC, this integrated approach aligns perfectly with the company's manufacturing strengths in capacitors, reactors and power quality solutions, enabling complete system designs rather than standalone products.
To help industrial users translate these concepts into action, the following step‑by‑step process can guide the choice between active harmonic filters and harmonic suppression filters:
Identify and document all major nonlinear loads:
- Drives, rectifiers, inverters and large electronic equipment.
- Sensitive control systems and instrumentation that may be affected by poor power quality.
Group them by feeder, bus and process area.
Perform measurements during representative production cycles:
- Record THD, harmonic spectra and power factor over time.
- Include worst‑case conditions such as startup, ramp‑up and simultaneous operation of multiple drives.
These measurements become the basis for sizing both passive and active solutions.
Classify loads as either:
- Stable – continuous, predictable operation with minor variation.
- Variable – batch processes, cyclic loads or frequently changing operating states.
Stable loads are usually better candidates for passive filters, while variable loads often justify active solutions.
Based on the classification:
- Apply passive harmonic suppression filters and detuned capacitor banks to buses dominated by one or a few stable high‑power drives.
- Select active harmonic filters for mixed or dynamic sections, sizing units according to measured harmonic currents and desired improvement levels.
This allocation allows each technology to play to its strengths.
Before installation:
- Analyze or simulate the network to identify potential resonance points created by new capacitors and filters.
- Coordinate designs with transformer impedance, cable lengths and upstream network characteristics.
This step is essential to avoid accidental amplification of certain harmonics.
Ensure that:
- Filter cabinets, sensors and communication interfaces are accessible for inspection and diagnostics.
- Regular maintenance routines are established for capacitors, reactors and electronic modules.
Reliable monitoring supports long‑term stability and performance.
A common mistake is trying to solve every power quality problem with a single technology. Adding capacitors everywhere or installing only one large active harmonic filter at the main incomer can work in some cases, but often leaves blind spots.
Hybrid architectures typically excel when:
- A few major harmonic sources coexist with many smaller distributed loads.
- The plant expects significant changes in production lines or equipment mix over time.
- The facility wants both compliance with recommended distortion limits and optimized power factor, with minimal need for manual retuning.
By combining passive filters at known heavy sources with active harmonic filters at strategic buses, DINGNUO ELECTRIC can design systems that balance cost, resilience and scalability across the entire plant.
To make technical information easier to understand for engineers, project managers and procurement teams, the following enhancements can be considered when presenting this content on a web page:
- Use clear, descriptive headings and subheadings that reflect common questions in industrial power quality projects.
- Highlight key terms such as "variable loads", "reactive power compensation", "hybrid solution" and "harmonic spectrum" in bold.

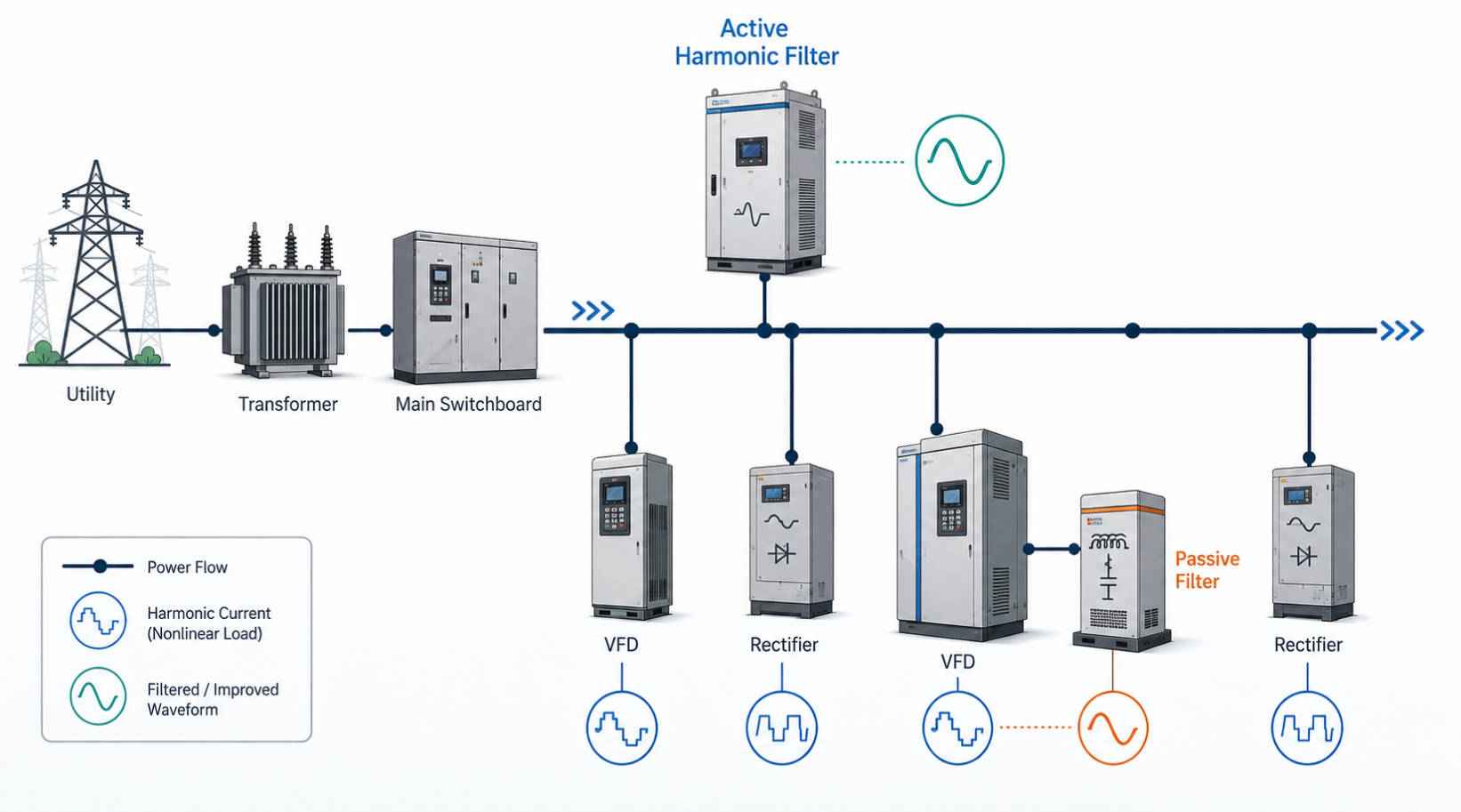

- Insert a single‑line diagram showing where passive filters, active harmonic filters, capacitors and reactors connect on a typical industrial bus.

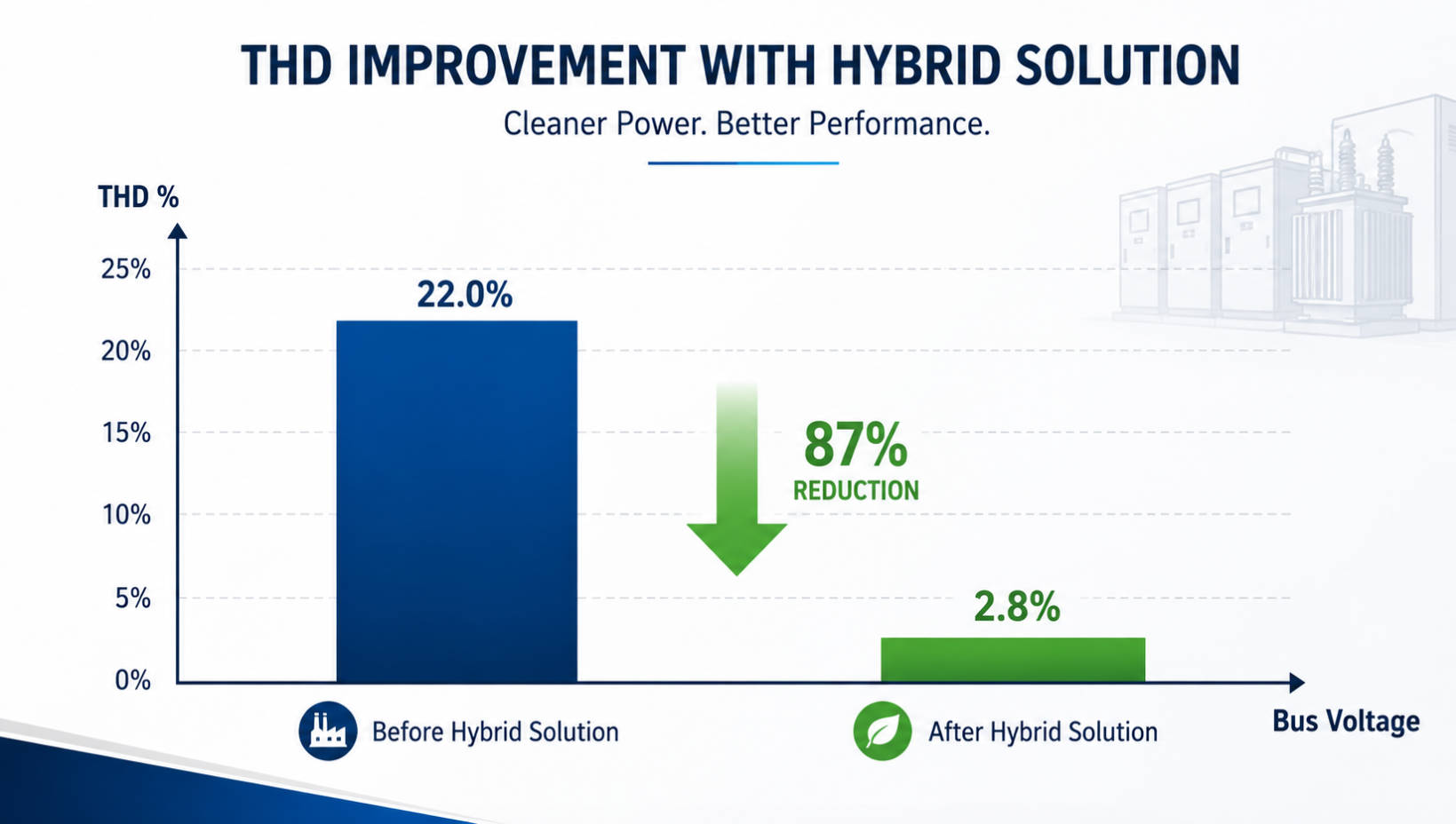

- Include a chart or graph illustrating THD levels before and after mitigation in a representative case, such as an automotive line or water treatment facility.
- Add a photo of actual capacitor banks and reactors from a real installation to strengthen credibility.
These elements help visitors quickly connect the concepts to real‑world systems and decisions.
For industrial users in metallurgy, petrochemical, automotive, papermaking, textile, building materials and key municipal projects, power quality is now a strategic asset. Correctly applied harmonic suppression filters, active harmonic filters, capacitors and reactors can significantly reduce failures, extend equipment life and improve overall efficiency.
By combining field experience with structured analysis, DINGNUO ELECTRIC can help each facility identify where passive solutions are sufficient, where active solutions are necessary and where a hybrid approach unlocks the best long‑term value.
Not necessarily. Facilities dominated by large, steady drives with well‑defined harmonic patterns can often achieve excellent performance using harmonic suppression filters and detuned capacitor banks. Active harmonic filters become more valuable when loads are highly variable or widely distributed.
Sizing should be based on measured harmonic currents rather than just apparent power or connected load. After capturing THD and harmonic spectra under typical and worst‑case conditions, select a filter capacity that can supply the required compensating currents, with the option to add modules in parallel as needed.
Yes. In many high‑performance systems, passive filters are installed on specific nonlinear loads while active harmonic filters are applied at the main bus or key feeders. Proper design and analysis are required to avoid resonance and ensure the two technologies reinforce rather than interfere with each other.
Passive filters contribute reactive power through their capacitors, while many active harmonic filters include functionality to compensate reactive currents and even correct load unbalance. When correctly sized and coordinated, both types of filter can improve power factor and reduce penalties associated with low power factor.
Most industrial facilities refer to widely accepted distortion limits for current and voltage at different system voltages. These guidelines help engineers quantify acceptable THD levels and design filter solutions that maintain compliance at the point of common coupling and within the plant.
