Industrial plants today rely on complex electrical networks filled with drives, automation equipment, and sensitive electronics. In this environment, choosing between active and passive harmonic filters is a strategic decision that affects reliability, efficiency, and long‑term operating cost. This article explores the real differences between the two approaches from a practical engineering perspective and shows how manufacturers of capacitors and reactors can design robust solutions for diverse industries.
In many projects involving reactive power compensation and harmonic control, the same question always comes up: should the plant invest in active harmonic filters or passive harmonic filters? The answer depends on factors such as load characteristics, power quality targets, future expansion plans, and maintenance capabilities. Understanding the technical and practical differences between these two technologies is the first step toward an effective power quality strategy.

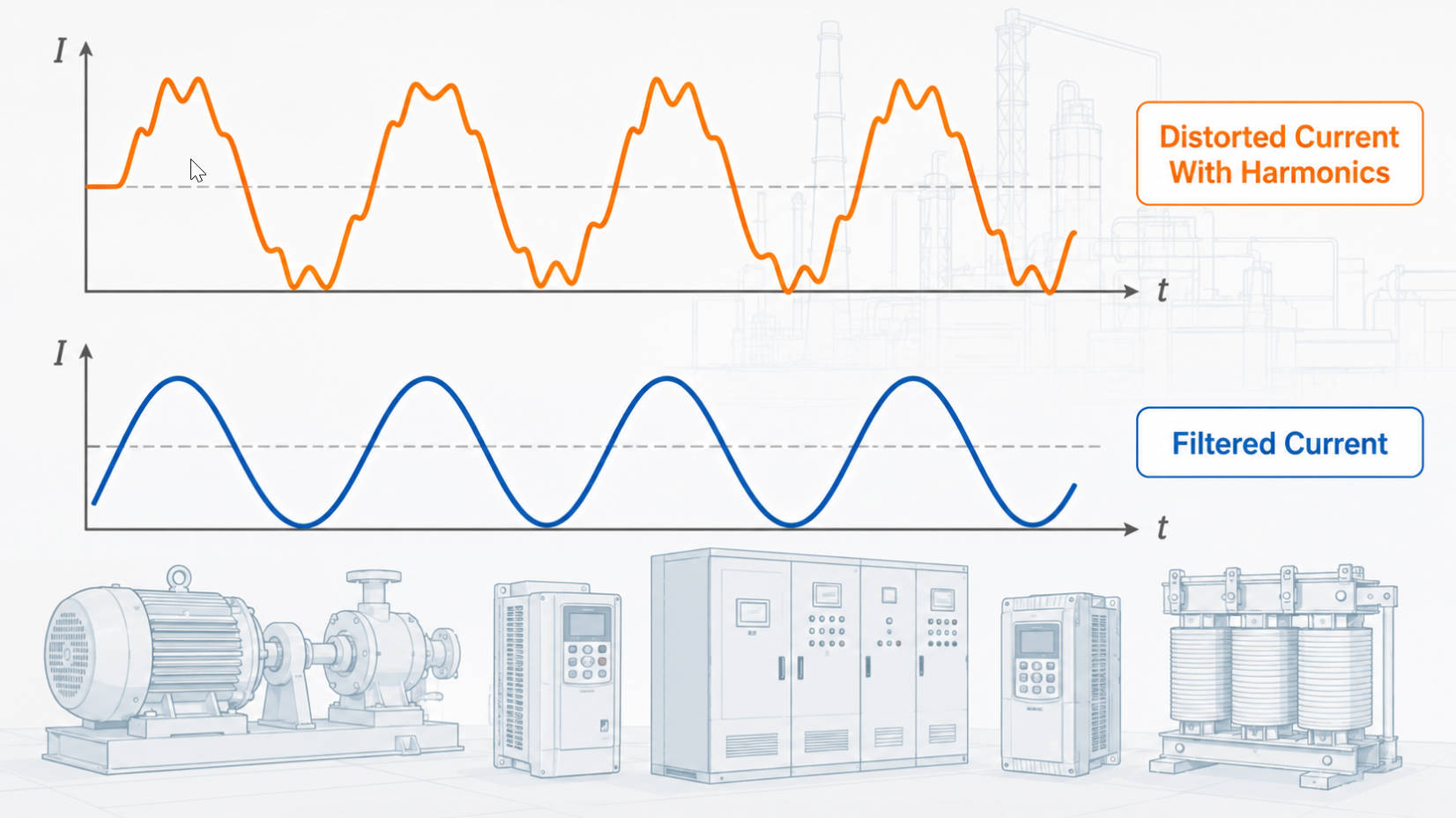

Non‑linear loads have become the norm in modern facilities. Variable frequency drives, inverters, UPS systems, LED lighting, switching power supplies, and digital control systems all contribute to waveform distortion. Instead of a clean sinusoidal current and voltage, the network carries multiple higher‑order components that do not perform useful work but increase losses and stress equipment.
Common problems caused by excessive harmonics include:
- Overheating of transformers, cables, motors, capacitors, and reactors
- Nuisance tripping of protective devices and drives
- Premature aging of insulation and shorter equipment lifetime
- Increased energy losses and reduced overall efficiency
- Interference with control systems, instrumentation, and communication lines
- Difficulty meeting internal power quality requirements or external limits on distortion
For plants in metallurgy, petrochemical, automotive, paper, textiles, building materials and municipal infrastructure, these issues translate directly into unplanned downtime, reduced productivity, and higher operating costs. Harmonic mitigation and reactive power compensation become part of the basic design, not an optional add‑on.

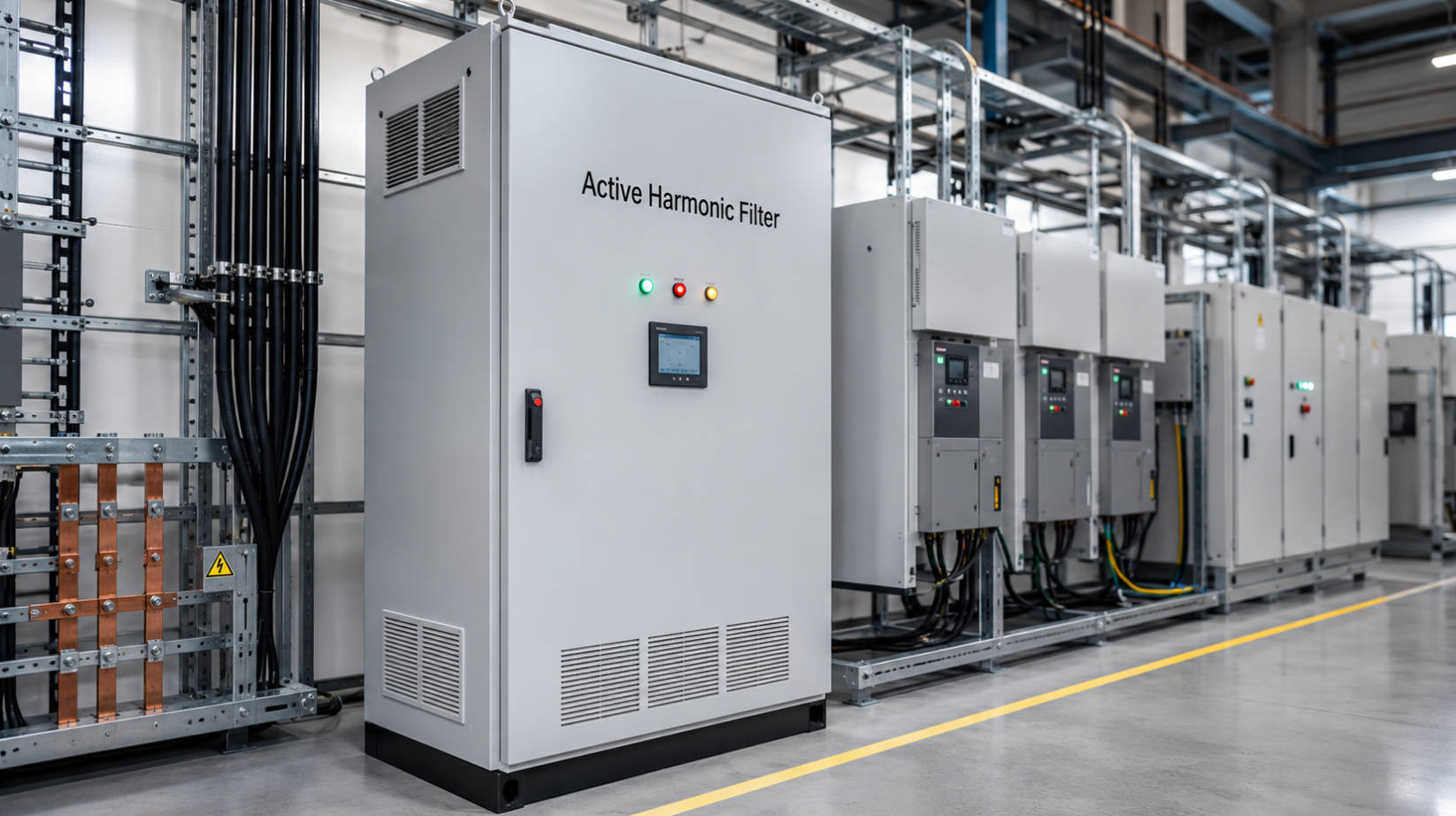

An active harmonic filter is a power electronics device that continuously measures currents and voltages in the network and injects a compensating current to cancel harmonic components. It uses fast digital controllers and semiconductor switches to synthesize a waveform that is equal and opposite to the unwanted harmonics.
Key functional aspects include:
- Continuous measurement of network conditions in real time
- Fast processing of harmonic content through digital control algorithms
- Injection of corrective currents to reduce distortion
- Ability to respond quickly to changes in load and operating conditions
Because the device actively generates the compensating current, it is not limited to a single harmonic order. It can address a wide range of frequencies at the same time, and its response can be tuned to different targets such as total harmonic distortion, specific problematic orders, or the needs of sensitive loads.
Active harmonic filters usually offer a combination of functions in one compact unit. Typical capabilities include:
- Mitigation of multiple harmonic orders simultaneously
- Dynamic response to fluctuating loads and process changes
- Support for parallel operation and modular expansion
- Integrated reactive power compensation and improvement of power factor
- Possibility of phase balancing and voltage stabilization in some configurations
In practice, a single active filter can serve multiple feeders or groups of loads. This "one‑to‑many" concept is particularly attractive in plants with many distributed drives and electronics, where harmonic sources are spread across the network.

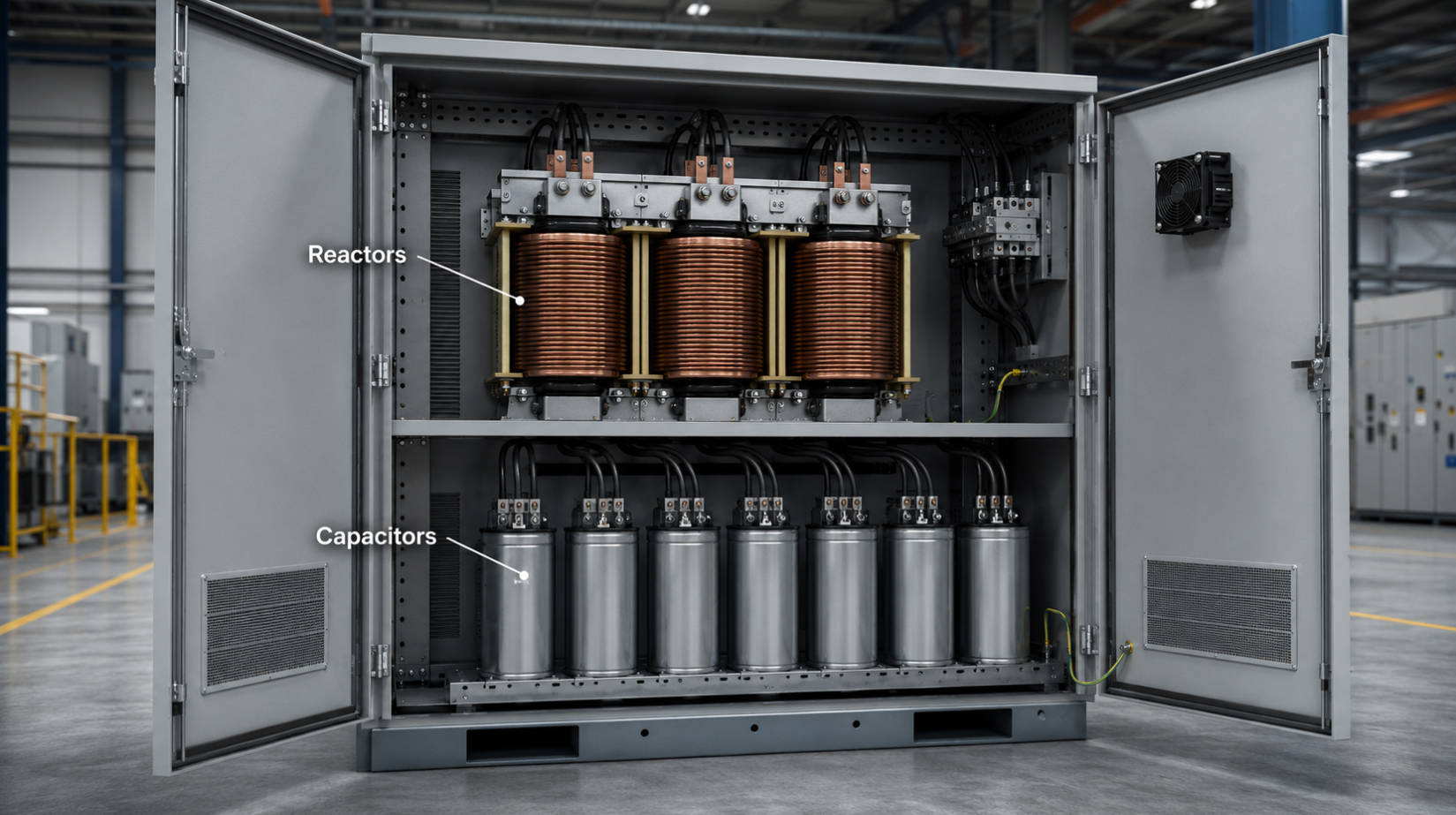

Passive harmonic filters are based on fixed combinations of inductors, capacitors, and resistors. These components are arranged in tuned circuits that present a low impedance path to specific harmonic frequencies. By providing a preferred path for these frequencies, the filter reduces the amount of harmonic current flowing through the rest of the network.
Passive filters are generally designed to target particular harmonic orders known to be dominant in the plant, such as the 5th, 7th, 11th or 13th. They remain in operation continuously once installed and do not change their behavior with load variations.
Passive harmonic filters are characterized by:
- Fixed tuning to one or several harmonic orders
- Simple construction using inductors and capacitors
- Compatibility with traditional capacitor banks and reactor‑protected installations
- Robust behavior in harsh environments and high‑load applications
- Lower initial investment compared with large active devices
Passive filters are often installed close to major harmonic sources. Each filter is usually linked to a specific feeder or large load, making them a "one‑to‑one" solution. This is effective in networks where harmonic sources are well known and relatively stable.
From an engineering perspective, the main differences can be summarized as follows:
- Technology: Active filters rely on power electronics and digital control; passive filters rely on fixed tuned LC circuits.
- Flexibility: Active filters provide wide‑range, adaptive compensation; passive filters target a defined set of harmonics.
- Placement: Active filters can operate as centralized or semi‑central devices; passive filters are typically local to specific loads.
- Response to Changes: Active filters adjust quickly to changing loads and operating conditions; passive filters do not adapt automatically.
- Additional Functions: Active filters can include dynamic reactive power control and phase balancing; passive filters focus primarily on harmonic reduction.
Both technologies can achieve significant reduction of distortion when properly designed and installed. The choice depends on the nature of the loads, the complexity of the network, and the long‑term strategy of the plant.
In real‑world projects, engineers consider several dimensions:
- Performance: Active filters offer more precise and comprehensive mitigation across a broad harmonic spectrum. Passive filters perform well when a small number of harmonics dominate.
- Cost: Passive filters generally require lower initial investment. Active filters may have higher upfront cost but can cover more loads and offer additional functionality.
- Maintenance: Passive filters focus on inspection and replacement of capacitors and reactors. Active filters require routine checks of electronics, cooling, and firmware but may reduce the number of separate devices across the plant.
- Scalability: Active filters are easier to expand as new drives and processes are added. Passive solutions may require additional tuned filters for each new major harmonic source.
The optimal solution often balances these factors rather than pushing one technology exclusively.
Active harmonic filters are particularly suitable for plants with highly dynamic and diversified loads. Typical scenarios include:
- Production lines with multiple variable frequency drives and servo systems
- Automation cells with robots, indexing tables, and fast‑changing cycles
- Facilities with many smaller non‑linear loads spread across several feeders
- Buildings and plants where operating modes vary significantly throughout the day
In these environments, harmonic levels and patterns change rapidly. A device that can monitor and respond in real time provides more stable power quality, keeping distortion within target limits during all operating conditions.
Another reason to select active filters is the need for dynamic reactive power compensation. Instead of relying solely on fixed capacitor banks, engineers can use active systems to:
- Improve power factor across a wide load range
- Compensate both inductive and capacitive reactive power as needed
- Support voltage stability under varying load conditions
- Reduce dependence on mechanical switching of capacitor stages
This integrated approach simplifies system design and can improve overall network efficiency.
Passive harmonic filters are often the preferred choice when the plant has:
- Large motors or drives running at nearly constant load
- Clear measurement data showing a small number of dominant harmonic orders
- Relatively stable operating modes over long periods
In these cases, tuned filters can be engineered to match the existing conditions and deliver effective mitigation with a straightforward design.
Passive filters also fit well when:
- Initial investment must be minimized
- The plant environment is harsh and favors simple, rugged equipment
- Technical staff are experienced with traditional capacitor and reactor systems
- There is limited need for frequent reconfiguration or expansion
For many heavy industrial processes, these conditions are common, making passive filters a practical and proven solution.
Manufacturers specializing in capacitors and reactors play an important role in power quality projects. Typical product ranges include:
- Low‑voltage capacitors for power factor correction
- Tuning reactors for detuned capacitor banks and harmonic protection
- Dry‑type reactors for filter circuits and network impedance control
- Filter compensation systems combining capacitors and reactors in modular assemblies
These elements form the hardware foundation of many passive filter solutions and hybrid systems that integrate active equipment.
Such products are widely used in sectors like metallurgy, petrochemical, automotive, paper production, textile manufacturing, building materials, and municipal projects. In these applications, system design often includes:
- Analysis of load profiles and harmonic spectra
- Selection of appropriate capacitor and reactor ratings
- Configuration of filter banks, detuned stages, and tuned circuits
- Coordination with any existing or planned active devices for harmonics and reactive power
By combining robust components with sound engineering, manufacturers help plant operators ensure stable power quality and reliable operation.
The starting point for any harmonic mitigation project is a thorough measurement campaign. Engineers should:
- Record current and voltage waveforms over representative operating periods
- Analyze total harmonic distortion, individual harmonic orders, and power factor
- Identify feeders, drives, and processes that contribute most to distortion
With reliable data, it becomes possible to distinguish between local and network‑wide problems and to quantify the impact of different loads.
Once the data are available, the next steps are:
- Setting clear internal targets for distortion and power factor
- Deciding whether the emphasis should be on local mitigation or centralized control
- Evaluating configurations based on active filters, passive filters, or a combination
- Performing technical‑economic analysis for initial cost, operating savings, and future adaptability
In many projects, the result is a mixed approach: passive filters dedicated to large stable loads, combined with active systems for multiple smaller and variable loads.

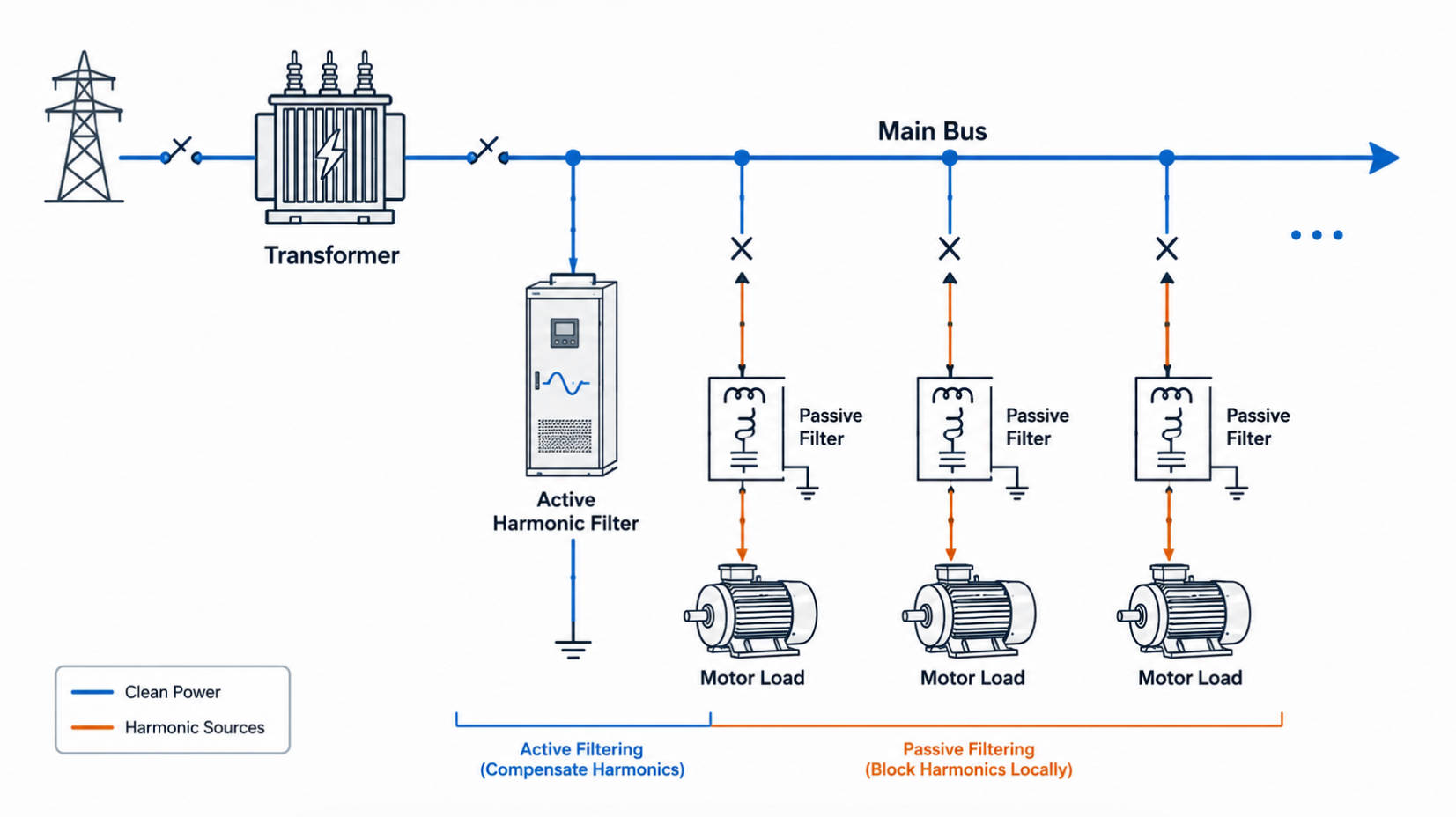

Consider a manufacturing plant that has both large constant‑speed motors and flexible production lines with numerous drives. Measurements show strong low‑order harmonics at a few main feeders, plus varying harmonic patterns across the rest of the network.
A practical solution in such a case may include:
- Tuned passive filters installed at the main feeders that supply the large motors
- Detuned capacitor banks with reactors to provide stable power factor correction
- A centralized active filter installed at the main distribution board or an important busbar to handle remaining harmonics and dynamic changes
By combining both types of technology, the plant benefits from the cost‑effectiveness of passive filters for well‑defined sources and the flexibility of active filters for complex areas.
The increasing use of non‑linear loads across industries has made power quality a strategic topic. Recent developments include:
- Wider adoption of harmonic mitigation solutions in medium and large industrial plants
- Stronger attention to energy efficiency and equipment lifetime as reasons for power quality investment
- Increased demand for integrated systems that combine reactive power compensation and harmonic control rather than treating them separately
Manufacturers and engineering teams are responding with more modular products, better measurement tools, and advanced simulation methods for system design.
Modern projects are increasingly designed with future expansion in mind. This leads to approaches such as:
- Provision of spare capacity in filter systems
- Use of modular active platforms that can be extended as the plant grows
- Allocation of space and connection points for future compensation equipment
- Ongoing monitoring programs to track changes in load and power quality over time
By treating harmonic mitigation as a living part of the electrical infrastructure, plants maintain stable performance even as processes evolve.
Choosing between active and passive harmonic filters is not a one‑size‑fits‑all decision. Active filters offer dynamic, wide‑range mitigation and can combine harmonic control with reactive power management, making them ideal for plants with complex and evolving loads. Passive filters provide tuned, robust solutions at lower initial cost and remain a strong choice for stable processes with well‑defined dominant harmonics.
In practice, many successful projects use a hybrid strategy that combines both technologies. Careful measurement, clear performance targets, and a structured design process allow plant engineers to build power quality solutions that match both current needs and future plans, while manufacturers of capacitors, reactors, and filter systems provide the hardware backbone that keeps industrial operations running safely and efficiently.
Not all plants require dedicated harmonic filters, but any facility with a significant number of non‑linear loads should at least perform measurements to understand distortion levels. If harmonics cause overheating, trips, or unstable operation, mitigation becomes necessary.
Yes. A mixed approach is common and often effective. Passive filters can be installed at large stable loads, while active filters can be placed centrally to deal with variable and distributed harmonics across several feeders.
Benefits such as reduced trips, lower temperatures in transformers and cables, and improved power factor can appear immediately after commissioning. Longer‑term gains include extended equipment life and improved reliability, visible over months and years.
Passive filters require regular inspection of capacitors, reactors, connections, and protective devices. When maintenance routines are established and components are selected correctly, they are straightforward to maintain and operate.
Active filters use more advanced technology, but this does not mean they are always the best choice. In some applications, a well‑designed passive solution can meet all requirements with lower complexity. The most suitable option depends on load behavior, budget, and long‑term plans.
