CNC machine workshops depend on stable, clean electrical power to protect precision equipment, prevent unexpected drive alarms, and maintain consistent machining quality. When comparing an Active Harmonic Filter with a Harmonic Filter Cabinet, decision-makers should look beyond the equipment name and assess the workshop's load profile, harmonic spectrum, expansion plans, compliance requirements, and total lifecycle cost.
For many CNC facilities, variable-speed spindle drives, servo drives, rectifiers, welding equipment, compressors, and switching power supplies generate harmonic currents. These nonlinear loads can distort the electrical waveform, increase transformer and cable heating, trigger capacitor-bank failures, and create nuisance trips. A properly selected harmonic mitigation solution helps a workshop improve power quality while supporting stable, high-accuracy production.
Important clarification: A harmonic filter cabinet is a physical, engineered enclosure or switchboard assembly. It may contain passive harmonic filters, detuned reactors, capacitor banks, active harmonic filter modules, protection devices, meters, and cooling components. Therefore, the real comparison is often an active harmonic filter solution versus a passive or hybrid harmonic filter cabinet.
Modern CNC workshops are increasingly power-electronic environments. A single CNC machine may include servo systems, AC drives, DC bus capacitors, switching power supplies, and electronic controls. When dozens of machines operate on the same low-voltage distribution network, their combined harmonic currents can become a significant power-quality issue.
In practical factory assessments, the most common concerns include:
- Overheating transformers, cables, switchgear, and neutral conductors
- Frequent tripping of circuit breakers or protective relays
- CNC drive faults, encoder errors, or unexplained machine resets
- Reduced life of capacitors and contactors
- Higher electrical losses and lower system efficiency
- Difficulty meeting utility or internal harmonic-distortion requirements
- Limited capacity for adding new CNC machines or automation cells
For CNC workshops, harmonics are not only an electrical engineering issue. They can become a production reliability issue. Unplanned downtime on a machining line may cause missed delivery dates, rework, tooling damage, and loss of operator time.

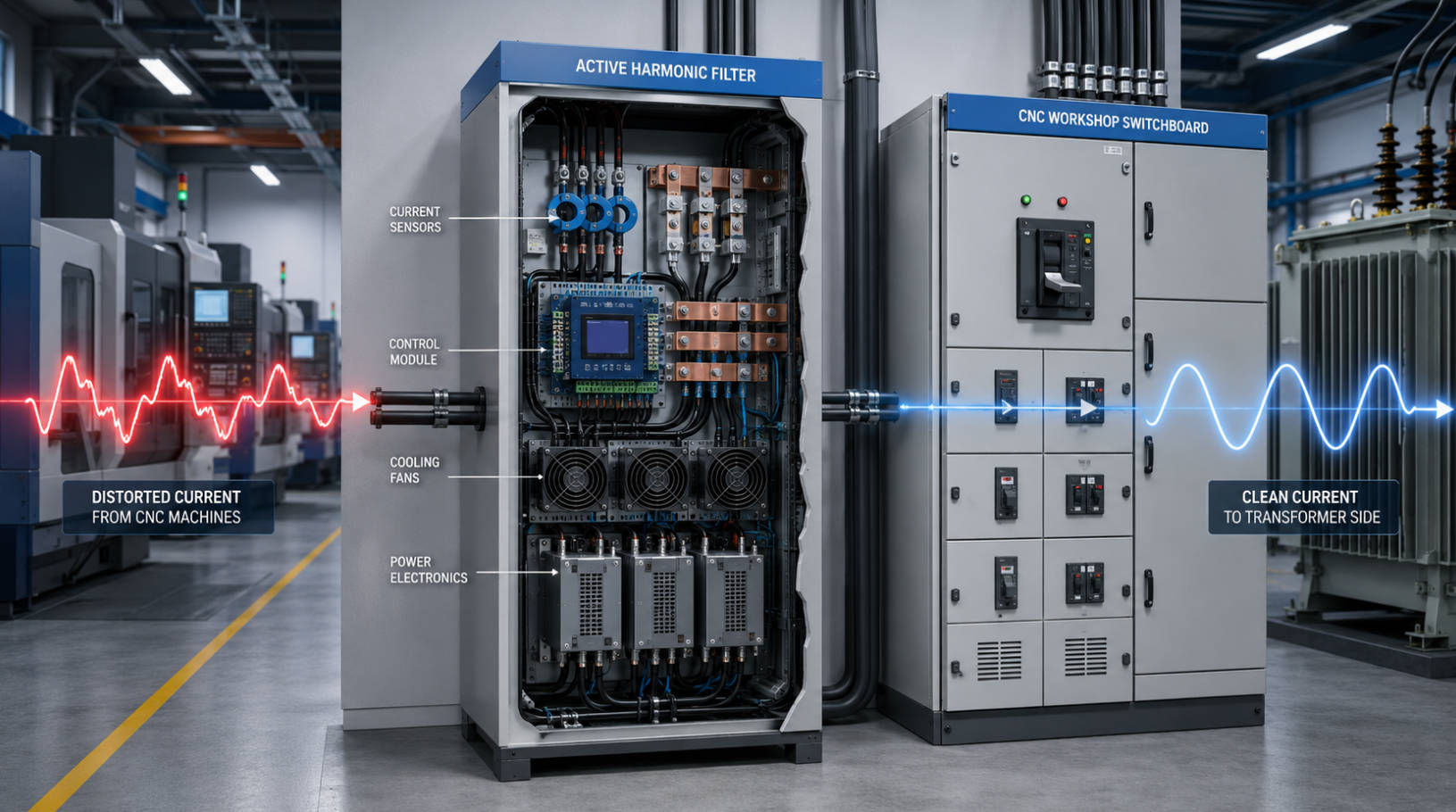

An Active Harmonic Filter continuously measures harmonic current and injects an equal but opposite compensating current. A harmonic filter cabinet, by contrast, may use tuned passive components to absorb selected harmonic frequencies, or it may integrate active technology into a complete cabinet-based solution.
An Active Harmonic Filter (AHF) is a power-electronic device designed to measure the current waveform in real time. Its controller separates the unwanted harmonic, reactive, and unbalanced current components from the fundamental current.
The filter then produces a compensating current that is opposite in phase to the distortion created by nonlinear loads. This process reduces harmonic current flowing upstream into transformers, switchboards, generators, and the utility connection point.
- Dynamic compensation: It reacts automatically as CNC machines start, stop, accelerate, decelerate, or change cutting programs
- Broad harmonic coverage: It can address multiple harmonic orders at the same time rather than only one preset frequency
- Modular expansion: Additional filter modules can often be added when the workshop installs more machine tools
- Reactive power support: Many active filters can also compensate reactive power and improve displacement power factor
- Load balancing capability: Certain models can reduce phase-current imbalance in three-phase systems
- Lower resonance concern: Unlike a passive LC network, an active filter does not rely on a fixed tuning frequency that may interact with changing system impedance
For a workshop operating multiple CNC machining centers with unpredictable production schedules, an AHF usually provides a more flexible response. It is particularly useful where machines do not run at constant loads throughout the day.
An AHF is not automatically the right answer for every workshop. It has a higher initial investment than a basic passive filter arrangement. It also requires adequate enclosure design, ventilation, cable routing, CT installation, protection coordination, and commissioning by qualified power-quality engineers.
The filter's current rating must be selected according to measured harmonic current, diversity among CNC machines, future expansion, and the target distortion level. Oversizing wastes budget; undersizing can leave the workshop with unresolved harmonic problems.
A Harmonic Filter Cabinet is typically a complete power-quality assembly installed near the main distribution board, CNC workshop feeder, or specific production area. Depending on the design, the cabinet may contain passive tuned filters, detuned capacitor banks, reactors, contactors, fuses, controllers, meters, and sometimes active harmonic filter modules.
In many industrial projects, a passive harmonic filter cabinet uses capacitor-reactor branches tuned to target common frequencies such as the 5th, 7th, 11th, or 13th harmonic. These filters create a lower-impedance path for selected harmonic currents.
- Lower initial cost for stable and predictable loads
- Integrated design with protection, monitoring, reactors, and capacitors in one enclosure
- Targeted filtering for known dominant harmonic orders
- Reactive power compensation when capacitor banks are included
- Robust construction suitable for demanding industrial environments
- Straightforward maintenance for stable applications with regular capacitor and reactor inspections
A passive harmonic filter cabinet may be a strong fit for a dedicated CNC production line where machine quantity, load level, operating hours, and harmonic spectrum remain relatively constant.
The main limitation is that a conventional passive design is tuned for a defined electrical condition. If the workshop adds new CNC machines, changes drive types, installs a large compressor, or modifies transformer capacity, the harmonic spectrum and network impedance may change.
When this happens, a passive filter may no longer provide its intended performance. In some cases, it can create or worsen resonance conditions. This is why a harmonic study should always be completed before selecting capacitor-reactor filter stages.

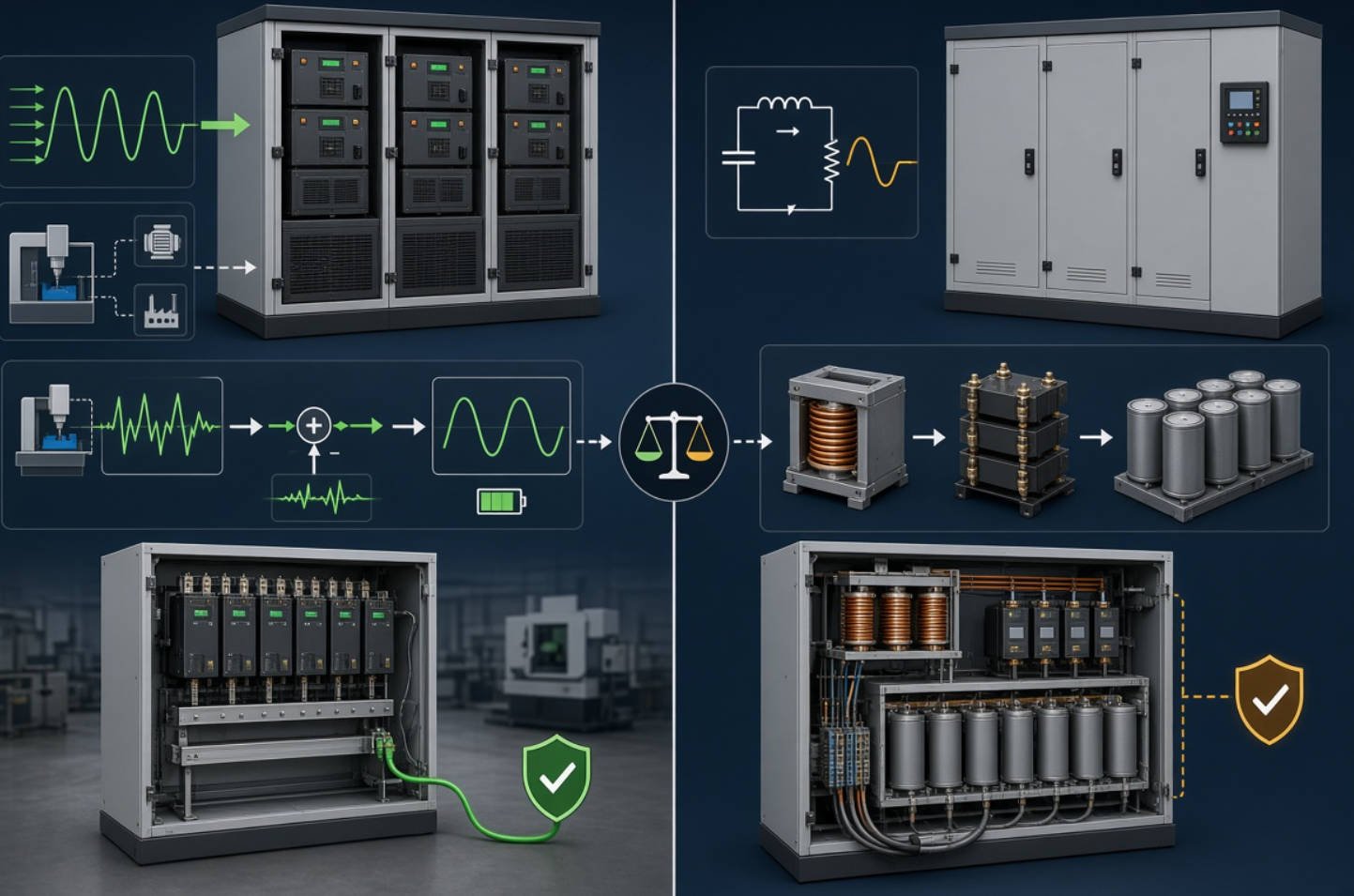

| Comparison Factor | Active Harmonic Filter | Passive Harmonic Filter Cabinet |
|---|---|---|
| Operating principle | Injects real-time compensating current | Uses reactors and capacitors tuned to selected frequencies |
| Best load profile | Variable, mixed, and expanding CNC loads | Stable, predictable, well-defined loads |
| Harmonic coverage | Broad, multi-order compensation | Targeted harmonic orders |
| Response to load changes | Automatic and dynamic | Fixed or limited response |
| Reactive power compensation | Usually available dynamically | Available if designed with capacitor stages |
| Resonance risk | Low in normal application | Requires careful study and tuning |
| Installation flexibility | Modular, parallel connection, scalable | Often fixed around designed load conditions |
| Upfront investment | Medium to high | Low to medium |
| Maintenance focus | Cooling, electronics, controls, periodic inspection | Capacitor health, reactor condition, contactors, thermal checks |
| Future expansion | Usually easier | May require redesign or additional filter branches |
| Suitable CNC workshop | High-mix, multi-machine, automated production | Stable production cells with predictable operating patterns |
The best comparison is not "which product is better?" The better question is: which solution matches the electrical behavior of the CNC workshop?
A high-mix workshop operates different CNC lathes, vertical machining centers, five-axis machines, robotic cells, air compressors, and welding equipment. Loads change continuously as production orders change.
In this scenario, an Active Harmonic Filter is usually the better option. The harmonic current changes with spindle speed, servo loading, machine count, and auxiliary equipment. A dynamic filter can adjust compensation without requiring retuning every time the operating profile changes.
A workshop has several similar CNC machines running similar programs for long production shifts. The load profile is relatively stable, and the harmonic study identifies dominant lower-order harmonics.
A well-designed passive harmonic filter cabinet can be a cost-effective choice. It can target known harmonics and provide reactive power compensation, provided that transformer impedance, capacitor stages, and future load changes are evaluated carefully.
A manufacturer plans to add automated machining cells, robotic handling systems, more VFD-driven pumps, and advanced inspection equipment over the next two years.
A modular Active Harmonic Filter or hybrid harmonic filter cabinet is generally safer. It allows staged capacity growth and reduces the risk that a fixed passive design becomes unsuitable after expansion.

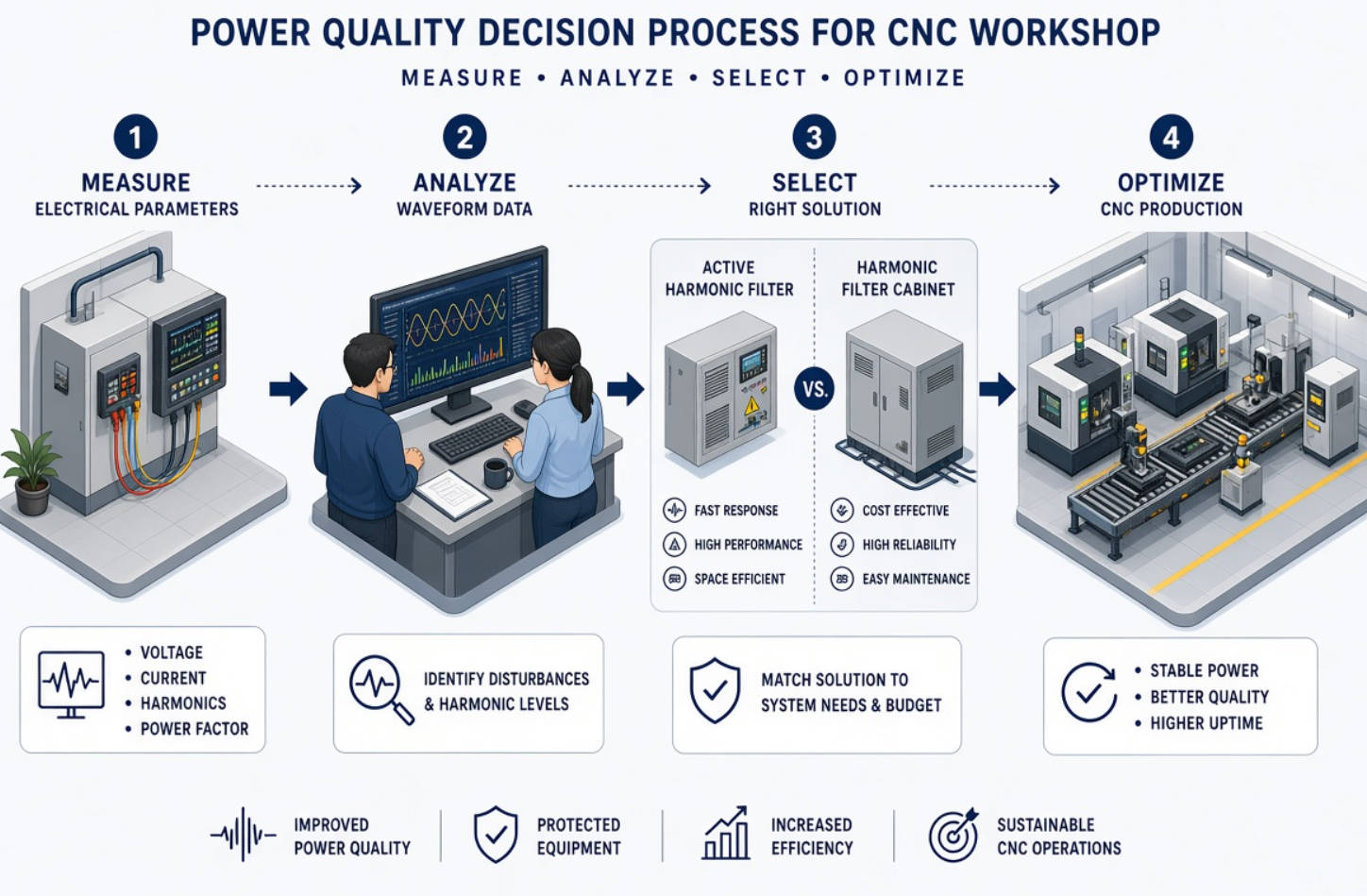

From an engineering and lifecycle-cost perspective, purchasing a filter based only on rated current is a common mistake. A reliable harmonic mitigation project begins with measurement and system analysis.
Use a suitable power-quality analyzer to record:
- Current THD and voltage THD
- Individual harmonic orders
- Maximum demand current
- Transformer loading
- Power factor
- Phase imbalance
- Load variations across full production shifts
- CNC machine operating conditions during measurement
Measurement should include normal production, peak production, machine startup, and periods when large auxiliary loads operate.
Determine whether harmonic mitigation is needed at:
- The main incoming low-voltage switchboard
- A transformer secondary busbar
- A CNC workshop feeder
- A dedicated high-harmonic machine group
- A specific sensitive production line
Centralized filtering offers broader coverage. Localized filtering can be effective when one group of machines causes most of the harmonic current.
The target should be based on the point of common coupling, local utility requirements, equipment sensitivity, and applicable power-quality standards. For many industrial facilities, engineers evaluate voltage distortion and current distortion separately because the acceptable limits depend on the installation voltage and the available short-circuit capacity.
Do not specify an unrealistic target without confirming the electrical system's fault level and load conditions. A target that looks excellent on paper may require excessive investment if it is not aligned with the site's actual compliance requirement.
A lower-cost cabinet may appear attractive during procurement. However, the final decision should also include:
- Production downtime risk
- Expected workshop expansion
- Cost of transformer and cable overheating
- Capacitor replacement frequency
- Energy losses
- Installation space
- Maintenance access
- Need for future retuning or redesign
For a changing CNC workshop, the flexibility of an AHF may justify its higher initial investment.
A hybrid harmonic filter solution combines passive and active technologies. The passive section handles stable, dominant lower-order harmonics, while the active section compensates for changing harmonics, reactive current, and imbalance.
This approach can be valuable for large CNC factories where harmonic current is high but budget efficiency remains important. Instead of sizing an active filter for the entire harmonic load, the passive cabinet can manage predictable base harmonics while the active filter handles variation.
A hybrid design should not be treated as a standard package. It requires engineering review of harmonic impedance, capacitor switching, resonance risk, equipment coordination, and future expansion plans.
The performance of any harmonic mitigation system depends on correct design and installation.
Before commissioning, confirm the following:
1. CT location, direction, ratio, and phase sequence are correct
2. Filter current rating includes an appropriate margin for load variation
3. Cable size, breaker rating, and protection settings match the equipment
4. Cabinet ventilation and ambient temperature meet the manufacturer's requirements
5. Capacitor stages include suitable protection and detuning where required
6. The installation leaves access for maintenance and thermal inspection
7. Harmonic performance is verified after commissioning under real CNC production loads
8. Future machine additions are documented for later power-quality review
For passive harmonic filter cabinets, periodic checks should focus on capacitor capacitance, reactor temperature, fuse condition, contactor wear, loose terminals, and signs of overheating. For active harmonic filters, maintenance should also include cooling-system inspection, fan checks, controller alarms, firmware recommendations, and communication monitoring where applicable.
For CNC machine workshops with fluctuating production, mixed machine types, frequent expansion, and sensitive automation equipment, an Active Harmonic Filter is usually the more future-ready solution. Its dynamic compensation helps manage changing harmonic conditions and supports a scalable power-quality strategy.
A Harmonic Filter Cabinet remains a practical choice when loads are stable, dominant harmonics are known, and the electrical system has been properly studied. It can provide reliable, cost-effective filtering and reactive power compensation for predictable production environments.
DINGNUO ELECTRIC CO., Ltd. can help manufacturers evaluate their CNC workshop power quality, analyze harmonic sources, and develop a tailored solution using active harmonic filters, harmonic filter cabinets, reactors, capacitor systems, or hybrid compensation systems. Request a power-quality assessment before selecting equipment to ensure the solution matches your actual harmonic spectrum, operating conditions, and expansion plan.
An Active Harmonic Filter is an electronic device that dynamically compensates for changing harmonic currents. A harmonic filter cabinet is an integrated enclosure that may contain passive filters, capacitors, reactors, protection components, monitoring equipment, or active filter modules.
Yes. Active Harmonic Filters are especially suitable for CNC workshops with variable spindle drives, servo systems, changing production schedules, and multiple nonlinear loads. They can adapt as machine loading changes.
Yes. Many passive harmonic filter cabinets include capacitors and reactors that provide reactive power compensation while filtering selected harmonic frequencies. The design must be engineered to avoid resonance.
A power-quality survey is the most reliable method. Engineers should measure voltage and current distortion, individual harmonic orders, load variation, transformer loading, power factor, and the electrical behavior of CNC machines during actual production.
In many applications, an Active Harmonic Filter can provide dynamic reactive power compensation in addition to harmonic mitigation. However, the best configuration depends on the required kvar capacity, harmonic level, and the facility's operating conditions.
An incorrectly designed passive filter may provide poor harmonic reduction, overload capacitors or reactors, cause leading power factor, or create resonance with the electrical network. A harmonic study is essential before installation.
Yes. A hybrid system can be an efficient option for large workshops with both steady and variable harmonic loads. Passive components handle predictable harmonics, while active filtering manages dynamic changes.
1. IEEE 519-2022 voltage-distortion limits and PCC measurement principles, summarized by Comsys. [Power Quality – IEEE 519-2022] [powerquality]
2. TCI, IEEE 519-2022, including user and utility responsibilities and current-distortion considerations. [IEEE 519 2022] [transcoil]
3. MTE Corporation, Passive vs. Active Harmonic Filters: Which Is Right for You? [Passive vs Active Harmonic Filters] [mtecorp]
4. REO UK, A Comparative Analysis of Passive and Active Harmonic Filtering for VSD Loads. [Passive and Active Harmonic Filtering for VSD Loads] [reo.co]
5. Chitek Inno, Active vs. Passive Harmonic Filters: Where Each Actually Fits. [Active vs Passive Harmonic Filters] [en.chitek-inno]
6. Journal of Applied Electrical Engineering, Harmonic Analysis and Performance of a VFD-Controlled System. [VFD Harmonic Analysis PDF] [jurnal.polibatam.ac]
7. Journal of Electrical Engineering, Harmonic Distortion Analysis in CNC Turning Machine. [CNC Turning Machine Harmonic Study PDF] [jee.upt]
