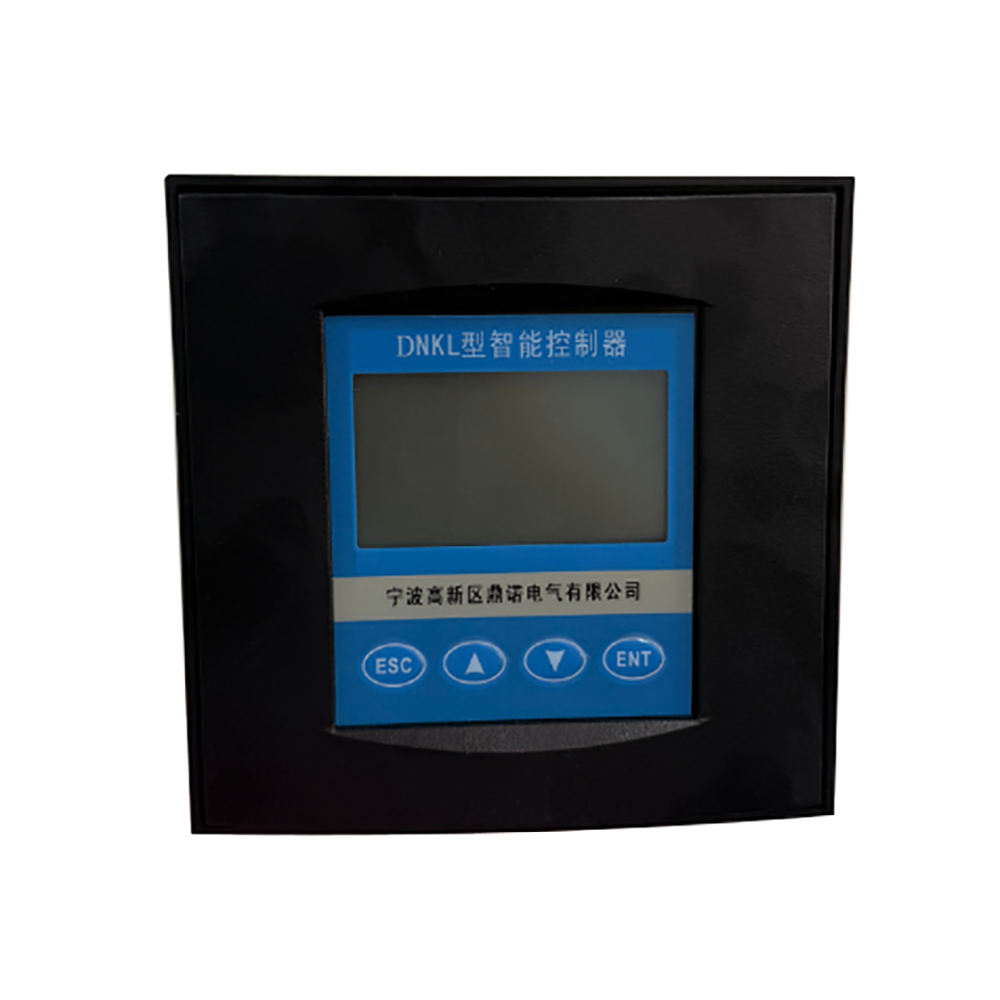

Low-Voltage Dnkl Series

Functional feature

The DNKL series reactive power compensation intelligent controller uses a high-speed microprocessor as the control core, which has powerful functions,strong anti-interference ability,and fast operation speed. The product is manufactured using surface mount technology and is matched with parallel capacitor devices to control the automatic switching of compensation capacitors, thereby improving power factor, enhancing the utilization efficiency of power transformers, reducing line losses, and improving power quality.The controller uses voltage (U)or reactive power (Q)as the control physical quantity (which can be flexibly selected according to customer needs), and can meet the needs of different users.

 This product is suitable for capacitor compensation in box type substations and standard screen structures.

According to the different compensation methods of capacitors, this controller has two types to choose from:hybrid compensation and fully balanced compensation, with corresponding numbers of 3 and 1 current transformers, respectively.

Main Features

Environmental conditions for use

•  Environmental temperature: -20°C-+70°C

•  Relative temperature: less than 90% at 25°C

•  Atmospheric pressure: 79.5Kpa -106.0Kpa (altitude below 2000 meters)

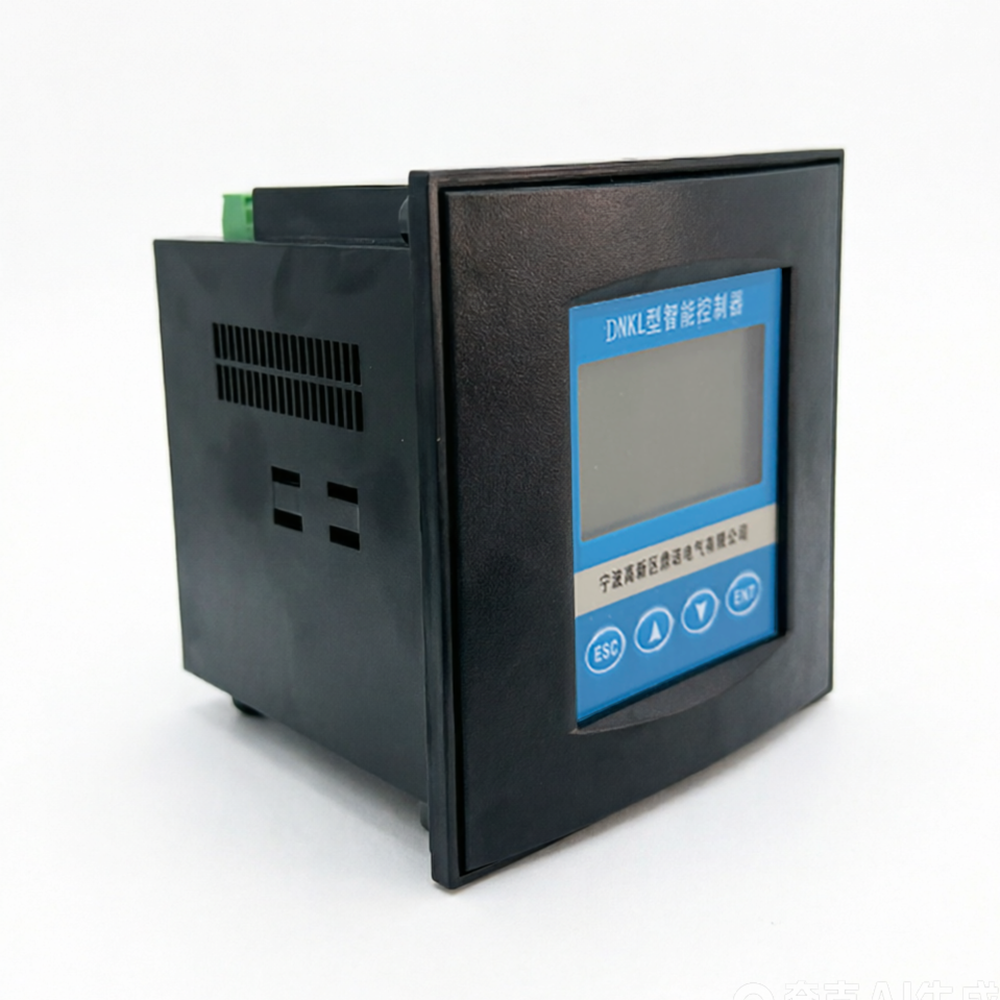

Device appearance and installation opening size

• Conventional devices are installed in embedded chassis

•  Dimensions: 144mm *144mm *85mm Hole size: 138mm *138mm

• The touch sensitive device is installed in an embedded chassis

• Dimensions: 226mm *163mm *5lmm

• Hole size: 215mm * 152mm

Product reference standards

• DUT599-1996 Technical Guidelines for Urban Medium and Low Voltage Distribution Network Renovation

• DLIT814-2002 Functional Specification for Distribution Automation System

• DLIT597-1996 Technical Specifications for Ordering Low Voltage uncompensated Controllers

Parameters

•  control output

•  12-24 output channels

•  AC contactor switching capacitor signal switch quantity (AC200V5A)

•  Controllable silicon switch or composite switch power module signal: DC12V

•  Control output mode setting Partial compensation and co compensation encoding can be sat arbitrarily according to requirements

•  Capacitor capacity setting OKvar-100kvar level difference 1

•  CT setting:50-3000 level difference5

•  Inter group demonstration: 0-60S

•  Cutting method: First, make up for the total amount, then make up for it separately (take the equal amount to make up for it)

•  Measurement accuracy:Voltage level 0.5, current level 1.0

•  Protection functions: over voltage, under voltage, under voltage, phase loss

Technical Instructions

• WORKING VOLTAGE: AC220V+20% 6

• RATED FREQUENCY: 50HZ

Mixed compensation type

•  Sampling voltage: AC220V, 20% three-phase

•  Sampling current: AC 0-5A three-phase (secondary side current of circuit transformer)

Fully balanced compensation type

•  Sampling voltage: AC400V+20%

•  Sampling current: AC 0-5A phase (secondary side current of circuit transformer
