Industrial power factor correction is no longer simply a matter of installing a capacitor bank. In modern facilities with variable-frequency drives, rectifiers, welding equipment, UPS systems, arc furnaces, and other nonlinear loads, the right solution must improve power factor without amplifying harmonics or creating resonance risks.
At DINGNUO ELECTRIC CO., Ltd., we design capacitor and reactor solutions for reactive power compensation, harmonic mitigation, and long-term power-quality reliability. Based on practical engineering experience across metallurgy, petrochemical processing, automotive manufacturing, paper production, textile plants, building-material facilities, and municipal infrastructure, this guide explains how to select the most appropriate power factor correction method for real industrial operating conditions.
Power factor correction, often abbreviated as PFC, is the process of improving how efficiently an electrical system uses supplied power. It reduces unnecessary reactive power demand, lowers current in cables and transformers, releases system capacity, and can help facilities avoid utility power-factor penalties.
The basic power factor formula is:
Power Factor=Active Power (kW)/Apparent Power (kVA)
- Active power (kW) performs useful work, such as driving a motor, producing heat, operating pumps, or running production equipment.
- Reactive power (kvar) supports magnetic fields in inductive equipment such as motors, transformers, welding machines, and inductive furnaces.
- Apparent power (kVA) is the total electrical power that the utility, transformer, cables, and switchgear must deliver.
A power factor close to 1.00 means that a large share of the supplied power is being converted into useful work. A low power factor means the facility requires more current to deliver the same useful kW output.
For industrial users, the objective is usually not an absolute 1.00 power factor. A properly engineered target—often determined by utility requirements, load characteristics, transformer capacity, and harmonic conditions—usually delivers better operating stability than excessive compensation.
Poor power factor has consequences beyond a higher electricity bill. It increases the electrical burden across the entire distribution network.
When power factor falls, the system must carry more current to supply the same active power. Higher current increases \(I^2R\) losses in cables, busbars, transformers, and switchgear.
For example, a production line drawing 500 kW at 0.70 power factor requires approximately 714 kVA. Improving the power factor to 0.95 reduces the apparent-power requirement to about 526 kVA. That difference can release substantial capacity in transformers and low-voltage distribution equipment.
Many utilities bill industrial and commercial customers based on maximum demand, kVA demand, reactive energy, or power-factor performance. A facility may therefore pay more even when its kWh consumption remains unchanged.
A correctly designed reactive power compensation system can help reduce:
- Power-factor penalties
- Reactive energy charges
- Excessive kVA demand
- Transformer overloading
- Unnecessary investment in additional distribution capacity
A low power factor consumes valuable capacity in the electrical network. Transformers, generators, cables, circuit breakers, and busbar systems are rated in current or kVA—not only in kW.
Improving power factor can allow an existing electrical infrastructure to support more productive load without immediately expanding the transformer or switchgear system.
Excessive reactive current can worsen voltage drop, especially in facilities with long cable runs, large motors, pumps, compressors, or heavily loaded low-voltage networks. Voltage instability can affect motor torque, process consistency, equipment life, and production continuity.

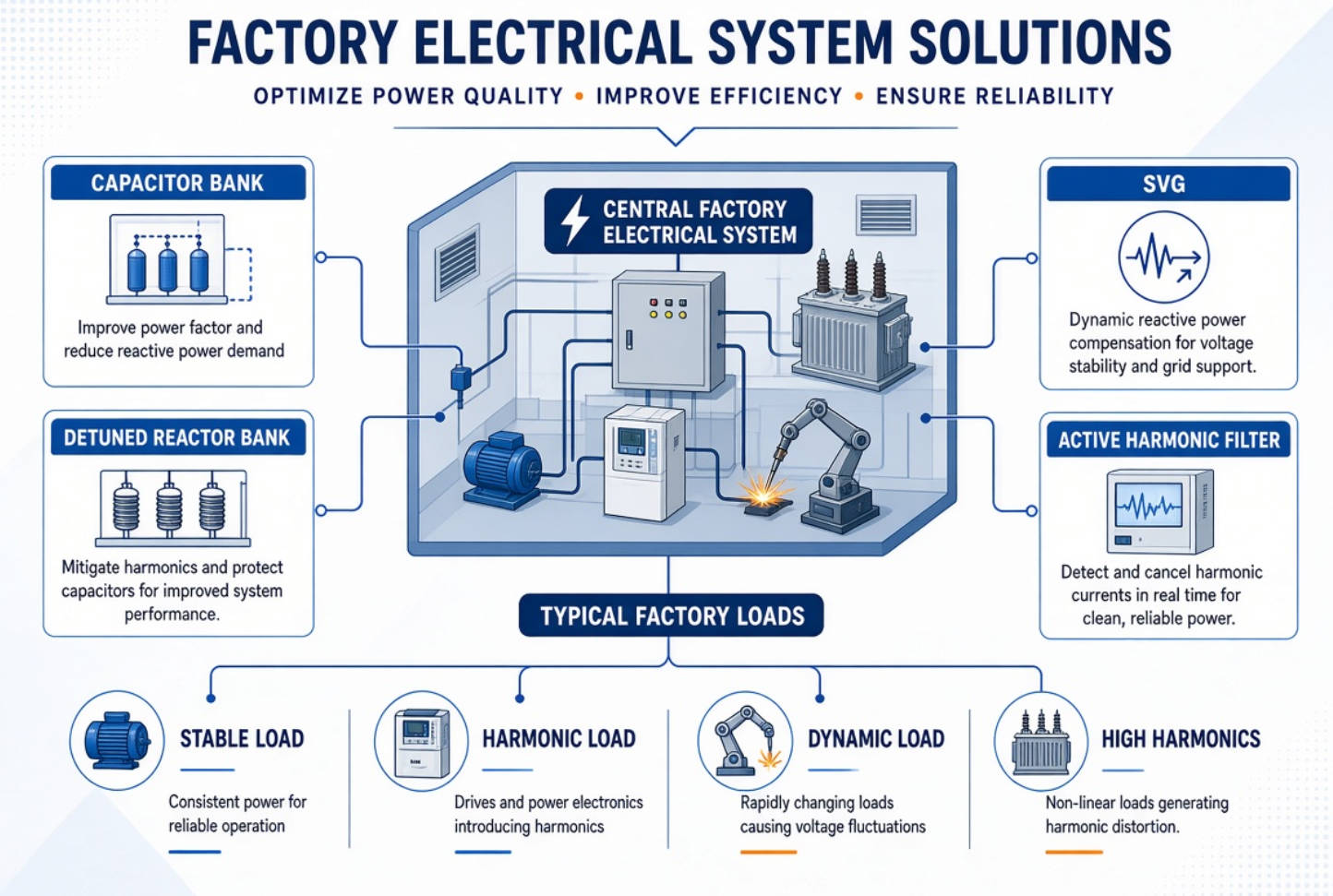

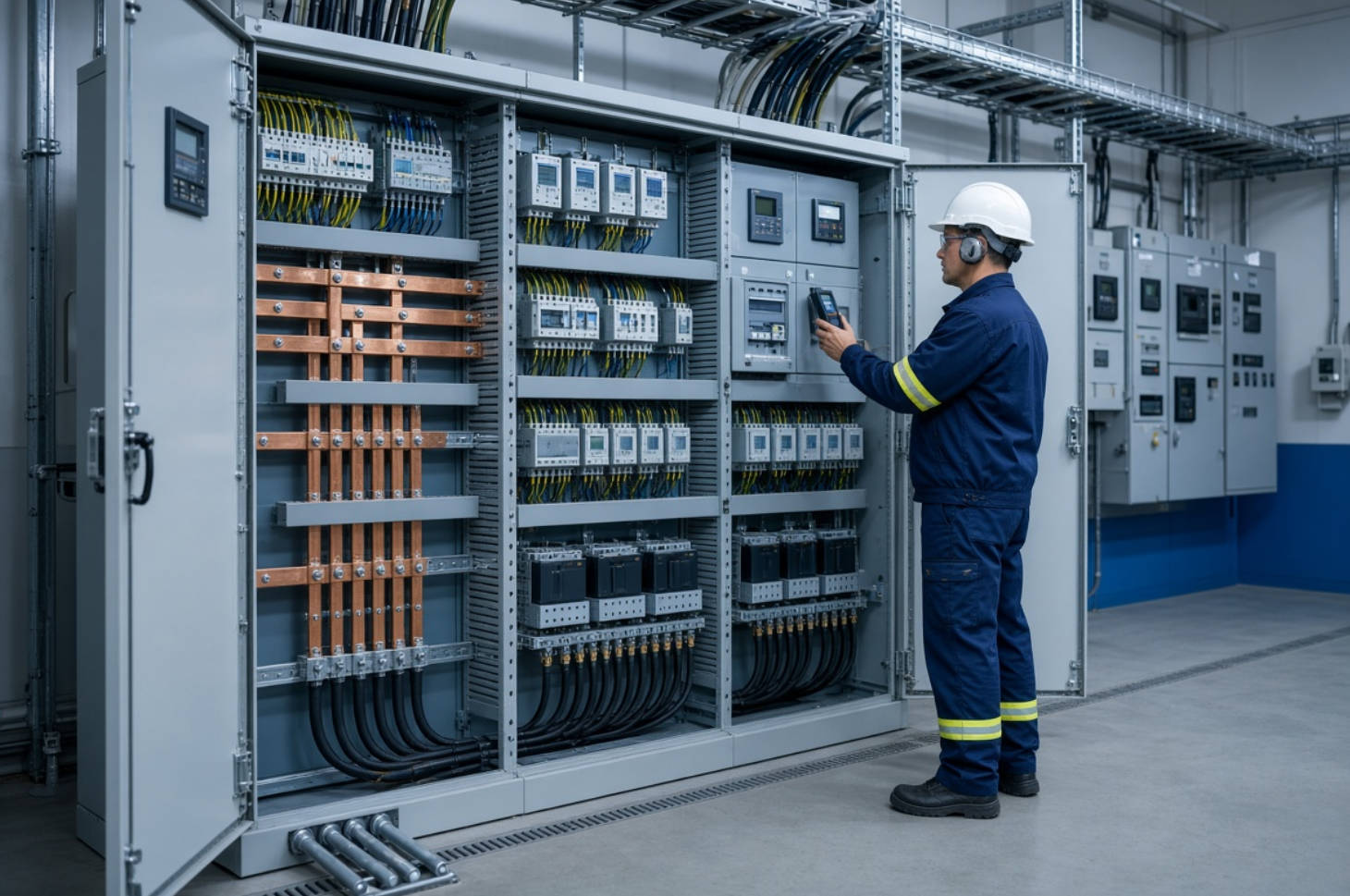

The best power factor correction method depends on whether the load is stable, variable, harmonic-rich, rapidly changing, or connected to a sensitive process. The following approaches are commonly used in industrial and infrastructure projects.
| Power Factor Correction Method | Best for | Main Benefit | Key Limitation |
|---|---|---|---|
| Fixed capacitor bank | Stable, continuous inductive loads | Simple and cost-effective | May overcompensate variable loads |
| Automatic capacitor bank | Facilities with changing load demand | Step-by-step kvar adjustment | Requires harmonic assessment |
| Detuned capacitor bank with reactor | Plants with VFDs, UPS, rectifiers, welders, or harmonic sources | Reduces resonance risk while correcting PF | Requires correct reactor selection |
| Tuned passive harmonic filter | Systems dominated by known harmonic orders | Corrects PF and filters selected harmonics | Less flexible for changing harmonic profiles |
| Static Var Generator (SVG) | Fast-changing, dynamic, or highly variable loads | Millisecond-level dynamic kvar compensation | Higher initial investment |
| Active Harmonic Filter (AHF) | Sites with severe harmonic distortion | Actively reduces harmonics and may provide reactive power support | Requires detailed sizing and measurement |
| Synchronous condenser | Large utility-scale or high-voltage applications | Strong dynamic voltage and reactive power support | Large footprint and maintenance requirements |
A fixed capacitor bank provides a constant amount of leading reactive power. It is suitable when an inductive load runs continuously and its kvar demand does not change significantly.
Typical applications include:
- Continuously operating induction motors
- Constant-speed pumps
- Fixed-load fans and blowers
- Small transformers with stable loading
- Dedicated production equipment with predictable operating hours
Fixed capacitor banks are economical and easy to implement. However, they should not be selected merely because they are low cost. If the connected load is frequently switched off, reduced, or operated intermittently, a fixed bank may cause overcompensation.
Overcompensation can lead to leading power factor, voltage rise, nuisance trips, and unstable automatic control behavior. For motor terminal compensation, the capacitor rating must also be carefully checked against the motor manufacturer's permitted kvar value to avoid self-excitation during coast-down conditions. [eaton]
Use a fixed capacitor bank when:
- The load profile is stable
- Harmonics are low or have been verified as acceptable
- The connected inductive equipment operates for long periods
- The compensation requirement is predictable
- The system has no major risk of resonance
An automatic power factor correction capacitor bank consists of multiple capacitor steps controlled by a power factor controller. The controller monitors the electrical system and automatically switches capacitor steps on or off according to reactive power demand.
This is one of the most widely used industrial power factor correction methods because most plants do not operate at one constant load level throughout the day.
An automatic capacitor bank is especially useful for facilities with:
- Multiple motors starting and stopping
- Production shifts with varying demand
- Changing HVAC loads
- Pumps and compressors operating in sequence
- Multiple process lines with intermittent operation
- Commercial or municipal loads that vary by time of day
A typical automatic power factor correction system includes:
- Power factor controller
- Capacitor steps
- Contactors or thyristor switching devices
- Fuses or circuit breakers
- Discharge resistors
- Current transformers
- Ventilated enclosure
- Optional detuned reactors
The controller compares actual power factor with the target power factor. When inductive reactive power rises, it connects capacitor steps. When the load falls, it disconnects unnecessary steps.
This staged approach helps maintain an efficient power factor while reducing the risk of leading power factor caused by excessive fixed compensation.
A conventional capacitor bank may be effective in a clean electrical network. However, it can become a reliability risk in facilities with significant nonlinear loads.
Nonlinear loads include:
- Variable-frequency drives
- Soft starters
- UPS systems
- Rectifiers
- Welding machines
- Induction furnaces
- Arc furnaces
- Battery chargers
- Data-center power supplies
- LED lighting drivers
- Large automation systems
These loads generate harmonic currents. When a standard capacitor bank is installed in a harmonic-rich system, the capacitor bank and upstream network inductance can form a resonant circuit. If the resonance point is close to a dominant harmonic frequency, harmonic current and voltage can be amplified rather than reduced. This can cause overheating, blown fuses, capacitor damage, contactor failures, transformer stress, nuisance trips, and reduced equipment life.

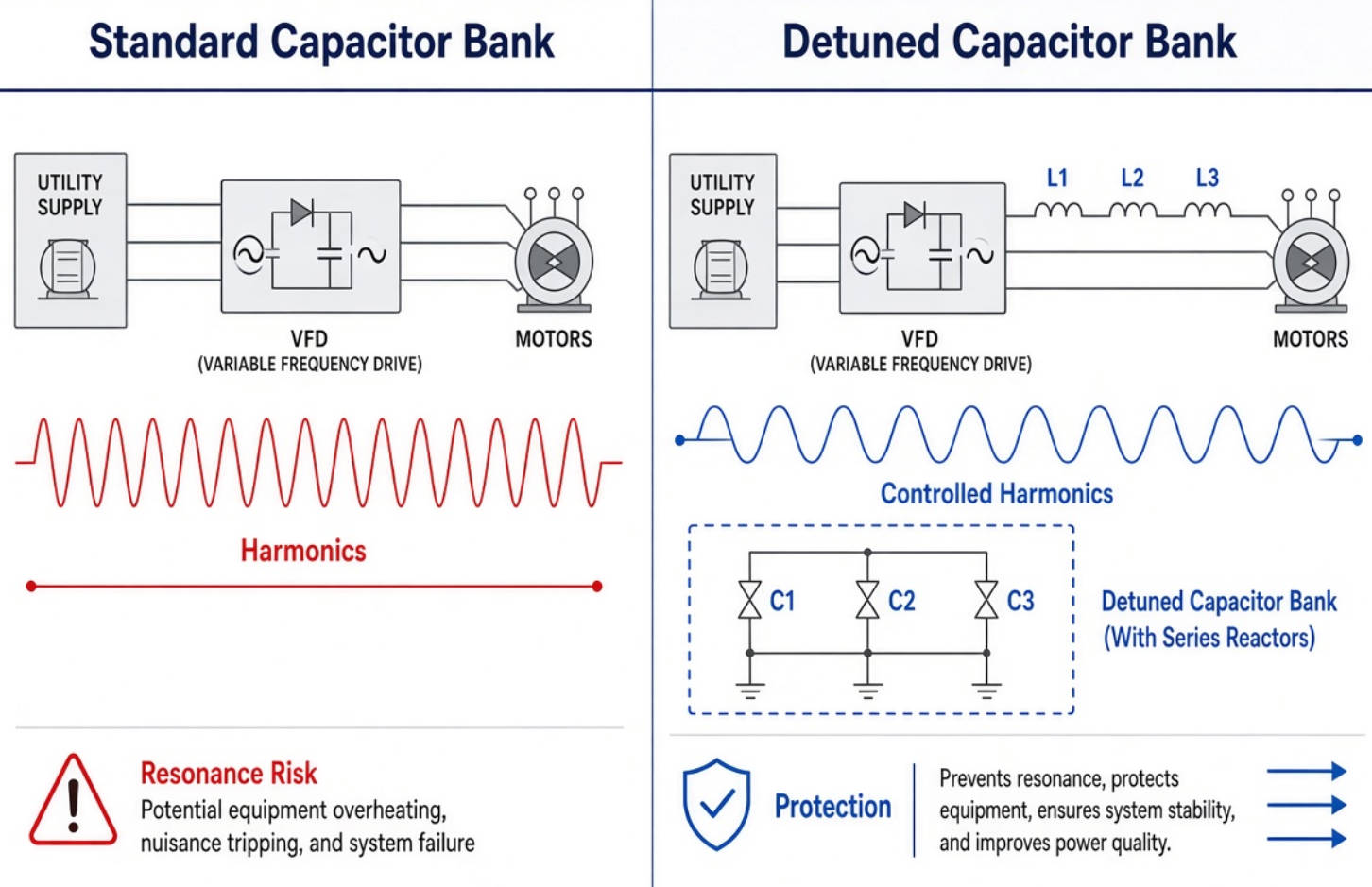

A detuned capacitor bank uses series reactors with capacitor steps. The reactor shifts the system resonance frequency away from harmful harmonic orders and helps prevent harmonic amplification.
Reactors are not optional accessories in many modern industrial power systems. They are often a critical design component.
Common reactor detuning values include:
- 5.67% or 7% reactors for systems where the fifth harmonic is a primary concern
- 14% reactors for systems where third-harmonic conditions require additional consideration
Industry guidance notes that reactors should be associated with capacitor banks in systems with significant nonlinear loads that generate harmonics. [www1.lk]
A detuned capacitor bank does not eliminate every harmonic. Instead, it protects the capacitor bank and the network by preventing the capacitor/reactor combination from amplifying harmonic currents.
If your facility uses VFDs, UPS systems, rectifiers, automated production equipment, or other nonlinear loads, do not select a standard capacitor bank based only on kvar capacity.
Before choosing the solution, evaluate:
1. Total installed transformer capacity
2. Maximum demand and load profile
3. Existing power factor
4. Harmonic current and voltage distortion
5. Dominant harmonic orders
6. Existing capacitors, filters, and reactors
7. Future expansion plans
8. Utility requirements at the point of common coupling
IEEE 519 provides design goals for managing voltage and current waveform distortion in electrical power systems, making it an important reference for facilities evaluating harmonic performance at the point of common coupling. [standards.ieee]
A Static Var Generator, or SVG, is an advanced electronic reactive power compensation device. Unlike conventional capacitor banks, SVG systems use power electronics to generate or absorb reactive power dynamically.
SVG technology is particularly suitable for rapidly changing loads and applications where traditional capacitor switching cannot respond fast enough.
Typical applications include:
- Arc furnaces
- Rolling mills
- Welding lines
- Cranes and hoists
- Large compressors
- Mining equipment
- Injection molding machines
- Automotive production lines
- Renewable-energy connections
- Data centers with changing load conditions
An SVG can provide several operational advantages:
- Fast response: Reactive power can be adjusted in milliseconds.
- Continuous compensation: It can provide smooth rather than step-based compensation.
- Bidirectional operation: It can supply capacitive or inductive reactive power when required.
- Better performance under dynamic loads: It responds effectively to rapid load fluctuations.
- Reduced overcompensation risk: It follows actual system demand more accurately.
- Voltage support: It can help improve voltage stability in weak or fluctuating networks.
For a facility where large loads switch rapidly, a conventional contactor-switched capacitor bank may repeatedly connect and disconnect stages, leading to wear, delayed compensation, and unstable power factor. An SVG can respond more precisely to this type of operating environment.
Power factor correction and harmonic mitigation are closely related, but they are not identical.
A conventional capacitor bank improves displacement power factor by offsetting inductive reactive power at the fundamental frequency. It does not directly remove harmonic currents generated by nonlinear loads. In fact, an improperly designed capacitor bank can worsen harmonic conditions through resonance. [keentelengineering]
An Active Harmonic Filter, or AHF, detects harmonic currents and injects equal-but-opposite compensating currents into the electrical system. This helps reduce harmonic distortion and can also provide reactive power compensation, depending on the selected configuration.
Consider an AHF when the facility experiences:
- High total harmonic current distortion
- Repeated capacitor bank failures
- Transformer overheating
- Frequent breaker trips
- Overloaded neutral conductors
- Unexplained equipment malfunction
- Sensitive PLC, automation, or communication-system issues
- Harmonic compliance requirements
- Expanding VFD, UPS, or rectifier loads
In many projects, the most reliable solution is not a single device. It may be a coordinated system combining:
- Detuned capacitor banks for economical baseline kvar compensation
- SVGs for fast-changing reactive power demand
- Active harmonic filters for harmonic current reduction
- Reactors for inrush limitation and resonance control
- Monitoring devices for continuous power-quality visibility
Accurate sizing is the foundation of a successful power factor correction project. Selecting a bank based only on transformer rating or a rough estimate may create overcompensation, insufficient correction, resonance, or poor return on investment.
The standard kvar calculation is:
Qc=P×(tanθ1−tanθ2)
Where:
- Qc = required capacitor capacity in kvar
- P = active power in kW
- θ1 = phase angle before correction
- θ2 = phase angle after correction
Assume a facility has:
- Active load: 500 kW
- Existing power factor: 0.75
- Target power factor: 0.95
The approximate reactive compensation requirement is:
Qc=500×(tancos−1(0.75)−tancos−1(0.95))
The result is approximately 267 kvar.
In practice, an engineer would not automatically select a single fixed 267 kvar capacitor bank. The final solution should consider load variation, switching steps, harmonics, future expansion, and the electrical system's impedance.
A possible engineering solution might include a 300 kvar automatic detuned capacitor bank with suitable step configuration, such as 25 kvar, 25 kvar, 50 kvar, 50 kvar, 50 kvar, 50 kvar, and 50 kvar. The final step arrangement depends on the actual load profile and control accuracy needed.
A reliable power factor correction project should follow a structured engineering process.
Collect at least several days of power-quality data where possible. For facilities with shift-based production, include normal, peak, and low-load operating periods.
Measure:
- kW, kvar, and kVA
- Power factor
- Maximum demand
- Voltage variation
- Current loading
- Harmonic distortion
- Individual harmonic orders
- Load changes over time
- Transformer loading
- Existing capacitor-bank operation
List equipment that may create harmonics, including VFDs, soft starters, UPS systems, welding machines, rectifiers, furnaces, and automated production lines.
This step determines whether the project requires a conventional capacitor bank, a detuned capacitor bank, a passive filter, an SVG, an AHF, or a hybrid solution.
The target should be based on practical operating needs, not only on the highest possible power factor.
Possible targets include:
- Reducing utility reactive-power charges
- Maintaining power factor above a utility threshold
- Releasing transformer capacity
- Improving voltage stability
- Preventing capacitor failures
- Reducing harmonic distortion
- Supporting future production expansion
- Improving compliance at the point of common coupling
Commissioning should include testing and measurement after installation. Confirm that the system is achieving the expected power factor and that it has not introduced unexpected harmonic amplification, leading power factor, overheating, or unstable switching behavior.
Different industries require different power factor correction strategies because their loads, harmonic profiles, and operating patterns vary significantly.
| Industry | Typical Power Quality Challenge | Recommended Approach |
|---|---|---|
| Metallurgy | Arc furnaces, rolling mills, large fluctuating loads | SVG, AHF, detuned capacitor bank, harmonic study |
| Petrochemical | Large motors, pumps, compressors, VFDs | Automatic detuned capacitor bank, SVG for dynamic loads |
| Automotive | Welding robots, servo systems, automation lines | Detuned capacitor banks, AHF, fast-response SVG |
| Paper manufacturing | Large drives, pumps, fans, refiners | Automatic capacitor bank with reactors, power monitoring |
| Textile | VFD-driven motors and changing production loads | Detuned APFC bank, SVG where load changes quickly |
| Building materials | Crushers, mills, kilns, conveyors | Detuned capacitor bank, harmonic filtering where needed |
| Municipal projects | Water pumps, HVAC, rail systems, lighting | Automatic PFC, SVG, AHF based on load profile |
| Renewable energy | Inverter-based generation and voltage fluctuation | SVG or STATCOM-type dynamic reactive support |
Avoiding common design errors can prevent costly capacitor failures and unplanned downtime.
- Selecting capacitors by kvar only: A correct kvar rating does not guarantee harmonic compatibility.
- Ignoring nonlinear loads: VFDs, rectifiers, and UPS systems can change the entire solution requirement.
- Installing standard capacitor banks in harmonic-rich systems: This can create resonance and amplify distortion.
- Targeting a leading power factor: Excessive compensation can cause voltage and control problems.
- Using too few capacitor steps: Large steps can cause poor control accuracy and frequent switching.
- Ignoring future expansion: A new production line may significantly increase harmonic load and reactive power demand.
- Skipping post-installation measurements: Commissioning data is essential to confirm real performance.
- Treating harmonics and power factor as the same issue: They are related but require different engineering responses.
DINGNUO ELECTRIC CO., Ltd. specializes in capacitors, reactors, reactive power compensation, and harmonic-control solutions for industrial and infrastructure applications.
Our engineering approach starts with the electrical reality of the customer's site. Instead of recommending a generic capacitor bank, we assess the operating load, power factor, harmonic environment, switching requirements, system capacity, and long-term expansion needs.
Our product and solution capabilities support applications including:
- Low-voltage and medium-voltage capacitor banks
- Automatic power factor correction panels
- Detuned reactor capacitor banks
- Harmonic filtering reactors
- Series reactors and line reactors
- Reactive power compensation systems
- Harmonic mitigation solutions
- Customized power-quality solutions for industrial projects
For facilities with demanding operating conditions, an integrated design combining capacitors, reactors, SVG technology, active harmonic filtering, and intelligent monitoring can deliver more reliable results than a conventional standalone capacitor bank.
The best power factor correction method depends on your load behavior and harmonic environment. A standard capacitor bank may be sufficient for a stable, low-harmonic load. However, a facility with VFDs, welding equipment, rectifiers, furnaces, UPS systems, or rapidly changing loads requires a more advanced solution.
For most modern industrial systems, the critical question is not simply, "How many kvar do we need?" It is:
How can we improve power factor while protecting equipment, avoiding resonance, controlling harmonics, and supporting future capacity growth?
DINGNUO ELECTRIC can help evaluate your electrical system and recommend a customized solution involving capacitor banks, detuned reactors, SVGs, active harmonic filters, or a hybrid power-quality architecture. Contact our technical team with your single-line diagram, transformer ratings, load list, utility bill data, and power-quality measurement results to begin an engineering assessment.
The best method depends on the factory's load profile and harmonic conditions. A conventional automatic capacitor bank may suit stable, low-harmonic facilities. For plants with VFDs, UPS systems, rectifiers, welding machines, or other nonlinear loads, a detuned capacitor bank with reactors is usually safer. Fast-changing loads may require an SVG, while high harmonic distortion may require an active harmonic filter.
Standard capacitor banks do not remove harmonic currents. They correct displacement power factor at the fundamental frequency. In a harmonic-rich system, an incorrectly designed capacitor bank can amplify harmonics through resonance. Detuned reactors, tuned passive filters, and active harmonic filters are used to manage harmonic-related risks.
Common causes include harmonic overload, resonance, excessive voltage, poor ventilation, unsuitable switching equipment, incorrect capacitor sizing, failed fuses, and insufficient maintenance. A harmonic survey and proper reactor selection are especially important in facilities with variable-frequency drives, rectifiers, and other nonlinear loads.
A capacitor bank supplies reactive power in fixed or switched steps. It is economical and effective for stable or moderately variable loads. An SVG uses power electronics to provide continuously variable reactive power with rapid response. SVGs are better suited to dynamic loads, fluctuating power factor, and applications where high-speed compensation is required.
A detuned reactor should be considered whenever the network contains significant nonlinear loads or harmonic-producing equipment, such as VFDs, UPS systems, rectifiers, welding machines, and furnaces. The reactor helps shift the resonance point away from dominant harmonic frequencies and protects the capacitor bank from excessive harmonic current.
A proper design should include transformer rating, voltage level, maximum demand, existing power factor, load profile, major motor and VFD ratings, harmonic measurement data, utility billing structure, existing compensation equipment, single-line diagrams, and future expansion plans. These inputs help determine the required kvar capacity, switching steps, reactor specification, and whether SVG or AHF technology is needed.
1. IEEE Standards Association. "IEEE 519-2022: Standard for Harmonic Control in Electric Power Systems." [https://standards.ieee.org/ieee/519/10677/]
2. Eaton. "Power Factor Correction: A Guide for the Plant Engineer." [https://www.eaton.com/content/dam/eaton/products/low-voltage-power-distribution-controls-systems/power-factor-corrections/portfolio/eaton-pfc-guide-plant-engineer-SA02607001E.pdf]
3. Schneider Electric. "Guide for the Design and Production of Low-Voltage Power Factor Correction Cubicles." [https://www1.lk.dk/flipbooks/Guide_for_the_Design_and_Production_of_LV_Power_Factor_Correction_Cubicles_2015/content/PB%20Guide%202015%20PFCED111008EN_V1.pdf]
4. REX Power Magnetics. "Understanding Harmonics in Power Systems: IEEE 519 Explained." [https://www.rexpowermagnetics.com/knowledge-hub/understanding-harmonics-in-power-systems-ieee-519-guidelines-explained/]
5. Power Quality Blog. "Harmonic Issues Related to Power Factor Correction." [https://powerquality.blog/2022/03/21/harmonic-issues-related-to-power-factor-correction/]
6. Keentel Engineering. "Capacitor Banks & Power Factor Correction Design Guide." [https://keentelengineering.com/capacitor-banks-power-factor-correction-guide]
