In harmonic suppression projects, the choice between a dry-type reactor and a high voltage reactor is not simply a choice between two competing products. They describe different aspects of reactor design: "dry-type" refers primarily to the insulation and cooling construction, while "high voltage" refers to the electrical system voltage and insulation-duty class.
For industrial power-quality systems, the correct solution must be selected around the harmonic spectrum, capacitor-bank configuration, system voltage, fault level, installation environment, thermal duty, and target performance at the point of common coupling (PCC). A properly engineered reactor can help prevent resonance, limit inrush current, protect capacitor banks, and support harmonic-control compliance.
Quick answer: A dry-type reactor is often the preferred construction for indoor medium-voltage harmonic filter and detuned capacitor-bank applications. A high voltage reactor is selected when the system's voltage level, insulation coordination, switching duty, and grid connection requirements demand a higher-voltage design. In many projects, the best solution is a high-voltage dry-type reactor.
A dry-type reactor is an electrical reactor that uses air, cast resin, or another solid insulation system instead of mineral oil for insulation and cooling. In harmonic suppression systems, dry-type reactors are commonly installed in series with capacitor banks to form detuned capacitor banks or tuned harmonic filters.
Unlike oil-immersed equipment, dry-type reactors do not require an oil tank, oil monitoring system, or oil containment arrangement. This makes them especially practical for indoor electrical rooms, commercial facilities, industrial plants, substations, and locations with stricter fire-safety requirements.
A dry-type reactor can be designed as:
- Air-core reactor
- Iron-core dry-type reactor
- Cast-resin reactor
- Series reactor
- Detuned reactor
- Filter reactor
- Current-limiting reactor
- Capacitor damping reactor
In medium-voltage harmonic filter applications, air-core dry-type reactors are widely used because they provide stable inductance characteristics and can be configured for harmonic filtering duties.

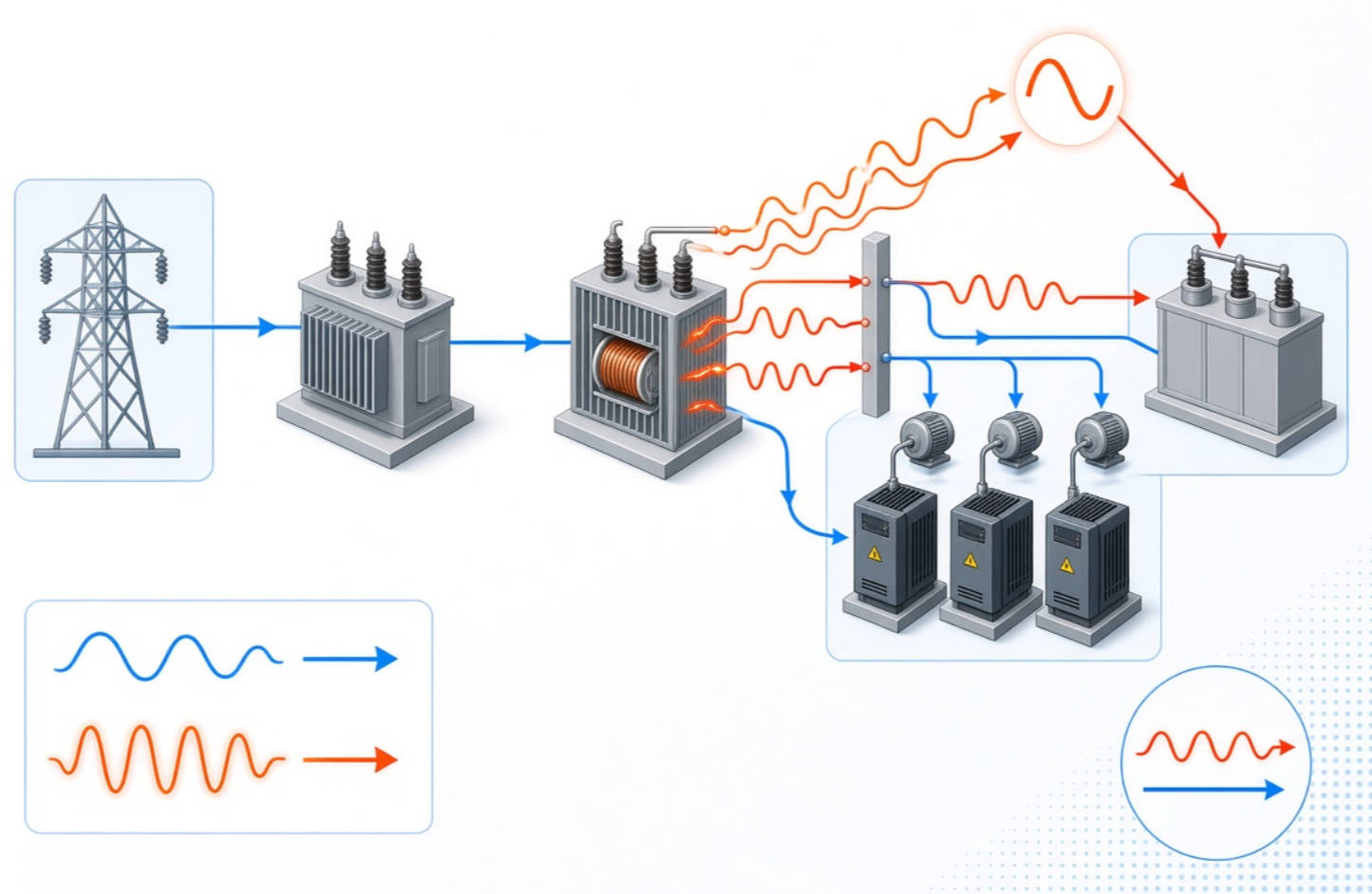

A dry-type reactor does not "remove" harmonics on its own in every application. Its harmonic-control function depends on how it is connected in the power system.
When installed in series with a capacitor bank, the reactor and capacitor create an LC circuit. The reactor adds inductive reactance, while the capacitor supplies capacitive reactance. By selecting the appropriate reactor percentage and capacitor rating, engineers can either:
- Detune the capacitor bank to avoid resonance with background harmonics.
- Create a tuned passive filter that attracts a target harmonic frequency.
- Reduce harmonic current flowing into the upstream power system.
- Limit capacitor-bank switching inrush current.
- Reduce capacitor overload caused by harmonic currents.
- Improve the operating reliability of reactive power compensation equipment.
For example, a detuned reactor may be paired with capacitors to shift the system resonance frequency below a dominant harmonic order. A tuned reactor-capacitor filter, by contrast, is designed to present a lower-impedance path near a selected harmonic frequency.
A high voltage reactor is a reactor designed for operation at a high system voltage. It may be dry-type or oil-immersed, air-core or iron-core, depending on the application, voltage class, insulation requirements, installation location, and utility or industrial specifications.
In practical procurement and engineering discussions, the term often refers to reactors used in higher-voltage networks, such as:
- High-voltage transmission and subtransmission systems
- Utility substations
- Large industrial substations
- High-voltage capacitor-bank installations
- High-voltage harmonic filter banks
- Long cable or transmission-line reactive power compensation
- Grid-connected renewable-energy facilities
- HVDC and industrial smoothing applications
IEC 60076-6 covers a broad range of power reactor types, including shunt reactors, series reactors, filter or tuning reactors, capacitor damping reactors, capacitor discharge reactors, and smoothing reactors used in HVDC and industrial applications.
A common mistake is to assume that a high voltage reactor will deliver better harmonic suppression than a dry-type reactor. This comparison is technically incomplete.
A reactor's harmonic performance depends on factors such as:
- Inductance value
- Tuning frequency
- Reactor linearity
- Harmonic current rating
- Capacitor-bank parameters
- Network impedance
- Short-circuit capacity
- Background voltage distortion
- Nonlinear load profile
- Filter quality factor
- Switching and transient conditions
A high voltage reactor may be essential because the installation operates at a higher voltage level. However, voltage class alone does not determine whether the filter will control the 5th, 7th, 11th, 13th, or other harmonic orders effectively.
The right question is not "Which reactor is better?" It is: "Which reactor construction and voltage class will deliver the required harmonic-control performance under this system's real operating conditions?"
The table below clarifies the most important differences for engineers, EPC contractors, panel builders, and industrial facility owners.
| Comparison Factor | Dry-Type Reactor | High Voltage Reactor |
|---|---|---|
| Primary definition | Defined by insulation and cooling method | Defined by system voltage and insulation-duty class |
| Typical construction | Air-core, cast-resin, or dry insulated | May be dry-type or oil-immersed |
| Typical installation | Indoor switchrooms, capacitor panels, industrial plants, MV substations | HV substations, transmission facilities, large industrial systems, grid-connected projects |
| Harmonic suppression role | Commonly used in detuned capacitor banks and harmonic filters | Used when filtering or compensation is required at higher voltage levels |
| Fire and environmental profile | No insulating oil; lower oil-related fire and leakage concerns | Depends on construction; oil-immersed units may require fire and spill-control measures |
| Cooling method | Natural air, forced air, or solid insulation thermal design | Air, oil, or other engineered cooling arrangements |
| Maintenance approach | Generally simpler because there is no oil testing or oil handling | Varies by design; oil-filled equipment may require additional condition monitoring |
| Voltage capability | Can be designed for low, medium, and certain high-voltage duties | Specifically engineered for high-voltage electrical stress and insulation coordination |
| Typical harmonic filter use | Very common for medium-voltage air-core filter reactors | Used for high-voltage harmonic filters and large utility-scale compensation systems |
| Selection priority | Safety, indoor installation, thermal capacity, filter tuning, space | Voltage class, insulation level, switching duty, system reliability, grid requirements |
The key takeaway is that dry-type and high voltage are not mutually exclusive categories. A project can use a dry-type reactor at high voltage if that construction satisfies insulation coordination, thermal duty, harmonic current, mechanical strength, and installation requirements.
For harmonic suppression, the reactor must provide the intended inductance under real operating conditions. If the inductance shifts significantly because of temperature, magnetic saturation, manufacturing tolerance, or system frequency changes, the passive filter's tuning point can move away from the target harmonic order.
This can reduce performance or, in severe cases, introduce resonance risk.
Air-core dry-type reactors are often valued in harmonic filter applications because they avoid iron-core saturation effects. Their inductance can remain relatively predictable across a broad current range when they are correctly designed for the duty.
However, this does not mean every air-core design is automatically superior. The reactor must still be engineered for:
- Continuous fundamental current
- Harmonic RMS current
- Peak current
- Short-time fault current
- Thermal losses
- Electrodynamic force
- Insulation level
- Creepage distance
- Partial-discharge performance where applicable
- Site ambient temperature and altitude
Harmonic currents create additional losses in reactors, capacitor banks, cables, busbars, and switchgear. A reactor that appears correctly sized for fundamental-frequency current may still overheat if engineers fail to account for harmonic RMS current and high-frequency losses.
This is particularly important in facilities with:
- Variable frequency drives
- Arc furnaces
- Welding equipment
- UPS systems
- Rectifiers
- Rolling mills
- Large compressors
- Data centers
- Electrolysis equipment
- Renewable-energy inverters
A high-voltage reactor must manage these thermal stresses while also meeting a higher insulation requirement. A dry-type reactor installed indoors must additionally account for ventilation, enclosure temperature rise, dust accumulation, clearance, and airflow paths.
Expert recommendation: Do not select a reactor based only on kvar, voltage, or detuning percentage. Require a complete thermal-duty review that includes expected harmonic current spectrum and worst-case operating temperature.

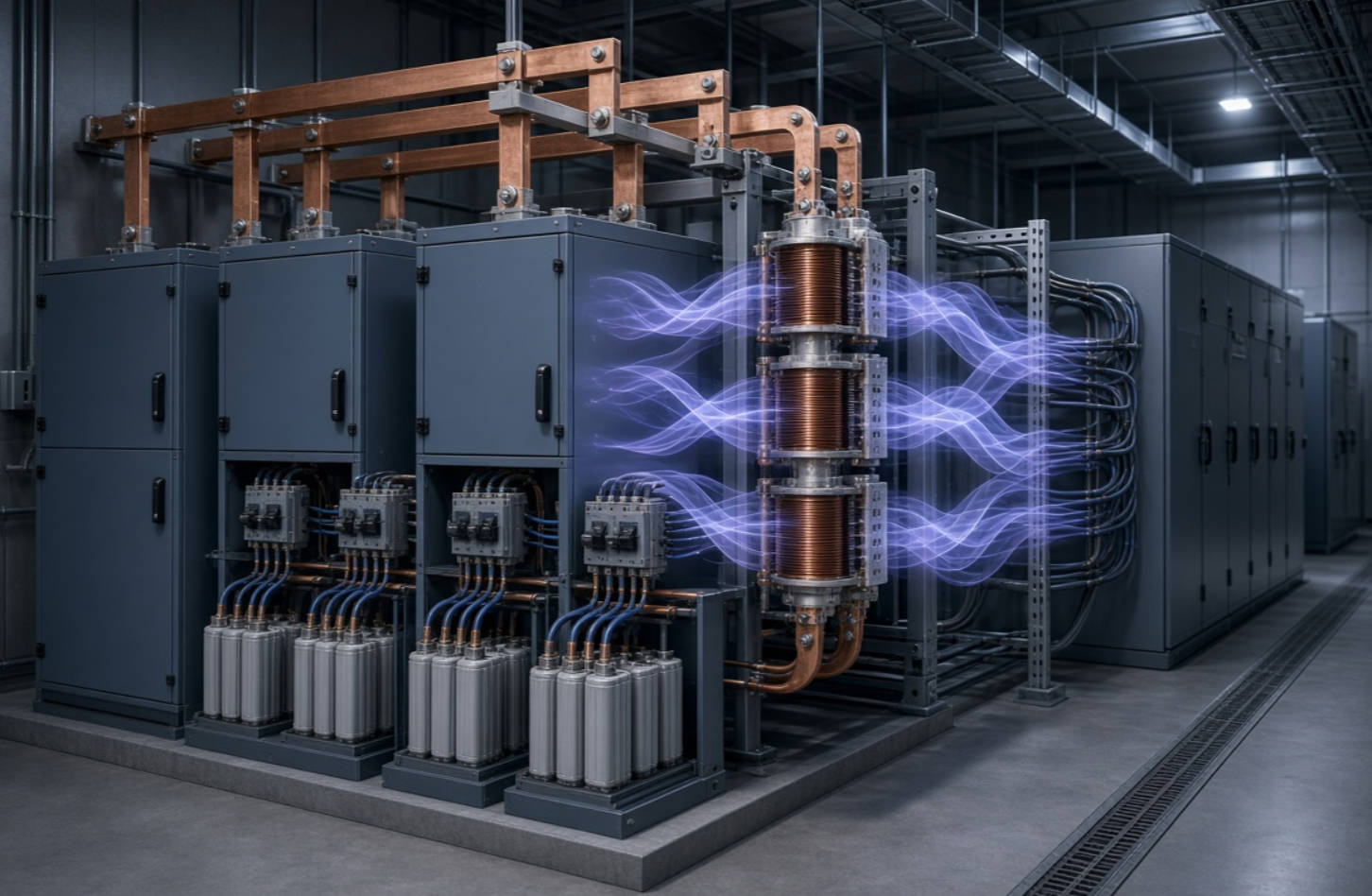

Capacitor banks can interact with network inductance and create parallel or series resonance at frequencies close to dominant harmonics. This can amplify harmonic voltage or current instead of reducing it.
Detuned reactors are therefore commonly installed in capacitor banks to prevent the capacitor bank from becoming a harmonic-amplification point. Air-core reactors are used with capacitor banks for purposes including inrush-current limitation, fault-related outrush-current reduction, detuning to avoid network resonance, and harmonic filtering.
A well-designed detuned capacitor bank can provide reactive power compensation while reducing the risk that capacitors absorb excessive harmonic current.
A dry-type reactor is usually a strong choice when your project involves indoor installation, medium-voltage capacitor banks, distribution-level harmonic filtering, or industrial electrical rooms.
Consider a dry-type reactor if you need:
- A solution without insulating oil
- Easier installation in indoor environments
- A reactor for detuned capacitor-bank applications
- An air-core design for harmonic filter duty
- Strong thermal performance with natural or forced-air cooling
- Lower routine maintenance related to liquid insulation
- A compact power-quality solution for industrial distribution systems
Typical industries include automotive manufacturing, textile processing, paper production, petrochemical facilities, cement plants, metallurgy, water treatment, and commercial buildings with high nonlinear-load density.
A high-voltage reactor is the appropriate direction when the electrical system operates at a higher voltage level and the project requires higher insulation coordination, greater electrical clearance, stronger switching-duty capability, and utility-grade reliability.
Consider a high-voltage reactor when you need:
- Harmonic control on a high-voltage bus
- Reactive power compensation in a large substation
- A high-voltage tuned filter bank
- Line or cable charging-current control
- Large-scale renewable-energy grid connection support
- High-voltage capacitor-bank protection
- Utility or transmission-level reactive power management
The final construction may still be dry-type, particularly for air-core harmonic filter reactors. In other cases, an oil-immersed design may be selected to suit the installation environment, voltage level, cooling requirement, and client specification.
The most reliable harmonic suppression projects begin with power-system analysis, not product selection.
Collect site data before specifying a reactor:
- Voltage THD
- Current THD or total demand distortion
- Individual harmonic orders
- Load profile by operating shift
- Capacitor-bank operating status
- Transformer loading
- System fault level
- Existing filter and reactor parameters
- Switching-event records
Harmonic limits and compliance assessments should be evaluated at the point of common coupling, rather than incorrectly applying the same limits to every individual device within a facility.
Typical sources include six-pulse and twelve-pulse rectifiers, VFDs, UPS units, arc furnaces, welding systems, and inverter-based resources.
A facility with many six-pulse drives may show prominent 5th and 7th harmonic components. A facility with more complex converter equipment may require a wider harmonic study rather than a single-filter solution.
A qualified engineering team should model the network and study impedance versus frequency. The goal is to identify potential resonant frequencies before the capacitor bank or filter is installed.
The analysis should answer:
1. Which harmonic orders are dominant?
2. Where are the nonlinear loads located?
3. What is the network impedance at the proposed installation point?
4. Will the capacitor bank create a parallel resonance condition?
5. What reactor percentage or tuned frequency is appropriate?
6. Can the reactor and capacitor withstand the predicted harmonic current?
A technically complete specification should include:
- Rated voltage
- Rated current
- Inductance or reactance value
- Reactor percentage
- Fundamental frequency
- Tuned frequency, where applicable
- Harmonic current spectrum
- Insulation level
- Temperature-rise limit
- Cooling method
- Installation type
- Short-circuit withstand capability
- Standards and required routine tests
- Noise requirement
- Altitude and ambient temperature
- Capacitor-bank arrangement
After installation, repeat power-quality measurements under normal and maximum-load conditions. Confirm that:
- Capacitor current remains within design limits.
- Reactor temperatures are acceptable.
- Harmonic distortion improves at the PCC.
- No unexpected resonance appears.
- Power factor correction operates as expected.
- Filter switching does not cause unacceptable transients.
A reactor matched only to capacitor-bank kvar and nominal voltage may fail to address actual harmonic conditions. Harmonic filtering is a system-level design task.
A facility may add drives, production lines, rectifiers, charging equipment, or renewable generation after the original installation. These changes can alter the harmonic spectrum and fault level.
Specify reasonable design margin and ask whether the filter can be expanded or retuned later.
A detuned capacitor bank can prevent harmful resonance and protect capacitors, but it may not deliver sufficient reduction for a severe dominant harmonic problem. In those cases, a properly tuned passive filter, active harmonic filter, or hybrid solution may be necessary.
Dry-type reactors require appropriate clearance, ventilation, and temperature management. High-voltage designs require careful attention to insulation coordination, electrical clearances, support structure, and switching transients.
For power-quality applications in metallurgy, petrochemical processing, automotive production, paper manufacturing, textile operations, building-material production, and municipal infrastructure, reactor selection should be based on the actual electrical environment rather than a generic catalog configuration.
DINGNUO ELECTRIC CO., Ltd. provides reactive power compensation and harmonic-control solutions designed around industrial operating conditions. A project-oriented approach can help customers match dry-type reactors, high-voltage reactors, capacitor banks, detuned compensation systems, and harmonic-filter configurations to their network requirements.
A complete engineering discussion should include your single-line diagram, voltage level, transformer capacity, capacitor-bank data, nonlinear-load profile, harmonic test report, installation layout, and target power-quality objective.
Choosing between a dry-type reactor and a high voltage reactor should start with your electrical-system data—not with a generic product comparison.
Contact DINGNUO ELECTRIC CO., Ltd. for a harmonic suppression assessment and reactor selection recommendation. Share your system voltage, capacitor-bank capacity, load type, harmonic measurement report, and installation conditions. Our technical team can help define a practical solution for reactive power compensation, resonance prevention, and harmonic control.
Yes. A dry-type reactor can be engineered for high-voltage applications if it meets the required insulation level, electrical clearance, thermal capacity, mechanical strength, and harmonic-current duty. "Dry-type" describes the construction, while "high voltage" describes the electrical application level.
Neither is automatically better in every case. Dry-type reactors are often preferred for indoor installations, air-core filter duty, and projects that avoid insulating oil. Oil-immersed reactors may be selected for certain outdoor, high-voltage, or high-capacity applications. The decision should be based on system design and installation conditions.
A detuned reactor is connected in series with capacitors to shift the resonance frequency of the capacitor bank. Its main purpose is to prevent the capacitor bank from resonating with grid harmonics and to reduce the risk of capacitor overload or damage.
No. A reactor alone does not eliminate every harmonic. In a detuned capacitor bank, it mainly prevents resonance and protects the compensation system. In a tuned passive filter, it works with capacitors to reduce selected harmonic frequencies. Complex harmonic conditions may require active or hybrid filtering solutions.
The answer depends on the facility's nonlinear loads. Common harmonic orders include the 5th, 7th, 11th, and 13th, especially in systems with six-pulse converter loads. A harmonic measurement and engineering study should determine the actual spectrum before finalizing reactor parameters.
Without harmonic analysis, adding capacitors can unintentionally create resonance with the electrical network. This can increase harmonic voltage and current, overheat capacitors and reactors, trip protective devices, and shorten equipment life.
Provide nominal voltage, frequency, transformer capacity, short-circuit level, capacitor-bank kvar, single-line diagram, load profile, nonlinear equipment list, harmonic measurement data, installation location, ambient temperature, altitude, and relevant technical standards.
